Exploded view SHARP KH-6I23BS00-EU KH.6I23BS00.EU KH6I23BS00EU

Discover the complete exploded view SHARP KH-6I23BS00-EU KH.6I23BS00.EU KH6I23BS00EU, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of. Quickly find the parts you need to extend the life of your SHARP KH-6I23BS00-EU KH.6I23BS00.EU KH6I23BS00EU and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

KIT Plaque ENCASTREMENT (4 supports + 4 vis )
KIT Plaque ENCASTREMENT (4 supports + 4 vis )
Indicative price: 11.05 €
CABLAGE Plaque
CABLAGE Plaque
Indicative price: 82.03 €
NOTICE Plaque UTILISATION
NOTICE Plaque UTILISATION
Indicative price: 9.81 €
VIS Cuisinière SUPPORT RESISTANCE Supérieur
VIS Cuisinière SUPPORT RESISTANCE Supérieur
Position: 4
Indicative price: 2.72 €
BORNIER Plaque Alimentation
BORNIER Plaque Alimentation
Position: 30
Indicative price: 18.03 €
CABLE Cuisinière Alimentation 3*2.5 1.1m
CABLE Cuisinière Alimentation 3*2.5 1.1m
Position: 31
Indicative price: 16.04 €
TOLE Plaque INFERIEURE
TOLE Plaque INFERIEURE
Position: 45
Indicative price: 41.03 €
GRATTOIR Plaque OPTION VITRO CERAMIQUE
GRATTOIR Plaque OPTION VITRO CERAMIQUE
Position: 186
Indicative price: 5.29 €
SUPPORT Plaque PLAQUE remplace par KIT
SUPPORT Plaque PLAQUE remplace par KIT
Position: 222
Indicative price: 11.6 €
TAQUE Plaque VITRO NOIRE 3I 590*520 SHARP
TAQUE Plaque VITRO NOIRE 3I 590*520 SHARP
Position: 249
Indicative price: 106.28 €
SUPPORT Plaque PLATINE COMMANDE
SUPPORT Plaque PLATINE COMMANDE
Position: 429
Indicative price: 31.25 €
PLATINE Plaque COMMANDE FR07
PLATINE Plaque COMMANDE FR07
Position: 517
Indicative price: 76.07 €
INDUCTEUR Plaque 200MM
INDUCTEUR Plaque 200MM
Position: 518
Indicative price: 66.29 €
INDUCTEUR Plaque 160MM
INDUCTEUR Plaque 160MM
Position: 518
Indicative price: 61.87 €
INDUCTEUR Plaque 250MM
INDUCTEUR Plaque 250MM
Position: 518
Indicative price: 154.19 €
VENTILATEUR Plaque 12V 0.44A BFB1012L-DQ25
VENTILATEUR Plaque 12V 0.44A BFB1012L-DQ25
Position: 519
Indicative price: 39.67 €
COLLIER Plaque CABLE
COLLIER Plaque CABLE
Position: 521
Indicative price: 10.2 €
VIS Plaque 4*10
VIS Plaque 4*10
Position: 523
Indicative price: 2.28 €
VIS Plaque 3*6,5
VIS Plaque 3*6,5
Position: 536
Indicative price: 2.63 €
CABLE Plaque PLATINE/INDUCTEUR 32016065 210mm
CABLE Plaque PLATINE/INDUCTEUR 32016065 210mm
Position: 554
Indicative price: 27.02 €
CABLE Plaque PLATINE/INDUCTEUR 32016064
CABLE Plaque PLATINE/INDUCTEUR 32016064
Position: 554
Indicative price: 24.73 €
CABLE Plaque MARRON 140
CABLE Plaque MARRON 140
Position: 555
Indicative price: 9.72 €
CABLE Plaque
CABLE Plaque
Position: 555
Indicative price: 6.7 €
CABLE Plaque MARRON 440
CABLE Plaque MARRON 440
Position: 555
Indicative price: 9.03 €
CABLE Plaque BLEU 480
CABLE Plaque BLEU 480
Position: 555
Indicative price: 9.9 €
CABLE Plaque VERT/JAUNE 580
CABLE Plaque VERT/JAUNE 580
Position: 555
Indicative price: 9.54 €
CABLE Plaque BLEU 140
CABLE Plaque BLEU 140
Position: 555
Indicative price: 8.92 €
PLATINE Plaque PUISSANCE 2 INDUCTEURS 200+160 23103999
PLATINE Plaque PUISSANCE 2 INDUCTEURS 200+160 23103999
Position: 556
Indicative price: 167.11 €

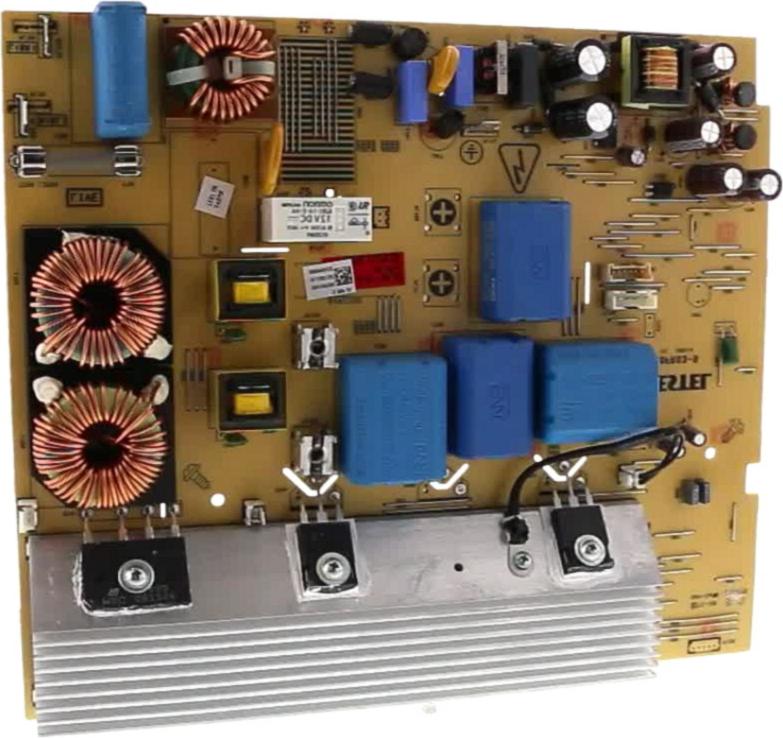

PLATINE Plaque PUISSANCE 250
PLATINE Plaque PUISSANCE 250
Position: 556
Indicative price: 122.16 €
SUPPORT Plaque INDUCTEUR
SUPPORT Plaque INDUCTEUR
Position: 557
Indicative price: 25.29 €
