Exploded view ELF1014-8S ELF10148S 8010818 812709

Discover the complete exploded view ELF1014-8S ELF10148S 8010818 812709, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of. Quickly find the parts you need to extend the life of your ELF1014-8S ELF10148S 8010818 812709 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

DESSUS Lave-Linge COUVERCLE
DESSUS Lave-Linge COUVERCLE
Position: 2
Indicative price: 58.73 €
PIED Lave-Linge + ECROU M10
PIED Lave-Linge + ECROU M10
Position: 5
Indicative price: 7.57 €
ENJOLIVEUR Lave-Linge HUBLOT C50 C51 SILVER
ENJOLIVEUR Lave-Linge HUBLOT C50 C51 SILVER
Position: 6
Indicative price: 27.24 €
HUBLOT Lave-Linge VERRE 352mm h=108mm
HUBLOT Lave-Linge VERRE 352mm h=108mm
Position: 7
Indicative price: 27.97 €
Contre porte Lave-Linge HUBLOT GRISE 5.0
Contre porte Lave-Linge HUBLOT GRISE 5.0
Position: 8
Indicative price: 23.13 €
COLLIER Lave-Linge JOINT HUBLOT/FACADE
COLLIER Lave-Linge JOINT HUBLOT/FACADE
Position: 9
Indicative price: 10.8 €
SECURITE Lave-Linge PORTE ROLD DKS12 05978 OUVERTURE IMMEDIATE
SECURITE Lave-Linge PORTE ROLD DKS12 05978 OUVERTURE IMMEDIATE
Position: 10
Indicative price: 25.93 €
CHARNIERE Lave-Linge HUBLOT
CHARNIERE Lave-Linge HUBLOT
Position: 12
Indicative price: 26.98 €
AXE Lave-Linge Charnière HUBLOT UNITAIRE
AXE Lave-Linge Charnière HUBLOT UNITAIRE
Position: 13
Indicative price: 4.77 €
CROCHET Lave-Linge HUBLOT FIXE
CROCHET Lave-Linge HUBLOT FIXE
Position: 17
Indicative price: 10.28 €
TUYAU Lave-Linge ARRIVEE EAU
TUYAU Lave-Linge ARRIVEE EAU
Position: 20
Indicative price: 14.66 €
TRAVERSE Lave-Linge Supérieur AVANT
TRAVERSE Lave-Linge Supérieur AVANT
Position: 24
Indicative price: 15.18 €
AXE Lave-Linge CROCHET POIGNEE PORTE 32mm 3.86mm
AXE Lave-Linge CROCHET POIGNEE PORTE 32mm 3.86mm
Position: 27
Indicative price: 3.82 €
VIS Lave-Linge 3.5*16
VIS Lave-Linge 3.5*16
Position: 28
Indicative price: 3.72 €
CONTRE Lave-Linge CHARNIERE LC-470
CONTRE Lave-Linge CHARNIERE LC-470
Position: 33
Indicative price: 4.8 €
COURROIE Lave-Linge 1234J5EL 5PJE1234
COURROIE Lave-Linge 1234J5EL 5PJE1234
Position: 100
Indicative price: 20.96 €
POULIE Lave-Linge TAMBOUR ALVA AXE=16mm
POULIE Lave-Linge TAMBOUR ALVA AXE=16mm
Position: 101
Indicative price: 27.15 €
MOTEUR Lave-Linge BLDC SPOKE 32MM
MOTEUR Lave-Linge BLDC SPOKE 32MM
Position: 102
Indicative price: 92.37 €
CUVE Lave-Linge 1/2 ARRIERE 52/57C4 Four VWM-42A13 ALVA10
CUVE Lave-Linge 1/2 ARRIERE 52/57C4 Four VWM-42A13 ALVA10
Position: 103
Indicative price: 80.9 €
AMORTISSEUR Lave-Linge 120N 9
AMORTISSEUR Lave-Linge 120N 9
Position: 104
Indicative price: 21.18 €
AXE Lave-Linge AMORTISSEUR
AXE Lave-Linge AMORTISSEUR
Position: 105
Indicative price: 5.59 €
Contre-poids Lave-Linge Supérieur
Contre-poids Lave-Linge Supérieur
Position: 112
Indicative price: 49.56 €
JOINT Lave-Linge 1/2 CUVE AV/CUVE ARR
JOINT Lave-Linge 1/2 CUVE AV/CUVE ARR
Position: 113
Indicative price: 18.26 €
CLIPS Lave-Linge FIXATION RESISTANCE
CLIPS Lave-Linge FIXATION RESISTANCE
Position: 115
Indicative price: 9.33 €
CUVE Lave-Linge 1/2 AVANT
CUVE Lave-Linge 1/2 AVANT
Position: 117
Indicative price: 61.93 €
JOINT Lave-Linge HUBLOT
JOINT Lave-Linge HUBLOT
Position: 118
Indicative price: 38.66 €
COLLIER Lave-Linge JOINT/CUVE
COLLIER Lave-Linge JOINT/CUVE
Position: 119
Indicative price: 10.23 €
RESISTANCE Lave-Linge 2000W + SONDE
RESISTANCE Lave-Linge 2000W + SONDE
Position: 121
Indicative price: 38.86 €
TAMBOUR Lave-Linge 62-FC-4-SK axe=37046059
TAMBOUR Lave-Linge 62-FC-4-SK axe=37046059
Position: 160
Indicative price: 131.58 €
DURITE Lave-Linge BOITE LESSIVE / CUVE
DURITE Lave-Linge BOITE LESSIVE / CUVE
Position: 206
Indicative price: 14.61 €
DURITE Lave-Linge EV/BAC Lessive 265mm
DURITE Lave-Linge EV/BAC Lessive 265mm
Position: 207
Indicative price: 5.11 €
TUYAU Lave-Linge EV/BOITE Lessive 240mm
TUYAU Lave-Linge EV/BOITE Lessive 240mm
Position: 208
Indicative price: 6.43 €
ELECTROVANNE Lave-Linge 2V RAST-2.5
ELECTROVANNE Lave-Linge 2V RAST-2.5
Position: 209
Indicative price: 31.54 €
DURITE Lave-Linge PRESSOSTAT 577mm
DURITE Lave-Linge PRESSOSTAT 577mm
Position: 211
Indicative price: 28.56 €
DURITE Lave-Linge CUVE/PV
DURITE Lave-Linge CUVE/PV
Position: 213
Indicative price: 24.61 €
SYPHON Lave-Linge BLEU 214
SYPHON Lave-Linge BLEU 214
Position: 214
Indicative price: 18.06 €
CONDO Lave-Linge ANTIPARASITE AERODEV DNF06-P 2x2mH+0.47uF +1uF +330kohm +2x27nF
CONDO Lave-Linge ANTIPARASITE AERODEV DNF06-P 2x2mH+0.47uF +1uF +330kohm +2x27nF
Position: 215
Indicative price: 17.17 €
TUYAU Lave-Linge VIDANGE
TUYAU Lave-Linge VIDANGE
Position: 219
Indicative price: 17.06 €
SUPPORT Lave-Linge TUYAU VIDANGE
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 220
Indicative price: 9.69 €
ENTRETOISE Lave-Linge RESSORT/MEUBLE
ENTRETOISE Lave-Linge RESSORT/MEUBLE
Position: 221
Indicative price: 6.36 €
PRESSOSTAT Lave-Linge ELECTRONIQUE
PRESSOSTAT Lave-Linge ELECTRONIQUE
Position: 225
Indicative price: 37.68 €
COLLIER Lave-Linge TUYAU
COLLIER Lave-Linge TUYAU
Position: 228
Indicative price: 8.68 €
TRAVERSE Lave-Linge SUPPORT RESSORTS SUSPENSION
TRAVERSE Lave-Linge SUPPORT RESSORTS SUSPENSION
Position: 231
Indicative price: 12.6 €
COLLIER Lave-Linge PV/TUYAU VID 34.1mm
COLLIER Lave-Linge PV/TUYAU VID 34.1mm
Position: 234
Indicative price: 6.14 €
COLLIER Lave-Linge TUYAU VIDANGE
COLLIER Lave-Linge TUYAU VIDANGE
Position: 235
Indicative price: 5.28 €
CABLE Lave-Linge ALIMENTATION COSSES COUDEES 3G1 1m50
CABLE Lave-Linge ALIMENTATION COSSES COUDEES 3G1 1m50
Position: 239
Indicative price: 18.97 €
COLLIER Lave-Linge DURITE PRESSOSTAT
COLLIER Lave-Linge DURITE PRESSOSTAT
Position: 244
Indicative price: 2.61 €
BOITE Lave-Linge LESSIVE COMPLETE 6
BOITE Lave-Linge LESSIVE COMPLETE 6
Position: 270
Indicative price: 51.82 €
POMPE Lave-Linge VIDANGE LEILI
POMPE Lave-Linge VIDANGE LEILI
Position: 285
Indicative price: 42.77 €
KIT Lave-Linge BRIDAGE UNITAIRE
KIT Lave-Linge BRIDAGE UNITAIRE
Position: 290
Indicative price: 11.34 €
DURITE Lave-Linge CUVE/PV + CHAMBRE COMPRESSION + TUYAU PRESSOSTAT
DURITE Lave-Linge CUVE/PV + CHAMBRE COMPRESSION + TUYAU PRESSOSTAT
Position: 295
Indicative price: 25.77 €

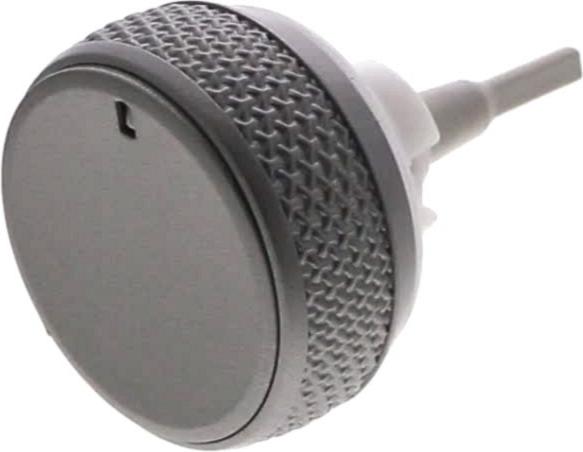

MANETTE Lave-Linge Programmateur K4
MANETTE Lave-Linge Programmateur K4
Position: 402
Indicative price: 15.6 €
AXE Lave-Linge MANETTE Programmateur
AXE Lave-Linge MANETTE Programmateur
Position: 403
Indicative price: 3.41 €
VIS Lave-Linge 4*12 TORX
VIS Lave-Linge 4*12 TORX
Position: 410
Indicative price: 2.63 €
BOITIER Lave-Linge PLATINE T
BOITIER Lave-Linge PLATINE T
Position: 411
Indicative price: 16.3 €
PLATINE Lave-Linge DISPLAY T3 T2367 V17.7 VESTEL
PLATINE Lave-Linge DISPLAY T3 T2367 V17.7 VESTEL
Position: 419
Indicative price: 47.11 €
SUPPORT Lave-Linge INTERNE PLATINE DISPLAY T3
SUPPORT Lave-Linge INTERNE PLATINE DISPLAY T3
Position: 422
Indicative price: 13.12 €
SUPPORT Lave-Linge EXTERNE PLATINE DISPLAY T3-T20
SUPPORT Lave-Linge EXTERNE PLATINE DISPLAY T3-T20
Position: 424
Indicative price: 5.57 €
DOUILLE Lave-Linge RESSORT/CUVE
DOUILLE Lave-Linge RESSORT/CUVE
Position: 700
Indicative price: 4.75 €
SUPPORT Lave-Linge CACHE POMPE
SUPPORT Lave-Linge CACHE POMPE
Position: 701
Indicative price: 8.04 €
CACHE Lave-Linge POMPE VIDANGE
CACHE Lave-Linge POMPE VIDANGE
Position: 702
Indicative price: 13.64 €
RESSORT Lave-Linge SUSPENSION CUVE
RESSORT Lave-Linge SUSPENSION CUVE
Position: 800
Indicative price: 14.74 €
VIS Lave-Linge Contre-poids AVANT 10*52
VIS Lave-Linge Contre-poids AVANT 10*52
Position: 805
Indicative price: 5.66 €
RONDELLE Lave-Linge Contre-poids AVANT 28*8*3
RONDELLE Lave-Linge Contre-poids AVANT 28*8*3
Position: 806
Indicative price: 2.74 €
VIS Lave-Linge Contre-poids Supérieur
VIS Lave-Linge Contre-poids Supérieur
Position: 808
Indicative price: 3.95 €
RONDELLE Lave-Linge 18*9*2
RONDELLE Lave-Linge 18*9*2
Position: 810
Indicative price: 4.17 €
ENTRETOISE Lave-Linge Contre-poids Supérieur
ENTRETOISE Lave-Linge Contre-poids Supérieur
Position: 811
Indicative price: 7.86 €
Batteur Lave-Linge TAMBOUR 235mm
Batteur Lave-Linge TAMBOUR 235mm
Position: 813
Indicative price: 10.8 €
RESISTANCE Lave-Linge 2000W (fournie sans le fusible)
RESISTANCE Lave-Linge 2000W (fournie sans le fusible)
Position: 899
Indicative price: 37.24 €
BOUCHON Lave-Linge POMPE LEILI et HAOLI
BOUCHON Lave-Linge POMPE LEILI et HAOLI
Position: 918
Indicative price: 11.71 €
CLIPS Lave-Linge PANNEAU AVANT
CLIPS Lave-Linge PANNEAU AVANT
Position: 920
Indicative price: 2.68 €
PLAQUE Lave-Linge LESSIVE LIQUIDE
PLAQUE Lave-Linge LESSIVE LIQUIDE
Position: 996
Indicative price: 6.06 €
CROSSE Lave-Linge TUYAU VIDANGE 408*122
CROSSE Lave-Linge TUYAU VIDANGE 408*122
Position: 997
Indicative price: 6.08 €
CACHE Lave-Linge BRIDAGE
CACHE Lave-Linge BRIDAGE
Position: 998
Indicative price: 5.89 €
SONDE Lave-Linge RESISTANCE RAST
SONDE Lave-Linge RESISTANCE RAST
Position: 999
Indicative price: 15.3 €
SUPPORT Lave-Linge CHARNIERE
SUPPORT Lave-Linge CHARNIERE
Position: 1200
Indicative price: 16.25 €
PLATINE Lave-Linge MOTEUR BLDC 32-HT V16 910
PLATINE Lave-Linge MOTEUR BLDC 32-HT V16 910
Position: 1307
Indicative price: 99.87 €
CABLE Lave-Linge MOTEUR-PLATINE EGO BLDC 1308
CABLE Lave-Linge MOTEUR-PLATINE EGO BLDC 1308
Position: 1308
Indicative price: 20.18 €
VIS Lave-Linge M4*8
VIS Lave-Linge M4*8
Position: 1309
Indicative price: 2.78 €
COLLIER Lave-Linge DURITE BOITE LESSIVE/CUVE 65mm
COLLIER Lave-Linge DURITE BOITE LESSIVE/CUVE 65mm
Position: 1402
Indicative price: 5.19 €
COLLIER Lave-Linge DURITE CUVE POMPE coté cuve + vis 72mm
COLLIER Lave-Linge DURITE CUVE POMPE coté cuve + vis 72mm
Position: 1402
Indicative price: 5.37 €
VIS Lave-Linge 4.8x9.5
VIS Lave-Linge 4.8x9.5
Position: 1500
Indicative price: 2.54 €
VIS Lave-Linge 4.2*16
VIS Lave-Linge 4.2*16
Position: 1501
Indicative price: 2.52 €
VIS Lave-Linge CHARNIERE HUBLOT M5*8
VIS Lave-Linge CHARNIERE HUBLOT M5*8
Position: 1502
Indicative price: 2.46 €
VIS Lave-Linge 4.2*13
VIS Lave-Linge 4.2*13
Position: 1504
Indicative price: 3.61 €
RONDELLE Lave-Linge Contre-poids AVANT 30*10*3
RONDELLE Lave-Linge Contre-poids AVANT 30*10*3
Position: 1507
Indicative price: 4.17 €
VIS Lave-Linge 4*14 TSB INOX
VIS Lave-Linge 4*14 TSB INOX
Position: 1509
Indicative price: 2.51 €
ENTRETOISE Lave-Linge PANNEAU AVANT
ENTRETOISE Lave-Linge PANNEAU AVANT
Position: 1511
Indicative price: 6.13 €
COSSE Lave-Linge MALE
COSSE Lave-Linge MALE
Position: 1513
Indicative price: 3.33 €
SUPPORT Lave-Linge BOITIER PLATINE BLDC
SUPPORT Lave-Linge BOITIER PLATINE BLDC
Position: 1519
Indicative price: 24.94 €
