Exploded view DAEWOO WM-FA6440W0C-FR WM-FA6440W0C 817020

Discover the complete exploded view DAEWOO WM-FA6440W0C-FR WM-FA6440W0C 817020, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of. Quickly find the parts you need to extend the life of your DAEWOO WM-FA6440W0C-FR WM-FA6440W0C 817020 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

DESSUS Lave-Linge COUVERCLE Blanc 596*432 42023752
DESSUS Lave-Linge COUVERCLE Blanc 596*432 42023752
Position: 2
Indicative price: 49.58 €
PIED Lave-Linge
PIED Lave-Linge
Position: 5
Indicative price: 7.12 €

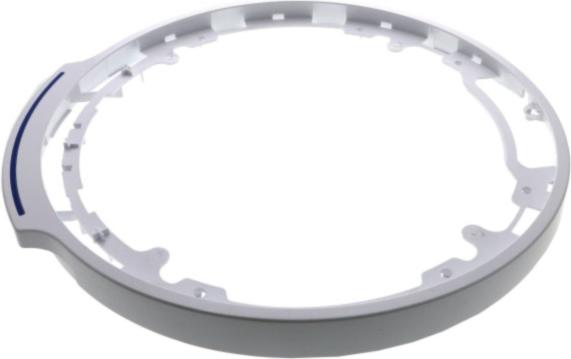

ENJOLIVEUR Lave-Linge HUBLOT INTERNE C136-137
ENJOLIVEUR Lave-Linge HUBLOT INTERNE C136-137
Position: 6
Indicative price: 22.74 €
HUBLOT Lave-Linge VERRE D310MM
HUBLOT Lave-Linge VERRE D310MM
Position: 7
Indicative price: 44.48 €
COLLIER Lave-Linge JOINT HUBLOT/MEUBLE *
COLLIER Lave-Linge JOINT HUBLOT/MEUBLE *
Position: 9
Indicative price: 10.6 €
CHARNIERE Lave-Linge HUBLOT 9
CHARNIERE Lave-Linge HUBLOT 9
Position: 12
Indicative price: 19.69 €
AXE Lave-Linge Charnière HUBLOT UNITAIRE
AXE Lave-Linge Charnière HUBLOT UNITAIRE
Position: 13
Indicative price: 4.06 €
AXE Lave-Linge CROCHET POIGNEE PORTE 32mm 3.86mm
AXE Lave-Linge CROCHET POIGNEE PORTE 32mm 3.86mm
Position: 16
Indicative price: 3.85 €
CROCHET Lave-Linge HUBLOT FIXE
CROCHET Lave-Linge HUBLOT FIXE
Position: 17
Indicative price: 10.04 €
TUYAU Lave-Linge ARRIVEE EAU
TUYAU Lave-Linge ARRIVEE EAU
Position: 20
Indicative price: 13.78 €
TRAVERSE Lave-Linge Supérieur AVANT
TRAVERSE Lave-Linge Supérieur AVANT
Position: 24
Indicative price: 14.54 €
VIS Lave-Linge FIXATION HUBLOT 3.5*9
VIS Lave-Linge FIXATION HUBLOT 3.5*9
Position: 28
Indicative price: 2.65 €
ENJOLIVEUR Lave-Linge HUBLOT INTERNE BLANC C70-80-90 42219384 V1
ENJOLIVEUR Lave-Linge HUBLOT INTERNE BLANC C70-80-90 42219384 V1
Position: 32
Indicative price: 27.15 €
SUPPORT Lave-Linge CHARNIERE
SUPPORT Lave-Linge CHARNIERE
Position: 33
Indicative price: 5.64 €
COURROIE Lave-Linge 6EPH1228
COURROIE Lave-Linge 6EPH1228
Position: 100
Indicative price: 21.27 €
POULIE Lave-Linge TAMBOUR TUF AXE=14.5mm
POULIE Lave-Linge TAMBOUR TUF AXE=14.5mm
Position: 101
Indicative price: 31.76 €
CUVE Lave-Linge 1/2 ARRIERE 800/1000T
CUVE Lave-Linge 1/2 ARRIERE 800/1000T
Position: 103
Indicative price: 91.22 €
AMORTISSEUR Lave-Linge 80N
AMORTISSEUR Lave-Linge 80N
Position: 104
Indicative price: 28.61 €
AXE Lave-Linge AMORTISSEUR
AXE Lave-Linge AMORTISSEUR
Position: 105
Indicative price: 6.14 €
Contre-poids Lave-Linge SUPERIEUR 10.6KG
Contre-poids Lave-Linge SUPERIEUR 10.6KG
Position: 112
Indicative price: 41.34 €
JOINT Lave-Linge 1/2 CUVE AV/CUVE ARR
JOINT Lave-Linge 1/2 CUVE AV/CUVE ARR
Position: 113
Indicative price: 19.27 €
CLIPS Lave-Linge FIXATION RESISTANCE
CLIPS Lave-Linge FIXATION RESISTANCE
Position: 115
Indicative price: 9.91 €
CUVE Lave-Linge 1/2 AVANT 42LT TUF8 WM-42117
CUVE Lave-Linge 1/2 AVANT 42LT TUF8 WM-42117
Position: 117
Indicative price: 64.89 €
JOINT Lave-Linge HUBLOT
JOINT Lave-Linge HUBLOT
Position: 118
Indicative price: 42.1 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 119
Indicative price: 13.65 €
Contre-poids Lave-Linge AVANT ALVA Cuisinière
Contre-poids Lave-Linge AVANT ALVA Cuisinière
Position: 120
Indicative price: 44.08 €

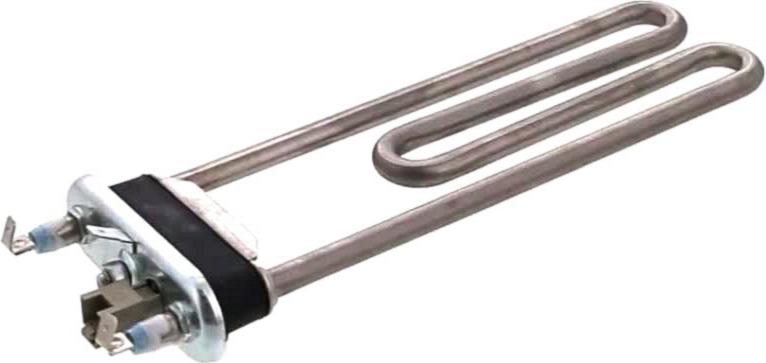

RESISTANCE Lave-Linge 1850W 215mm +SONDE KAWAI WACDS6871
RESISTANCE Lave-Linge 1850W 215mm +SONDE KAWAI WACDS6871
Position: 121
Indicative price: 43.22 €
ECROU Lave-Linge POULIE TAMBOUR SK
ECROU Lave-Linge POULIE TAMBOUR SK
Position: 124
Indicative price: 9.97 €
VIS Lave-Linge 1/2 CUVE AV/AR
VIS Lave-Linge 1/2 CUVE AV/AR
Position: 126
Indicative price: 2.35 €
TAMBOUR Lave-Linge 44-ALVA 500-3-SK
TAMBOUR Lave-Linge 44-ALVA 500-3-SK
Position: 160
Indicative price: 115.97 €
DURITE Lave-Linge BOITE LESSIVE / CUVE
DURITE Lave-Linge BOITE LESSIVE / CUVE
Position: 206
Indicative price: 14.11 €
DURITE Lave-Linge EV/BAC Lessive 220mm
DURITE Lave-Linge EV/BAC Lessive 220mm
Position: 207
Indicative price: 8.04 €
DURITE Lave-Linge EV/BAC Lessive 200mm
DURITE Lave-Linge EV/BAC Lessive 200mm
Position: 208
Indicative price: 8.35 €
ELECTROVANNE Lave-Linge 2V RAST-2.5
ELECTROVANNE Lave-Linge 2V RAST-2.5
Position: 209
Indicative price: 29.35 €
DURITE Lave-Linge PRESSOSTAT 577mm
DURITE Lave-Linge PRESSOSTAT 577mm
Position: 211
Indicative price: 29.11 €
DURITE Lave-Linge CUVE/PV
DURITE Lave-Linge CUVE/PV
Position: 213
Indicative price: 23.29 €
SYPHON Lave-Linge BLEU 214
SYPHON Lave-Linge BLEU 214
Position: 214
Indicative price: 19.48 €
CONDO Lave-Linge ANTIPARASITE DNF06-P(AFBAB) 0.47uF(x2)+2x25nF(Y2)
CONDO Lave-Linge ANTIPARASITE DNF06-P(AFBAB) 0.47uF(x2)+2x25nF(Y2)
Position: 215
Indicative price: 25.49 €
TUYAU Lave-Linge VIDANGE
TUYAU Lave-Linge VIDANGE
Position: 219
Indicative price: 15.63 €
SUPPORT Lave-Linge TUYAU VIDANGE
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 220
Indicative price: 8.94 €
ENTRETOISE Lave-Linge RESSORT/MEUBLE
ENTRETOISE Lave-Linge RESSORT/MEUBLE
Position: 221
Indicative price: 6.39 €
PRESSOSTAT Lave-Linge ELECTRONIQUE
PRESSOSTAT Lave-Linge ELECTRONIQUE
Position: 225
Indicative price: 36.43 €
COLLIER Lave-Linge TUYAU
COLLIER Lave-Linge TUYAU
Position: 228
Indicative price: 8.95 €
TRAVERSE Lave-Linge SUPPORT RESSORTS SUSPENSION
TRAVERSE Lave-Linge SUPPORT RESSORTS SUSPENSION
Position: 231
Indicative price: 14.72 €
COLLIER Lave-Linge PV/TUYAU VID 34.1mm
COLLIER Lave-Linge PV/TUYAU VID 34.1mm
Position: 234
Indicative price: 5.38 €
COLLIER Lave-Linge TUYAU VIDANGE
COLLIER Lave-Linge TUYAU VIDANGE
Position: 235
Indicative price: 5.28 €
CABLE Lave-Linge ALIMENTATION COSSES COUDEES 3G1 1m50
CABLE Lave-Linge ALIMENTATION COSSES COUDEES 3G1 1m50
Position: 239
Indicative price: 20.9 €
RONDELLE Lave-Linge VIS POULIE TAMBOUR 29*8*2
RONDELLE Lave-Linge VIS POULIE TAMBOUR 29*8*2
Position: 241
Indicative price: 3.65 €
COLLIER Lave-Linge DURITE PRESSOSTAT
COLLIER Lave-Linge DURITE PRESSOSTAT
Position: 244
Indicative price: 2.62 €
SUPPORT Lave-Linge
SUPPORT Lave-Linge
Position: 250
Indicative price: 13.12 €
BOITE Lave-Linge LESSIVE COMPLETE 6 SLIM
BOITE Lave-Linge LESSIVE COMPLETE 6 SLIM
Position: 270
Indicative price: 29.65 €
POMPE Lave-Linge VIDANGE LEILI 13mm BPX132-6L
POMPE Lave-Linge VIDANGE LEILI 13mm BPX132-6L
Position: 285
Indicative price: 46.78 €
KIT Lave-Linge BRIDAGE UNITAIRE
KIT Lave-Linge BRIDAGE UNITAIRE
Position: 290
Indicative price: 12.01 €
DURITE Lave-Linge CUVE/PV + CHAMBRE COMPRESSION + TUYAU PRESSOSTAT
DURITE Lave-Linge CUVE/PV + CHAMBRE COMPRESSION + TUYAU PRESSOSTAT
Position: 295
Indicative price: 27.05 €
CABLAGE Lave-Linge 6/8/10/12 T/44
CABLAGE Lave-Linge 6/8/10/12 T/44
Position: 296
Indicative price: 68.72 €
AXE Lave-Linge MANETTE Programmateur
AXE Lave-Linge MANETTE Programmateur
Position: 403
Indicative price: 3.24 €
VIS Lave-Linge 4*12 TORX
VIS Lave-Linge 4*12 TORX
Position: 410
Indicative price: 2.51 €
BOITIER Lave-Linge PLATINE T
BOITIER Lave-Linge PLATINE T
Position: 411
Indicative price: 16.69 €
PLATINE Lave-Linge T0 417BFFF0A0200000 V17.3-B
PLATINE Lave-Linge T0 417BFFF0A0200000 V17.3-B
Position: 412
Indicative price: 106.34 €
ENTRETOISE Lave-Linge BOUTON SELECTION
ENTRETOISE Lave-Linge BOUTON SELECTION
Position: 474
Indicative price: 2.38 €
PLATINE Lave-Linge DISPLAY T0 R4 VESTEL
PLATINE Lave-Linge DISPLAY T0 R4 VESTEL
Position: 495
Indicative price: 35.95 €
CABLE Lave-Linge COMMUNICATION
CABLE Lave-Linge COMMUNICATION
Position: 499
Indicative price: 14.45 €
DOUILLE Lave-Linge RESSORT/CUVE
DOUILLE Lave-Linge RESSORT/CUVE
Position: 700
Indicative price: 4.97 €
SUPPORT Lave-Linge CACHE POMPE
SUPPORT Lave-Linge CACHE POMPE
Position: 701
Indicative price: 7.17 €
CACHE Lave-Linge POMPE
CACHE Lave-Linge POMPE
Position: 702
Indicative price: 8.2 €
RESSORT Lave-Linge SUSPENSION CUVE
RESSORT Lave-Linge SUSPENSION CUVE
Position: 800
Indicative price: 17.52 €
RONDELLE Lave-Linge Contre-poids AVANT 28*8*3
RONDELLE Lave-Linge Contre-poids AVANT 28*8*3
Position: 806
Indicative price: 2.38 €
VIS Lave-Linge Contre-poids AVANT 10*40
VIS Lave-Linge Contre-poids AVANT 10*40
Position: 807
Indicative price: 6.05 €
VIS Lave-Linge Contre-poids Supérieur
VIS Lave-Linge Contre-poids Supérieur
Position: 808
Indicative price: 4.11 €
RENFORT Lave-Linge TOLE
RENFORT Lave-Linge TOLE
Position: 811
Indicative price: 17.57 €
ECROU Lave-Linge Contre-poids Supérieur M8 GROWER
ECROU Lave-Linge Contre-poids Supérieur M8 GROWER
Position: 812
Indicative price: 2.4 €
Batteur Lave-Linge "unitaire" REC0015
Batteur Lave-Linge "unitaire" REC0015
Position: 813
Indicative price: 19.57 €
BOUCHON Lave-Linge POMPE LEILI et HAOLI
BOUCHON Lave-Linge POMPE LEILI et HAOLI
Position: 918
Indicative price: 13.49 €
CLIPS Lave-Linge PANNEAU AVANT
CLIPS Lave-Linge PANNEAU AVANT
Position: 920
Indicative price: 2.63 €
PLAQUE Lave-Linge LESSIVE LIQUIDE
PLAQUE Lave-Linge LESSIVE LIQUIDE
Position: 996
Indicative price: 5.95 €
CROSSE Lave-Linge TUYAU VIDANGE 408*122
CROSSE Lave-Linge TUYAU VIDANGE 408*122
Position: 997
Indicative price: 5.78 €
CACHE Lave-Linge BRIDAGE
CACHE Lave-Linge BRIDAGE
Position: 998
Indicative price: 5.25 €
SONDE Lave-Linge RESISTANCE RAST
SONDE Lave-Linge RESISTANCE RAST
Position: 999
Indicative price: 17.63 €
SUPPORT Lave-Linge TRANSFERT-BOUTON SERIES T JD
SUPPORT Lave-Linge TRANSFERT-BOUTON SERIES T JD
Position: 1100
Indicative price: 13.56 €
TRANSFERT Lave-Linge ROND JD T190
TRANSFERT Lave-Linge ROND JD T190
Position: 1102
Indicative price: 12.2 €
SUPPORT Lave-Linge CHARNIERE
SUPPORT Lave-Linge CHARNIERE
Position: 1200
Indicative price: 5.22 €
COLLIER Lave-Linge DURITE BOITE LESSIVE/CUVE 65mm
COLLIER Lave-Linge DURITE BOITE LESSIVE/CUVE 65mm
Position: 1402
Indicative price: 4.71 €
COLLIER Lave-Linge DURITE CUVE POMPE coté cuve + vis 72mm
COLLIER Lave-Linge DURITE CUVE POMPE coté cuve + vis 72mm
Position: 1402
Indicative price: 5.47 €
VIS Lave-Linge 4.8x9.5
VIS Lave-Linge 4.8x9.5
Position: 1500
Indicative price: 2.66 €
VIS Lave-Linge 4.2*16
VIS Lave-Linge 4.2*16
Position: 1501
Indicative price: 2.31 €
VIS Lave-Linge CHARNIERE HUBLOT M5*8
VIS Lave-Linge CHARNIERE HUBLOT M5*8
Position: 1502
Indicative price: 2.84 €
VIS Lave-Linge 4.2*13
VIS Lave-Linge 4.2*13
Position: 1504
Indicative price: 3.9 €
RONDELLE Lave-Linge Contre-poids AVANT 30*10*3
RONDELLE Lave-Linge Contre-poids AVANT 30*10*3
Position: 1507
Indicative price: 3.88 €
ENTRETOISE Lave-Linge PANNEAU AVANT
ENTRETOISE Lave-Linge PANNEAU AVANT
Position: 1511
Indicative price: 6.21 €
SUPPORT Lave-Linge TUYAU
SUPPORT Lave-Linge TUYAU
Position: 1603
Indicative price: 8.47 €
