Exploded view DAEWOO KBE-6R2SMO KBE.6R2SMO KBE6R2SMO

Discover the complete exploded view DAEWOO KBE-6R2SMO KBE.6R2SMO KBE6R2SMO, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of. Quickly find the parts you need to extend the life of your DAEWOO KBE-6R2SMO KBE.6R2SMO KBE6R2SMO and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

BANDEAU Four COMPLET 291506103452
BANDEAU Four COMPLET 291506103452
Position: 0
Indicative price: 44.93 €
PORTE Four COMPLETE (VOIR VITRE SEUL)
PORTE Four COMPLETE (VOIR VITRE SEUL)
Position: 0
PLATINE Four CONTRÔLE
PLATINE Four CONTRÔLE
Position: 1
Indicative price: 35.85 €
BUTEE Four PORTE (lot de 2)
BUTEE Four PORTE (lot de 2)
Position: 1
Indicative price: 9.59 €
ENTRETOISE Four POIGNEE PORTE
ENTRETOISE Four POIGNEE PORTE
Position: 1
Indicative price: 7.11 €
SUPPORT Four BOUTON
SUPPORT Four BOUTON
Position: 2
Indicative price: 12.34 €

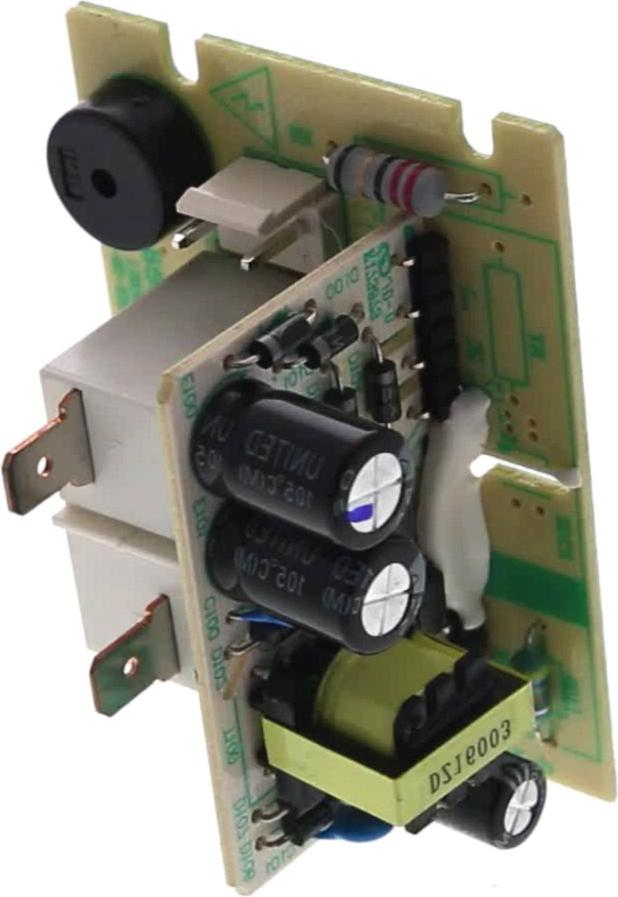

PLATINE Four PUISSANCE
PLATINE Four PUISSANCE
Position: 2
Indicative price: 37.29 €
ENTRETOISE Four BOUTON Programmateur
ENTRETOISE Four BOUTON Programmateur
Position: 3
Indicative price: 3.97 €
CABLE Four Alimentation
CABLE Four Alimentation
Position: 7
Indicative price: 15.15 €
TOLE Four Inférieur Extérieure
TOLE Four Inférieur Extérieure
Position: 9
Indicative price: 42.85 €
DOUILLE Four LAMPE
DOUILLE Four LAMPE
Position: 10
Indicative price: 33.38 €
CHARNIERE Four PORTE Gauche OU Droit
CHARNIERE Four PORTE Gauche OU Droit
Position: 11
Indicative price: 26.87 €
SUPPORT Four BANDEAU
SUPPORT Four BANDEAU
Position: 11
Indicative price: 35.05 €
GRILLE Four FOUR
GRILLE Four FOUR
Position: 12
Indicative price: 37.4 €
POIGNEE Four PORTE 500mm (entraxe 406mm)
POIGNEE Four PORTE 500mm (entraxe 406mm)
Position: 12
Indicative price: 27.4 €
VITRE Four INTERIEURE 460*330
VITRE Four INTERIEURE 460*330
Position: 13
Indicative price: 68.17 €
GRILLE Four LATERALE DROITE
GRILLE Four LATERALE DROITE
Position: 13
Indicative price: 27.43 €
CACHE Four ARRIERE
CACHE Four ARRIERE
Position: 13
Indicative price: 12.37 €
GRILLE Four LATERALE GAUCHE
GRILLE Four LATERALE GAUCHE
Position: 14
Indicative price: 26.9 €
THERMOSTAT Four 260° WY260A-C 130928A4Z
THERMOSTAT Four 260° WY260A-C 130928A4Z
Position: 15
Indicative price: 46.25 €
LECHEFRITE Four FOUR 475*347
LECHEFRITE Four FOUR 475*347
Position: 15
Indicative price: 25.04 €
TOLE Four Supérieur Extérieure
TOLE Four Supérieur Extérieure
Position: 16
Indicative price: 37.08 €
Contre porte Four NOIRE 545*448
Contre porte Four NOIRE 545*448
Position: 16
Indicative price: 103.41 €
MOTEUR Four VENTILATEUR TANGENTIEL 185MM MDA-24 13W
MOTEUR Four VENTILATEUR TANGENTIEL 185MM MDA-24 13W
Position: 16
Indicative price: 64.78 €
SUPPORT Four BANDEAU
SUPPORT Four BANDEAU
Position: 17
Indicative price: 7.79 €
MOTEUR Four C/T AXE LG 41.84MM MDC-33A 19W
MOTEUR Four C/T AXE LG 41.84MM MDC-33A 19W
Position: 18
Indicative price: 54.58 €
JOINT Four VITRE Extérieure
JOINT Four VITRE Extérieure
Position: 19
Indicative price: 15.78 €
SUPPORT Four ISOLATION
SUPPORT Four ISOLATION
Position: 19
Indicative price: 26.54 €
THERMOSTAT Four 90°C
THERMOSTAT Four 90°C
Position: 21
Indicative price: 17.06 €
THERMOSTAT Four KLIXON 70°C
THERMOSTAT Four KLIXON 70°C
Position: 21
Indicative price: 17.61 €
SUPPORT Four Supérieur VITRE Extérieure
SUPPORT Four Supérieur VITRE Extérieure
Position: 23
Indicative price: 13.44 €
FACADE Four MOUFLE AVANT
FACADE Four MOUFLE AVANT
Position: 23
Indicative price: 53.38 €
VOYANT Four TEMOIN
VOYANT Four TEMOIN
Position: 24
Indicative price: 7.8 €
SUPPORT Four Inférieur VITRE Extérieure
SUPPORT Four Inférieur VITRE Extérieure
Position: 25
Indicative price: 8.18 €
COMMUTATEUR Four 8+0 FD103M 5E4 8B6
COMMUTATEUR Four 8+0 FD103M 5E4 8B6
Position: 26
Indicative price: 46.63 €
SUPPORT Four PLATINE
SUPPORT Four PLATINE
Position: 26
Indicative price: 20.24 €
VITRE Four EXTERIEURE REC0004 594*454
VITRE Four EXTERIEURE REC0004 594*454
Position: 26
Indicative price: 101.6 €
ISOLATION Four ARRIERE
ISOLATION Four ARRIERE
Position: 26
Indicative price: 24.16 €
BAGUE Four BOUTON Programmateur
BAGUE Four BOUTON Programmateur
Position: 29
Indicative price: 4.04 €
TOLE Four ARRIERE Extérieure
TOLE Four ARRIERE Extérieure
Position: 29
Indicative price: 35.85 €
MANETTE Four COMMUTATEUR/THERMOSTAT NOIRE PUSH PULL 32*65 3H 6MM 20MM
MANETTE Four COMMUTATEUR/THERMOSTAT NOIRE PUSH PULL 32*65 3H 6MM 20MM
Position: 30
Indicative price: 35.11 €
ISOLATION Four MOUFLE
ISOLATION Four MOUFLE
Position: 32
Indicative price: 45.98 €
JOINT Four PORTE
JOINT Four PORTE
Position: 35
Indicative price: 33.29 €
CONVOYEUR Four AIR
CONVOYEUR Four AIR
Position: 40
Indicative price: 17.64 €
TURBINE Four VENTILATEUR
TURBINE Four VENTILATEUR
Position: 43
Indicative price: 12.73 €
TOLE Four Supérieur Extérieure
TOLE Four Supérieur Extérieure
Position: 46
Indicative price: 26.49 €
POIGNEE Four LATERALE Gauche OU Droit
POIGNEE Four LATERALE Gauche OU Droit
Position: 48
Indicative price: 13.38 €
TOLE Four Extérieure DROITE
TOLE Four Extérieure DROITE
Position: 49
Indicative price: 31.34 €
TOLE Four Extérieure LATERALE DROITE
TOLE Four Extérieure LATERALE DROITE
Position: 50
Indicative price: 33.38 €
RESISTANCE Four SOLE 1100w
RESISTANCE Four SOLE 1100w
Position: 53
Indicative price: 55.02 €
PANNEAU Four LATERAL Gauche OU Droit
PANNEAU Four LATERAL Gauche OU Droit
Position: 60
Indicative price: 23.31 €
RESISTANCE Four GRILL 2000+950W
RESISTANCE Four GRILL 2000+950W
Position: 61
Indicative price: 61.07 €
CHARNIERE Four FEMELLE DROITE
CHARNIERE Four FEMELLE DROITE
Position: 63
Indicative price: 17.17 €
CHARNIERE Four FEMELLE CHAUCHE
CHARNIERE Four FEMELLE CHAUCHE
Position: 64
Indicative price: 15.83 €
