Exploded view lave linge FAR LF12812SA+
Discover the complete exploded view lave linge FAR LF12812SA+, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge FAR LF12812SA+ and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
COLLIER Lave-Linge DURITE CUVE POMPE coté cuve + vis 72mm
Indicative price: 5 €
NOTICE Lave-Linge UTILISATION
Indicative price: 10.54 €
DESSUS Lave-Linge COUVERCLE
Position: 2
Indicative price: 66.13 €
FACADE Lave-Linge AVANT
Position: 3
Indicative price: 46.83 €
PIED Lave-Linge + ECROU
Position: 5
Indicative price: 7.64 €
ENJOLIVEUR Lave-Linge HUBLOT
Position: 6
Indicative price: 31.07 €
HUBLOT Lave-Linge VERRE 352mm h=108mm
Position: 7
Indicative price: 29.27 €
Contre porte Lave-Linge HUBLOT
Position: 8
Indicative price: 26.51 €
COLLIER Lave-Linge JOINT HUBLOT/FACADE
Position: 9
Indicative price: 9.22 €
SECURITE Lave-Linge PORTE ZV-446 M5 ZV446M5
Position: 10
Indicative price: 19.85 €
CHARNIERE Lave-Linge HUBLOT
Position: 12
Indicative price: 25.54 €
AXE Lave-Linge Charnière HUBLOT UNITAIRE
Position: 13
Indicative price: 4.07 €
POIGNEE Lave-Linge HUBLOT M.BATCH
Position: 14
Indicative price: 18.38 €
RESSORT Lave-Linge POIGNEE PORTE
Position: 15
Indicative price: 4.16 €
CROCHET Lave-Linge POIGNEE HUBLOT
Position: 17
Indicative price: 7.18 €
CLIPS Lave-Linge
Position: 18
Indicative price: 2.53 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 20
Indicative price: 14.74 €
CORNIERE Lave-Linge AVANT
Position: 24
Indicative price: 16.66 €
VIS Lave-Linge 4.2*16
Position: 25
Indicative price: 2.72 €
RESSORT Lave-Linge POIGNEE HUBLOT
Position: 26
Indicative price: 11.3 €
AXE Lave-Linge CROCHET POIGNEE PORTE LG 50.78MM Droit 3.86MM
Position: 27
Indicative price: 3.92 €
VIS Lave-Linge 3.5*16
Position: 28
Indicative price: 3.41 €
SUPPORT Lave-Linge CHARNIERE
Position: 33
Indicative price: 11.93 €

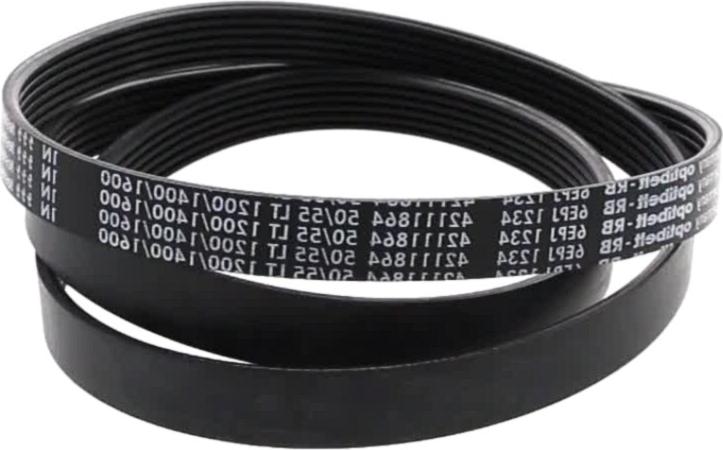

COURROIE Lave-Linge 1234J6EL *
Position: 100
Indicative price: 24.72 €
POULIE Lave-Linge TAMBOUR 290mm
Position: 101
Indicative price: 25.28 €

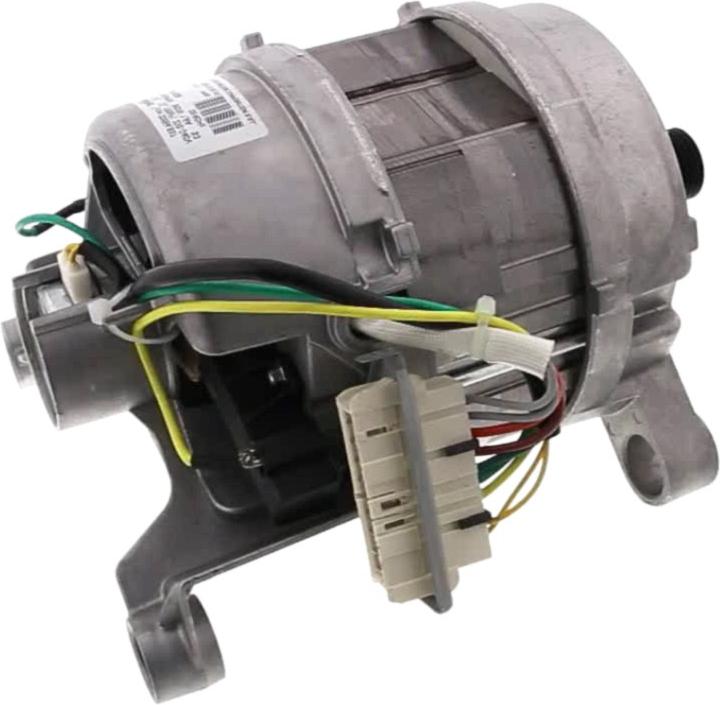

MOTEUR Lave-Linge 1400T 52-57LT 20584.537 DC-EL NIDEC SOLE *DESTOCKAGE*
Position: 102
Indicative price: 95.61 €
CUVE Lave-Linge 1/2 ARRIERE *DESTOCKAGE*
Position: 103
Indicative price: 55.81 €
AMORTISSEUR Lave-Linge
Position: 104
Indicative price: 28.17 €
AXE Lave-Linge AMORTISSEUR
Position: 105
Indicative price: 5.47 €
Contre-poids Lave-Linge Supérieur
Position: 112
Indicative price: 48.07 €
JOINT Lave-Linge 1/2 CUVE AV/CUVE ARR
Position: 113
Indicative price: 17.84 €
CLIPS Lave-Linge FIXATION RESISTANCE
Position: 115
Indicative price: 9.54 €
CUVE Lave-Linge 1/2 AVANT
Position: 117
Indicative price: 66.96 €
JOINT Lave-Linge HUBLOT
Position: 118
Indicative price: 39.02 €
COLLIER Lave-Linge JOINT/CUVE
Position: 119
Indicative price: 11.91 €
Contre-poids Lave-Linge AVANT
Position: 120
Indicative price: 34.63 €

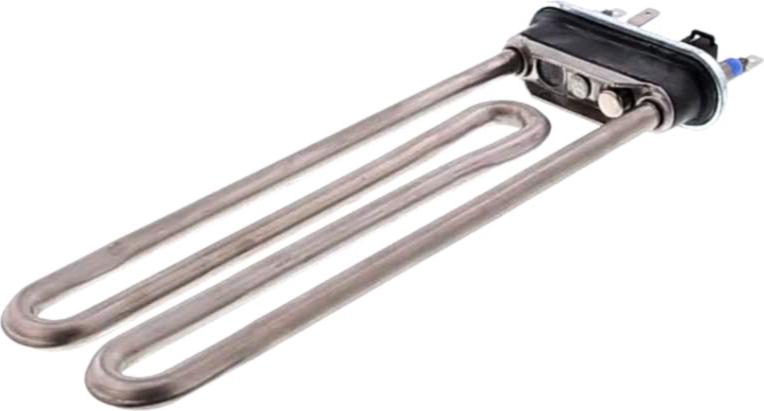

RESISTANCE Lave-Linge 2000W +SONDE
Position: 121
Indicative price: 40.69 €
VIS Lave-Linge POULIE TAMBOUR M8*20
Position: 124
Indicative price: 7.28 €

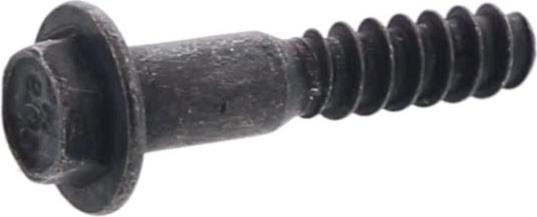

VIS Lave-Linge 1/2 CUVE AVANT/ARRIERE 6*30
Position: 126
Indicative price: 2.53 €
SUPPORT Lave-Linge CABLE
Position: 132
Indicative price: 2.68 €
KIT Lave-Linge LESSIVE LIQUIDE 72*51
Position: 201
Indicative price: 7.92 €
BOITE Lave-Linge LESSIVE COMPLETE GRIS
Position: 205
Indicative price: 54.5 €
DURITE Lave-Linge BAC LESSIVE/CUVE *
Position: 206
Indicative price: 16.22 €
DURITE Lave-Linge EV/BAC Lessive 265mm
Position: 207
Indicative price: 5.81 €
TUYAU Lave-Linge EV/BOITE Lessive 240mm
Position: 208
Indicative price: 5.84 €
ELECTROVANNE Lave-Linge 2 VOIES 180° 33490081
Position: 209
Indicative price: 32.93 €
BALLE Lave-Linge DURITE VIDANGE
Position: 210
Indicative price: 10.83 €
TUYAU Lave-Linge PRESSOSTAT 600mm
Position: 211
Indicative price: 13.8 €
CHAMBRE Lave-Linge COMPRESSION
Position: 212
Indicative price: 14.91 €
DURITE Lave-Linge CUVE/PV
Position: 213
Indicative price: 32.52 €
CONDO Lave-Linge ANTIPARASITE Démarrage FLCB992561ER5 470nF(x2)+2x27nF(Y2)
Position: 215
Indicative price: 25.54 €
TUYAU Lave-Linge VIDANGE
Position: 219
Indicative price: 14.98 €
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 220
Indicative price: 9.63 €
ENTRETOISE Lave-Linge RESSORT/MEUBLE
Position: 221
Indicative price: 6.17 €
PRESSOSTAT Lave-Linge ELECTRONIQUE
Position: 225
Indicative price: 54.35 €
COLLIER Lave-Linge TUYAU EV/BOITE
Position: 228
Indicative price: 5.02 €
TRAVERSE Lave-Linge Supérieur
Position: 231
Indicative price: 18.31 €
COLLIER Lave-Linge PV/TUYAU VID 32.7mm
Position: 234
Indicative price: 3.96 €
COLLIER Lave-Linge TUYAU VIDANGE
Position: 235
Indicative price: 4.41 €
CACHE Froid TROU BRIDAGE
Position: 237
Indicative price: 2.6 €
CACHE Lave-Linge ARRIERE VIS POULIE GRIS
Position: 238
Indicative price: 4.83 €
CABLE Lave-Linge ALIMENTATION COSSES COUDEES 3G1 1m50
Position: 239
Indicative price: 21.19 €
RONDELLE Lave-Linge VIS POULIE TAMBOUR
Position: 241
Indicative price: 11.1 €

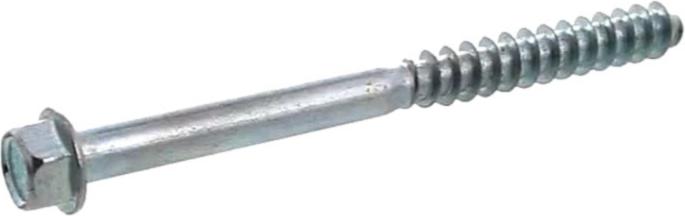

VIS Lave-Linge BRIDAGE
Position: 243
Indicative price: 7.77 €
COLLIER Lave-Linge DURITE PRESSOSTAT
Position: 244
Indicative price: 2.52 €
VIS Lave-Linge AXE TAMBOUR 6*22
Position: 270
Indicative price: 4.7 €
Pompe de vidange Lave-Linge
Position: 285
Indicative price: 41.64 €
BRIDAGE Lave-Linge KIT COMPLET UNITAIR
Position: 290
Indicative price: 13.85 €
DURITE Lave-Linge CUVE/PV + CHAMBRE DE COMPRESSION + TUYAU PRESSOSTAT
Position: 295
Indicative price: 13.24 €
ENTRETOISE Lave-Linge MANETTE Programmateur
Position: 403
Indicative price: 5.83 €
SUPPORT Lave-Linge PLATINE ELECTRONIQU
Position: 411
Indicative price: 18.63 €

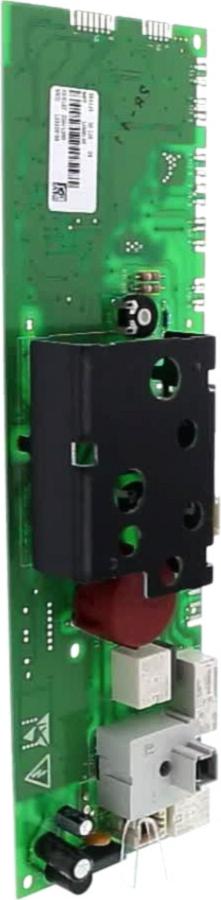

PLATINE Lave-Linge V2 5C8B87F03800 WP_AKOPLUS44 AlvaEPS_2new719166_28 05 alps
Position: 412
Indicative price: 128.27 €

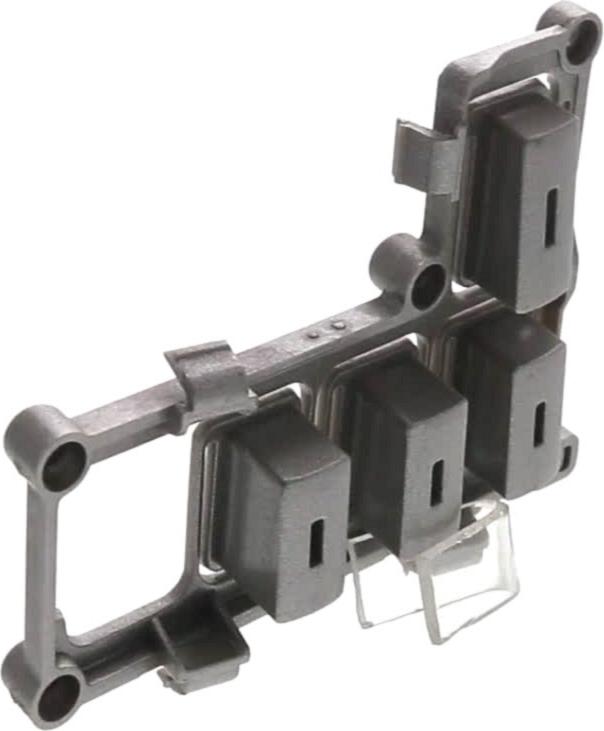

BOUTON Lave-Linge SELECTION
Position: 415
Indicative price: 7.14 €
ENTRETOISE Lave-Linge MANETTE VARIATEU
Position: 444
Indicative price: 5.63 €

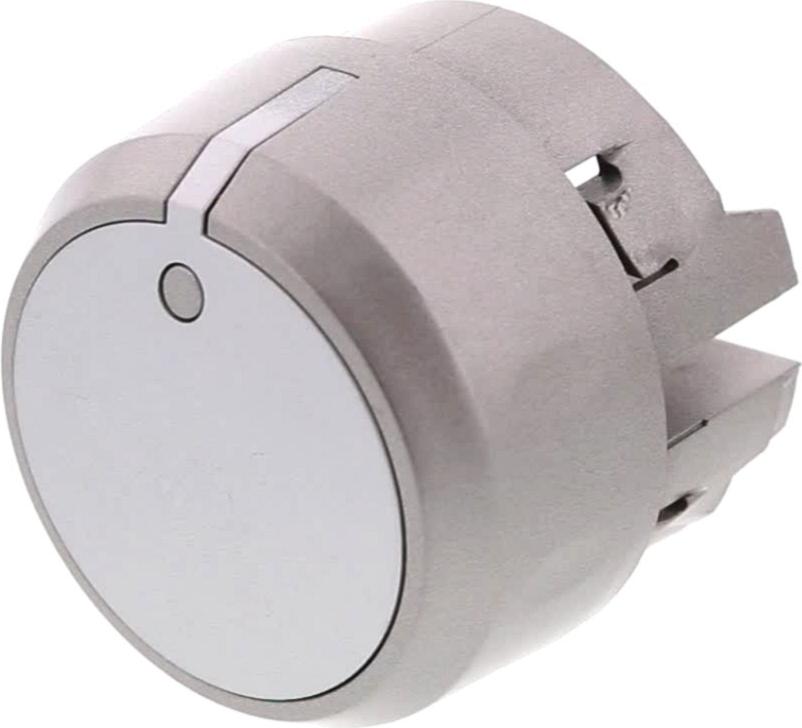

MANETTE Lave-Linge Programmateur
Position: 471
Indicative price: 12.21 €

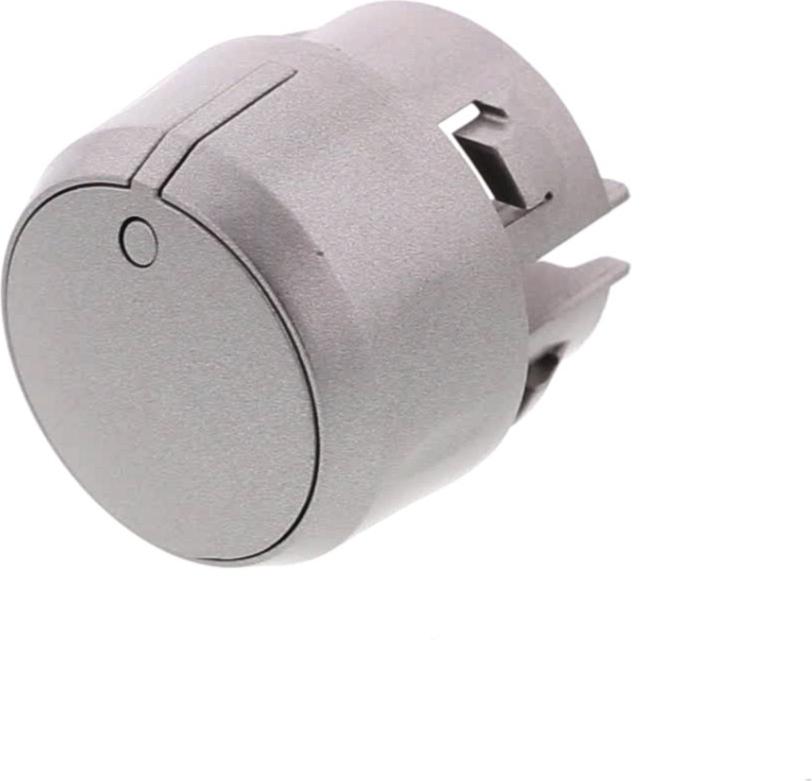

MANETTE Lave-Linge Thermostat OU ESSORAGE
Position: 473
Indicative price: 11.66 €
TRANSFERT Lave-Linge LAMPE M/A JUNDA
Position: 497
Indicative price: 8.51 €
CROSSE Lave-Linge TUYAU VIDANGE 408*122
Position: 512
Indicative price: 5.53 €
DOUILLE Lave-Linge RESSORT/CUVE
Position: 700
Indicative price: 4.51 €

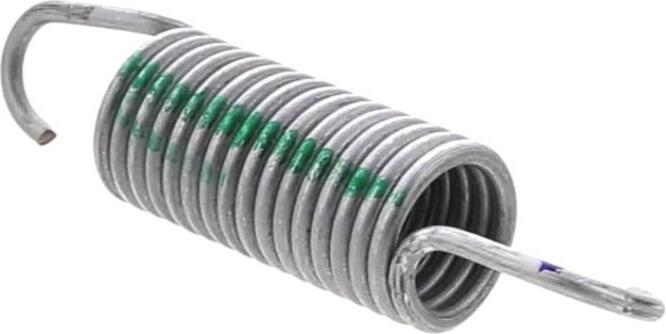

RESSORT Lave-Linge SUSPENSION CUVE
Position: 800
Indicative price: 12.98 €
RONDELLE Lave-Linge Contre-poids AVANT 28*8*3
Position: 806
Indicative price: 2.76 €
VIS Lave-Linge Contre-poids Supérieur
Position: 808
Indicative price: 4.35 €
RONDELLE Lave-Linge 18*9*2
Position: 810
Indicative price: 4.22 €
ENTRETOISE Lave-Linge Contre-poids Supérieur
Position: 811
Indicative price: 8.44 €
ECROU Lave-Linge M8
Position: 812
Indicative price: 4.17 €

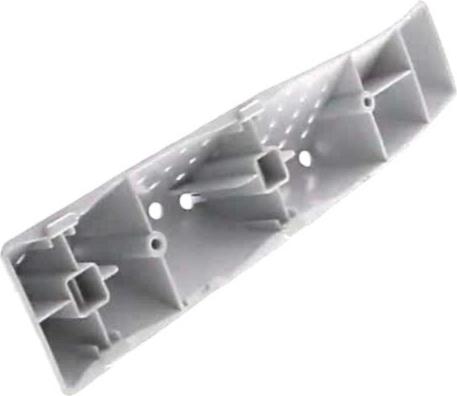

Batteur Lave-Linge TAMBOUR
Position: 813
Indicative price: 9.02 €
VIS Lave-Linge Contre-poids Supérieur
Position: 900
Indicative price: 9.06 €
RONDELLE Lave-Linge 40*10*3
Position: 901
Indicative price: 3.62 €
CLIPS Lave-Linge PANNEAU AVANT
Position: 920
Indicative price: 3.1 €
SONDE Lave-Linge RESISTANCE RAST 2.5
Position: 999
Indicative price: 27.51 €
