Exploded view lave linge FAR LT1200E
Discover the complete exploded view lave linge FAR LT1200E, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge FAR LT1200E and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
JOINT Lave-Linge ENTREE CUVE TOP
Position: 2
Indicative price: 50.63 €
RESSORT Lave-Linge JOINT CHARGEMENT
Position: 3
Indicative price: 15.62 €
VIS Lave-Linge FIXATION
Position: 9
Indicative price: 2.43 €
PORTE Lave-Linge Extérieure TOP
Position: 10
Indicative price: 83.5 €
VIS Lave-Linge FIXE JOINT CHARGEMENT
Position: 12
Indicative price: 2.64 €
VIS Lave-Linge AMORTISSEUR
Position: 13
Indicative price: 2.67 €
ECROU Lave-Linge AMORTISSEUR
Position: 14
Indicative price: 2.27 €
Interrupteur Lave-Linge 1T 3C
Position: 20
Indicative price: 14.78 €
TUYAU Lave-Linge PRESSOSTA T40 L=730MM
Position: 20
Indicative price: 10.65 €
PLAQUE Lave-Linge APPUI C.POIDS
Position: 21
Indicative price: 2.63 €
SUPPORT Lave-Linge POMPE VIDANGE
Position: 22
Indicative price: 12.75 €
ENTRETOISE Lave-Linge RESSORT/CARCASSE
Position: 25
Indicative price: 1.84 €
ENTRETOISE Lave-Linge RESSORT/CUVE
Position: 26
Indicative price: 1.78 €
TUYAU Lave-Linge Electrovanne LAVAGE/BAC PROD
Position: 29
Indicative price: 26.99 €
JOINT Lave-Linge ARRIVEE EAU
Position: 30
Indicative price: 2.37 €
TUYAU Lave-Linge Electrovanne PRELAV/BAC PRODUIT
Position: 31
Indicative price: 26.4 €
DISTRIBUTEUR Lave-Linge EAU
Position: 32
Indicative price: 17.81 €
RESSORT Lave-Linge Batteur EXTRACTIBLE
Position: 32
Indicative price: 14.49 €
RESSORT Lave-Linge BOUTON T40
Position: 34
Indicative price: 2.77 €
RENFORT Lave-Linge LATERAL EPUISE
Position: 34
MANETTE Lave-Linge Programmateur OU ESSORAGE
Position: 39
Indicative price: 17.52 €
JOINT Lave-Linge ETANCHEITE COMMUTATEUR
Position: 43
Indicative price: 21.3 €
Commutateur Lave-Linge
Position: 45
Indicative price: 16.65 €
PLATINE Lave-Linge VOYANT
Position: 46
Indicative price: 38.73 €
SUPPORT Lave-Linge TUYAU VIDANGE EPUISE
Position: 47
SUPPORT Lave-Linge TUYAU VIDANGE EPUISE
Position: 48
SUPPORT Lave-Linge TUYAU VIDANGE+CABLE
Position: 49
Indicative price: 2.18 €
DURITE Lave-Linge CUVE/POMPE T40
Position: 50
Indicative price: 47.11 €
VIS Lave-Linge AMORTISSEUR
Position: 53
Indicative price: 3.04 €
SUPPORT Lave-Linge
Position: 54
Indicative price: 8.62 €
CROCHET Lave-Linge BLOCAGE BOITE
Position: 57
Indicative price: 20.42 €
VIS Lave-Linge POULIE TAMBOUR
Position: 57
Indicative price: 4.07 €
POUSSOIR Lave-Linge OUVERTURE B/P
Position: 58
Indicative price: 6.96 €
Couvercle Lave-Linge BAC LESSIVE
Position: 59
Indicative price: 41.17 €
SUPPORT Lave-Linge Programmateur
Position: 59
Indicative price: 12.92 €
CACHE Lave-Linge VOYANT
Position: 62
Indicative price: 12.67 €
ENTRETOISE Lave-Linge C.POIDS/CUVE
Position: 66
Indicative price: 6.96 €
TUYAU Lave-Linge VIDANGE
Position: 80
Indicative price: 17.95 €
VIS Lave-Linge
Position: 83
Indicative price: 2.68 €
Interrupteur Sèche-Linge 1T 3C Pompe de vidange
Position: 84
Indicative price: 21.18 €
RONDELLE Lave-Linge Contre-poids Inférieur
Position: 84
Indicative price: 2.54 €
ECROU Lave-Linge CONTRE-POIDS Supérieur
Position: 85
Indicative price: 2.54 €
TUYAU Lave-Linge Electrovanne JAVEL/BAC PRODUIT
Position: 90
Indicative price: 29.36 €
ROUE Lave-Linge AVANT AP9326 E
Position: 90
VIS Lave-Linge C.POIDS Inférieur ARRIERE
Position: 95
Indicative price: 3.51 €
SUPPORT Lave-Linge RESISTANCE
Position: 103
Indicative price: 4.28 €
VIS Lave-Linge SUPPORT Thermostat
Position: 104
Indicative price: 3.98 €
VIS Lave-Linge FOND CUVE
Position: 110
Indicative price: 1.59 €
TUYAU Lave-Linge ARRIVEE EAU 20/27 2metres F/F
Position: 120
Indicative price: 14.48 €
JOINT Lave-Linge PALIER
Position: 140
Indicative price: 17.41 €
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 150
Indicative price: 3.06 €
BOUTON Lave-Linge Interrupteur
Position: 160
Indicative price: 9.61 €
CADRE Lave-Linge SOUS TOP AV200815
Position: 160
Indicative price: 38.05 €
BAC Lave-Linge LESSIVE
Position: 170
Indicative price: 42.95 €
JOINT Lave-Linge FILTRE ARRIVEE EAU
Position: 180
Indicative price: 3.01 €
ECROU Lave-Linge PIED REGLABLE
Position: 190
Indicative price: 2.37 €
PIED Lave-Linge REGLABLE
Position: 200
Indicative price: 10.29 €
CUVE Lave-Linge
Position: 280
Indicative price: 79.26 €
TAMBOUR Lave-Linge AP200714
Position: 290
Indicative price: 130.5 €
TAMBOUR Lave-Linge AV200714
Position: 290
Indicative price: 129.54 €
PROTECTION Lave-Linge POMPE VIDANGE
Position: 301
Indicative price: 20.3 €
AMORTISSEUR Lave-Linge 120N
Position: 302
CAOUTCHOUC Lave-Linge AXE MOTEUR
Position: 310
Indicative price: 5.4 €
VIS Lave-Linge TAMBOUR
Position: 320
Indicative price: 2.74 €
Electrovanne Lave-Linge 3 VOIES E
Position: 340
MODULE Lave-Linge
Position: 340
Indicative price: 147.98 €
PRESSOS Lave-Linge 90-70 280 AP200222
Position: 350
Résistance Lave-Linge 1900W
Position: 350
Indicative price: 43.6 €
BOITE Lave-Linge SUPPORT MODULE
Position: 350
Indicative price: 25.44 €
Pompe de vidange Lave-Linge
Position: 360
Indicative price: 87.63 €
VIS Lave-Linge FIXATION ap200406
Position: 360
Indicative price: 2.43 €
MOTEUR Lave-Linge
Position: 360
PALIER Lave-Linge COTE DROIT AV200713
Position: 380
Indicative price: 26.38 €
SECURITE Lave-Linge PORTE AP200703
Position: 390
Indicative price: 34.28 €
SECURITE Lave-Linge PORTE AV200703
Position: 390
Indicative price: 29.73 €
PALIER Lave-Linge COTE GAUCHE AP200713
Position: 390
Indicative price: 53.71 €
PALIER Lave-Linge COTE GAUCHE AV200713
Position: 390
Indicative price: 53.14 €
CABLE Lave-Linge ALIM+BORNIER+ANTIPARA
Position: 400
JOINT Lave-Linge FLASQUE
Position: 410
Indicative price: 14.93 €
Commutateur Lave-Linge ESSORAGE
Position: 420
Indicative price: 19.39 €
POULIE Lave-Linge TAMBOUR
Position: 420
Indicative price: 35.67 €
PANNEAU Lave-Linge Gauche OU Droit
Position: 420
Indicative price: 34.83 €

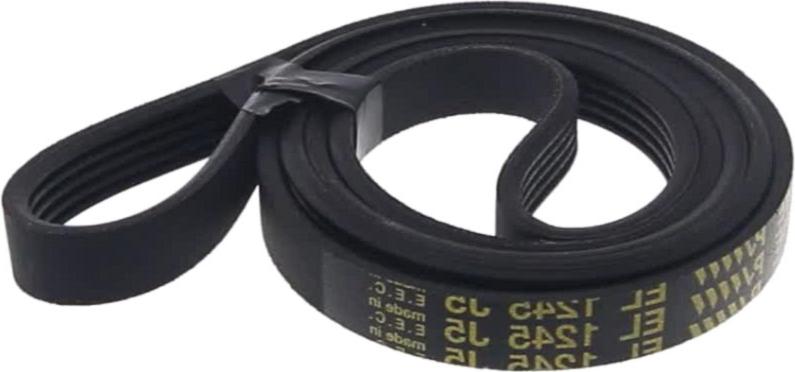

COURROIE Lave-Linge 1245J5 EL
Position: 440
Indicative price: 22.33 €
Batteur Lave-Linge EXTRACTIBLE+LEST E
Position: 470
Batteur Lave-Linge FIXE Nouveau modèle
Position: 480
Indicative price: 58.63 €
JOINT Lave-Linge AXE TAMBOUR
Position: 500
Indicative price: 10.47 €
VIS Lave-Linge MOTEUR
Position: 620
Indicative price: 2.33 €
VIS Lave-Linge Pompe de vidange 998000100
Position: 680
Indicative price: 2.5 €
VIS Lave-Linge AXE MOTEUR ap200119
Position: 780
Indicative price: 2.44 €
SYPHON Lave-Linge BAC LESSIVE
Position: 950
Indicative price: 19.31 €
