Exploded view plaque de cuisson SCHOLTES TLE604EXP 17268
Discover the complete exploded view plaque de cuisson SCHOLTES TLE604EXP 17268, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson SCHOLTES TLE604EXP 17268 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
CHAPEAU Plaque BRULEUR Rapide
Position: 3
Indicative price: 17.58 €

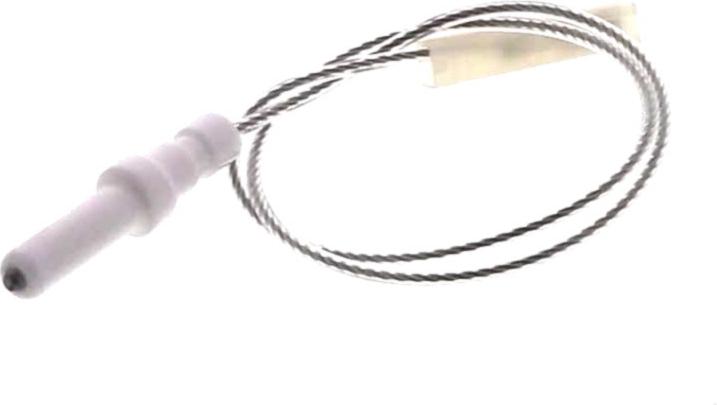

BOUGIE Cuisinière HAUT 3cm 325mm
Position: 4
Indicative price: 19.52 €

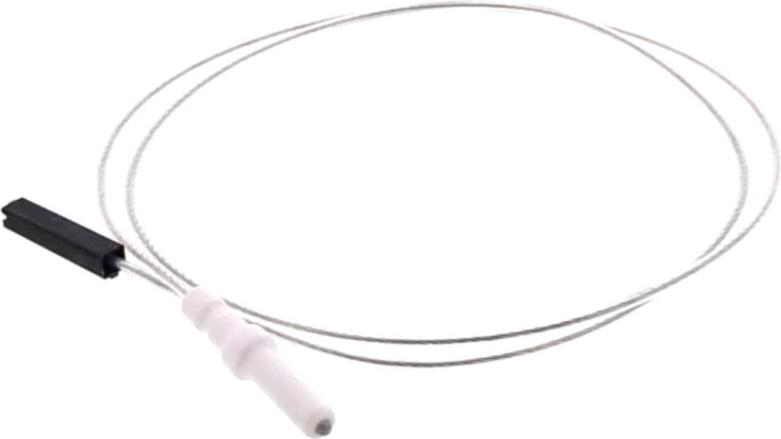

BOUGIE Cuisinière HAUT 5,20cm
Position: 4
Indicative price: 19.71 €

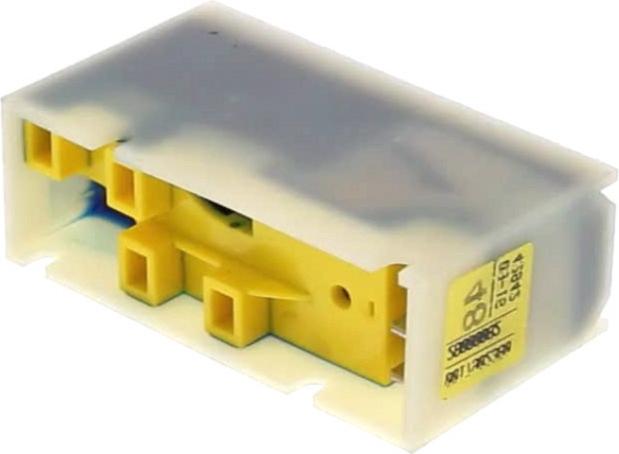

ALLUMEUR Plaque 4 POINTS
Position: 4
Indicative price: 85.21 €
COURONNE Plaque Rapide
Position: 5
Indicative price: 50.11 €
CROCHET Plaque SUPPORT PLAQUE
Position: 6
Indicative price: 6.12 €
CHAPEAU Cuisinière BRULEUR Semi-rapide
Position: 8
Indicative price: 12.1 €

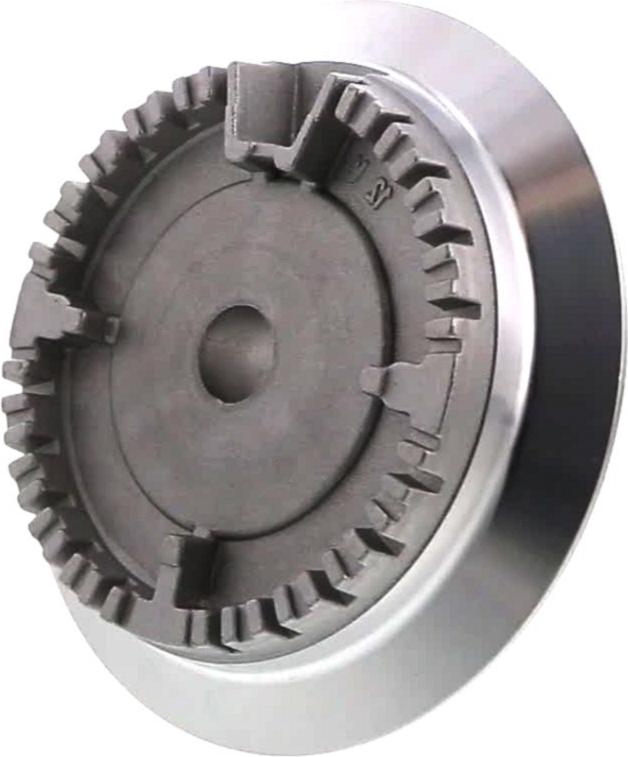

COURONNE Plaque Semi-rapide
Position: 9
Indicative price: 26.26 €
JOINT Plaque ROBINET Semi-rapide
Position: 12
Indicative price: 8.26 €
CHAPEAU Plaque BRULEUR Auxiliaire
Position: 13
Indicative price: 9.42 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 14
Interrupteur Plaque ALLUMAGE
Position: 16
Indicative price: 17.85 €
JOINT Plaque ENCASTREMENT 3,5*4*26
Position: 17
Indicative price: 14.41 €
JOINT Plaque RACCORD GAZ
Position: 18
Indicative price: 3.68 €
JOINT Plaque MANETTE
Position: 18
Indicative price: 9.19 €
MANETTE Plaque E
Position: 19
RAMPE Plaque Alimentation PLAQUE
Position: 19
Indicative price: 28.84 €
EMBOUT Cuisinière GAZ BUTANE
Position: 99
Indicative price: 4.27 €
VIS Plaque INOX
Position: 99
Indicative price: 5.74 €
JEU Plaque Injecteur Gaz Butane
Position: 99
Indicative price: 41.75 €
JEU Plaque Injecteur Gaz Naturel
Position: 99
Indicative price: 21.22 €
