Exploded view cuisinière SCHOLTES C243GCE 15968
Discover the complete exploded view cuisinière SCHOLTES C243GCE 15968, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière SCHOLTES C243GCE 15968 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
PROGRAMMATEUR Cuisinière
Position: 1
SUPPORT Four TOURNE BROCHE
Position: 2
PANNEAU Cuisinière LATERAL
Position: 2
TOLE Four PATISSERIE 367*347
Position: 3
Indicative price: 49.08 €
GRILLE Cuisinière FOUR 447*360
Position: 4
Indicative price: 52.97 €
CHAPEAU Cuisinière BRULEUR Semi-rapide
Position: 5
Indicative price: 11.95 €
ECROU Four VERROU
Position: 5
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 5
PLAT Four LECHE FRITE
Position: 6
Indicative price: 52.77 €
COURONNE Plaque Semi-rapide
Position: 6
Indicative price: 28.41 €
CHAPEAU Plaque BRULEUR Auxiliaire
Position: 7
Indicative price: 10.13 €
JOINT Four PORTE PYRO
Position: 7

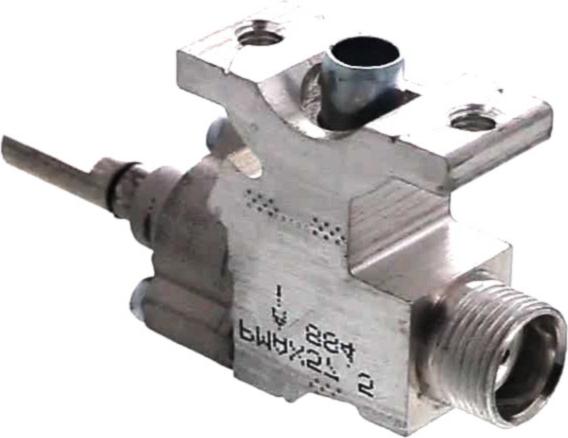

ROBINET Cuisinière SR/AUX
Position: 7
Indicative price: 39.03 €
MOTEUR Cuisinière TANGENTIEL 20W
Position: 8
Indicative price: 42.81 €
Interrupteur Plaque ALLUMAGE
Position: 8
Indicative price: 19.88 €
MOUFLE Four
Position: 8
Indicative price: 586.89 €
CHAPEAU Plaque BRULEUR Rapide
Position: 9
Indicative price: 18.01 €
JOINT Four HUBLOT ECLAIRAGE
Position: 9
Indicative price: 169771464.3 €
MOTEUR Four VERROUILLAGE
Position: 9
JOINT Four VITRE Intérieure
Position: 10
Indicative price: 60.67 €
HUBLOT Cuisinière DOUILLE
Position: 10
Indicative price: 19.16 €
COURONNE Plaque Rapide
Position: 10
Indicative price: 48.26 €
DOUILLE Four + SUPPORT
Position: 10
Indicative price: 17.75 €
AMPOULE Four 40W E14 300° SPHERIQ
Position: 11
Indicative price: 8.06 €
BOUGIE Cuisinière HAUT 3cm 325mm
Position: 11
Indicative price: 19.33 €
BOUGIE Cuisinière HAUT 5,20cm
Position: 11
Indicative price: 18.45 €
VITRE Four Intérieure 378*265
Position: 11
Indicative price: 114.25 €
RESISTANCE Four VOUTE EGO 20 34142 023
Position: 12
Indicative price: 232.8 €
SUPPORT Four VITRE Intérieure
Position: 13
RESSORT Cuisinière MANETTE
Position: 15
Indicative price: 4.74 €
Résistance Cuisinière SOLE 1800w
Position: 15
Indicative price: 237.23 €
MOTEUR Cuisinière TOURNE BROCHE
Position: 18
Indicative price: 32.94 €
CHARNIERE Cuisinière PORTE
Position: 19
Indicative price: 45.3 €
Thermostat Four PYRO 370°
Position: 19
Indicative price: 126.02 €
BORNIER Cuisinière 6 BORNES
Position: 20
Indicative price: 32.87 €
SUPPORT Cuisinière CHARNIERE
Position: 20
SUPPORT Four CHARNIERE
Position: 20
Indicative price: 11.23 €
RESISTANCE Four CHUTRICE 15w
Position: 23
Indicative price: 45.24 €
THERMOSTAT Four FOUR 320° 3 cosses 5513262150
Position: 25
Indicative price: 92.04 €
ALLUMEUR Plaque 4 POINTS
Position: 25
Indicative price: 78.28 €
EMBOUT Cuisinière GAZ BUTANE
Position: 99
Indicative price: 4.21 €
JEU Cuisinière Injecteur Gaz Butane
Position: 99
Indicative price: 28.11 €
JEU Cuisinière Injecteur Gaz Naturel
Position: 99
Indicative price: 24.2 €
