Exploded view cuisinière SCHOLTES C805H

Discover the complete exploded view cuisinière SCHOLTES C805H, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière SCHOLTES C805H and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

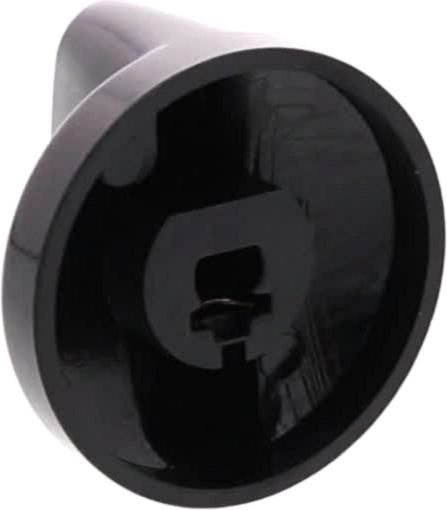

MANETTE Plaque NOIRE
MANETTE Plaque NOIRE
Position: 1
Indicative price: 19.69 €
FOURCHETTE Four BROCHE
FOURCHETTE Four BROCHE
Position: 1
Indicative price: 16.94 €

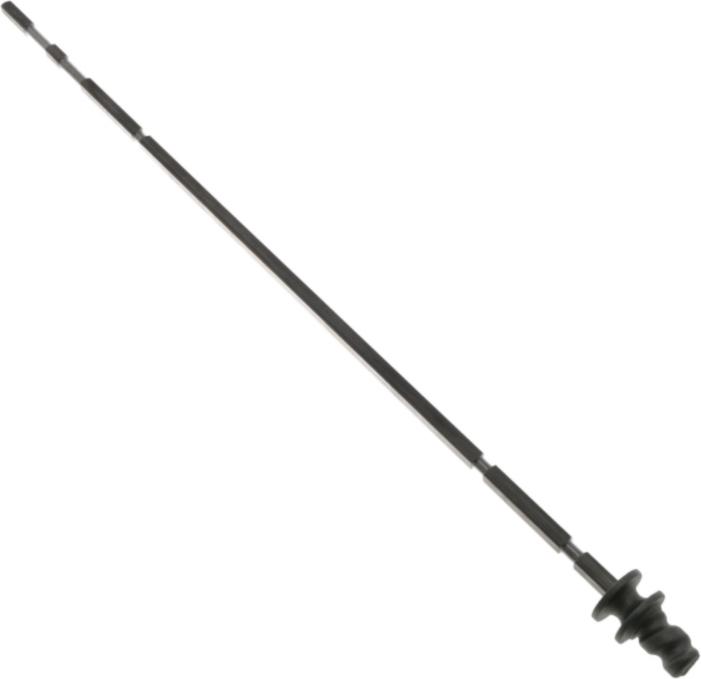

BROCHE Four 438MM
BROCHE Four 438MM
Position: 2
Indicative price: 43.63 €
JOINT Four PYRO 420*345
JOINT Four PYRO 420*345
Position: 2
Indicative price: 82.61 €

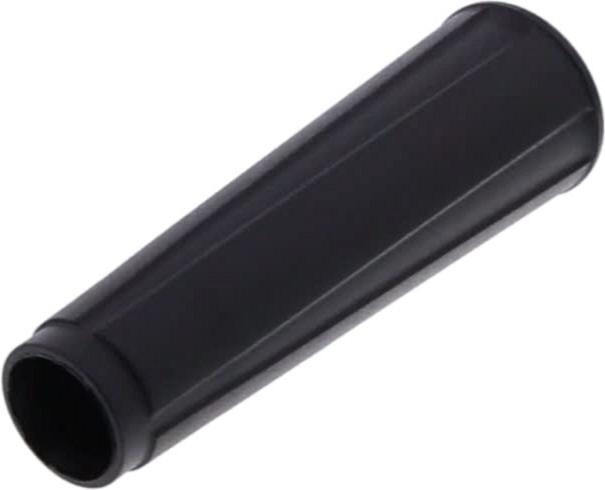

POIGNEE Four BROCHE
POIGNEE Four BROCHE
Position: 3
Indicative price: 7.58 €
Programmateur Four HORLOGE
Programmateur Four HORLOGE
Position: 3
Indicative price: 133.65 €
TOLE Four PATISSERIE 367*347
TOLE Four PATISSERIE 367*347
Position: 5
Indicative price: 48.63 €
VITRE Cuisinière Intérieure 348x207x3,3 E
VITRE Cuisinière Intérieure 348x207x3,3 E
Position: 5
JOINT Four VITRE INTERIEUR
JOINT Four VITRE INTERIEUR
Position: 6
GRILLE Cuisinière FOUR 396*360
GRILLE Cuisinière FOUR 396*360
Position: 6
Indicative price: 32.35 €
VITRE Cuisinière INTERIEURE E
VITRE Cuisinière INTERIEURE E
Position: 7
PLAQUE Plaque HALOGENE "remplacée par hi-light"
PLAQUE Plaque HALOGENE "remplacée par hi-light"
Position: 8
Indicative price: 42 €
RESISTANCE Four SOLE 1800W E
RESISTANCE Four SOLE 1800W E
Position: 9
PIECE DEFINITIVEMENT EPUISEE EN USINE
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 9
Thermostat Plaque LIMIT Halogène 180MM
Thermostat Plaque LIMIT Halogène 180MM
Position: 10
Indicative price: 61.66 €

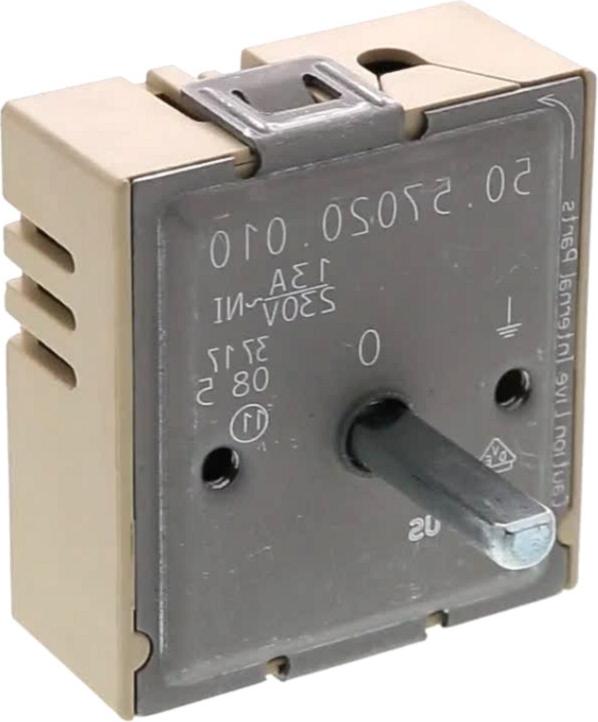

COMMUTATEUR Plaque NRJ 50.57021.010
COMMUTATEUR Plaque NRJ 50.57021.010
Position: 12
Indicative price: 27.24 €
JOINT Four HUBLOT ECLAIRAGE
JOINT Four HUBLOT ECLAIRAGE
Position: 13
Indicative price: 164049902.49 €
CHARNIERE Cuisinière PORTE Gauche OU Droit 152mm 11 STRIES
CHARNIERE Cuisinière PORTE Gauche OU Droit 152mm 11 STRIES
Position: 13
Indicative price: 41.4 €
HUBLOT Cuisinière DOUILLE
HUBLOT Cuisinière DOUILLE
Position: 14
Indicative price: 21.99 €
DOUILLE Four + SUPPORT
DOUILLE Four + SUPPORT
Position: 14
Indicative price: 19.41 €
AMPOULE Four 40W E14 300° SPHERIQ
AMPOULE Four 40W E14 300° SPHERIQ
Position: 15
Indicative price: 7.46 €
Charnière Cuisinière FEMELLE Gauche OU Droit E
Charnière Cuisinière FEMELLE Gauche OU Droit E
Position: 15

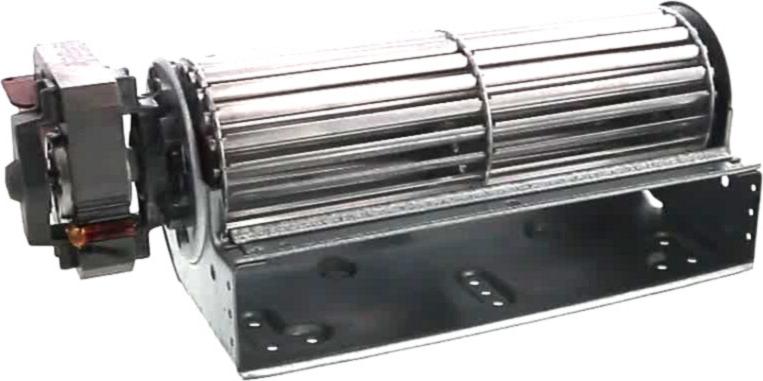

MOTEUR Four VENTILATEUR TANGENTIEL
MOTEUR Four VENTILATEUR TANGENTIEL
Position: 18
Indicative price: 47.64 €
