Exploded view réfrigérateur SHARP SJ-NBA05DMXLD-EU SJ-NBA05DMXLD

Discover the complete exploded view réfrigérateur SHARP SJ-NBA05DMXLD-EU SJ-NBA05DMXLD, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur SHARP SJ-NBA05DMXLD-EU SJ-NBA05DMXLD and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

NOTICE Froid UTILISATION
NOTICE Froid UTILISATION
Indicative price: 10.03 €
INDICATEUR Froid ZONE 0-4°C
INDICATEUR Froid ZONE 0-4°C
Indicative price: 7.46 €
ISOLANT Froid MASTIC 120*90*4
ISOLANT Froid MASTIC 120*90*4
Indicative price: 8.45 €
CHARNIERE Froid Supérieur 54CM
CHARNIERE Froid Supérieur 54CM
Position: 2
Indicative price: 12.46 €
VIS Froid FIXE SUPPORT Charnière Supérieur
VIS Froid FIXE SUPPORT Charnière Supérieur
Position: 5
Indicative price: 2.6 €
CHARNIERE Froid CENTRALE 54cm
CHARNIERE Froid CENTRALE 54cm
Position: 9
Indicative price: 11.26 €
BOUCHON Froid PETIT MODELE
BOUCHON Froid PETIT MODELE
Position: 11
Indicative price: 2.36 €
CACHE Froid TROU Grand modèle GRIS BRILLANT
CACHE Froid TROU Grand modèle GRIS BRILLANT
Position: 12
Indicative price: 4 €
BOUCHON Froid GRAND MODELE BLANC
BOUCHON Froid GRAND MODELE BLANC
Position: 12
Indicative price: 2.61 €
CHARNIERE Froid Inférieur 54CM
CHARNIERE Froid Inférieur 54CM
Position: 15
Indicative price: 13.41 €
PIED Froid M8*35 NOIR
PIED Froid M8*35 NOIR
Position: 16
Indicative price: 2.94 €
BAC Froid GLACONS
BAC Froid GLACONS
Position: 18
Indicative price: 5.38 €
CLAYETTE Froid Réfrigérateur 289 442*284*3.2
CLAYETTE Froid Réfrigérateur 289 442*284*3.2
Position: 37
Indicative price: 21.5 €
ENJOLIVEUR Froid AVANT 391 441mm
ENJOLIVEUR Froid AVANT 391 441mm
Position: 38
Indicative price: 6.76 €
ENJOLIVEUR Froid ARRIERE CLAYETTE 252 SW VBE6984 99613819
ENJOLIVEUR Froid ARRIERE CLAYETTE 252 SW VBE6984 99613819
Position: 38
Indicative price: 8.86 €
DESSUS Froid BAC LEGUMES 252 442*317
DESSUS Froid BAC LEGUMES 252 442*317
Position: 39
Indicative price: 26.69 €
BAC Froid LEGUMES 252 TRANSPARENT GRIS VBE6982 99613817
BAC Froid LEGUMES 252 TRANSPARENT GRIS VBE6982 99613817
Position: 41
Indicative price: 40 €
CLAYETTE Froid HORIZONTALE 2795 ZINC
CLAYETTE Froid HORIZONTALE 2795 ZINC
Position: 71
Indicative price: 20.39 €
CACHE Froid TROU CHARNIERE Supérieur 2451 VGRI
CACHE Froid TROU CHARNIERE Supérieur 2451 VGRI
Position: 89
Indicative price: 2.85 €
CACHE Froid CHARNIERE Supérieur 54CM GRIS VSG VBE7647 99616120
CACHE Froid CHARNIERE Supérieur 54CM GRIS VSG VBE7647 99616120
Position: 89
Indicative price: 7.52 €
TIROIR Froid CENTRAL 252 TRANSPARENT GRIS VBE6977 99613813
TIROIR Froid CENTRAL 252 TRANSPARENT GRIS VBE6977 99613813
Position: 92
Indicative price: 35.23 €
TIROIR Froid Inférieur 252 TRANSPARENT GRIS VBE6975 99613811
TIROIR Froid Inférieur 252 TRANSPARENT GRIS VBE6975 99613811
Position: 93
Indicative price: 36.07 €
TIROIR Froid Congélateur Supérieur 289 VBE 9583 99630620
TIROIR Froid Congélateur Supérieur 289 VBE 9583 99630620
Position: 94
Indicative price: 21.44 €
DOUILLE Froid Charnière GRIS CLAIR 345P
DOUILLE Froid Charnière GRIS CLAIR 345P
Position: 151
Indicative price: 6.28 €
CACHE Froid TROU AXE CHARNIERE
CACHE Froid TROU AXE CHARNIERE
Position: 152
Indicative price: 2.73 €
Porte Froid Congélateur 286GK-RIO
Porte Froid Congélateur 286GK-RIO
Position: 153
Indicative price: 81.2 €
MARQUE Froid SHARP
MARQUE Froid SHARP
Position: 154
Indicative price: 30.01 €
Porte Froid Réfrigérateur 286GK-RIO HRF
Porte Froid Réfrigérateur 286GK-RIO HRF
Position: 155
Indicative price: 100.83 €
SUPPORT Froid ŒUFS TRANSPARENT CLAIR VBE5982 99612941
SUPPORT Froid ŒUFS TRANSPARENT CLAIR VBE5982 99612941
Position: 159
Indicative price: 9.78 €
CACHE Froid VIS BANDEAU GRIS
CACHE Froid VIS BANDEAU GRIS
Position: 164
Indicative price: 2.53 €
BUTEE Froid PORTE Droit OU Gauche
BUTEE Froid PORTE Droit OU Gauche
Position: 168
Indicative price: 5.85 €
BUTEE Froid 140CE
BUTEE Froid 140CE
Position: 174
Indicative price: 5.97 €
BALCONNET Froid CENTRAL OU Supérieur 319ERA TRANSPARENT GRIS VBE6341
BALCONNET Froid CENTRAL OU Supérieur 319ERA TRANSPARENT GRIS VBE6341
Position: 175
Indicative price: 23.48 €
BALCONNET Froid CENTRAL 319ERA COULISSANT TRANSPARENT GRIS VBE6462 99612364
BALCONNET Froid CENTRAL 319ERA COULISSANT TRANSPARENT GRIS VBE6462 99612364
Position: 175
Indicative price: 29.75 €
GUIDE Froid DROIT BALCONNET CENTRAL 473 SW
GUIDE Froid DROIT BALCONNET CENTRAL 473 SW
Position: 175
Indicative price: 9.62 €
GUIDE Froid GAUCHE BALCONNET CENTRAL 473 SW
GUIDE Froid GAUCHE BALCONNET CENTRAL 473 SW
Position: 175
Indicative price: 10 €
BALCONNET Froid BOUTEILLES 319ERA TRANSPARENT GRIS VBE6342
BALCONNET Froid BOUTEILLES 319ERA TRANSPARENT GRIS VBE6342
Position: 177
Indicative price: 26.95 €
DOUILLE Froid Supérieur Porte Supérieur 540CE GRISE
DOUILLE Froid Supérieur Porte Supérieur 540CE GRISE
Position: 189
Indicative price: 5.7 €
PLATINE Froid DISPLAY 492 Hotte
PLATINE Froid DISPLAY 492 Hotte
Position: 200
Indicative price: 43.44 €
CONDENSEUR Froid 54CM/28
CONDENSEUR Froid 54CM/28
Position: 201
Indicative price: 79.22 €
ENTRETOISE Froid CONDENSEUR **203** VBE374 G8
ENTRETOISE Froid CONDENSEUR **203** VBE374 G8
Position: 203
Indicative price: 4.39 €
VIS Froid 4.8*13
VIS Froid 4.8*13
Position: 205
Indicative price: 2.29 €
MASTIC Froid ANTI-VIBRATION
MASTIC Froid ANTI-VIBRATION
Position: 207
Indicative price: 5.91 €
CABLE Froid ALIMENTATION 2.5m 3*0.75 AVEC COSSES
CABLE Froid ALIMENTATION 2.5m 3*0.75 AVEC COSSES
Position: 210
Indicative price: 10.12 €

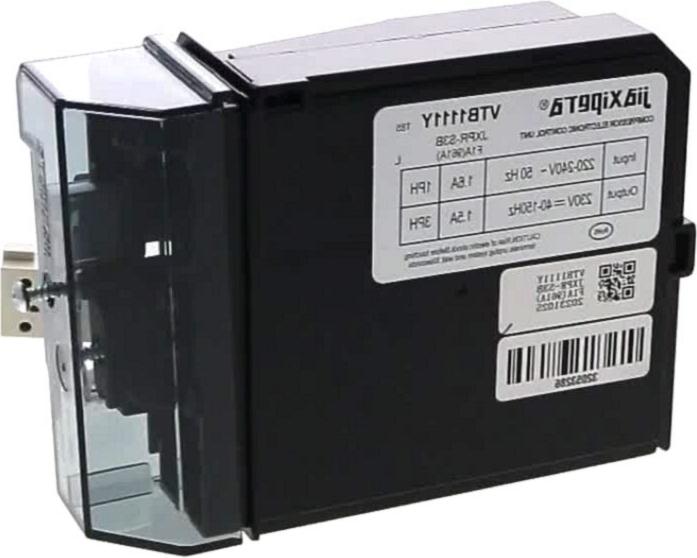

PLATINE Froid COMPRESSEUR INVERTER VTB1111Y JXPR-S3B
PLATINE Froid COMPRESSEUR INVERTER VTB1111Y JXPR-S3B
Position: 211
Indicative price: 73.43 €
BAC Froid DEGIVRAGE VCC FIXATION SUR COMPRESSEUR
BAC Froid DEGIVRAGE VCC FIXATION SUR COMPRESSEUR
Position: 214
Indicative price: 13.16 €
BAC Froid DEGIVRAGE VCC (fixation sur compresseur)
BAC Froid DEGIVRAGE VCC (fixation sur compresseur)
Position: 214
Indicative price: 13.5 €
DESHYDRATEUR Froid 5,5G 6,4
DESHYDRATEUR Froid 5,5G 6,4
Position: 215
Indicative price: 54.37 €
FIXATOIN Froid COMPRESSEUR
FIXATOIN Froid COMPRESSEUR
Position: 216
Indicative price: 2.59 €
COMPRESSEUR Froid INVERTER VTB1111Y
COMPRESSEUR Froid INVERTER VTB1111Y
Position: 217
Indicative price: 170 €
SUPPORT Froid COMPRESSEUR 530*95
SUPPORT Froid COMPRESSEUR 530*95
Position: 218
Indicative price: 28.81 €
CABLE Froid MASSE
CABLE Froid MASSE
Position: 219
Indicative price: 5.41 €
VIS Lave-Vaisselle M4X6
VIS Lave-Vaisselle M4X6
Position: 222
Indicative price: 2.45 €
TUYAU Froid
TUYAU Froid
Position: 225
Indicative price: 7.77 €

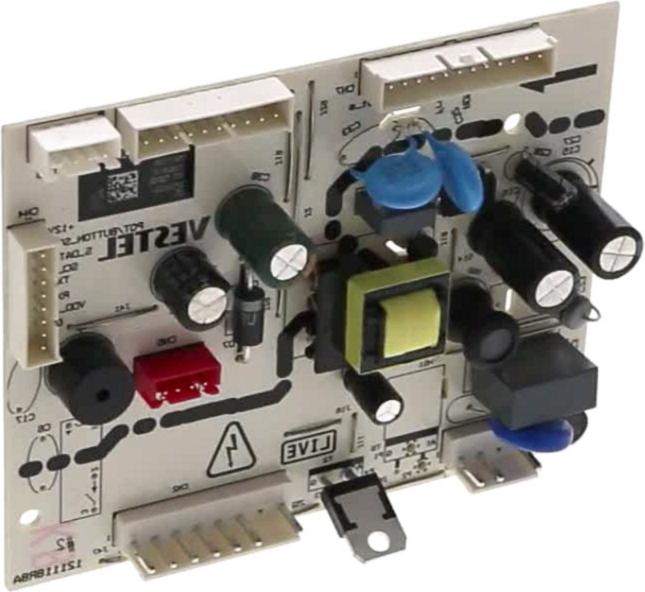

PLATINE Froid BDA67 289M 231-23859738
PLATINE Froid BDA67 289M 231-23859738
Position: 237
Indicative price: 57.83 €
CACHE Froid PLATINE BEIGE
CACHE Froid PLATINE BEIGE
Position: 244
Indicative price: 13.59 €
Interrupteur Froid LUMIERE 2 COSSES
Interrupteur Froid LUMIERE 2 COSSES
Position: 315
Indicative price: 14.61 €
Evaporateur Froid 253
Evaporateur Froid 253
Position: 401
Indicative price: 93.8 €
FOND Froid Congélateur 253 + VENTILATEUR VBE7061+VBE8547 99613928
FOND Froid Congélateur 253 + VENTILATEUR VBE7061+VBE8547 99613928
Position: 408
Indicative price: 32.21 €
FOND Froid Réfrigérateur 289 VBE7212 NIDEC
FOND Froid Réfrigérateur 289 VBE7212 NIDEC
Position: 428
Indicative price: 43.31 €
CACHE Froid MOTEUR VENTILATEUR 473 SW VBE5902 99609848 GENTLE AIRFLOW
CACHE Froid MOTEUR VENTILATEUR 473 SW VBE5902 99609848 GENTLE AIRFLOW
Position: 430
Indicative price: 17.9 €
MOTEUR Froid VENTILATEUR EFA0301S3 ROND
MOTEUR Froid VENTILATEUR EFA0301S3 ROND
Position: 431
Indicative price: 31.25 €
MOTEUR Froid VENTILATEUR 12V DC NIDEC DJF92T7AS6-S07E28 0.065A CARRE
MOTEUR Froid VENTILATEUR 12V DC NIDEC DJF92T7AS6-S07E28 0.065A CARRE
Position: 431
Indicative price: 29.52 €
SUPPORT Froid MOTEUR Ventilation Réfrigérateur 916
SUPPORT Froid MOTEUR Ventilation Réfrigérateur 916
Position: 432
Indicative price: 13.92 €
SONDE Froid TEMPERATURE AMBIANCE R6K L=70mm
SONDE Froid TEMPERATURE AMBIANCE R6K L=70mm
Position: 433
Indicative price: 19.05 €
SONDE Froid KIT REMPLACEMENT pos 434 2.7Kohms(19°c)
SONDE Froid KIT REMPLACEMENT pos 434 2.7Kohms(19°c)
Position: 434
Indicative price: 18.69 €
CACHE Froid VIS 640 SW
CACHE Froid VIS 640 SW
Position: 449
Indicative price: 2.37 €
CACHE Froid VIS FIXATION CARTER ARRIERE
CACHE Froid VIS FIXATION CARTER ARRIERE
Position: 449
Indicative price: 6.83 €
VIS Froid ENJOLIVEUR DISPLAY
VIS Froid ENJOLIVEUR DISPLAY
Position: 455
Indicative price: 2.66 €
JOINT Froid Congélateur 252-278-286 GRIS
JOINT Froid Congélateur 252-278-286 GRIS
Position: 459
Indicative price: 33.28 €
JOINT Froid Réfrigérateur GRIS 286-I
JOINT Froid Réfrigérateur GRIS 286-I
Position: 460
Indicative price: 41.79 €
SONDE Froid DEGIVRAGE + FUSIBLE
SONDE Froid DEGIVRAGE + FUSIBLE
Position: 499
Indicative price: 25.92 €
CACHE Froid TROU CENTRAL Blanc
CACHE Froid TROU CENTRAL Blanc
Position: 505
Indicative price: 2.39 €
RESISTANCE Froid DEGIVRAGE 120W
RESISTANCE Froid DEGIVRAGE 120W
Position: 533
Indicative price: 43.21 €
CACHE Froid SONDE 473 SW
CACHE Froid SONDE 473 SW
Position: 624
Indicative price: 7.56 €
PLAFONNIER Froid OPAQUE + 6 LEDS 12V cw44/2018-icm-1
PLAFONNIER Froid OPAQUE + 6 LEDS 12V cw44/2018-icm-1
Position: 735
Indicative price: 19.09 €
PLAFONNIER Froid LED 319 OPAQUE
PLAFONNIER Froid LED 319 OPAQUE
Position: 737
Indicative price: 14.03 €
LAMPE Froid 6 LED 129*8mm 12V BDL3(H)
LAMPE Froid 6 LED 129*8mm 12V BDL3(H)
Position: 738
Indicative price: 14.19 €
AMORTISSEUR Froid COMPRESSEUR
AMORTISSEUR Froid COMPRESSEUR
Position: 1026
