Exploded view lave linge LG WD-13402TB WD.13402TB WD13402TB
Discover the complete exploded view lave linge LG WD-13402TB WD.13402TB WD13402TB, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge LG WD-13402TB WD.13402TB WD13402TB and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
PANNEAU Lave-Linge ARRIERE
Position: 101
Indicative price: 24.22 €

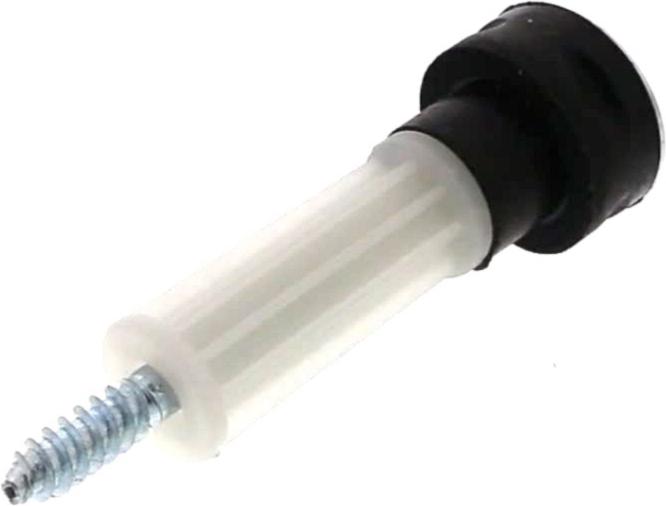

VIS Lave-Linge BRIDAGE COMPLETE
Position: 104
Indicative price: 9.26 €
CUVE Lave-Linge DEMI ARRIERE E
Position: 105
DESSUS Lave-Linge TOP
Position: 110
Indicative price: 44.12 €
TAMBOUR Lave-Linge
Position: 110
PLATINE Lave-Linge DISPLAY
Position: 110
Indicative price: 83.2 €

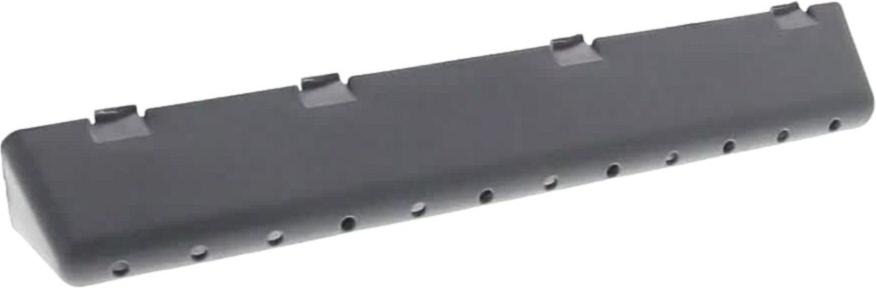

Batteur Lave-Linge TAMBOUR
Position: 111
Indicative price: 18.19 €
AXE Lave-Linge TAMBOUR
Position: 115
Indicative price: 65.96 €

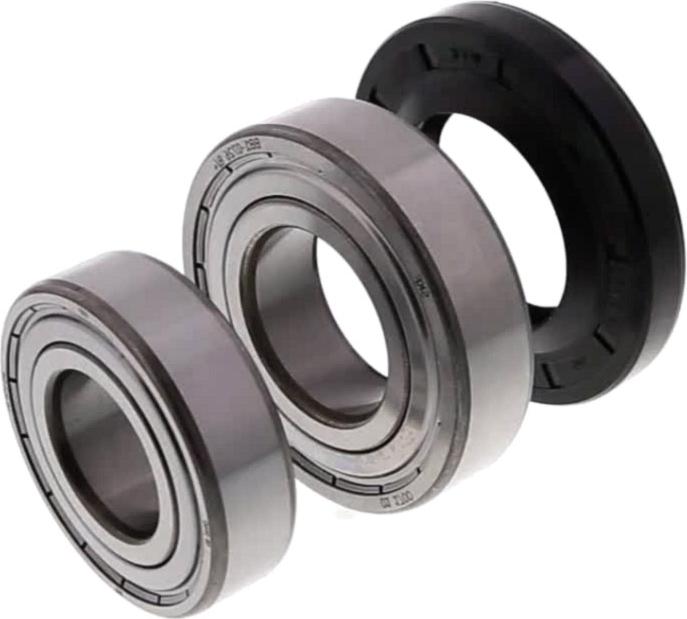

PALIER Lave-Linge COMPLET
Position: 125
Indicative price: 47.66 €
FACADE Lave-Linge
Position: 130
Indicative price: 32.23 €
COLLIER Lave-Linge JOINT-MEUBLE
Position: 133
Indicative price: 10.1 €

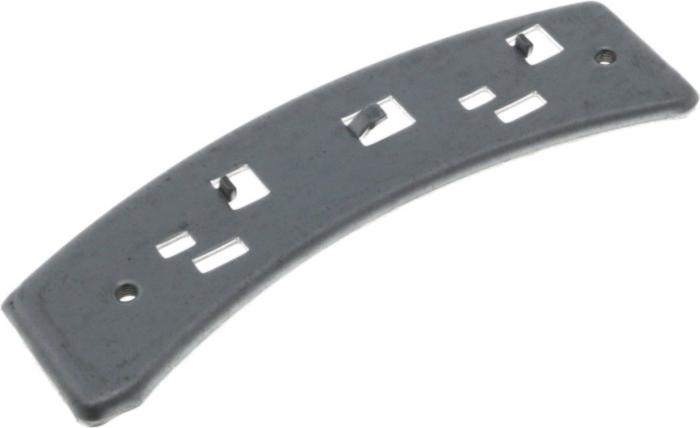

SUPPORT Lave-Linge CHARNIERE
Position: 134
Indicative price: 9.98 €

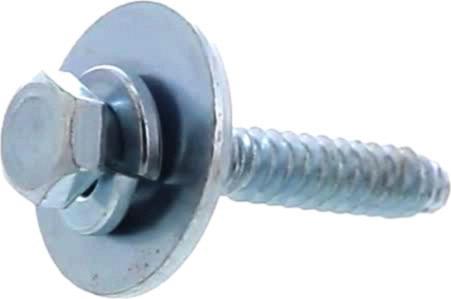

VIS Lave-Linge Contre-poids
Position: 136
Indicative price: 3.81 €

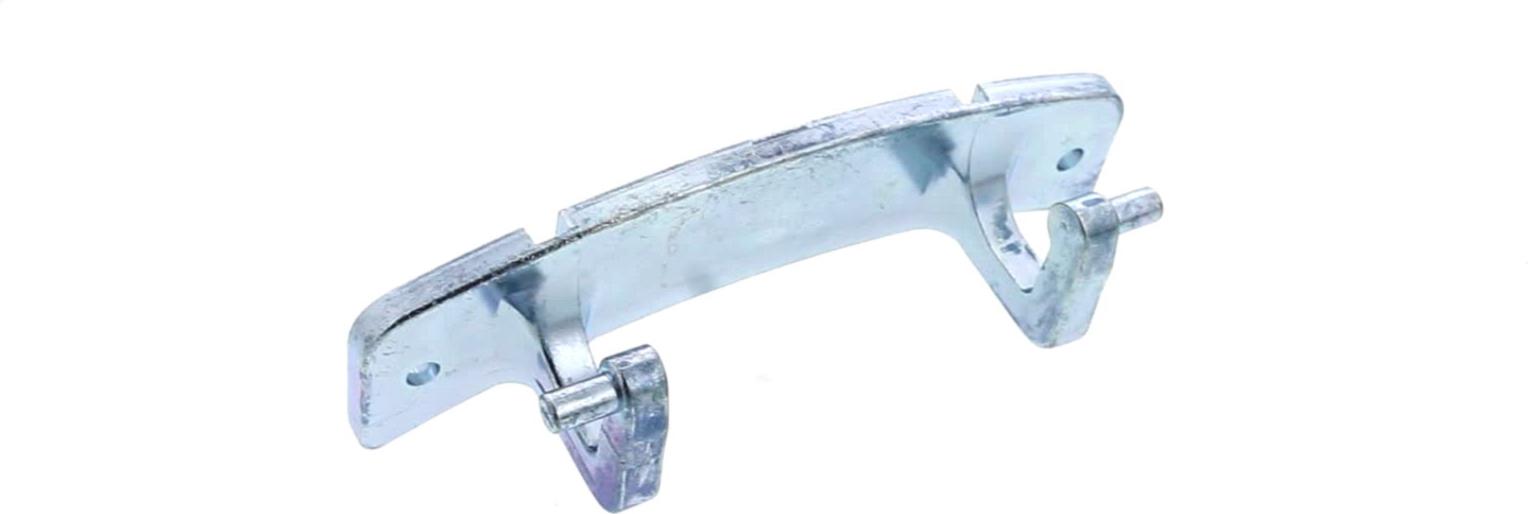

CHARNIERE Lave-Linge HUBLOT
Position: 140
Indicative price: 30.75 €
CUVE Lave-Linge 1/2 AVANT
Position: 140

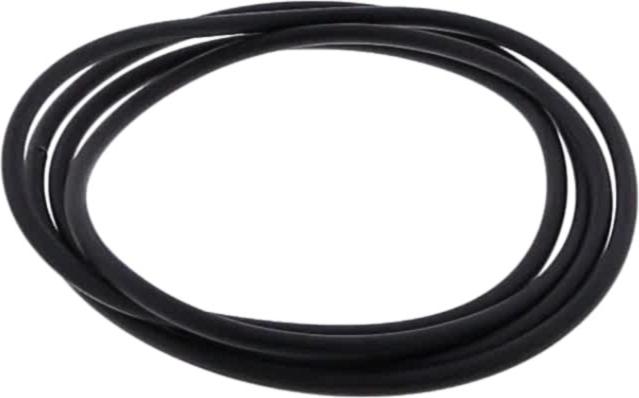

JOINT Lave-Linge CUVE point jaune
Position: 141
Indicative price: 15.52 €
HUBLOT Lave-Linge COMPLET
Position: 150
Indicative price: 67.93 €
ENJOLIVEUR Lave-Linge HUBLOT
Position: 151
Indicative price: 26 €

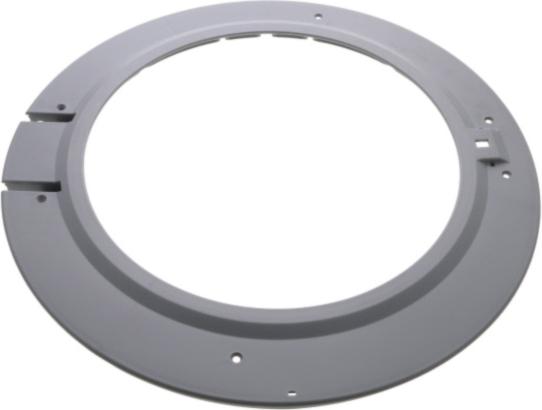

Contre porte Lave-Linge HUBLOT
Position: 152
Indicative price: 18.94 €

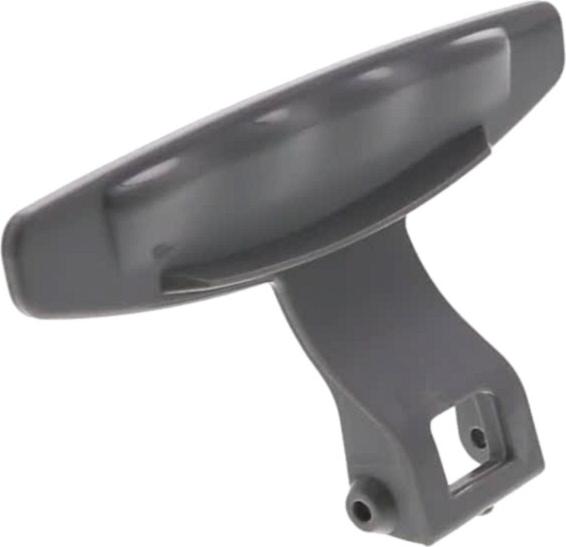

POIGNEE Lave-Linge HUBLOT
Position: 153
Indicative price: 11.14 €

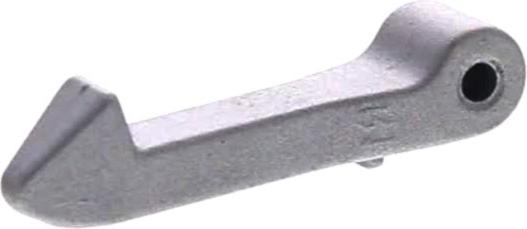

CROCHET Lave-Linge HUBLOT
Position: 154
Indicative price: 8.54 €

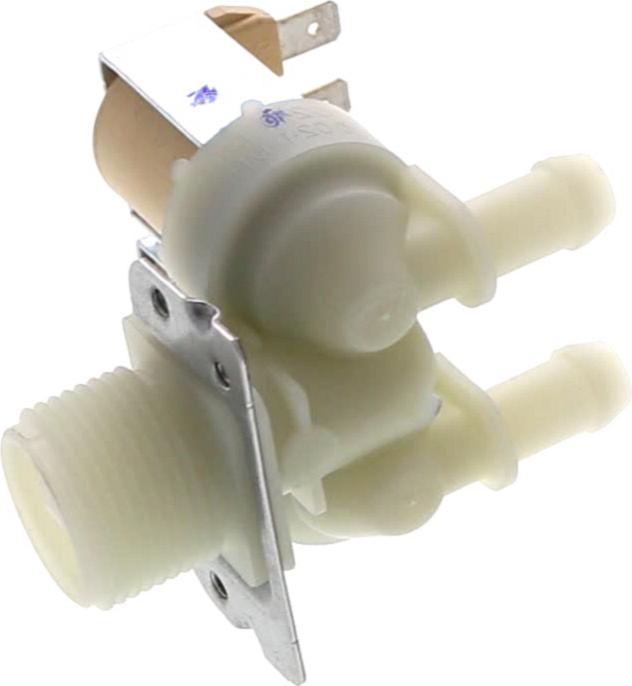

Electrovanne Lave-Linge 2 VOIES 180°
Position: 160
Indicative price: 42.67 €

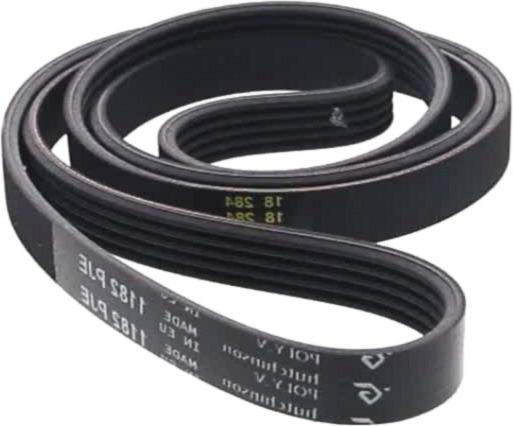

COURROIE Lave-Linge 1182PJE5
Position: 210
Indicative price: 39.21 €
RONDELLE Lave-Linge
Position: 212
Indicative price: 4.28 €
MANETTE Lave-Linge Programmateur
Position: 215
Indicative price: 9.84 €
POULIE Lave-Linge TAMBOUR
Position: 220

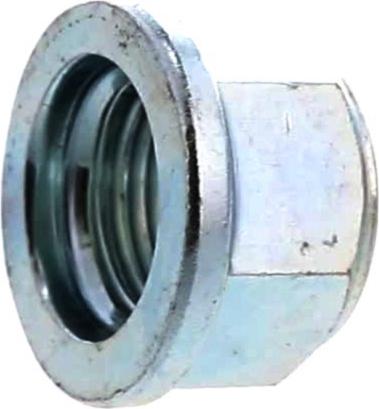

ECROU Lave-Linge POULIE TAMBOUR
Position: 221
SYPHON Lave-Linge BOITE LESSIVE
Position: 225

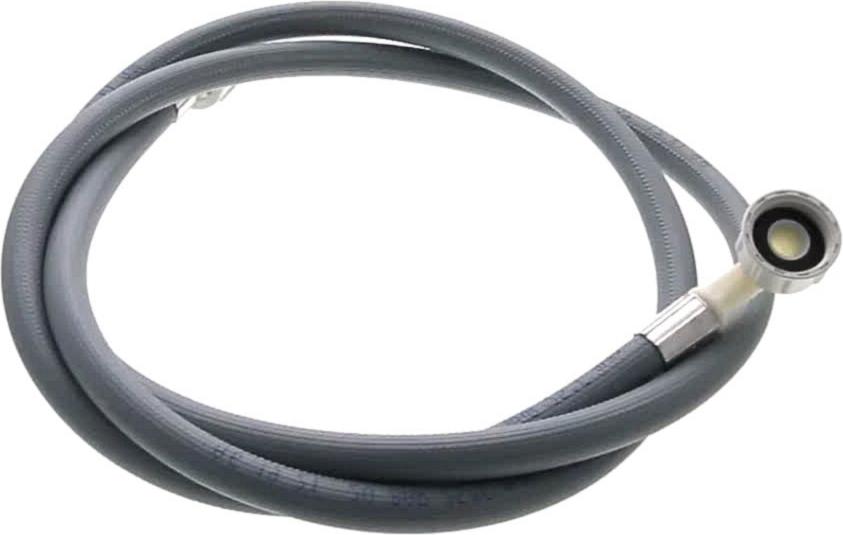

TUYAU Lave-Linge ARRIVEE EAU
Position: 276
Indicative price: 15.44 €
BOITE Lave-Linge LESSIVE INF+COUV
Position: 300

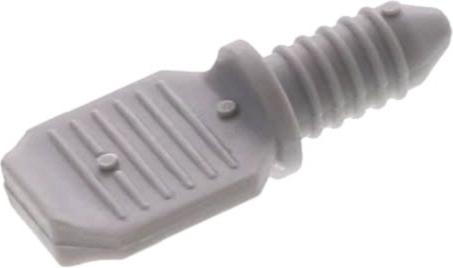

BOUCHON Lave-Linge TUYAU DE VIDANGE
Position: 303
Indicative price: 6.22 €

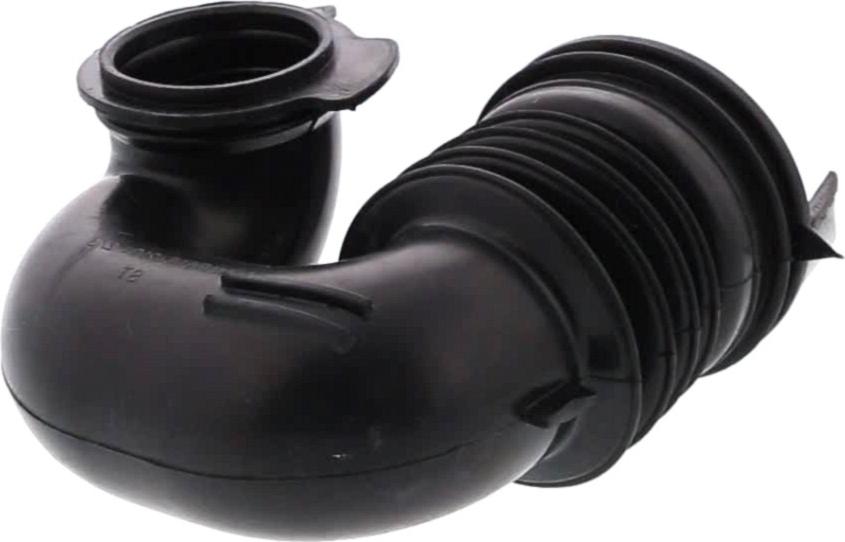

DURITE Lave-Linge BAC/CUVE
Position: 310
Indicative price: 33.86 €

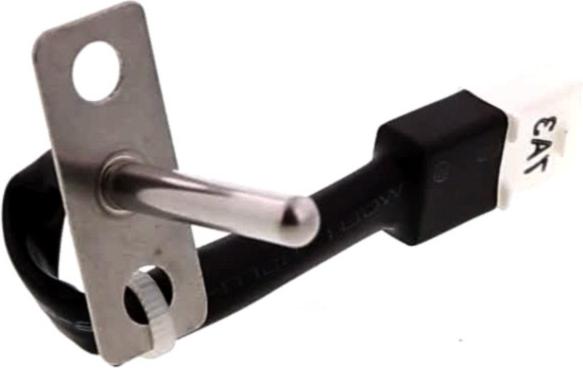

SONDE Lave-Linge THERMOSTATIQUE
Position: 310
Indicative price: 16.46 €

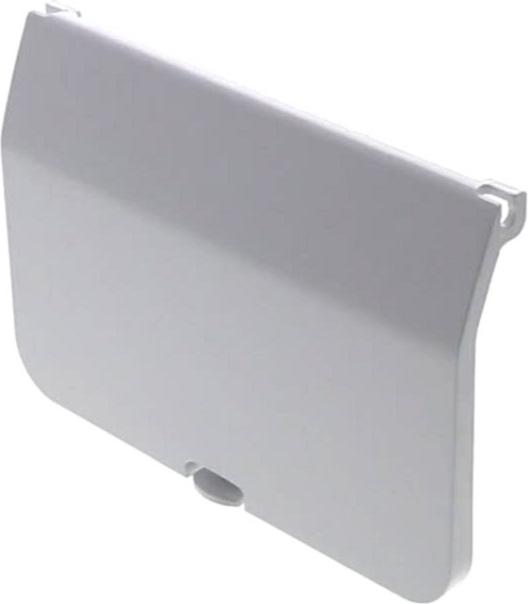

PORTE Lave-Linge POMPE DE VIDANGE
Position: 310
Indicative price: 9.33 €

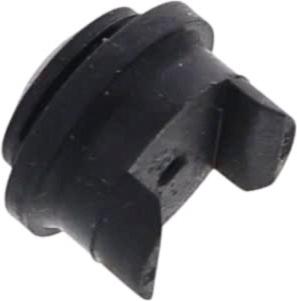

JOINT Lave-Linge SONDE
Position: 311
Indicative price: 7.38 €

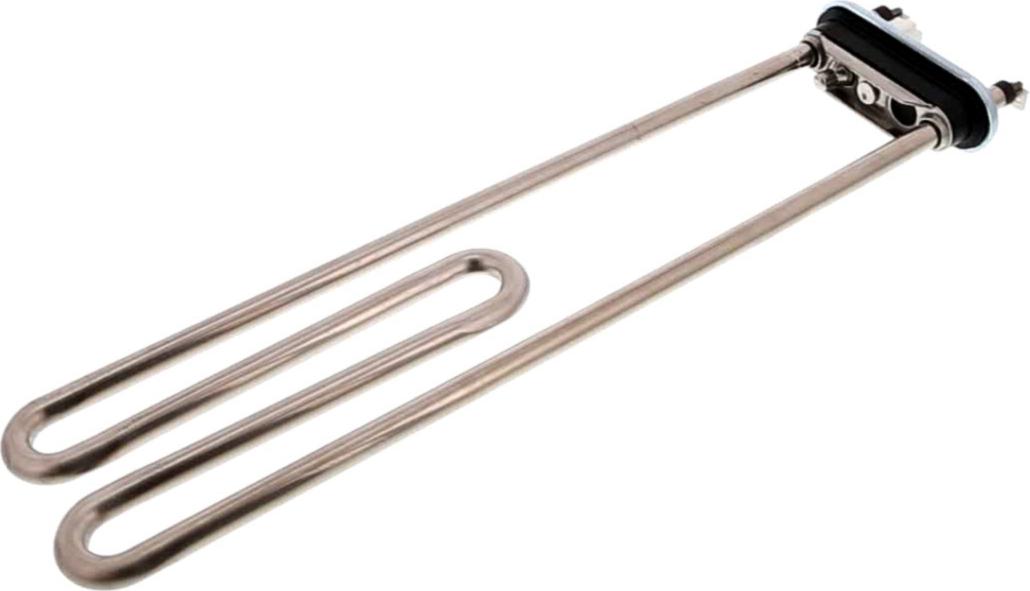

RESISTANCE Lave-Linge 2000W 230V
Position: 320
Indicative price: 40.77 €

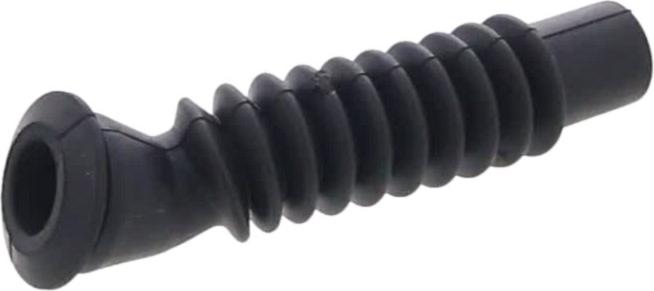

DURITE Lave-Linge BOITE CUVE
Position: 320
Indicative price: 21.37 €

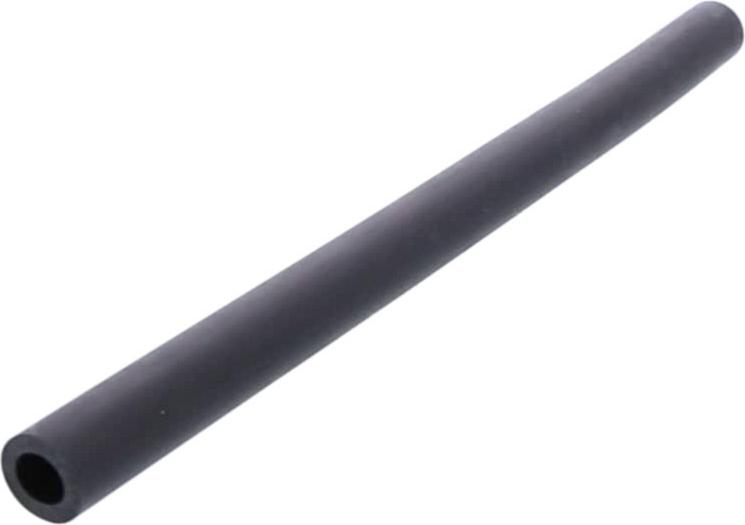

DURITE Lave-Linge EV/BOITE PRODUIT 227mm
Position: 321
Indicative price: 11.85 €
MOTEUR Lave-Linge AV206
Position: 330
VIS Lave-Linge
Position: 332
Indicative price: 4.78 €
POMPE Lave-Linge HANNING DP025-208
Position: 340
Indicative price: 50.75 €
TUYAU Lave-Linge Pompe de vidange
Position: 342
Indicative price: 5.02 €
CORPS Lave-Linge POMPE VIDANGE
Position: 344
Indicative price: 27.03 €

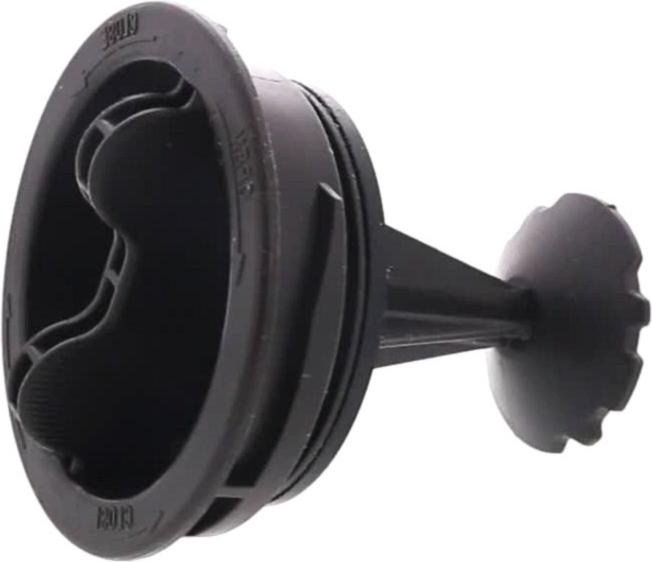

BOUCHON Lave-Linge POMPE
Position: 346
Indicative price: 7.47 €
TACHYMETRE Lave-Linge AP206
Position: 351
Indicative price: 42.52 €

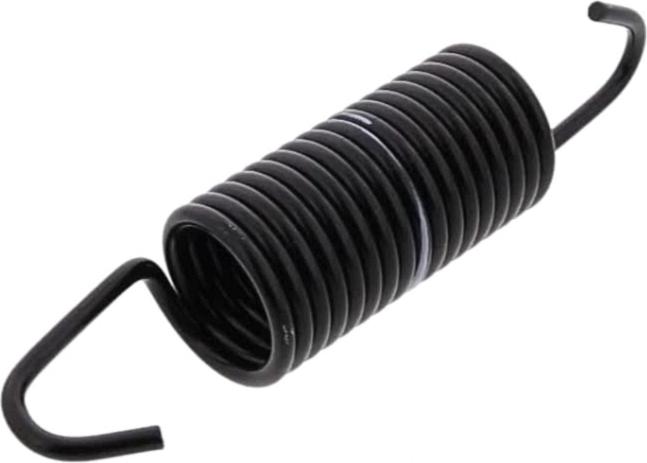

RESSORT Lave-Linge CUVE 153MM 17 STRIES
Position: 410
Indicative price: 9.37 €

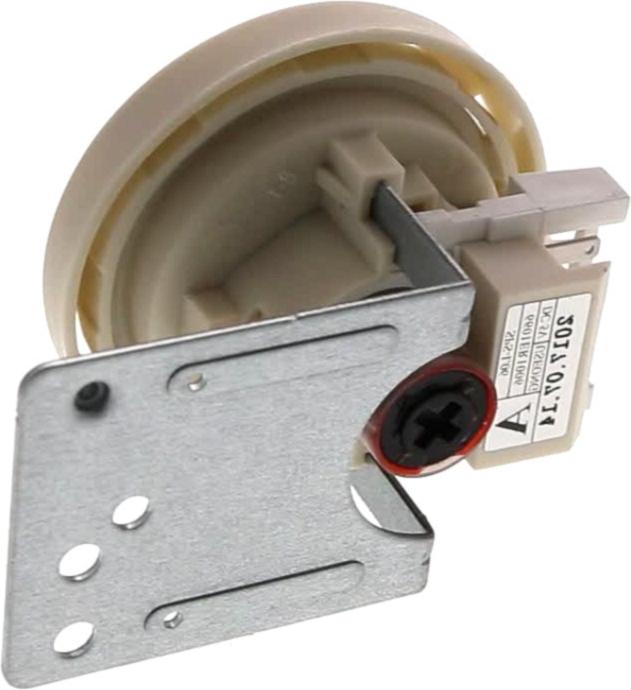

PRESSOSTAT Lave-Linge SPS-L06A L11X DN0Y10 5V
Position: 410
Indicative price: 21.73 €

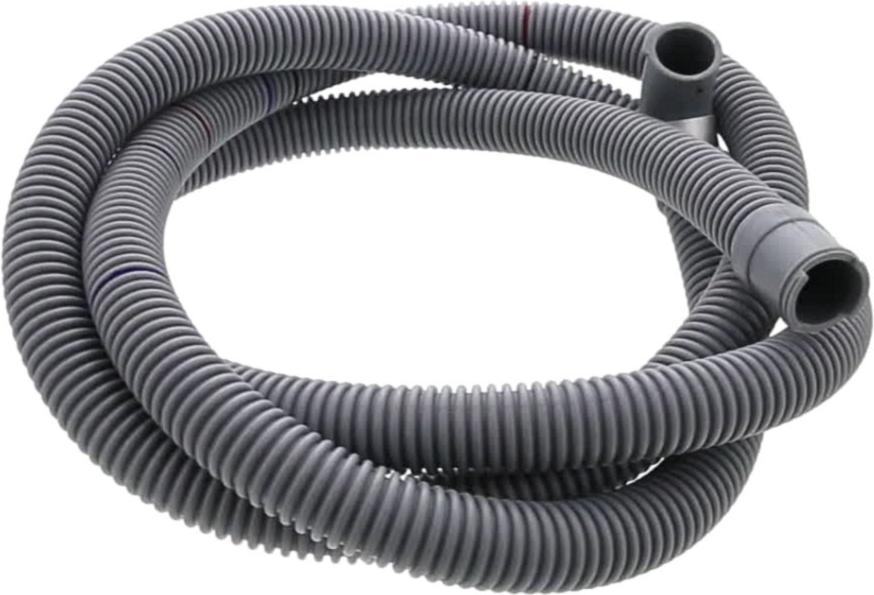

TUYAU Lave-Linge VIDANGE 2M70
Position: 430
Indicative price: 32.01 €

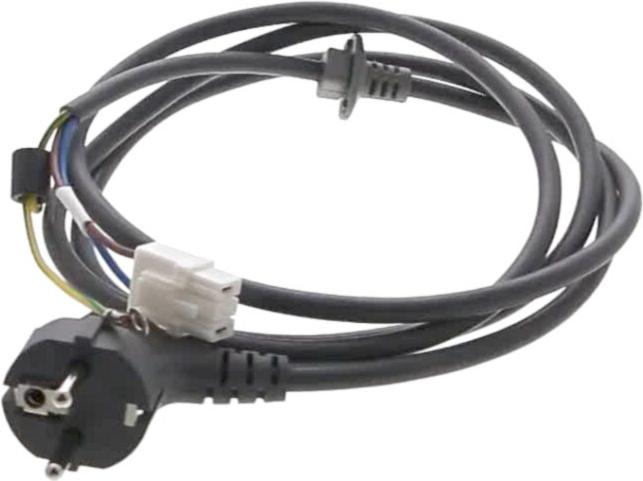

CABLE Lave-Linge ALIMENTATION
Position: 430
Indicative price: 22.4 €

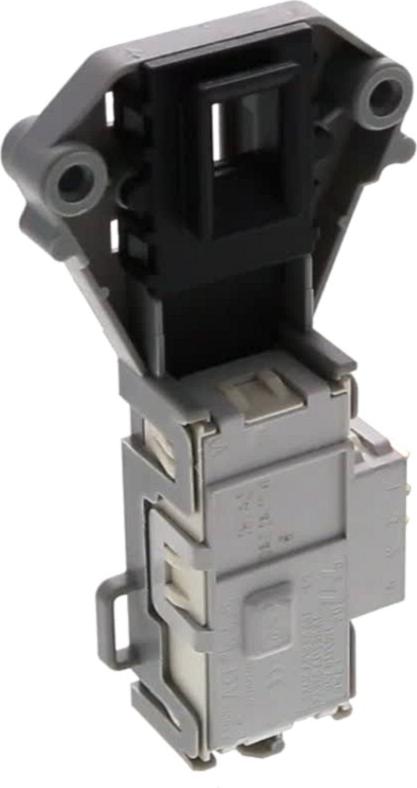

SECURITE Lave-Linge PORTE DA081
Position: 440
Indicative price: 24.97 €
MODULE Lave-Linge ELECTRONIQUE
Position: 450
COLLIER Lave-Linge
Position: 462
Indicative price: 7.64 €

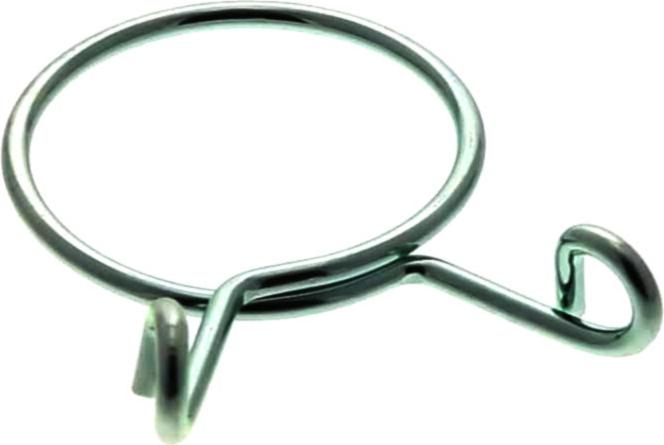

COLLIER Lave-Linge DURITE BAC CUVE
Position: 464
Indicative price: 5.37 €

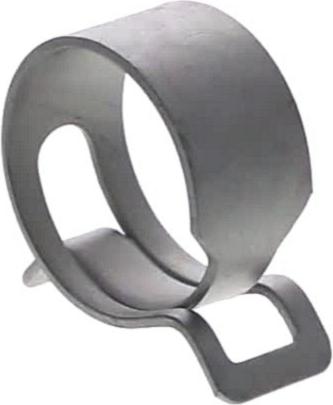

COLLIER Lave-Linge SERRAGE
Position: 466
Indicative price: 5.74 €
COLLIER Lave-Linge
Position: 467
Indicative price: 9.18 €
COLLIER Lave-Linge
Position: 468
Indicative price: 8.04 €

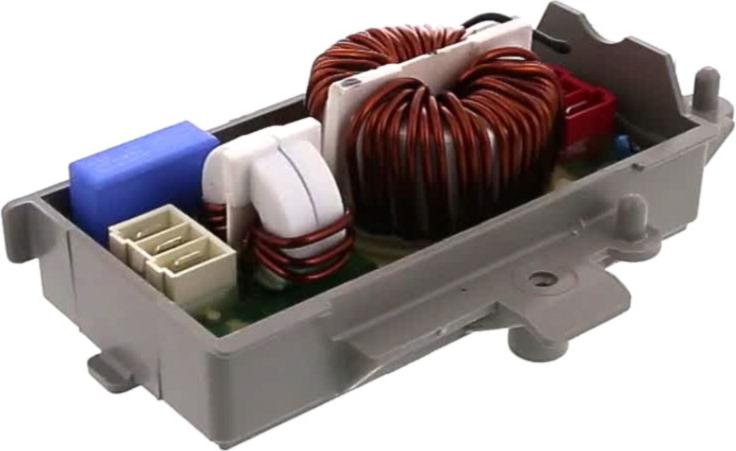

PLATINE Lave-Linge FILTRE
Position: 485
Indicative price: 39.68 €
JOINT Lave-Linge HUBLOT sans durite d evacuation
Position: 510
Indicative price: 54.73 €

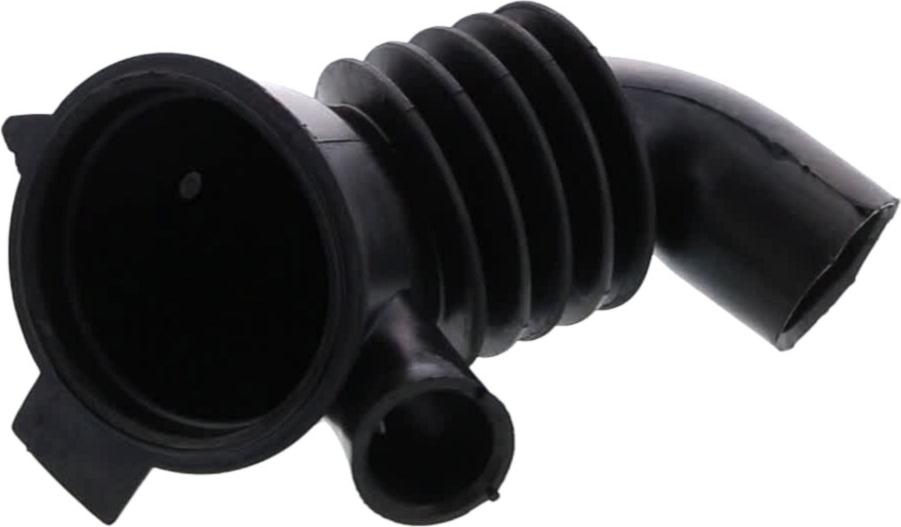

DURITE Lave-Linge CUVE POMPE
Position: 520
Indicative price: 25.06 €

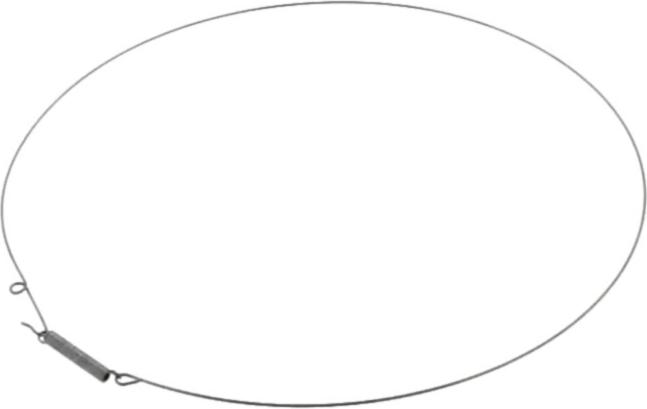

COLLIER Lave-Linge JOINT-CUVE
Position: 530
Indicative price: 17.98 €
CHAMBRE Lave-Linge COMPRESSION PRESSOSTAT
Position: 540
Indicative price: 12.56 €

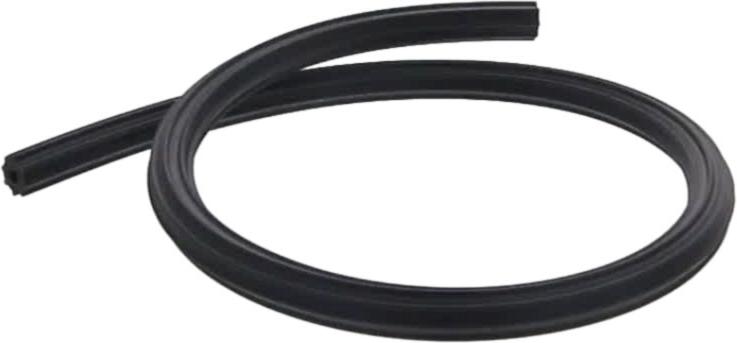

TUYAU Lave-Linge PRESSOSTATIQUE
Position: 550
Indicative price: 9.98 €

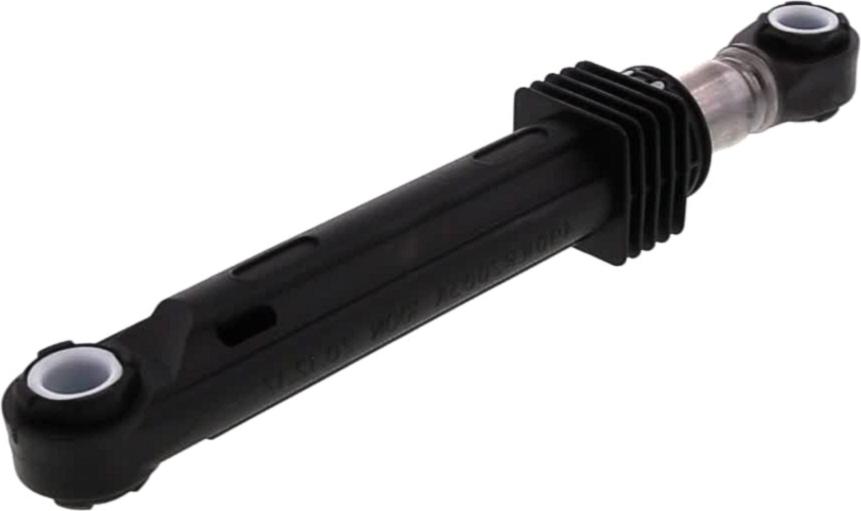

AMORTISSEUR Lave-Linge 100N
Position: 610
Indicative price: 14.58 €

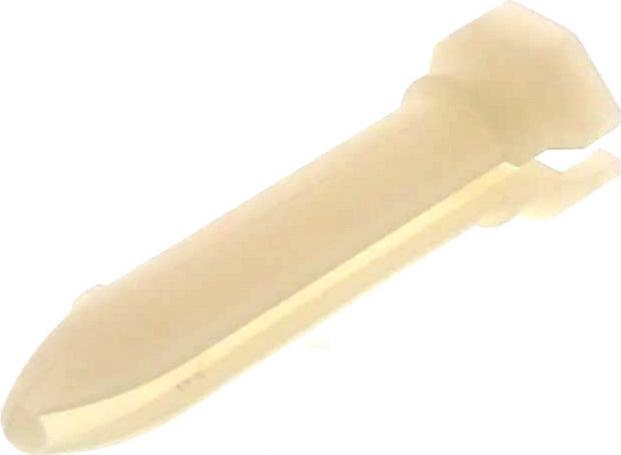

AXE Lave-Linge AMORTISSEUR
Position: 611
Indicative price: 5.33 €
