Exploded view hotte DE DIETRICH DHD159XP11

Discover the complete exploded view hotte DE DIETRICH DHD159XP11, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your hotte. Quickly find the parts you need to extend the life of your hotte DE DIETRICH DHD159XP11 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

KIT Hotte VIS FIXATION SUPPORT
KIT Hotte VIS FIXATION SUPPORT
Indicative price: 72.97 €
RACCORD Hotte 120*150
RACCORD Hotte 120*150
Position: 112
Indicative price: 19.59 €
CHEMINEE Hotte INFERIEURE
CHEMINEE Hotte INFERIEURE
Position: 125
DEFLECTEUR Hotte
DEFLECTEUR Hotte
Position: 128
Indicative price: 43.31 €
SUPPORT Hotte CHEMINEE
SUPPORT Hotte CHEMINEE
Position: 130
Indicative price: 32.98 €

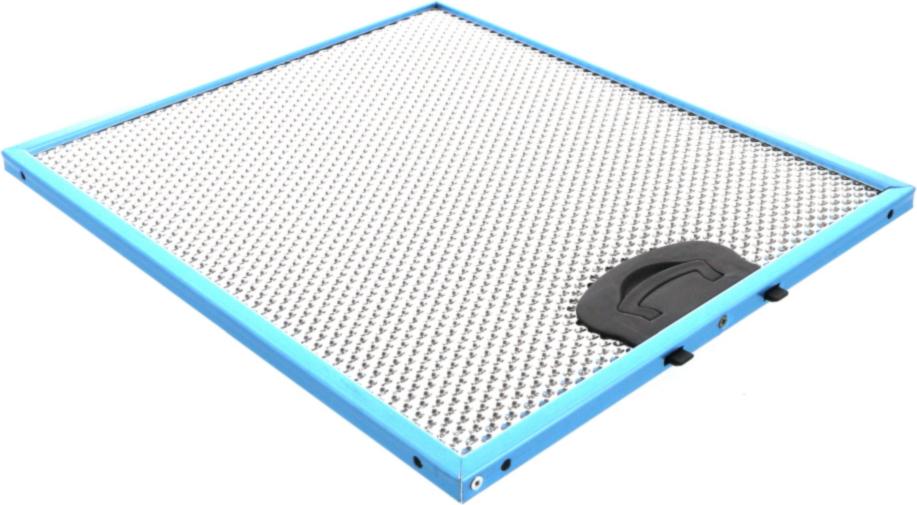

FILTRE Hotte METAL 273*238
FILTRE Hotte METAL 273*238
Position: 150
Indicative price: 51.5 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 201
CONDENSATEUR Hotte
CONDENSATEUR Hotte
Position: 202
Indicative price: 51.12 €
PLATINE Hotte PUISSANCE
PLATINE Hotte PUISSANCE
Position: 203
MOTEUR Hotte
MOTEUR Hotte
Position: 209
SPOT Hotte HALOGENE 20W D67MM D-I 55MM Hotte 21MM FIL 90MM
SPOT Hotte HALOGENE 20W D67MM D-I 55MM Hotte 21MM FIL 90MM
Position: 212
Indicative price: 31.97 €
CLAPET Hotte +BUSE VNR0029514
CLAPET Hotte +BUSE VNR0029514
Position: 215

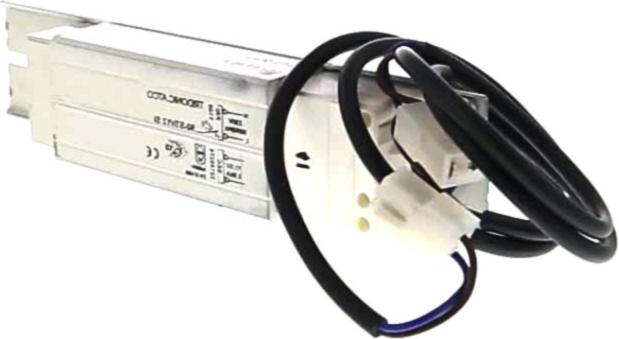

TRANSFORMATEUR Hotte
TRANSFORMATEUR Hotte
Position: 218
Indicative price: 96.99 €
