Exploded view plaque de cuisson SOGELUX PV124

Discover the complete exploded view plaque de cuisson SOGELUX PV124, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson SOGELUX PV124 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

PATTE Plaque FIXATION "unitaire"
PATTE Plaque FIXATION "unitaire"
Position: 8
Indicative price: 9.58 €

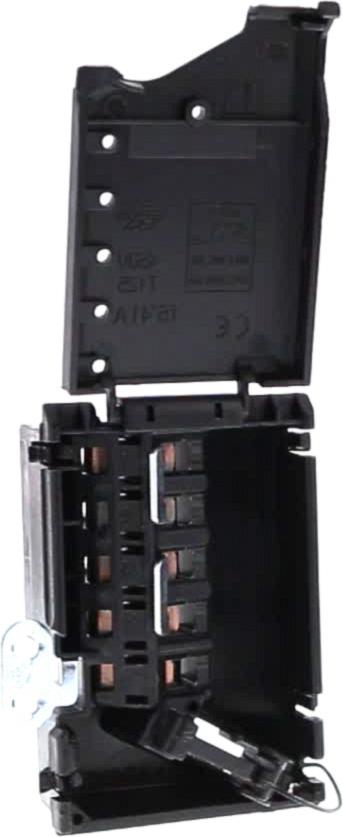

BORNIER Plaque Alimentation
BORNIER Plaque Alimentation
Position: 27
Indicative price: 19.58 €
JOINT Plaque ETANCHEITE
JOINT Plaque ETANCHEITE
Position: 50
Indicative price: 12.03 €
MANETTE Plaque
MANETTE Plaque
Position: 53
Indicative price: 9.22 €
TAQUE Plaque VITRO
TAQUE Plaque VITRO
Position: 55
Indicative price: 234.05 €

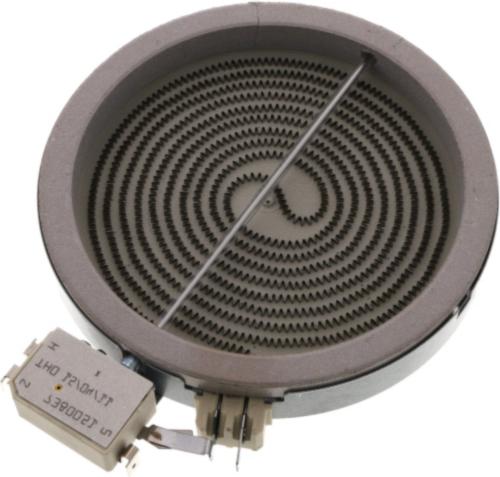

Résistance Plaque 145MM 1200W RADIANT
Résistance Plaque 145MM 1200W RADIANT
Position: 56
Indicative price: 65.42 €
PLAQUE Plaque 180MM 1700W 2000734832
PLAQUE Plaque 180MM 1700W 2000734832
Position: 57
Indicative price: 67.56 €

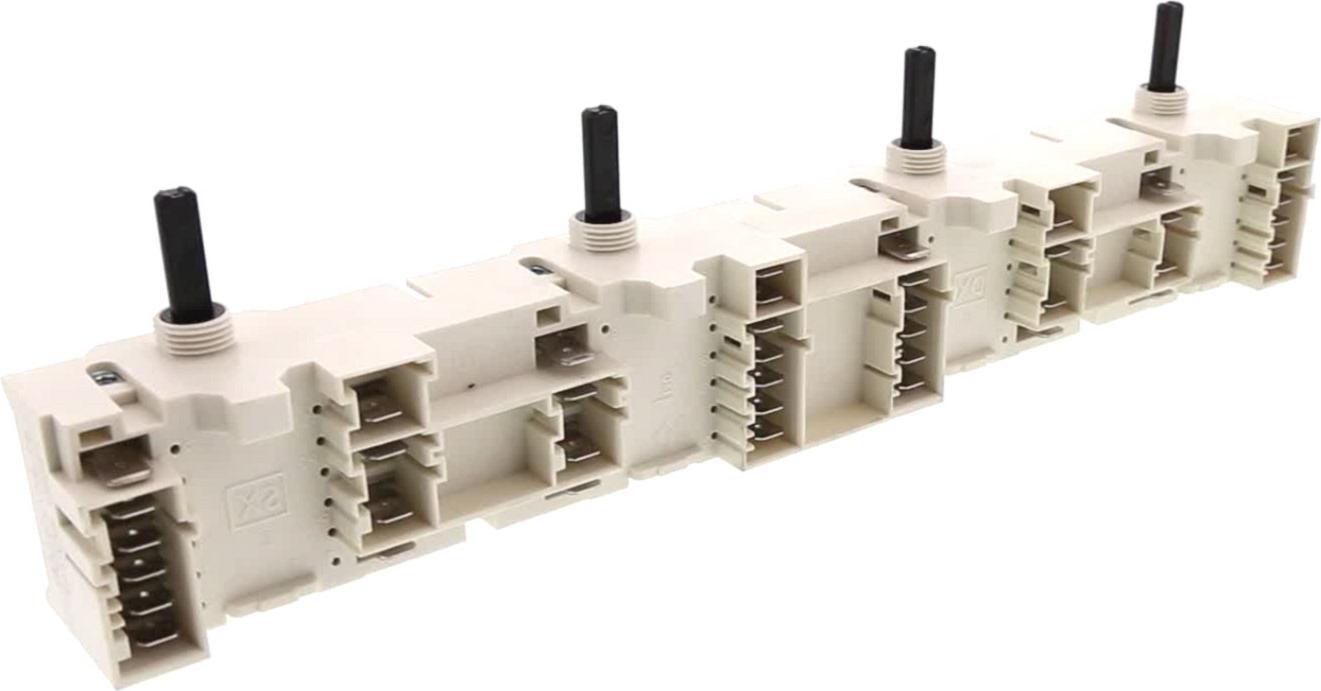

COMMUTATEUR Plaque (BLOC DE 4)
COMMUTATEUR Plaque (BLOC DE 4)
Position: 58
Indicative price: 47.42 €

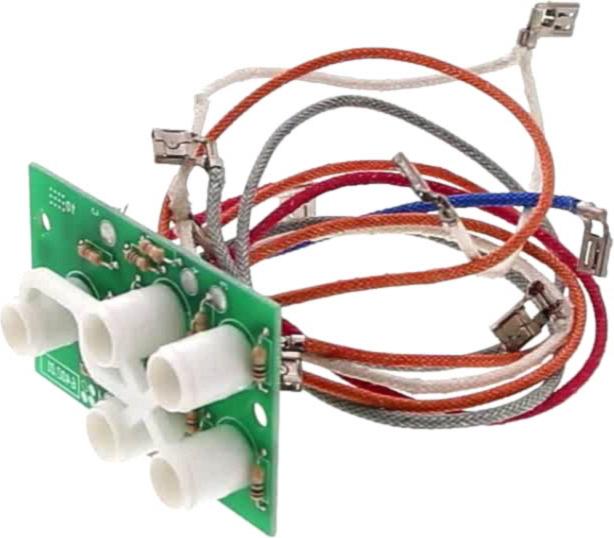

PLATINE Plaque VOYANTS
PLATINE Plaque VOYANTS
Position: 59
Indicative price: 51.24 €
