Exploded view plaque de cuisson BRICO DEPOT 343388 3601653433886

Discover the complete exploded view plaque de cuisson BRICO DEPOT 343388 3601653433886, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson BRICO DEPOT 343388 3601653433886 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

CABLAGE Plaque
CABLAGE Plaque
Indicative price: 84.58 €
INDUCTEUR Plaque 160mm 1400w 75.08010.102
INDUCTEUR Plaque 160mm 1400w 75.08010.102
Position: 1
Indicative price: 142.34 €

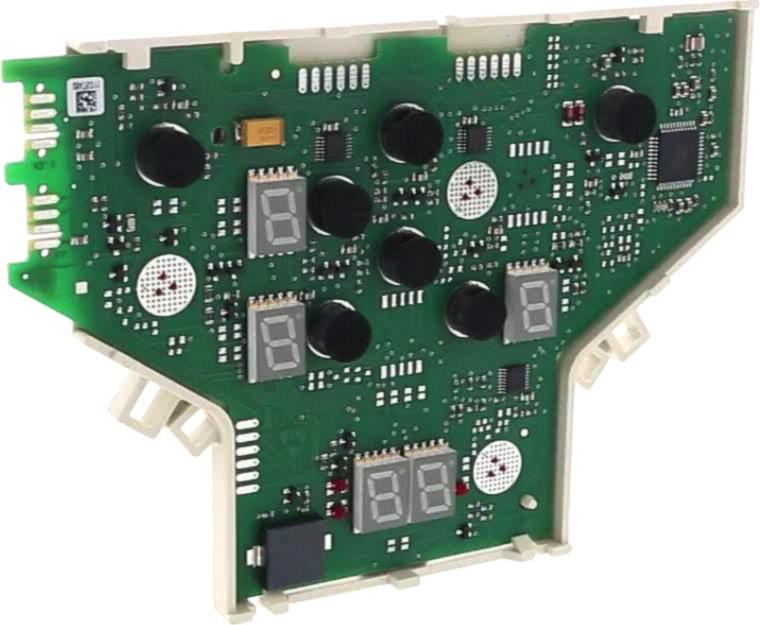

PLATINE Plaque CDE ELECTRONIQUE
PLATINE Plaque CDE ELECTRONIQUE
Position: 3
Indicative price: 132.52 €
CABLE Plaque LIAISON INDUCTEUR
CABLE Plaque LIAISON INDUCTEUR
Position: 4
Indicative price: 13.88 €
MEUBLE Plaque Inférieur
MEUBLE Plaque Inférieur
Position: 5
Indicative price: 58.29 €
SUPPORT Plaque PLATINE CDE
SUPPORT Plaque PLATINE CDE
Position: 6
Indicative price: 43.87 €
JOINT Plaque TAQUE
JOINT Plaque TAQUE
Position: 8
Indicative price: 7.63 €
TAQUE Plaque VITRO
TAQUE Plaque VITRO
Position: 9
Indicative price: 213.21 €
INDUCTEUR Plaque 220mm 2300w 75.08010.202/00 750801020200
INDUCTEUR Plaque 220mm 2300w 75.08010.202/00 750801020200
Position: 10
Indicative price: 115.04 €
RESSORT Plaque INDUCTEUR
RESSORT Plaque INDUCTEUR
Position: 11
Indicative price: 11.68 €
PLATINE Plaque CIRCUIT FILTRE 75.08010.501 prnet
PLATINE Plaque CIRCUIT FILTRE 75.08010.501 prnet
Position: 12
Indicative price: 112.42 €
CACHE Plaque BORNIER HP ANCIEN ET G5
CACHE Plaque BORNIER HP ANCIEN ET G5
Position: 12
Indicative price: 11.02 €
CARTON Plaque EMBALLAGE
CARTON Plaque EMBALLAGE
Position: 13
Indicative price: 22.72 €
NOTICE Plaque
NOTICE Plaque
Position: 14
Indicative price: 14.47 €
