Exploded view plaque de cuisson BSK VS2N

Discover the complete exploded view plaque de cuisson BSK VS2N, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson BSK VS2N and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

TAQUE Plaque VITRO
TAQUE Plaque VITRO
Position: 1
Indicative price: 145.75 €
Résistance Plaque 1200W 145mm Hilight 10.54112.704 EGO 2C
Résistance Plaque 1200W 145mm Hilight 10.54112.704 EGO 2C
Position: 2
Indicative price: 58.16 €
RESSORT Plaque RESISTANCE 145mm
RESSORT Plaque RESISTANCE 145mm
Position: 4
Indicative price: 10.56 €
TOLE Plaque DOMINO Hilight
TOLE Plaque DOMINO Hilight
Position: 5
Indicative price: 23.27 €

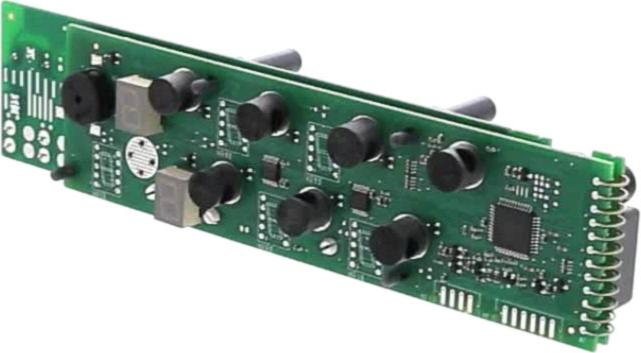

PLATINE Plaque COMMANDE 2F TIMER 75.13098.312
PLATINE Plaque COMMANDE 2F TIMER 75.13098.312
Position: 6
Indicative price: 112.45 €
JOINT Plaque TAQUE
JOINT Plaque TAQUE
Position: 7
Indicative price: 6.92 €

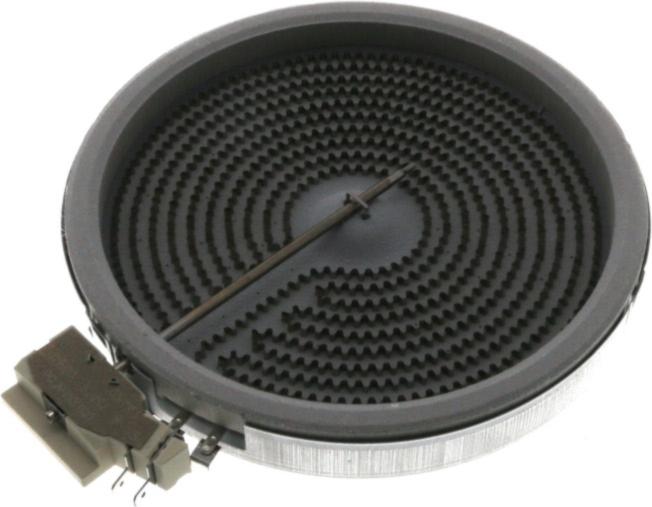

Résistance Plaque 1800W 180mm Hilight 10.58112.704 1058112704
Résistance Plaque 1800W 180mm Hilight 10.58112.704 1058112704
Position: 8
Indicative price: 67.46 €
RESSORT Plaque RESISTANCE 180mm
RESSORT Plaque RESISTANCE 180mm
Position: 9
Indicative price: 11.55 €
PASSE Plaque CABLE
PASSE Plaque CABLE
Position: 10
Indicative price: 23.6 €
MEUBLE Plaque
MEUBLE Plaque
Position: 11
Indicative price: 46.82 €
BORNIER Plaque
BORNIER Plaque
Position: 12
Indicative price: 11.02 €
EMBALLAGE Plaque
EMBALLAGE Plaque
Position: 14
Indicative price: 32.56 €
