Exploded view hotte CLIMADIFF AH60X

Discover the complete exploded view hotte CLIMADIFF AH60X, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your hotte. Quickly find the parts you need to extend the life of your hotte CLIMADIFF AH60X and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

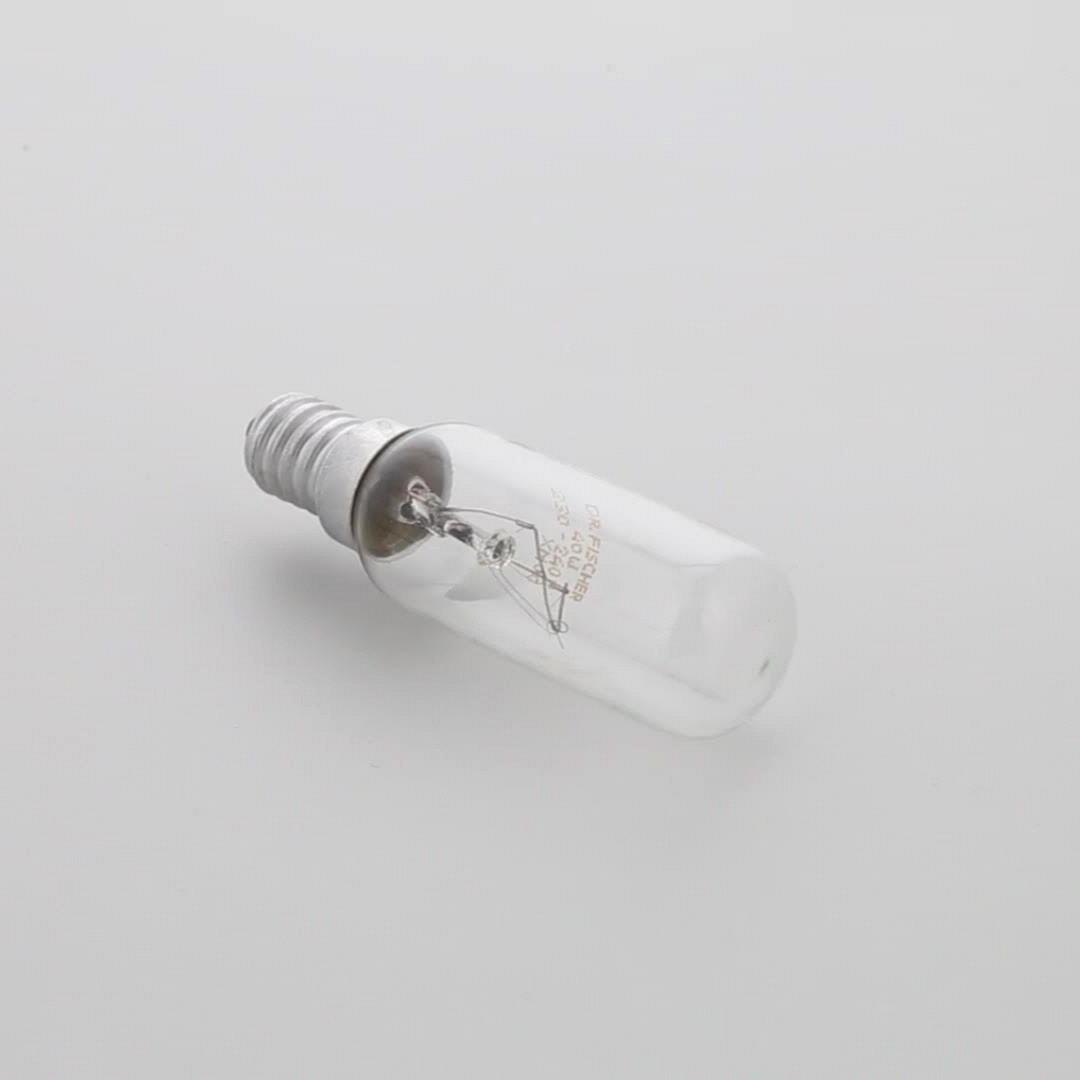

AMPOULE Hotte 40W
AMPOULE Hotte 40W
Position: 1
Indicative price: 11.42 €
CHEMINEE Hotte PARTIE HAUTE
CHEMINEE Hotte PARTIE HAUTE
Position: 1

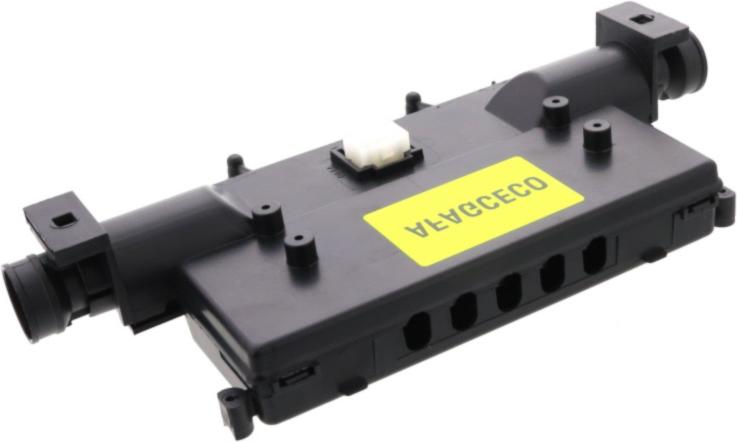

PLATINE Hotte BOITIER CDE
PLATINE Hotte BOITIER CDE
Position: 2
Indicative price: 63.84 €
CHEMINEE Hotte PARTIE BASSE
CHEMINEE Hotte PARTIE BASSE
Position: 2
Indicative price: 61.83 €

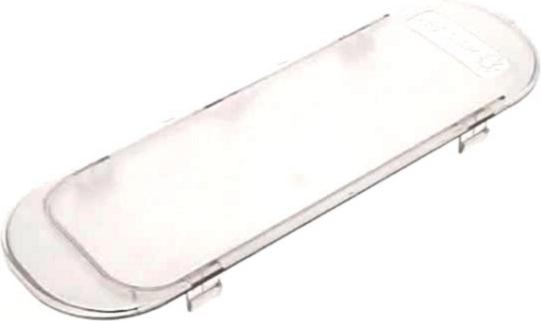

PLAFONNIER Hotte GRAND MODELE
PLAFONNIER Hotte GRAND MODELE
Position: 3
Indicative price: 14.76 €
KIT Hotte MONTAGE GRILLE EVAC
KIT Hotte MONTAGE GRILLE EVAC
Position: 3
Indicative price: 31.18 €
KIT Hotte MONTAGE GRILLE EVAC +NOTICE
KIT Hotte MONTAGE GRILLE EVAC +NOTICE
Position: 4
GRILLE Hotte INOX
GRILLE Hotte INOX
Position: 4
Indicative price: 53.99 €
FILTRE Hotte METAL 305*268
FILTRE Hotte METAL 305*268
Position: 5
Indicative price: 40.71 €
FILTRE Hotte CHARBON ROND SQ2
FILTRE Hotte CHARBON ROND SQ2
Position: 6
Indicative price: 13.54 €
BUSE Hotte RECYCLAGE Diamètre 125mm
BUSE Hotte RECYCLAGE Diamètre 125mm
Position: 6
Indicative price: 14.76 €
CLAPET Hotte
CLAPET Hotte
Position: 6
Indicative price: 19.89 €
BUSE Hotte RECYCLAGE
BUSE Hotte RECYCLAGE
Position: 7
Indicative price: 13.2 €
MOTEUR Hotte
MOTEUR Hotte
Position: 7
