Exploded view réfrigérateur SIDEX AM2230B

Discover the complete exploded view réfrigérateur SIDEX AM2230B, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur SIDEX AM2230B and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

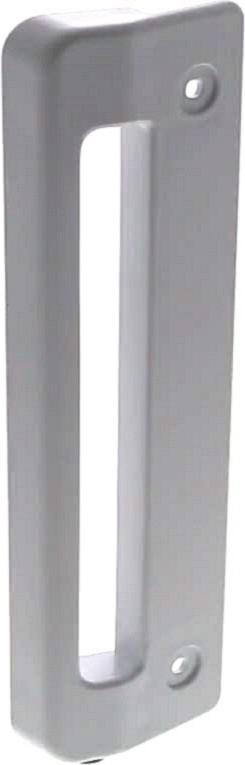

POIGNEE Froid 170mm (entraxe 123mm)
POIGNEE Froid 170mm (entraxe 123mm)
Position: 3
Indicative price: 29.89 €
JOINT Froid Réfrigérateur
JOINT Froid Réfrigérateur
Position: 4
Indicative price: 87.34 €
CHARNIERE Four Supérieur GAUCHE
CHARNIERE Four Supérieur GAUCHE
Position: 5
Indicative price: 12.63 €
JOINT Froid Réfrigérateur
JOINT Froid Réfrigérateur
Position: 5
Indicative price: 57.02 €
BALCONNET Froid BOUTEILLES
BALCONNET Froid BOUTEILLES
Position: 7
CHARNIERE Froid CENTRALE
CHARNIERE Froid CENTRALE
Position: 8
Indicative price: 13.18 €
THERMOSTAT Froid K59H2806
THERMOSTAT Froid K59H2806
Position: 11
Indicative price: 54.82 €
Interrupteur Froid LUMIERE
Interrupteur Froid LUMIERE
Position: 14
Indicative price: 11.37 €
COMPRESSEUR 1/6 R12    EPUISE
COMPRESSEUR 1/6 R12 EPUISE
Position: 17
AMPOULE Froid 15w
AMPOULE Froid 15w
Position: 18
Indicative price: 3.3 €
DESHYDRATEUR Froid
DESHYDRATEUR Froid
Position: 18
Indicative price: 8.12 €
VITRE Froid BAC LEGUMES 464*339*5
VITRE Froid BAC LEGUMES 464*339*5
Position: 20
Indicative price: 29.56 €

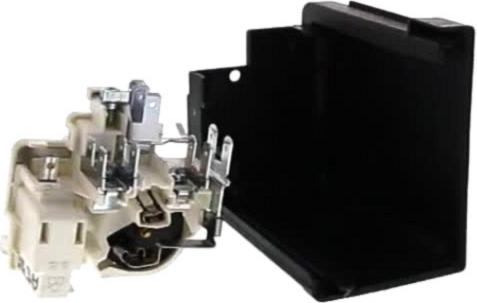

RELAIS Froid C2-222NFBYY-151 27
RELAIS Froid C2-222NFBYY-151 27
Position: 21
Indicative price: 38.43 €
BAC Froid LEGUMES
BAC Froid LEGUMES
Position: 21
Indicative price: 41.53 €
CHARNIERE Four Inférieur GAUCHE
CHARNIERE Four Inférieur GAUCHE
Position: 24
Indicative price: 12.47 €
PIED Froid COMPLET
PIED Froid COMPLET
Position: 26
Indicative price: 4.98 €
