Exploded view plaque de cuisson WHIRLPOOL AKT404NB 869990965310
Discover the complete exploded view plaque de cuisson WHIRLPOOL AKT404NB 869990965310, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson WHIRLPOOL AKT404NB 869990965310 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List

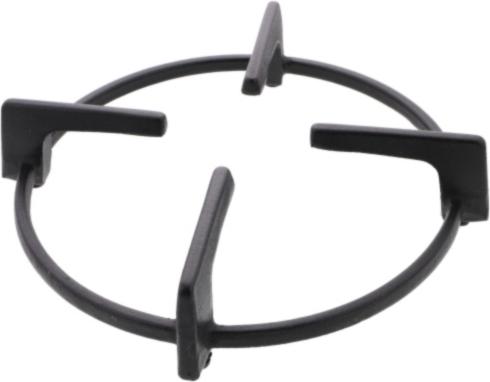

GRILLE Plaque BRULEUR
Position: 332
Indicative price: 96.52 €
GRILLE Plaque 1 FEU FONTE
Position: 335
Indicative price: 52.26 €
PATIN Plaque UNITAIRE
Position: 338
Indicative price: 3.16 €
PATIN Cuisinière GRILLE "lot de 4"
Position: 339
Indicative price: 10.18 €
SUPPORT Plaque GRILLE Semi-rapide
Position: 344
Indicative price: 35.56 €

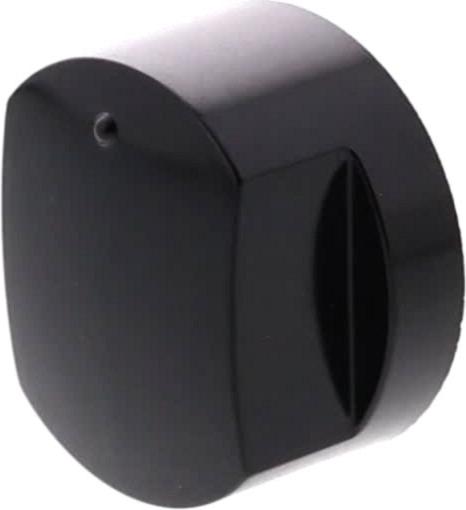

MANETTE Plaque
Position: 3343
Indicative price: 12.72 €
JOINT Plaque
Position: 4411
Indicative price: 33.26 €
SUPPORT Plaque Injecteur Rapide BOUGIE+THERMOCOUPLE
Position: 4703
Indicative price: 63.46 €
TETE Plaque BRULEUR Auxiliaire
Position: 4710
Indicative price: 10.36 €
TETE Plaque BRULEUR Semi-rapide DEFENDI
Position: 4711
Indicative price: 11.14 €
CHAPEAU Plaque BRULEUR Extérieure WOK
Position: 4733
Indicative price: 24.36 €

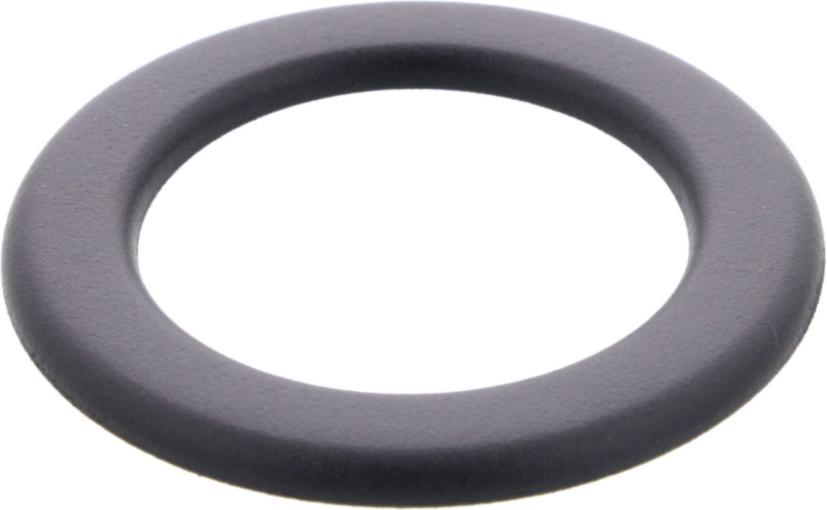

CHAPEAU Plaque BRULEUR Intérieure WOK
Position: 4736
Indicative price: 35.28 €
JEU Plaque Injecteur Gaz Naturel M6
Position: 4740
Indicative price: 45.25 €
JEU Plaque Injecteur Gaz Butane
Position: 4743
Indicative price: 36.26 €
ROBINET Plaque GAZ
Position: 5711
Indicative price: 50.94 €
BOUGIE Plaque
Position: 5910
Indicative price: 11.52 €
BOUGIE Plaque WOK
Position: 5912
Indicative price: 21.59 €
THERMOCOUPLE Plaque A EMBOITER
Position: 5929
Indicative price: 51.3 €
TRANSFORMATEUR Plaque
Position: 5950
Indicative price: 78.62 €
JOINT Plaque ROBINET GAZ
Position: 7940
Indicative price: 18.68 €
VIS Plaque M4X8 + RONDELLE
Position: 9100
Indicative price: 3.74 €
JOINT Plaque MANETTE
Position: 9225
Indicative price: 11.59 €
CLIP Plaque
Position: 9322
Indicative price: 5.44 €
JOINT Plaque TAQUE
Position: 9640
Indicative price: 12.19 €
