Exploded view réfrigérateur SABA DP303NFX 528575

Discover the complete exploded view réfrigérateur SABA DP303NFX 528575, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur SABA DP303NFX 528575 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

PORTE Froid Réfrigérateur
PORTE Froid Réfrigérateur
Position: 1
Indicative price: 358.44 €
JOINT Froid PORTE 1150*570 Réfrigérateur
JOINT Froid PORTE 1150*570 Réfrigérateur
Position: 4
Indicative price: 89.25 €
BALCONNET Froid BOUTEILLES
BALCONNET Froid BOUTEILLES
Position: 5
Indicative price: 34.36 €
BALCONNET Froid CENTRAL OU Supérieur
BALCONNET Froid CENTRAL OU Supérieur
Position: 7
Indicative price: 20.81 €
BAC Froid LEGUMES TRANSPARENT CLAIR 50113201027L 1/1-01
BAC Froid LEGUMES TRANSPARENT CLAIR 50113201027L 1/1-01
Position: 8
Indicative price: 41.98 €
DESSUS Froid BAC LEGUMES
DESSUS Froid BAC LEGUMES
Position: 9
Indicative price: 24.22 €
CLAYETTE Froid Réfrigérateur 460*349
CLAYETTE Froid Réfrigérateur 460*349
Position: 10
Indicative price: 39.77 €
PLATINE Froid LED ECLAIRAGE
PLATINE Froid LED ECLAIRAGE
Position: 14
Indicative price: 89.88 €

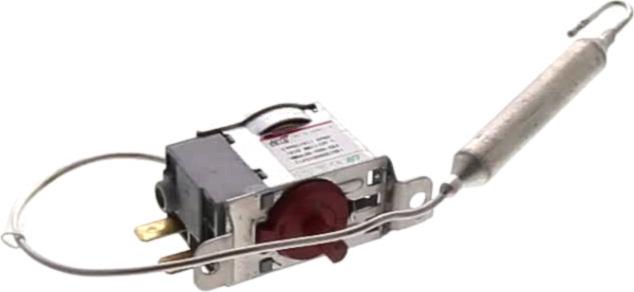

THERMOSTAT Froid NWPF9K-038-025
THERMOSTAT Froid NWPF9K-038-025
Position: 17
Indicative price: 43.53 €

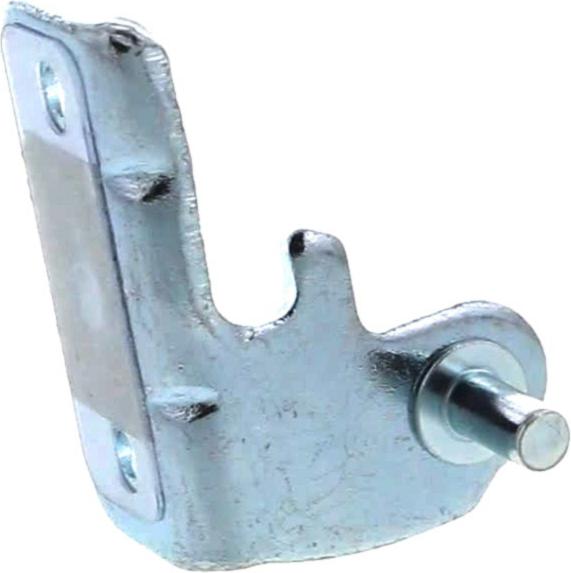

CHARNIERE Froid INFERIEURE DROITE
CHARNIERE Froid INFERIEURE DROITE
Position: 24
Indicative price: 14.66 €
COMPRESSEUR Froid
COMPRESSEUR Froid
Position: 29
Indicative price: 198.13 €
BOITIER Froid RACCORDEMENT
BOITIER Froid RACCORDEMENT
Position: 30
Indicative price: 18.98 €
CABLE Froid ALIMENTATION
CABLE Froid ALIMENTATION
Position: 32
Indicative price: 23.6 €
BAC Froid COMPRESSEUR
BAC Froid COMPRESSEUR
Position: 33
Indicative price: 26.02 €
CHARNIERE Froid SUPERIEURE
CHARNIERE Froid SUPERIEURE
Position: 35
Indicative price: 12.87 €
VIS Froid FIXATION
VIS Froid FIXATION
Position: 36
Indicative price: 5.37 €
CHARNIERE Froid INTERMEDIAIRE
CHARNIERE Froid INTERMEDIAIRE
Position: 42
Indicative price: 20.7 €
VIS Froid CHARNIERE
VIS Froid CHARNIERE
Position: 43
Indicative price: 5.86 €
BAC Froid EVAPORATEUR
BAC Froid EVAPORATEUR
Position: 44
Indicative price: 32.08 €
Evaporateur Froid + FUSIBLE BILAME THERMIQUE
Evaporateur Froid + FUSIBLE BILAME THERMIQUE
Position: 45
Indicative price: 104.63 €
MINUTERIE Froid DEGIVRAGE DBZA-1005-1G5 DBZA-1005-1G5
MINUTERIE Froid DEGIVRAGE DBZA-1005-1G5 DBZA-1005-1G5
Position: 47
Indicative price: 68.52 €
MINUTERIE Froid DEGIVRAGE ap 04/15
MINUTERIE Froid DEGIVRAGE ap 04/15
Position: 47
Indicative price: 77.88 €
FIXATION Froid MOTEUR Ventilation
FIXATION Froid MOTEUR Ventilation
Position: 50
Indicative price: 5.12 €
MOTEUR Froid VENTILATEUR Evaporateur
MOTEUR Froid VENTILATEUR Evaporateur
Position: 51
Indicative price: 135.92 €
BRIDE Froid FIXATION
BRIDE Froid FIXATION
Position: 52
Indicative price: 8.74 €
TURBINE Froid
TURBINE Froid
Position: 53
Indicative price: 12.07 €

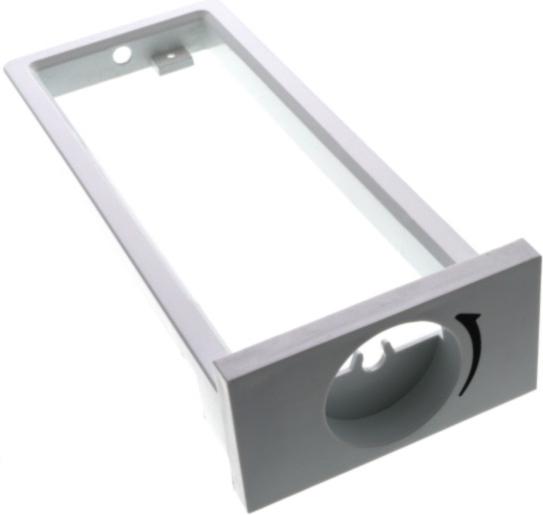

TIROIR Froid FABRIQUE A GLACONS
TIROIR Froid FABRIQUE A GLACONS
Position: 62
Indicative price: 54.54 €
BAC Froid GLACONS
BAC Froid GLACONS
Position: 63
Indicative price: 27.3 €

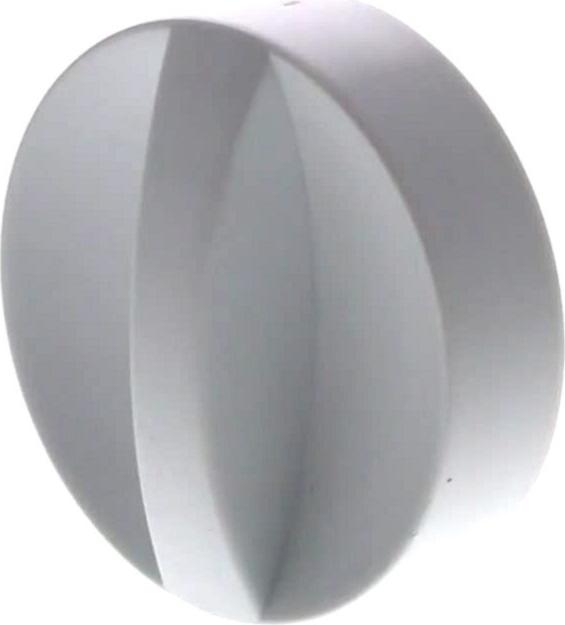

MANETTE Froid BAC A GLACONS
MANETTE Froid BAC A GLACONS
Position: 65
Indicative price: 21.38 €
JOINT Froid PORTE CONGELATEUR 570*475 GRIS
JOINT Froid PORTE CONGELATEUR 570*475 GRIS
Position: 67
Indicative price: 51.13 €
