Exploded view hotte WHIRLPOOL AKR511IX 857851101000

Discover the complete exploded view hotte WHIRLPOOL AKR511IX 857851101000, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your hotte. Quickly find the parts you need to extend the life of your hotte WHIRLPOOL AKR511IX 857851101000 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

GRILLE Hotte CARTER Gauche MOTEUR
GRILLE Hotte CARTER Gauche MOTEUR
Position: 711
Indicative price: 13.72 €
MOTEUR Hotte 175W S80-35ANP4409SE AXE 34.08MM D6MM 7 FILS
MOTEUR Hotte 175W S80-35ANP4409SE AXE 34.08MM D6MM 7 FILS
Position: 4010
Indicative price: 136.86 €
TRANSFORMATEUR Hotte
TRANSFORMATEUR Hotte
Position: 4110
Indicative price: 42.23 €
LAMPE Hotte 12V 20W 35MM
LAMPE Hotte 12V 20W 35MM
Position: 6510
Indicative price: 21.91 €

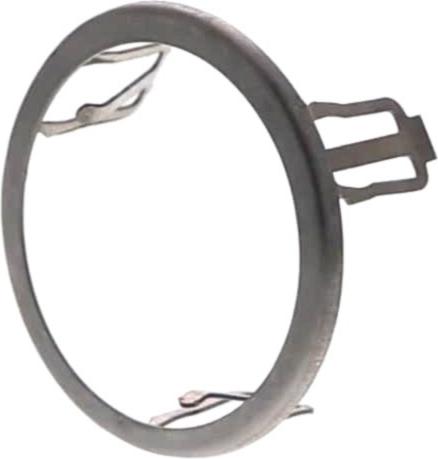

SUPPORT Hotte LAMPE
SUPPORT Hotte LAMPE
Position: 6521
Indicative price: 19.24 €
TURBINE Hotte MOTEUR
TURBINE Hotte MOTEUR
Position: 7271
Indicative price: 30.84 €
RACCORD Hotte EN "T"
RACCORD Hotte EN "T"
Position: 7430
Indicative price: 20.75 €
FILTRE Hotte METAL 305*270
FILTRE Hotte METAL 305*270
Position: 7620
Indicative price: 39.43 €
FILTRE Hotte CHARBON
FILTRE Hotte CHARBON
Position: 7650
Indicative price: 76.52 €
SUPPORT Hotte FILTRE CHARBON
SUPPORT Hotte FILTRE CHARBON
Position: 7651
Indicative price: 14.46 €
BUSE Hotte SORTIE
BUSE Hotte SORTIE
Position: 7811
Indicative price: 16.32 €
