Exploded view réfrigérateur WHIRLPOOL ARC0480 850104801000
Discover the complete exploded view réfrigérateur WHIRLPOOL ARC0480 850104801000, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur WHIRLPOOL ARC0480 850104801000 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
PIED Froid Avant
Position: 110
Indicative price: 13.98 €
CHARNIERE Froid SUPERIEURE
Position: 400
Indicative price: 30.82 €
AXE Froid CHARNIERE
Position: 401
Indicative price: 5.33 €
CHARNIERE Froid Inférieur
Position: 402
Indicative price: 18.22 €
PORTE Froid FREEZER
Position: 1020
Indicative price: 93.96 €
DOUILLE Froid CHARNIERE
Position: 1051

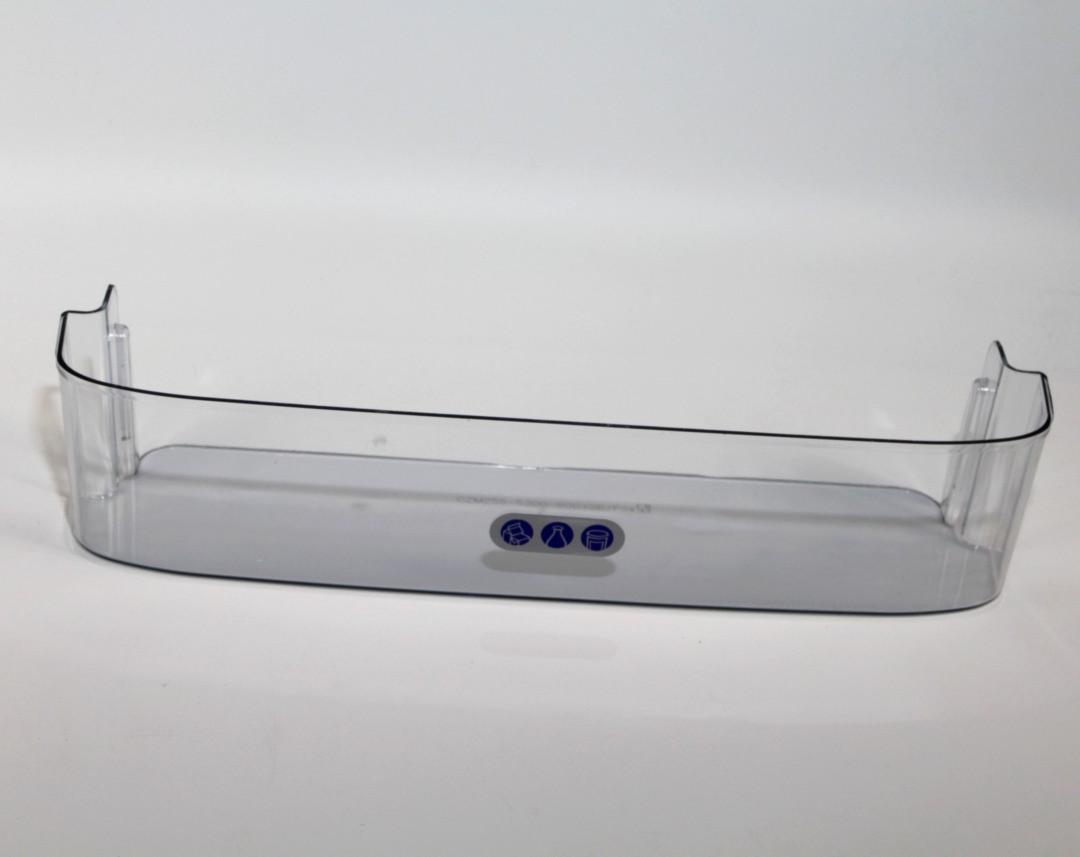

BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 443*100*105 CZM255-5300-800
Position: 1520
BLOCAGE Froid BOUTEILLES
Position: 1523
Indicative price: 19.54 €
COMPRESSEUR 1/9 R600A
Position: 4020
Indicative price: 98.72 €
BAC Froid Récupération EAU COMPRESSEUR
Position: 4021
Indicative price: 11.3 €
BORNIER Froid
Position: 4910
Indicative price: 40.13 €
Thermostat Froid
Position: 5540
Indicative price: 55.26 €
AMPOULE Froid 15W E14 240V REC0007
Position: 6510
Indicative price: 3.16 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 6550
DESHYDRATEUR Froid
Position: 7640
Indicative price: 18.23 €
