Exploded view lave linge WHIRLPOOL AWM1007 857001029010
Discover the complete exploded view lave linge WHIRLPOOL AWM1007 857001029010, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge WHIRLPOOL AWM1007 857001029010 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List

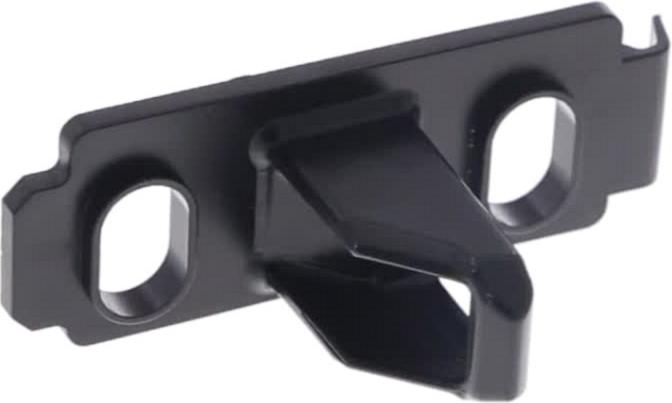

CROCHET Lave-Linge SERRURE
Position: 1310
SUPPORT Lave-Linge ENJOLIVEUR
Position: 1430
Indicative price: 85.31 €
Contre porte Lave-Linge
Position: 1440
Indicative price: 27.39 €
TRAPPE Lave-Linge POMPE VIDANGE
Position: 1602
Indicative price: 134190129.4 €
AMORTISSEUR Lave-Linge
Position: 1810
Indicative price: 44.82 €
CHARNIERE Lave-Linge HUBLOT
Position: 1880
JOINT Lave-Linge HUBLOT PRO
Position: 1910
Indicative price: 70.63 €
COLLIER Lave-Linge JOINT HUBLOT AVANT
Position: 1912
Indicative price: 30.11 €
COLLIER Lave-Linge AR JOINT DE HUBLOT
Position: 1913
Indicative price: 34.65 €
CUVE Lave-Linge 1/2 AVANT E
Position: 2001
CUVE Lave-Linge 1/2 ARRIERE
Position: 2002
Indicative price: 321.82 €
CLIPS Lave-Linge CUVE
Position: 2003
Indicative price: 19.04 €
CHAMBRE Lave-Linge DE COMPRESSION
Position: 2004
Indicative price: 24.15 €
BOUCHON Lave-Linge TUBE ARRIERE
Position: 2007
Indicative price: 20.34 €
TAMBOUR Lave-Linge
Position: 2200
Batteur Lave-Linge TAMBOUR 46197022014 E
Position: 2231
COURROIE Lave-Linge J8 1310J8EL 13010.8PJE
Position: 2710
Indicative price: 34.08 €
POULIE Lave-Linge TAMBOUR
Position: 2720
Indicative price: 69.81 €
JOINT Lave-Linge CUVE
Position: 2900
Indicative price: 37.18 €
SUPPORT Lave-Linge FACADE TIROIR
Position: 3012

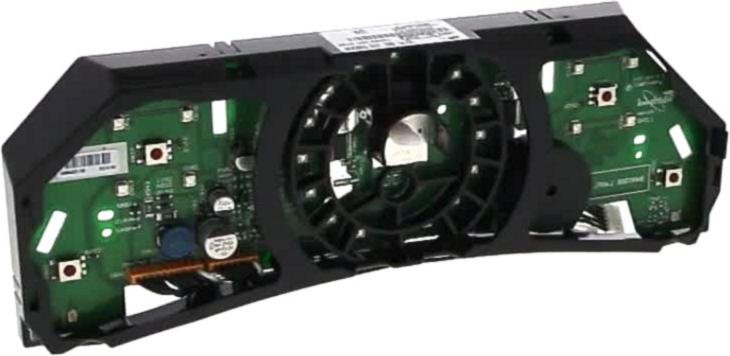

PLATINE Lave-Linge COMMANDE
Position: 3500
Indicative price: 152.76 €
MOTEUR Lave-Linge
Position: 4000
Indicative price: 322.91 €
CONDENSATEUR Lave-Linge ANTIPARASITE 0.68UF
Position: 4210
Indicative price: 35.17 €
Pompe de vidange Lave-Linge + CORPS épuisée remplacée par moteur seul
Position: 4300
Indicative price: 26.4 €
PROTECTION Lave-Linge POMPE VIDANGE
Position: 4303
Indicative price: 41.62 €
RESISTANCE Lave-Linge 2050w
Position: 4510
Indicative price: 82.79 €
SUPPORT Lave-Linge RESISTANCE
Position: 4511
CABLE Lave-Linge Alimentation
Position: 4900
Indicative price: 27.98 €
SERRE Sèche-Linge CABLE ALIMENTATION
Position: 4910
Indicative price: 20.45 €
PLATINE Lave-Linge Alimentation MOTEUR 715890-03 711061-08
Position: 5000
Indicative price: 256.55 €

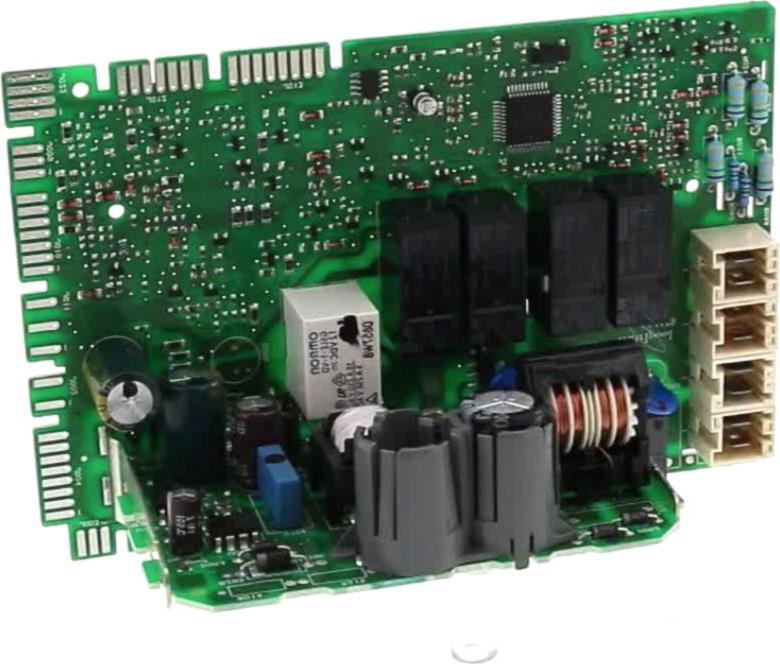

PLATINE Lave-Linge "programmée"
Position: 5210
Indicative price: 221.64 €
Electrovanne Lave-Linge 1V A BROCHES 461970211481 33290011
Position: 5710
Indicative price: 55.29 €

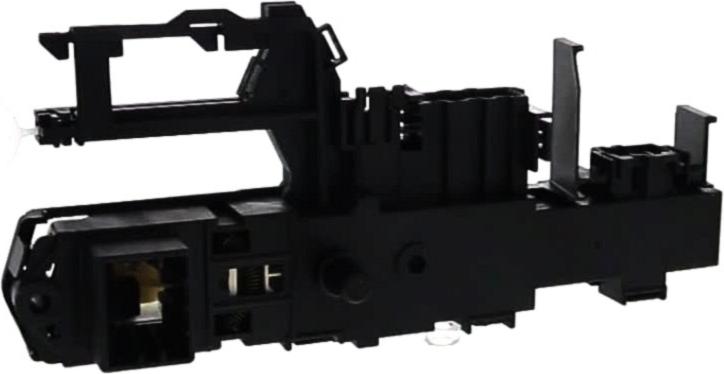

SECURITE Lave-Linge PORTE
Position: 6330
BOITE Lave-Linge LESSIVE
Position: 6800
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 6801
CROCHET Lave-Linge LESSIVE LIQUIDE
Position: 6802
Indicative price: 16.33 €
PLAQUE Lave-Linge SEPARATRICE
Position: 6804
Indicative price: 33.37 €
KIT Lave-Linge COMMANDE LEVIER INJECTEUR
Position: 6806
SONDE Sèche-Linge CTN
Position: 6910
Indicative price: 43.97 €
DEBIMETRE Lave-Linge
Position: 6911
TUYAU Lave-Linge ARRIVEE EAU CHAUDE L-2m
Position: 7010
Indicative price: 14.28 €
DURITE Lave-Linge CUVE/POMPE E
Position: 7540
FILTRE Lave-Linge POMPE
Position: 7630
Indicative price: 140831931.24 €
JOINT Lave-Linge POMPE DE VIDANGE
Position: 7631
Indicative price: 45.32 €
TUYAU Lave-Linge VIDANGE
Position: 7810
Indicative price: 25.63 €

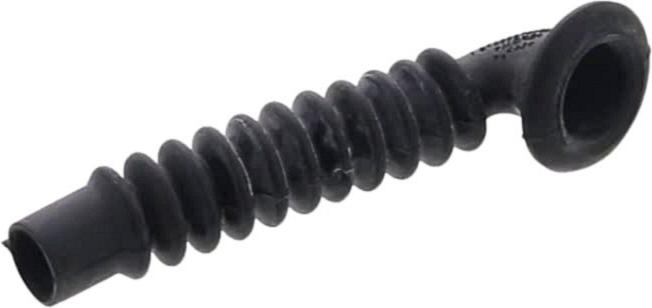

DURITE Lave-Linge
Position: 7833
Indicative price: 20.31 €
TUYAU Lave-Linge VIDANGE
Position: 7834
TUYAU Lave-Linge
Position: 7850
Indicative price: 29.48 €
BOUCHON Lave-Linge
Position: 7851
COLLIER Lave-Linge TUYAU 19,2mm
Position: 9002
Indicative price: 6.18 €
COLLIER Lave-Linge DURITE
Position: 9005
Indicative price: 10.37 €
BOULON Lave-Linge TRANSPORT HAUT
Position: 9040
Indicative price: 7.62 €
BOULON Lave-Linge TRANSPORT BAS
Position: 9041
RESSORT Lave-Linge CUVE *UNITAIRE* 190MM D30MM 28 STRIES
Position: 9300
Indicative price: 39.01 €
PALIER Lave-Linge ROULEMENTS+JOINT+DOUILLE
Position: 9411
Indicative price: 67.76 €
JOINT Plaque ROBINET
Position: 9500
Indicative price: 10.4 €
VIS Lave-Linge 4X16
Position: 9994
Indicative price: 4.55 €
AGRAPHE Lave-Linge 52,0 Millimètre
Position: 9997
Indicative price: 16.05 €
