Exploded view lave linge WHIRLPOOL AWM1000.F AWM1000-F AWM1000F 857007529851
Discover the complete exploded view lave linge WHIRLPOOL AWM1000.F AWM1000-F AWM1000F 857007529851, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge WHIRLPOOL AWM1000.F AWM1000-F AWM1000F 857007529851 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
DOUILLE Lave-Linge JOINT PALIER
Position: 0
Indicative price: 17.15 €
TUYAU Lave-Vaisselle ARRIVEE EAU aquastop 2.5M
Position: 0
Indicative price: 50.31 €
TRAPPE Lave-Linge POMPE VIDANGE
Position: 20
Indicative price: 140494492.58 €
PROTECTION Lave-Linge POMPE VIDANGE
Position: 21
Indicative price: 37.58 €
CHARNIERE Lave-Linge HUBLOT
Position: 400
Indicative price: 53.44 €
AMORTISSEUR Lave-Linge
Position: 810
Indicative price: 46.12 €
POIGNEE Lave-Linge HUBLOT
Position: 1101
CROCHET Lave-Linge
Position: 1310
Indicative price: 28.33 €
ENJOLIV Lave-Linge HUBLOT+PROT
Position: 1430
Indicative price: 147.31 €
Contre porte Lave-Linge HUBLOT
Position: 1440
Indicative price: 74.92 €
JOINT Lave-Linge HUBLOT PRO
Position: 1910
Indicative price: 75.63 €
JOINT Lave-Linge HUBLOT STANDARD prnet
Position: 1910
Indicative price: 85.83 €
COLLIER Lave-Linge AR JOINT DE HUBLOT
Position: 1911
Indicative price: 35.12 €
COLLIER Lave-Linge JOINT HUBLOT AVANT
Position: 1912
Indicative price: 27.92 €
CUVE Lave-Linge 1/2 AVANT E
Position: 2001
CUVE Lave-Linge 1/2 ARRIERE
Position: 2002
Indicative price: 337.1 €
CLIPS Lave-Linge CUVE
Position: 2004
Indicative price: 19.25 €
TAMBOUR Lave-Linge
Position: 2200
Batteur Lave-Linge TAMBOUR 46197022014
Position: 2231
COURROIE Lave-Linge 1304PJ7 remplacée par 1309PJ7
Position: 2710
Indicative price: 30.83 €
POULIE Lave-Linge TAMBOUR
Position: 2720
Indicative price: 62.76 €
JOINT Lave-Linge CUVE
Position: 2900
Indicative price: 43.3 €
JOUE Lave-Linge GAUCHE BANDEAU
Position: 3011
Indicative price: 18.48 €
ENTRETOISE Lave-Linge MANETTE PROG
Position: 3210
SERIGRAPHIE Lave-Linge
Position: 3212
Indicative price: 33.78 €
ETIQUETTE Lave-Linge "WHIRLPOOL"
Position: 3213
Indicative price: 13.72 €
MANETTE Lave-Linge Programmateur
Position: 3310
Indicative price: 19.13 €
MOTEUR Lave-Linge
Position: 4000
Indicative price: 302.56 €
CONDENSATEUR Lave-Linge ANTIPARASITE 0.68UF
Position: 4210
Indicative price: 33.45 €
Pompe de vidange Lave-Linge + CORPS épuisée remplacée par moteur seul
Position: 4300
Indicative price: 32.56 €
RESISTANCE Lave-Linge 2050w
Position: 4510
Indicative price: 90.06 €
SUPPORT Lave-Linge RESISTANCE
Position: 4511
CABLE Lave-Linge Alimentation
Position: 4900
Indicative price: 26.16 €
SERRE Sèche-Linge CABLE ALIMENTATION
Position: 4900
Indicative price: 18.96 €

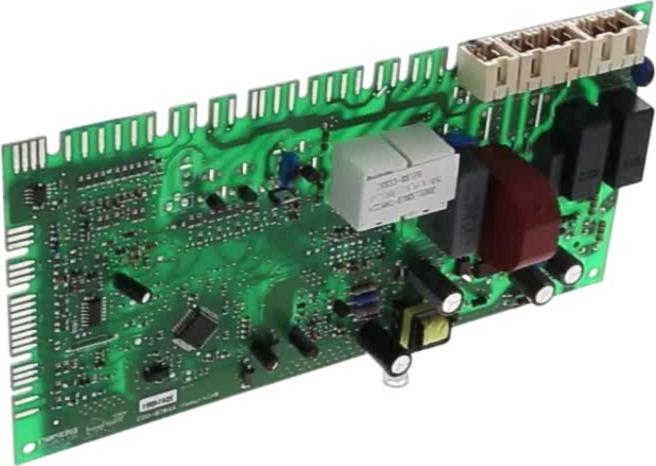

PLATINE Lave-Linge PUISSANCE
Position: 5210
Indicative price: 191.8 €

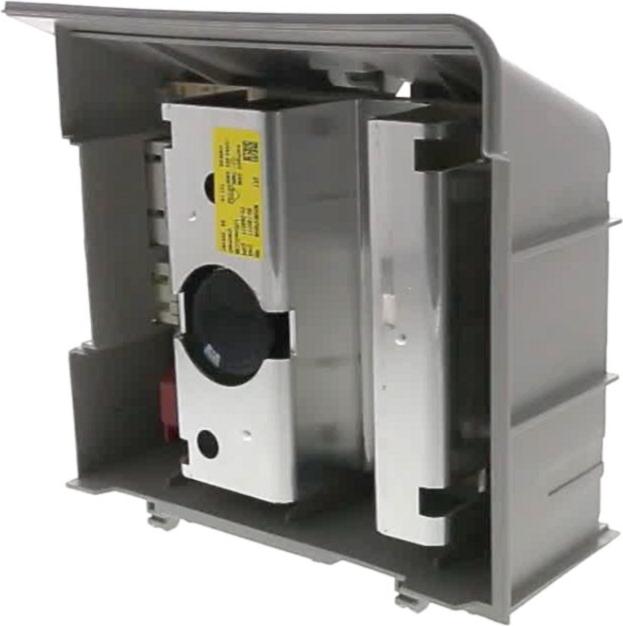

PLATINE Lave-Linge Alimentation MOTEUR 715890-03 711061-08
Position: 5211
Indicative price: 235.79 €
Electrovanne Lave-Linge 1V A BROCHES 461970211481 33290011
Position: 5710
Indicative price: 59.85 €
PRESSOSTAT Lave-Linge
Position: 5810
Indicative price: 50.61 €
DEBIMETRE Lave-Linge
Position: 5821
PLATINE Lave-Linge AFFICHEUR
Position: 6200
SECURITE Lave-Linge HUBLOT
Position: 6300
Indicative price: 114.57 €
SONDE Sèche-Linge CTN
Position: 6910
Indicative price: 49.04 €
TUYAU Lave-Linge ARRIVE EAU AQUASTOP *promo*
Position: 7010
Indicative price: 36.52 €
INJECTEUR Lave-Linge
Position: 7071
Indicative price: 17.49 €
CROCHET Lave-Linge LESSIVE LIQUIDE
Position: 7130
Indicative price: 15.79 €
MOTEUR Lave-Linge LEVIER Injecteur
Position: 7170
Indicative price: 77.96 €
CHAMBRE Lave-Linge DE COMPRESSION
Position: 7530
Indicative price: 24.41 €
DURITE Lave-Linge CUVE/POMPE E
Position: 7540
COLLIER Lave-Linge DURITE
Position: 7544
Indicative price: 9.33 €
FILTRE Lave-Linge BOUCHON Pompe de vidange
Position: 7600
JOINT Lave-Linge POMPE DE VIDANGE
Position: 7601
Indicative price: 44.52 €
TUYAU Lave-Linge VIDANGE
Position: 7810
Indicative price: 28.48 €
TUYAU Lave-Linge VIDANGE
Position: 7834
TUYAU Lave-Linge
Position: 7850
Indicative price: 32.87 €
BOUCHON Lave-Linge
Position: 7860
DURITE Lave-Linge MISE A L'AIR
Position: 7870
Indicative price: 23.85 €
AGRAPHE Lave-Linge 52,0 Millimètre
Position: 7875
Indicative price: 15.98 €
JOINT Plaque ROBINET
Position: 7940
Indicative price: 10.44 €
COLLIER Lave-Linge TUYAU 19,2mm
Position: 9006
Indicative price: 5.84 €
VIS Lave-Linge 4X16
Position: 9120
Indicative price: 4.84 €
CLIPS Lave-Linge
Position: 9210
Indicative price: 9.13 €
RESSORT Lave-Linge CUVE *UNITAIRE* 190MM D30MM 28 STRIES
Position: 9300
Indicative price: 40.69 €
PALIER Lave-Linge ROULEMENTS+JOINT+DOUILLE
Position: 9530
Indicative price: 68.67 €
BOULON Lave-Linge TRANSPORT HAUT
Position: 9610
Indicative price: 8.73 €
BOULON Lave-Linge TRANSPORT BAS
Position: 9611
BOUCHON Lave-Linge TUBE ARRIERE
Position: 9651
Indicative price: 17.89 €
