Exploded view four WHIRLPOOL AKZ9S8271IX 859991670640

Discover the complete exploded view four WHIRLPOOL AKZ9S8271IX 859991670640, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your four. Quickly find the parts you need to extend the life of your four WHIRLPOOL AKZ9S8271IX 859991670640 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

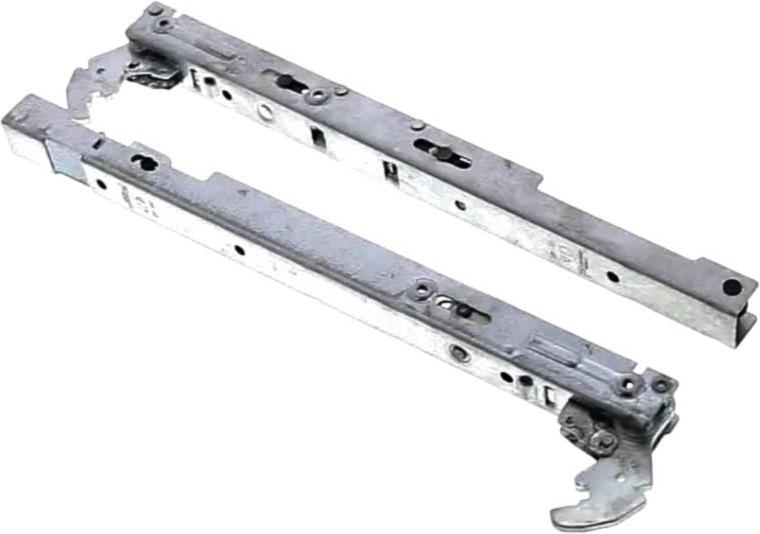

CHARNIERE Four PORTE G+D
CHARNIERE Four PORTE G+D
Position: 400
Indicative price: 77.94 €
SUPPORT Four CHARNIERE
SUPPORT Four CHARNIERE
Position: 470
Indicative price: 8.31 €
POIGNEE Four PORTE FOUR ALU/NOIRE 520MM (ENTRAXE 410mm)
POIGNEE Four PORTE FOUR ALU/NOIRE 520MM (ENTRAXE 410mm)
Position: 1100
Indicative price: 57.26 €
CAOUTCHOUC Four
CAOUTCHOUC Four
Position: 1101
Indicative price: 4.5 €
ENTRETOISE Four CAOUTCHOUC
ENTRETOISE Four CAOUTCHOUC
Position: 1102
Indicative price: 5.79 €
ENTRETOISE Four VITRES
ENTRETOISE Four VITRES
Position: 1215
Indicative price: 3.74 €
SERRURE Four PORTE FOUR
SERRURE Four PORTE FOUR
Position: 1300
Indicative price: 123.04 €
VITRE Cuisinière EXTERIEURE NOIRE 595*473* PROFIL INOX U (entraxe 410mm)
VITRE Cuisinière EXTERIEURE NOIRE 595*473* PROFIL INOX U (entraxe 410mm)
Position: 1410
Indicative price: 172.88 €
VITRE Four INTERIEURE 492*435
VITRE Four INTERIEURE 492*435
Position: 1420
Indicative price: 110.95 €
VITRE Four INTERMEDIAIRE Porte FOUR 468*436
VITRE Four INTERMEDIAIRE Porte FOUR 468*436
Position: 1430
Indicative price: 120.8 €
SUPPORT Four GAUCHE
SUPPORT Four GAUCHE
Position: 1431
Indicative price: 10.54 €
SUPPORT Four DROIT
SUPPORT Four DROIT
Position: 1433
Indicative price: 9.84 €
JOINT Four PORTE
JOINT Four PORTE
Position: 1910
Indicative price: 62.89 €
GLISSIERE Four TELESCOPIQUE (droite+gauche)
GLISSIERE Four TELESCOPIQUE (droite+gauche)
Position: 2612
Indicative price: 85.07 €
CONDENSATEUR Micro onde ANTIPARASITE DNF06-T 680KO+2X1MH 0.47UF
CONDENSATEUR Micro onde ANTIPARASITE DNF06-T 680KO+2X1MH 0.47UF
Position: 4210
Indicative price: 37 €
TURBINE Four C/T
TURBINE Four C/T
Position: 4430
Indicative price: 14.08 €
RESISTANCE Four CIRCULAIRE 2000W 5124R422
RESISTANCE Four CIRCULAIRE 2000W 5124R422
Position: 4510
Indicative price: 56.55 €
RESISTANCE Four VOUTE 2450w
RESISTANCE Four VOUTE 2450w
Position: 4520
Indicative price: 110.77 €
RESISTANCE Four SOLE 1150W 230V
RESISTANCE Four SOLE 1150W 230V
Position: 4560
Indicative price: 28.02 €
THERMOSTAT Four 285°C (1 klixon)
THERMOSTAT Four 285°C (1 klixon)
Position: 5570
Indicative price: 58.72 €
THERMOSTAT Four 155°C
THERMOSTAT Four 155°C
Position: 5571
Indicative price: 57.26 €
AMPOULE Four G9 40W 400°
AMPOULE Four G9 40W 400°
Position: 6510
Indicative price: 16.11 €
DOUILLE Four COMPLETE
DOUILLE Four COMPLETE
Position: 6520
Indicative price: 27 €
HUBLOT Four LAMPE 40*25 CULOT 33MM
HUBLOT Four LAMPE 40*25 CULOT 33MM
Position: 6560
Indicative price: 12.39 €
ENTRETOISE Four
ENTRETOISE Four
Position: 9040
Indicative price: 7.87 €
