Exploded view minifour ROLLER GRILL MR260

Discover the complete exploded view minifour ROLLER GRILL MR260, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your minifour. Quickly find the parts you need to extend the life of your minifour ROLLER GRILL MR260 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

PLATINE Four ENCASTREMENT E
PLATINE Four ENCASTREMENT E
PLATINE Four ENCASTREMENT
PLATINE Four ENCASTREMENT
Indicative price: 36.7 €
PLAT Four LECHE FRITE 350*295
PLAT Four LECHE FRITE 350*295
Position: 1
Indicative price: 28.73 €
GRILLE Four FOUR 358*300
GRILLE Four FOUR 358*300
Position: 2
Indicative price: 12.4 €
JOINT Four
JOINT Four
Position: 3
Indicative price: 7.42 €
COMMUTATEUR Four 42.02400.028 4202400028 remplace en lieu et place l ancien
COMMUTATEUR Four 42.02400.028 4202400028 remplace en lieu et place l ancien
Position: 4
Indicative price: 16.67 €
RESISTANCE Four QUARTZ 115V 500W 372MM
RESISTANCE Four QUARTZ 115V 500W 372MM
Position: 5
Indicative price: 31.51 €
POIGNEE Four E
POIGNEE Four E
Position: 8
CHARNIERE Four PORTE
CHARNIERE Four PORTE
Position: 10
Indicative price: 5.07 €

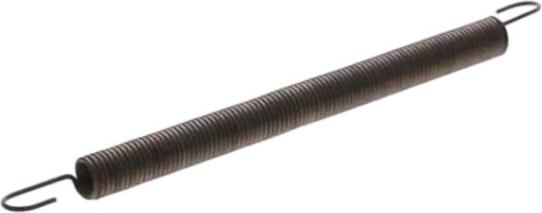

RESSORT Four PORTE FOUR
RESSORT Four PORTE FOUR
Position: 11
Indicative price: 4.69 €
MANETTE Four Thermostat NOIRE
MANETTE Four Thermostat NOIRE
Position: 12
Indicative price: 30.32 €
MANETTE Four NOIRE AXE 9H diam 8mm
MANETTE Four NOIRE AXE 9H diam 8mm
Position: 13
Indicative price: 9.3 €
VOYANT Four ORANGE
VOYANT Four ORANGE
Position: 14
Indicative price: 6.56 €
MINUTERIE Four 59.005
MINUTERIE Four 59.005
Position: 15
Indicative price: 53.6 €
THERMOSTAT Four FOUR NT 247 M/E 45-230°
THERMOSTAT Four FOUR NT 247 M/E 45-230°
Position: 16
Indicative price: 28.26 €
BROCHE Four 352mm
BROCHE Four 352mm
Position: 17
Indicative price: 14.17 €
RESISTANCE Four SOLE 700W 002148
RESISTANCE Four SOLE 700W 002148
Position: 18
Indicative price: 20.68 €
MOTEUR Cuisinière TOURNE BROCHE
MOTEUR Cuisinière TOURNE BROCHE
Position: 20
Indicative price: 28.01 €
PIED Four NOIR UNITAIRE
PIED Four NOIR UNITAIRE
Position: 21
Indicative price: 7.75 €
SERRE Four CABLE + BORNIER 16A
SERRE Four CABLE + BORNIER 16A
Position: 22
Indicative price: 11.16 €
CORDON Four ALIMENTATION
CORDON Four ALIMENTATION
Position: 23
Indicative price: 9.76 €
