Exploded view hotte SAUTER HVR510N

Discover the complete exploded view hotte SAUTER HVR510N, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your hotte. Quickly find the parts you need to extend the life of your hotte SAUTER HVR510N and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

CLAPET Hotte ANTI RETOUR
CLAPET Hotte ANTI RETOUR
Position: 0
Indicative price: 91.87 €
BUSE Hotte diam 121 Millimètre
BUSE Hotte diam 121 Millimètre
Position: 1
Indicative price: 65.77 €
MOTEUR Hotte
MOTEUR Hotte
Position: 1
Indicative price: 70.85 €

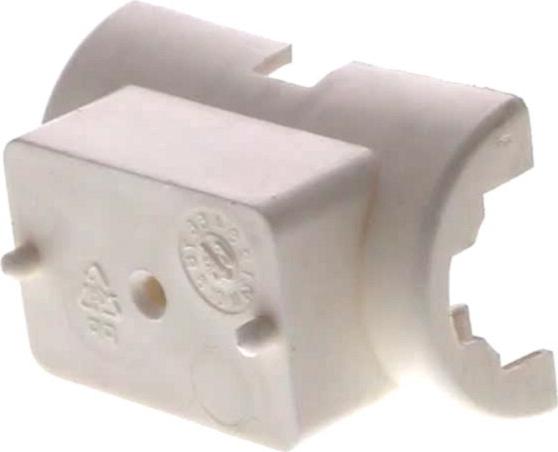

SUPPORT Hotte DOUILLE Inférieur
SUPPORT Hotte DOUILLE Inférieur
Position: 2
Indicative price: 51.37 €
SUPPORT Hotte VISIERE GAUCHE
SUPPORT Hotte VISIERE GAUCHE
Position: 2
Indicative price: 55.79 €
DOUILLE Hotte LAMPE
DOUILLE Hotte LAMPE
Position: 3
Indicative price: 35.1 €
SUPPORT Hotte VISIERE DROIT
SUPPORT Hotte VISIERE DROIT
Position: 3
Indicative price: 34.76 €
AMPOULE Hotte 40W E14 25*84
AMPOULE Hotte 40W E14 25*84
Position: 4
Indicative price: 6.95 €
VERRE Hotte VISIERRE
VERRE Hotte VISIERRE
Position: 4
Indicative price: 66.25 €
SUPPORT Hotte DOUILLE Supérieur
SUPPORT Hotte DOUILLE Supérieur
Position: 5
Indicative price: 51.2 €
FILTRE Hotte METAL 450*280
FILTRE Hotte METAL 450*280
Position: 8
Indicative price: 54.58 €
BOUCHON Hotte OBTURATEUR
BOUCHON Hotte OBTURATEUR
Position: 10
Indicative price: 9.85 €

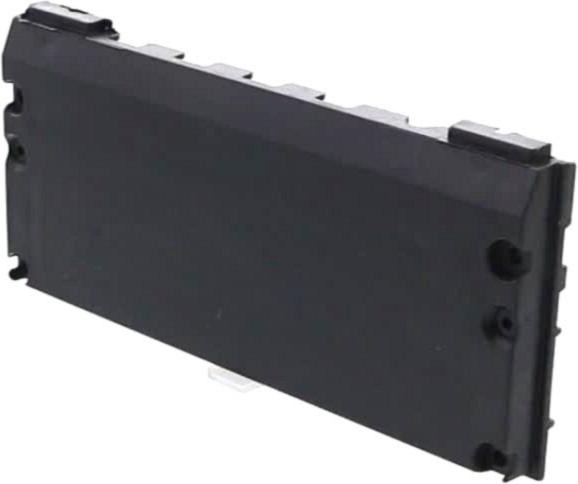

BOITIER Hotte PLATINE
BOITIER Hotte PLATINE
Position: 19
Indicative price: 80.39 €
Commutateur Hotte 4TOUCHES+VOYANT
Commutateur Hotte 4TOUCHES+VOYANT
Position: 20
Indicative price: 117.54 €
RESSORT Hotte FIXATION FILTRE
RESSORT Hotte FIXATION FILTRE
Position: 23
Indicative price: 20.19 €
CACHE Hotte VOYANT ROUGE
CACHE Hotte VOYANT ROUGE
Position: 24
Indicative price: 9.74 €
BOUTON Hotte
BOUTON Hotte
Position: 27
Indicative price: 12.72 €
