Exploded view réfrigérateur CURTISS QDP310PLS
Discover the complete exploded view réfrigérateur CURTISS QDP310PLS, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur CURTISS QDP310PLS and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
AMPOULE Froid 15w
Position: 7
Indicative price: 3.22 €
DOUILLE Four LAMPE
Position: 8
Indicative price: 17.39 €
BOITIER Froid THERMOSTAT
Position: 13
Indicative price: 19.93 €

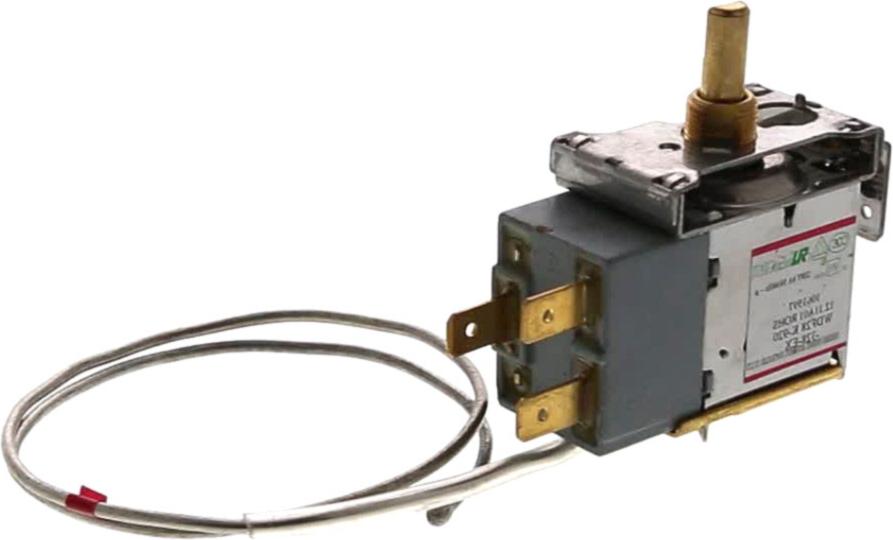

THERMOSTAT Froid WDFE28K-920-328
Position: 14
Indicative price: 37.85 €
PIED Froid GAUCHE REGLABLE 50MM D30MM
Position: 16
Indicative price: 7.36 €
BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 470*100*117
Position: 22
Indicative price: 26.22 €
COMPRESSEUR EK10-3-90-K
Position: 27
Indicative price: 168.22 €
CABLE Froid ALIMENTATION
Position: 33
Indicative price: 46.37 €
BORNIER Froid
Position: 42
Indicative price: 7.21 €
DESHYDRATEUR Froid 15G
Position: 48
Indicative price: 7.71 €
BAC Froid COMPRESSEUR
Position: 49
Indicative price: 17.13 €
BALCONNET Froid Supérieur TRANSPARENT CLAIR 470*119*55
Position: 55
Indicative price: 23.61 €
Interrupteur Froid LUMIERE
Position: 59
Indicative price: 19.55 €
CHARNIERE Froid CENTRALE
Position: 60
Indicative price: 26.49 €
CHARNIERE Froid SUPERIEURE
Position: 62
Indicative price: 24.04 €
BAC Froid GLACONS
Position: 65
Indicative price: 13.6 €
