Exploded view réfrigérateur CURTISS RC1520
Discover the complete exploded view réfrigérateur CURTISS RC1520, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur CURTISS RC1520 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
PORTE Froid Réfrigérateur
Position: 1
Indicative price: 120.46 €

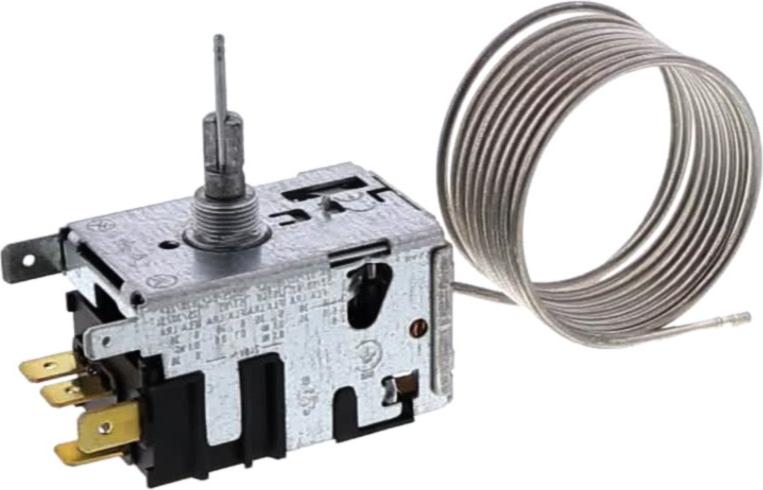

Thermostat Froid K60P1104 077B7002
Position: 2
Indicative price: 41.79 €
POIGNEE Froid Congélateur 180MM (entraxe 132mm)
Position: 2
Indicative price: 26.47 €
BALCONNET Froid Inférieur
Position: 3
Indicative price: 20.15 €
SUPPORT Froid BULBE Thermostat
Position: 3
Indicative price: 7.43 €
BALCONNET Froid CENTRAL
Position: 4
Interrupteur Froid
Position: 5
Indicative price: 18.86 €
SUPPORT Froid 8 OEUFS
Position: 5
Indicative price: 11.27 €
ABATTANT Froid COMPARTIMENT OEUFS
Position: 6
Indicative price: 24.88 €
AMPOULE Froid 15w
Position: 10
Indicative price: 3.24 €
DESHYDRATEUR Froid
Position: 13
Indicative price: 7.59 €
PORTE Froid FREZZER 455*170
Position: 13
Indicative price: 49.68 €
BAC Froid GLACONS
Position: 14
Indicative price: 13.04 €
COMPRESSEUR 1/10 R134
Position: 14
Indicative price: 151.24 €
BAC Froid DEGIVRAGE
Position: 15
Indicative price: 43.16 €

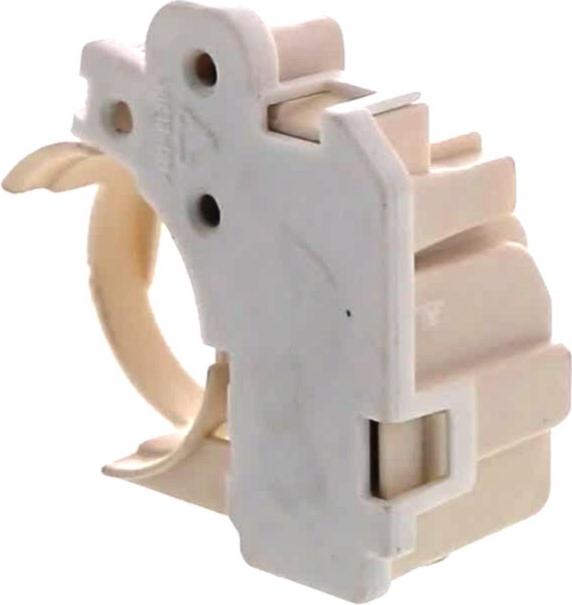

RELAIS Froid DEMARAGE A9F6
Position: 15
Indicative price: 47.65 €
PROFIL Froid CLAYETTE
Position: 16
Indicative price: 17.71 €
PROFIL Froid DESSUS BAC LEGUMES
Position: 17
Indicative price: 8.01 €
BAC Froid LEGUMES
Position: 18
Indicative price: 29.56 €
PIED Froid
Position: 19
Indicative price: 10.89 €
PIED Lave-Linge ARRIERE
Position: 21
Indicative price: 7.47 €
VITRE Froid BAC LEGUMES 480*231*4
Position: 22
Indicative price: 33.19 €
