Exploded view réfrigérateur CURTISS JDP220RN

Discover the complete exploded view réfrigérateur CURTISS JDP220RN, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur CURTISS JDP220RN and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

CHARNIERE Froid SUPERIEURE
CHARNIERE Froid SUPERIEURE
Position: 5
Indicative price: 21.08 €
HUBLOT Froid LAMPE
HUBLOT Froid LAMPE
Position: 11
Indicative price: 22.13 €
MANETTE Froid THERMOSTAT
MANETTE Froid THERMOSTAT
Position: 12
Indicative price: 23.94 €

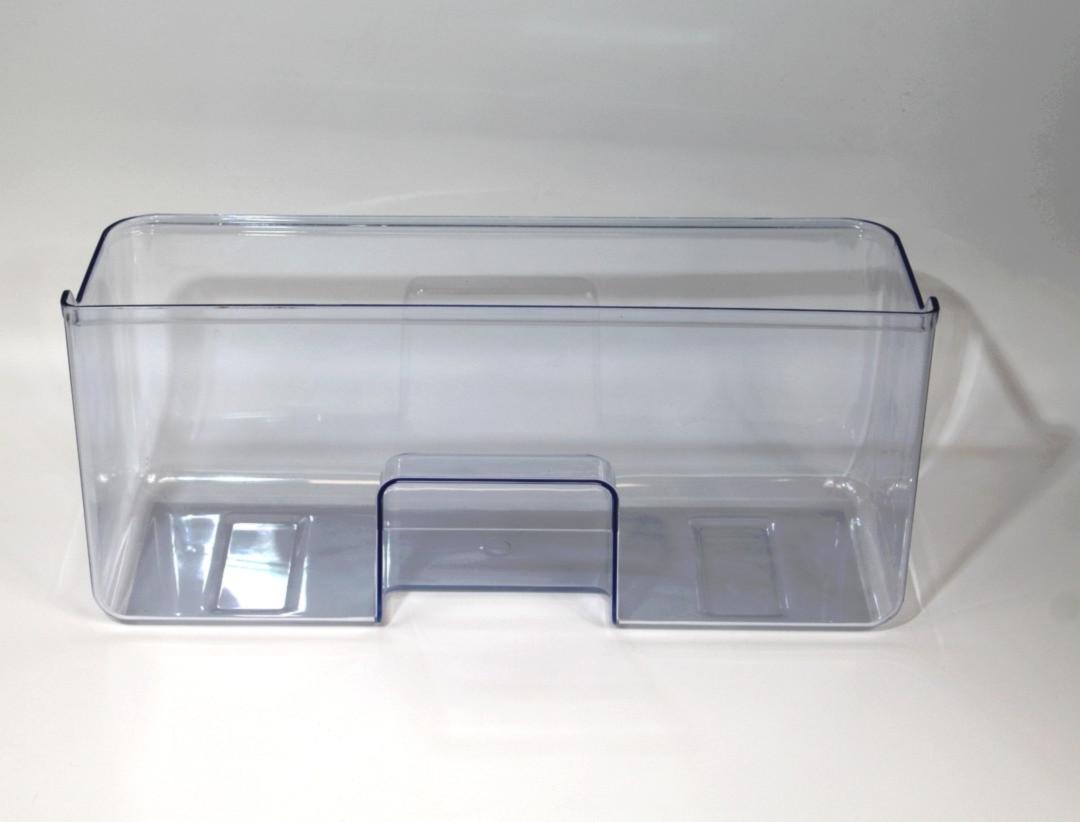

BAC Froid LEGUMES TRANSPARENT CLAIR 443*195*168
BAC Froid LEGUMES TRANSPARENT CLAIR 443*195*168
Position: 16
Indicative price: 60.59 €
DESSUS Froid BAC LEGUMES
DESSUS Froid BAC LEGUMES
Position: 17
Indicative price: 54.67 €
CLAYETTE Froid VERRE
CLAYETTE Froid VERRE
Position: 18
Indicative price: 73.33 €
BALCONNET Froid CENTRAL
BALCONNET Froid CENTRAL
Position: 21
Indicative price: 77.81 €
BALCONNET Froid BOUTEILLES
BALCONNET Froid BOUTEILLES
Position: 22
Indicative price: 88.48 €
THERMOSTAT Froid
THERMOSTAT Froid
Position: 30
Indicative price: 44.61 €
AMPOULE Froid
AMPOULE Froid
Position: 32
Indicative price: 31.93 €
POIGNEE Froid PORTE INOX
POIGNEE Froid PORTE INOX
Position: 40
Indicative price: 289.42 €
COMPRESSEUR EK10-3-90-K
COMPRESSEUR EK10-3-90-K
Position: 43
Indicative price: 167.72 €
DESHYDRATEUR Froid 15G
DESHYDRATEUR Froid 15G
Position: 52
Indicative price: 8.45 €
