Exploded view lave linge CURTISS PTL600E
Discover the complete exploded view lave linge CURTISS PTL600E, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge CURTISS PTL600E and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List

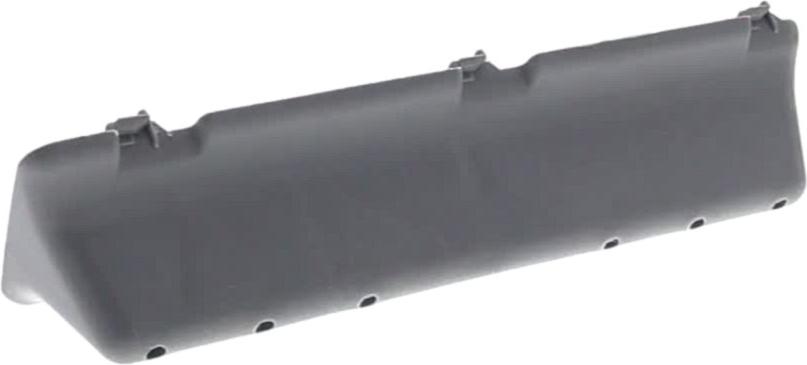

Batteur Lave-Linge TAMBOUR PETITE
Position: 1
Indicative price: 22.44 €

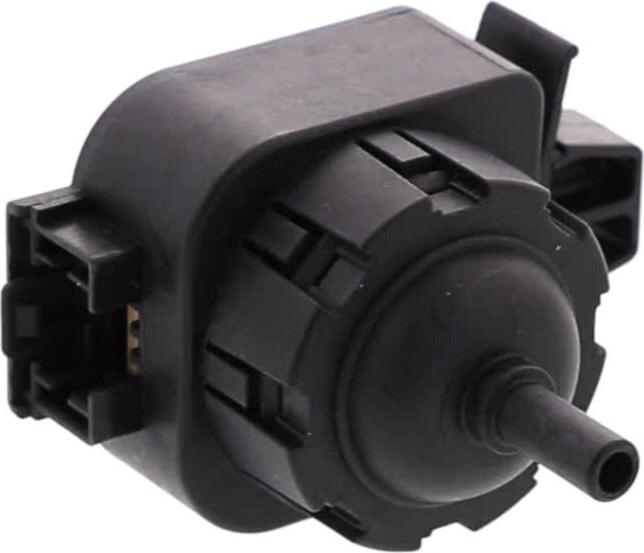

PRESSOSTAT Lave-Linge ELECTRONIQUE
Position: 1
Indicative price: 29.25 €
COLLIER Lave-Linge JOINT CHARGEMENT Inférieur
Position: 1
Indicative price: 36.08 €
BOUCHON Lave-Linge BRIDAGE
Position: 1
Indicative price: 12.36 €

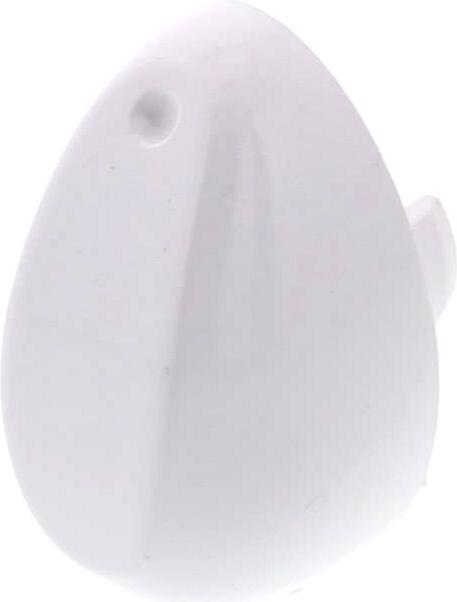

MANETTE Lave-Linge PROGRAMMATEUR
Position: 1
Indicative price: 15.21 €

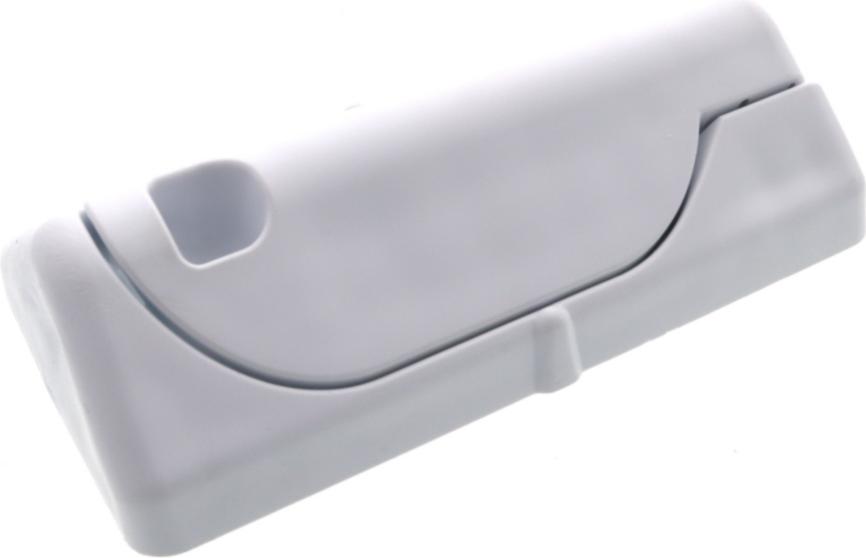

Batteur Lave-Linge EXTRACTIBLE
Position: 2
Indicative price: 27.47 €

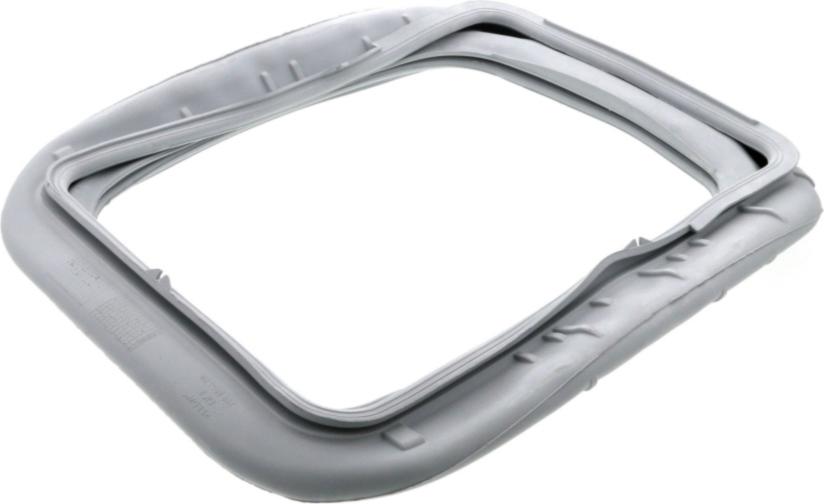

JOINT Lave-Linge ENTREE DE CUVE
Position: 2
Indicative price: 72.87 €
PANNEAU Lave-Linge ARRIERE
Position: 2
Indicative price: 86.68 €
TRANSFERT Lave-Linge LED
Position: 2
Indicative price: 7.59 €
CUVE Lave-Linge COMPLETE+TAMB
Position: 3
Indicative price: 295.06 €
COLLIER Lave-Linge SUPERIEUR JOINT
Position: 3
Indicative price: 22.09 €
PANNEAU Lave-Linge GAUCHE
Position: 3
Indicative price: 115.73 €
PANNEAU Lave-Linge DROIT
Position: 3
Indicative price: 67.95 €
CONDENSATEUR Lave-Linge ANTIPARASITE 411 323 410
Position: 4
Indicative price: 30.15 €
DISTRIBUTEUR Lave-Linge EAU BOITE
Position: 4
Indicative price: 37.54 €

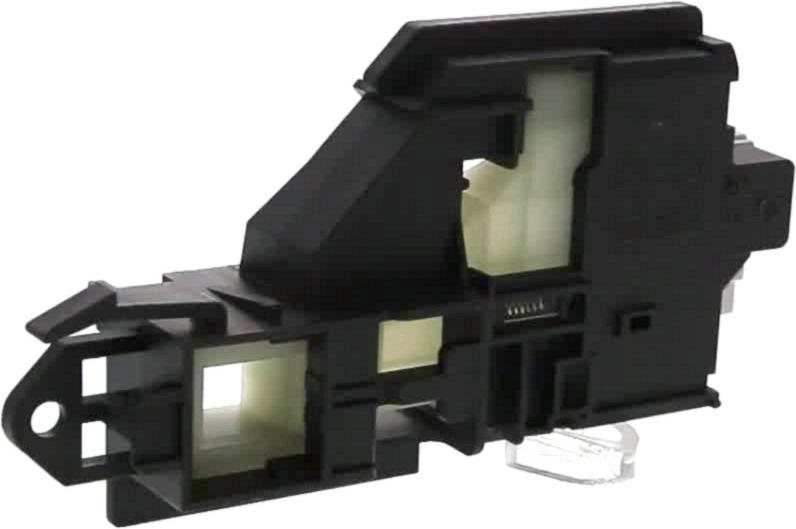

SECURITE Lave-Linge PORTE DA63 05513265
Position: 5
Indicative price: 31.25 €

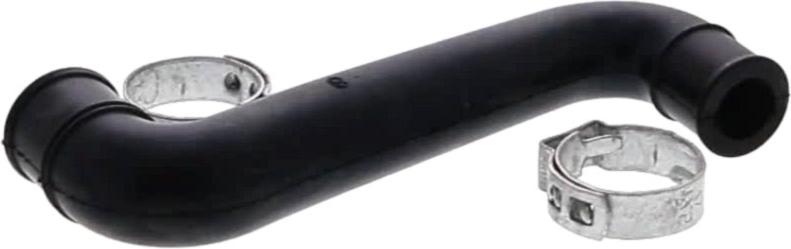

DURITE Lave-Linge BOITE
Position: 6
Indicative price: 44.35 €
PLINTHE Lave-Linge Inférieur
Position: 6
Indicative price: 41.05 €
VIS Lave-Linge Contre-poids AVANT
Position: 6
Indicative price: 2.55 €

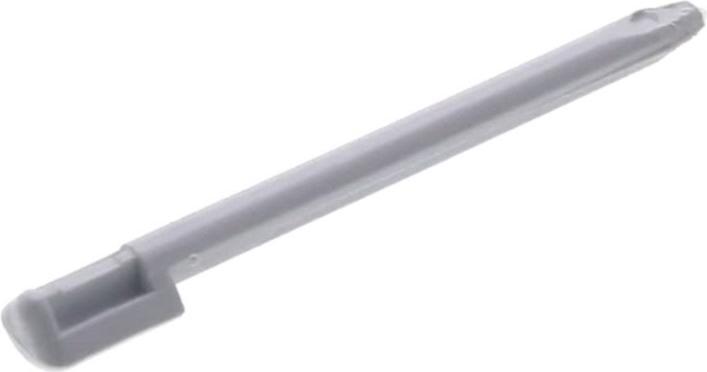

AXE Lave-Linge CHARNIERE COUVERCLE
Position: 7
Indicative price: 9.42 €

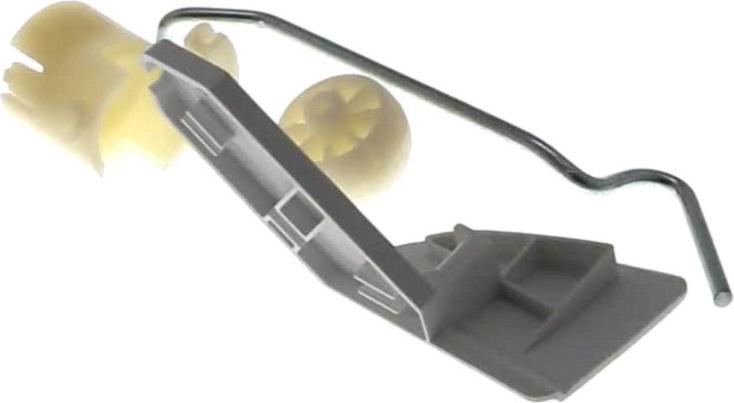

KIT Lave-Linge ROUE AVANT
Position: 7
Indicative price: 17.67 €
Résistance Lave-Linge 1980W 230V
Position: 8
Indicative price: 60.76 €
PIED Lave-Linge AVANT
Position: 8
Indicative price: 25.26 €

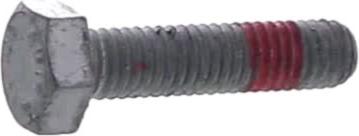

VIS Lave-Linge KIT PALIER DROIT+GAUCHE
Position: 8
Indicative price: 18.94 €

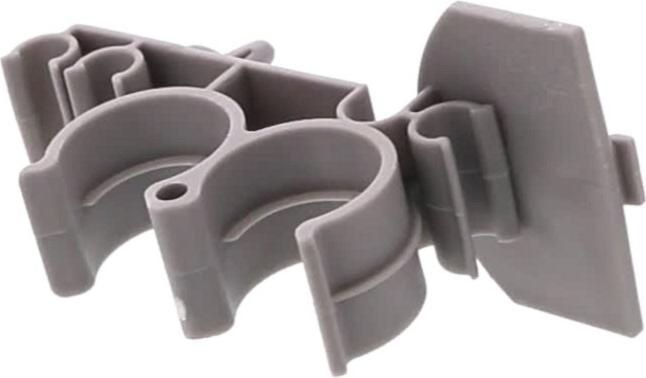

SUPPORT Lave-Linge TUYAU
Position: 8
Indicative price: 16.19 €
CADRE Lave-Linge SOUS COUVERCLE
Position: 8
Indicative price: 89.59 €
JOINT Lave-Linge COUVERCLE Supérieur
Position: 9
Indicative price: 55.82 €

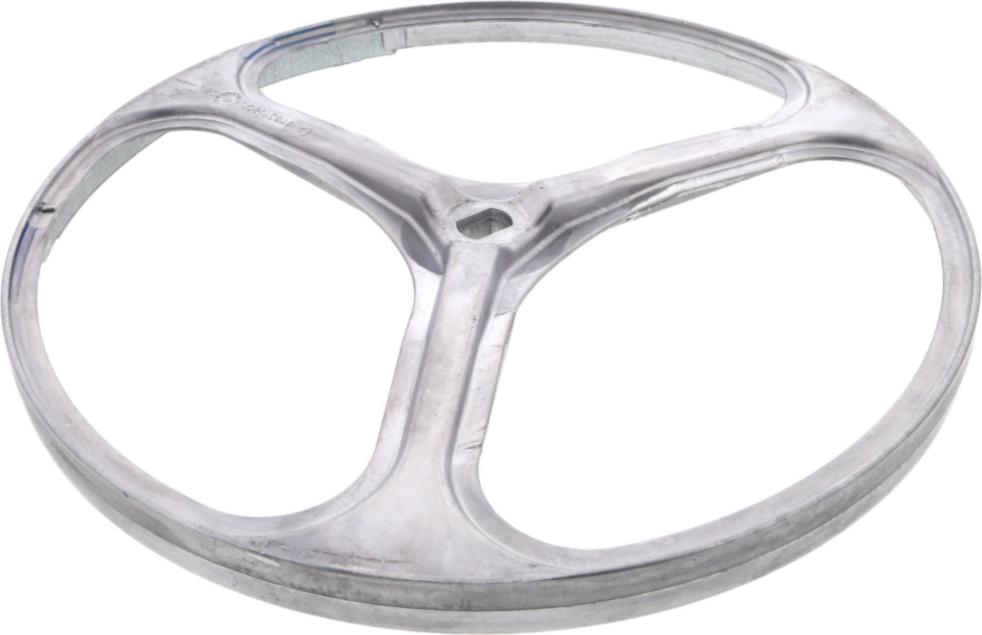

POULIE Lave-Linge TAMBOUR
Position: 9
Indicative price: 63.01 €

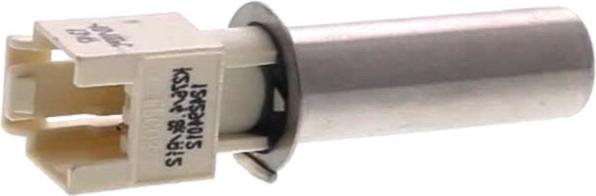

SONDE Lave-Linge RESISTANCE
Position: 9
Indicative price: 38.2 €
SUPPORT Lave-Linge TUYAU
Position: 9
Indicative price: 18.43 €

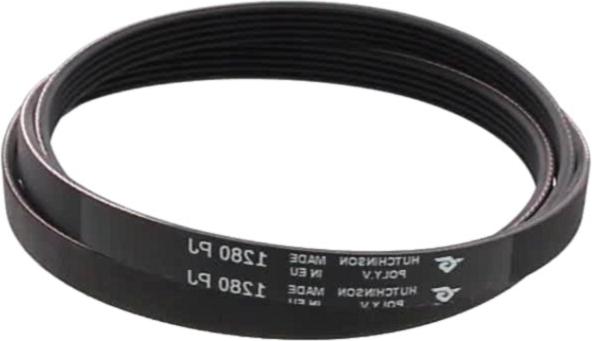

COURROIE Lave-Linge 5PJE1280
Position: 10
Indicative price: 25.98 €
Pompe de vidange Lave-Linge 74803 PLASET 30W
Position: 10
Indicative price: 59.52 €
BOITE Lave-Linge LESSIVE
Position: 10
ROUE Lave-Linge ARRIERE
Position: 10
Indicative price: 18.51 €
COUVERCLE Lave-Linge DESSUS
Position: 11
Indicative price: 105.66 €
VIS Lave-Linge + RONDELLE POULIE TAMBOUR
Position: 11
Indicative price: 13.74 €
MOTEUR Lave-Linge
Position: 11
Indicative price: 246.38 €

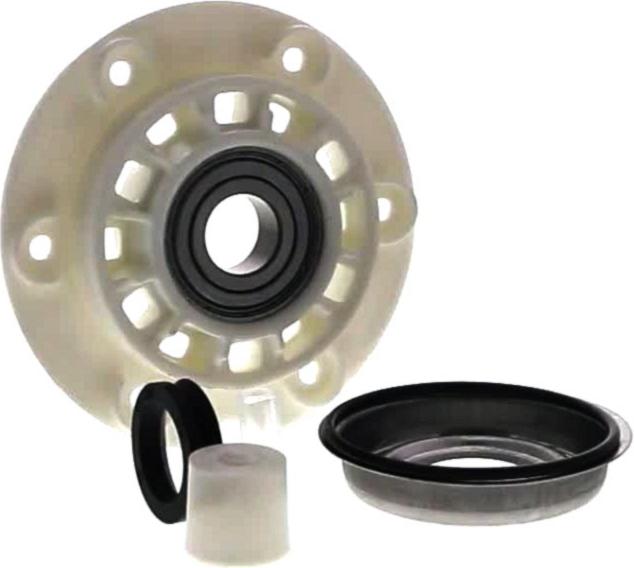

PALIER Lave-Linge COMPLET Droit ou Gauche
Position: 12
Indicative price: 70.1 €
FILTRE Lave-Linge ELECTROVANNE
Position: 12
Indicative price: 18.65 €
TUYAU Lave-Linge VIDANGE
Position: 12
Indicative price: 56.44 €

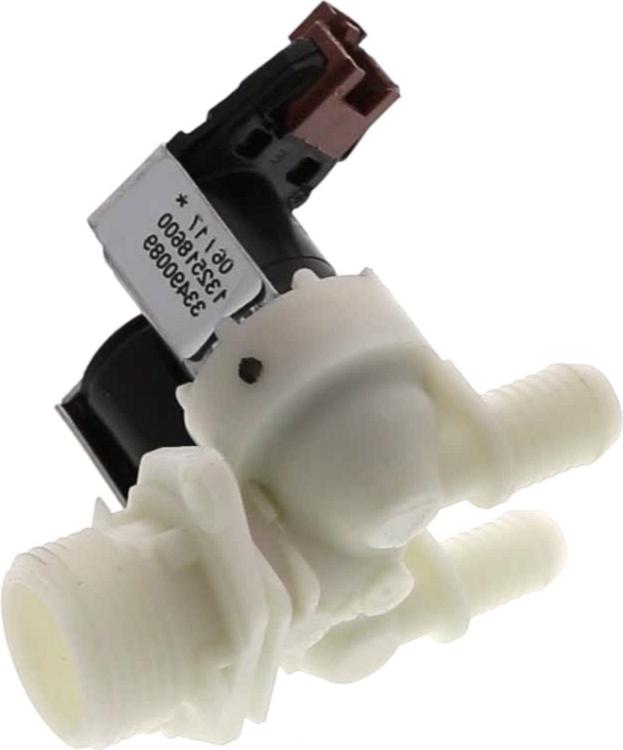

Electrovanne Lave-Linge 2 VOIES 180° FASTON
Position: 13
Indicative price: 32.44 €
COLLIER Lave-Linge DURITE (lot)
Position: 13
Indicative price: 68.86 €
AMORTISSEUR Lave-Linge 60N
Position: 14
Indicative price: 22.92 €
CHAMBRE Lave-Linge DE COMPRESSION
Position: 15
Indicative price: 20.98 €
Contre-poids Lave-Linge GAUCHE
Position: 16
Indicative price: 55.36 €

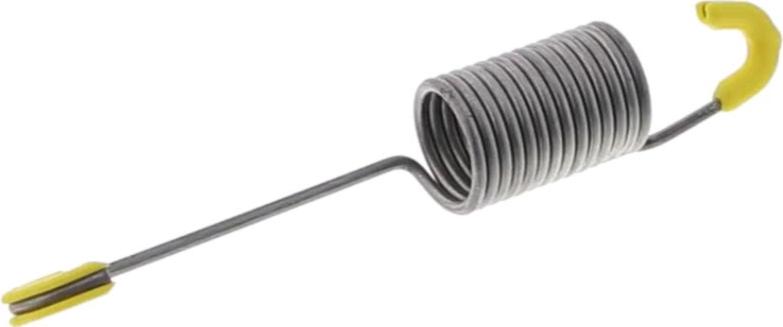

RESSORT Lave-Linge CUVE AVANT
Position: 17
Indicative price: 20.55 €

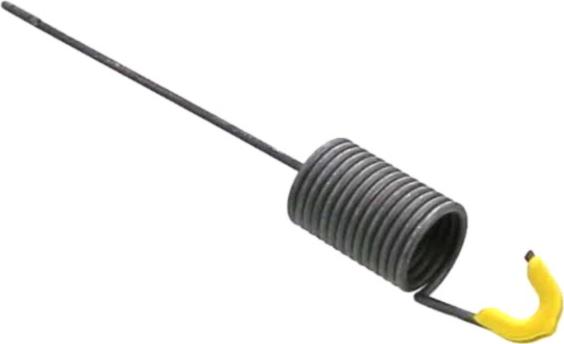

RESSORT Lave-Linge CUVE ARRIERE 14 STRIES 183MM
Position: 17
Indicative price: 19.24 €
CROCHET Lave-Linge RESSORT CUVE remplacé par RESSORT+CROCHET
Position: 18
PORTE Lave-Linge TAMBOUR AV+AR
Position: 20
Indicative price: 174.06 €

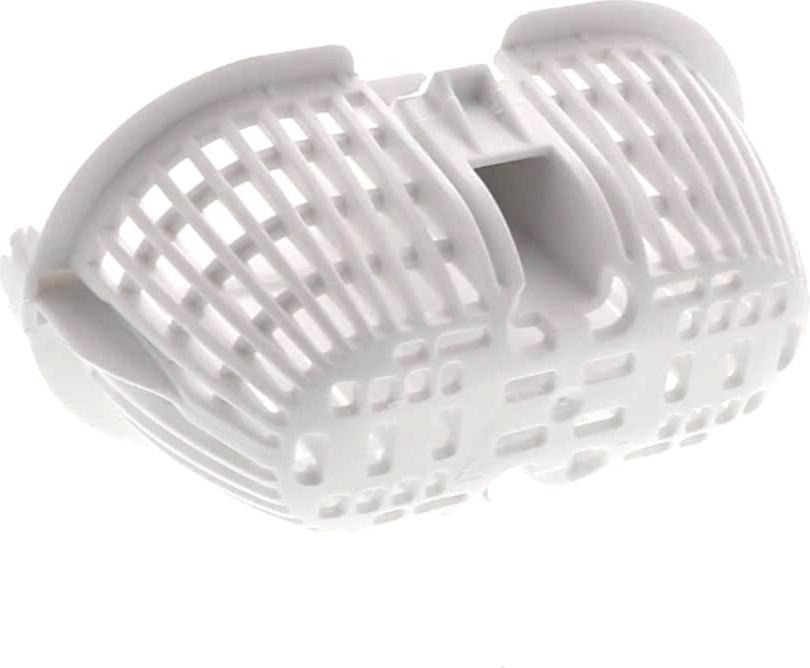

FILTRE Lave-Linge Batteur
Position: 21
Indicative price: 25.78 €
