Exploded view lave linge ARISTON AV937CFR 01360
Discover the complete exploded view lave linge ARISTON AV937CFR 01360, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge ARISTON AV937CFR 01360 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
VIS Lave-Linge POULIE TAMBOUR
Position: 1
Indicative price: 5.43 €
MOTEUR Lave-Linge Ventilation SECH
Position: 1
Indicative price: 80.23 €
DESSUS Lave-Linge TOP
Position: 1
Indicative price: 93.67 €
COURROIE Lave-Linge 1270J5
Position: 2
Indicative price: 18.47 €
FUSIBLE
Position: 2
Indicative price: 19.19 €
Thermostat Lave-Linge NC85-NC125
Position: 3
Indicative price: 29.64 €
MINUTERIE Lave-Linge SECHAGE
Position: 3
Indicative price: 74.57 €
POULIE Lave-Linge TAMBOUR
Position: 3
Indicative price: 34.7 €
PALIER Lave-Linge CROISILLON COMPLET
Position: 4
Indicative price: 82.3 €
TUYAU Four CUVE RACCORDEMENT CONDENS
Position: 4
Indicative price: 21.52 €
RESISTANCE Lave-Linge SECHAGE 1000W
Position: 6
Indicative price: 41.19 €
MANETTE Lave-Linge MINUT SECHAGE
Position: 6
Indicative price: 12.84 €
JOINT Lave-Linge CARTE SECHAGE
Position: 8
Indicative price: 17.63 €
Programmateur Lave-Linge EC4254.02C05
Position: 9
Indicative price: 136.12 €
TAMBOUR Lave-Linge
Position: 11
Indicative price: 121.14 €
Contre porte Lave-Linge HUBLOT + ENJOLIVEUR
Position: 12
Indicative price: 52 €

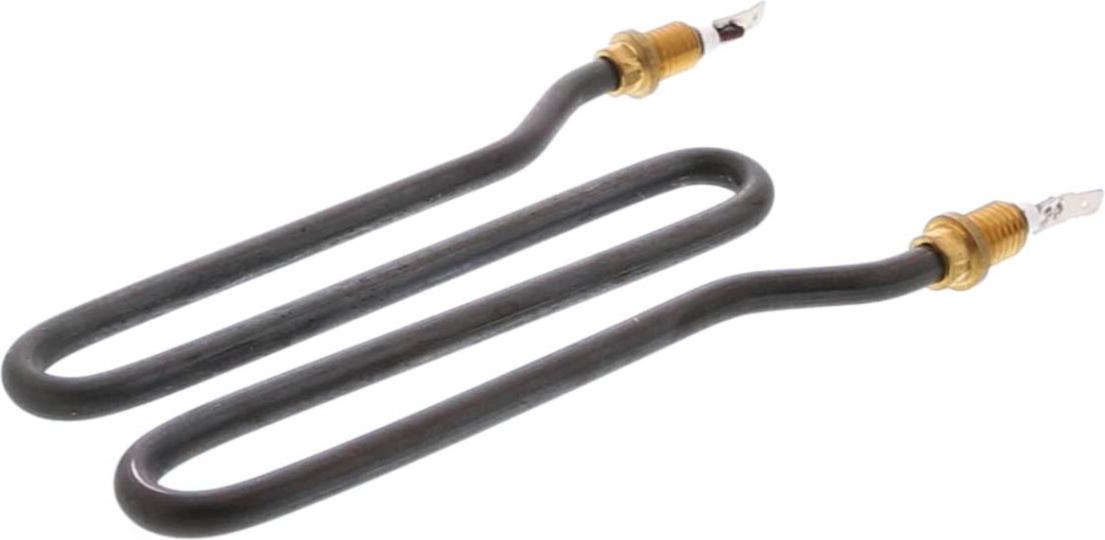

RESISTANCE Sèche-Linge
Position: 13
Indicative price: 167.11 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 13
INJECTEUR Lave-Linge EAU
Position: 13
Indicative price: 15.43 €
JOINT Lave-Linge HUBLOT
Position: 15
Indicative price: 59.6 €
POIGNEE Lave-Linge HUBLOT COMPLETE
Position: 15
Indicative price: 20.2 €
RESISTANCE Lave-Linge 1950W
Position: 16
Indicative price: 22.36 €
COLLIER Lave-Linge CUVE-JOINT HUBLOT
Position: 16
Indicative price: 8.5 €
RESISTANCE Lave-Linge
Position: 16
Indicative price: 45.12 €
ECROU Lave-Linge TURBINE Ventilation SECHAGE (epuise remplacer par turbine complet)
Position: 17
Indicative price: 33.78 €
SUPPORT Lave-Linge SECURITE PORTE
Position: 17
Indicative price: 4.26 €
AXE Lave-Linge POIGNEE PORTE
Position: 17
Indicative price: 3.27 €
POIGNEE Lave-Linge HUBLOT +CROCHET
Position: 18
Indicative price: 20.01 €
Electrovanne Lave-Linge 2V
Position: 18
Indicative price: 24.04 €
TURBINE Lave-Linge VENTILATION SECHAGE
Position: 18
Indicative price: 59.23 €
Contre-poids Lave-Linge DROIT+GAUCHE
Position: 18
Indicative price: 62.13 €
CROCHET Lave-Linge POIGNEE PORTE
Position: 19
Indicative price: 16.45 €
HUBLOT Lave-Linge
Position: 20
JOINT Lave-Linge FILTRE
Position: 20
Indicative price: 19.4 €
COLLIER Lave-Linge JOINT HUBLOT AVANT
Position: 20
Indicative price: 4.64 €
COLLIER Lave-Linge CUVE
Position: 23
Indicative price: 28.64 €
Pompe de vidange Lave-Linge COD 59432 PLASET
Position: 24
Indicative price: 48.1 €
COLLIER Sèche-Linge DURITE CUVE/PV
Position: 25
Indicative price: 9.43 €
MODULE Lave-Linge ELMARC EM13SF
Position: 26
Indicative price: 248.05 €
CHARBON Lave-Linge MOTEUR
Position: 29
Indicative price: 35.86 €
TACHYMETRE Lave-Linge MOTEUR
Position: 29
Indicative price: 32.41 €
TUYAU Lave-Linge VIDANGE
Position: 32
Indicative price: 15.24 €
PALIER Lave-Linge KIT
Position: 33
Indicative price: 79.51 €
JOINT Lave-Linge AXE ROULEMENT
Position: 33
Indicative price: 14.69 €
DURITE Lave-Linge BAC LESSIVE/CUVE
Position: 34
Indicative price: 30.12 €
CONDENSATEUR Lave-Vaisselle ANTIPARASITE
Position: 35
Indicative price: 18.27 €
PALIER Lave-Linge KIT
Position: 36
Indicative price: 41.75 €
ROULEMENT Lave-Linge 6205ZZ
Position: 37
Indicative price: 14.31 €
JOINT Lave-Linge THERMOSTAT
Position: 37
Indicative price: 17.77 €
ROULEMENT Lave-Linge 6204ZZ
Position: 38
Indicative price: 14.67 €
Thermostat Lave-Linge NA40 NC60
Position: 38
Indicative price: 31.29 €
BAC Lave-Linge LESSIVE
Position: 43
LEVIER Lave-Linge DISTRIBUTEUR EAU
Position: 45
Indicative price: 4.96 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 47
Indicative price: 14.29 €
FILTRE Lave-Linge TUYAU ARRIVEE EAU
Position: 48
Indicative price: 5.9 €
JOINT Lave-Linge TUYAU ARRIVEE EAU
Position: 49
Indicative price: 6.87 €
ECROU Hotte
Position: 51
Indicative price: 4.58 €
Interrupteur Lave-Linge FROID
Position: 52
Interrupteur Lave-Linge M/A
Position: 53
Indicative price: 17.55 €
TIROIR Lave-Linge PRODUIT
Position: 60
Indicative price: 22.44 €
