Exploded view lave linge ARISTON AVTL120FR
Discover the complete exploded view lave linge ARISTON AVTL120FR, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge ARISTON AVTL120FR and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List

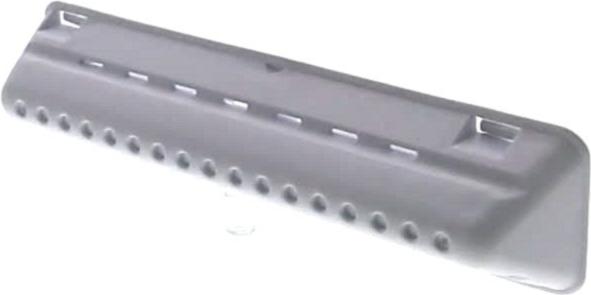

Batteur Lave-Linge TAMBOUR LESTE 208MM 13402696005
Position: 1
Indicative price: 24.35 €

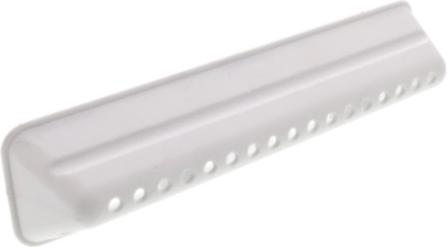

Batteur Lave-Linge TAMBOUR
Position: 1
Indicative price: 91.09 €
PRESSOSTAT Lave-Linge 104-79-350 505GE201
Position: 2
Indicative price: 38.7 €
DURITE Lave-Linge VAPEUR
Position: 2
Indicative price: 28.73 €
BOUTON Lave-Linge + RESSORT
Position: 2
Indicative price: 15.04 €

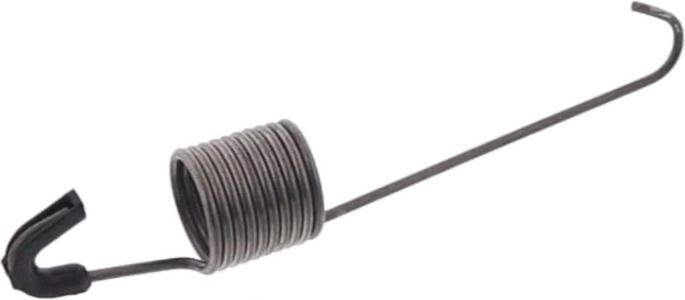

RESSORT Lave-Linge CUVE ARRIERE 167MM 10 STRIES
Position: 4
Indicative price: 14.23 €
Commutateur Lave-Linge 16 POS
Position: 4
Indicative price: 31.26 €

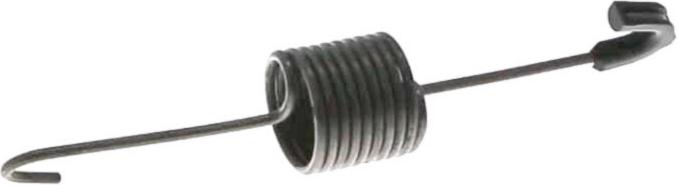

RESSORT Lave-Linge CUVE AVANT
Position: 4
Indicative price: 18.47 €
PLATINE Lave-Linge AFFICHEUR
Position: 7

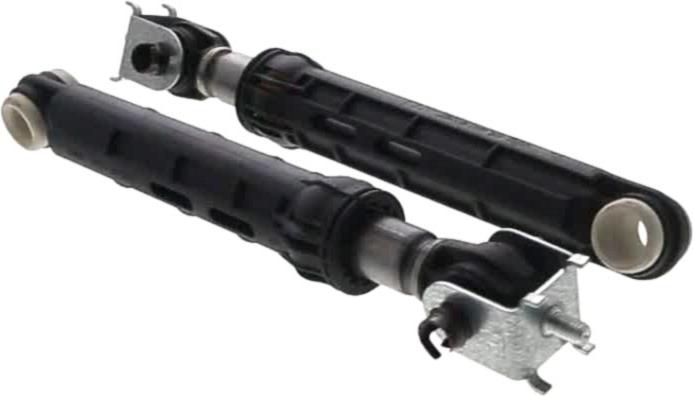

AMORTISSEUR Lave-Linge kit de 2
Position: 7
Indicative price: 42.49 €
TUYAU Lave-Linge VIDANGE
Position: 7
Indicative price: 38.19 €

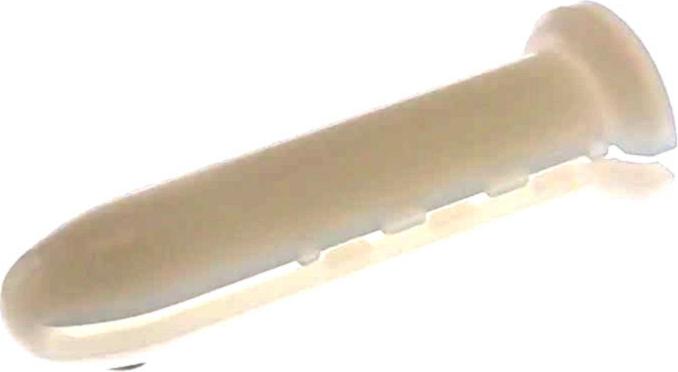

AXE Lave-Linge AMORTISSEUR
Position: 8
Indicative price: 9.18 €
POMPE Lave-Linge VIDANGE
Position: 8
Indicative price: 76.05 €
POIGNEE Lave-Linge COUVERCLE
Position: 8
Indicative price: 18.69 €
BOUCHON Lave-Linge kit de 3 D57MM** POUR POMPE ASKOLL**
Position: 9
Indicative price: 28.4 €
BOUCHON Lave-Linge VIDANGE (kit de 3)
Position: 9
Indicative price: 27.15 €
Contre-poids Lave-Linge DROIT
Position: 9
Indicative price: 51.2 €
COUVERCLE Lave-Linge TOP
Position: 9
Indicative price: 121.56 €
ROUE Lave-Linge ARRIERE
Position: 10
Indicative price: 48.49 €

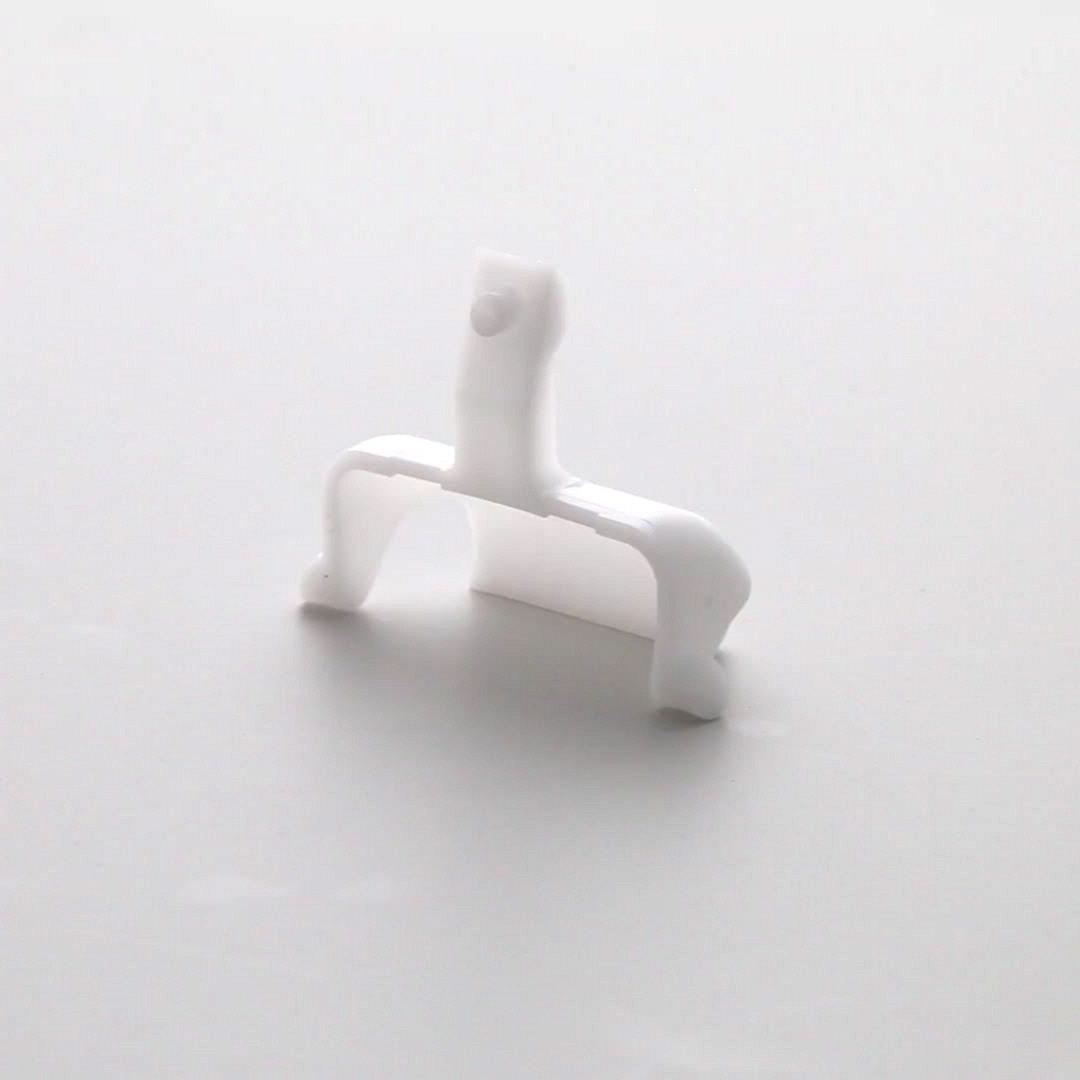

CROCHET Lave-Linge DISTRIBUTEUR
Position: 10
Indicative price: 10.38 €
RESSORT Lave-Linge CROCHET DISTRIBUTEUR
Position: 11
Indicative price: 7.25 €
MOTEUR Lave-Linge
Position: 11
Indicative price: 157.38 €

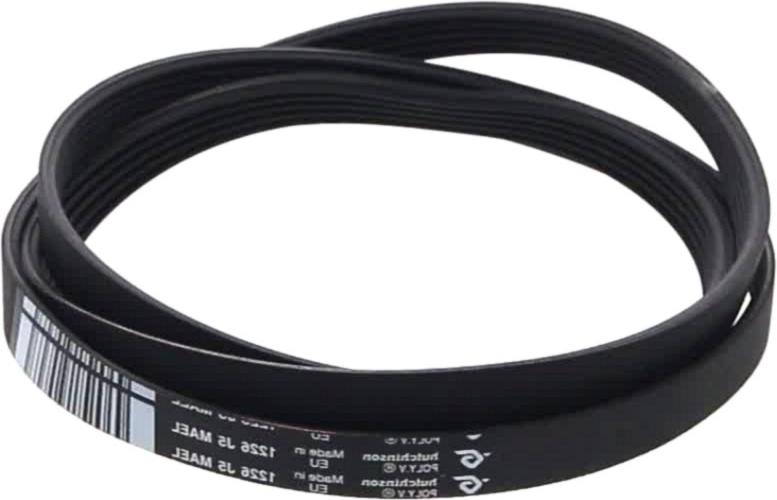

COURROIE Lave-Linge 1226J5MAEL
Position: 12
Indicative price: 25.85 €
RESSORT Lave-Linge PIED
Position: 12
VIS Lave-Linge AXE TAMBOUR M8*23
Position: 13
Indicative price: 7 €
PIED Lave-Linge AVANT
Position: 13
Indicative price: 11.36 €
JOINT Lave-Linge SILENT BLOC MOTEUR
Position: 13
Indicative price: 4.8 €

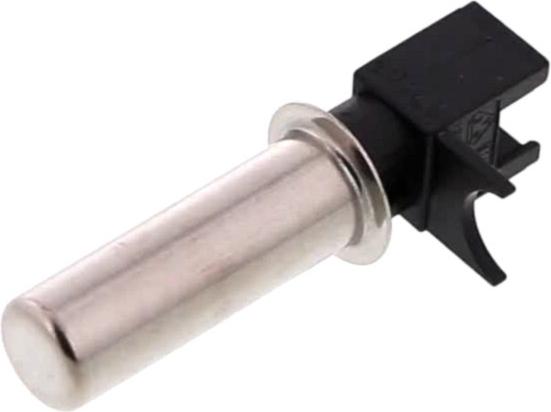

SONDE Lave-Linge
Position: 14
Indicative price: 22.15 €
POULIE Lave-Linge
Position: 14
Indicative price: 43.52 €

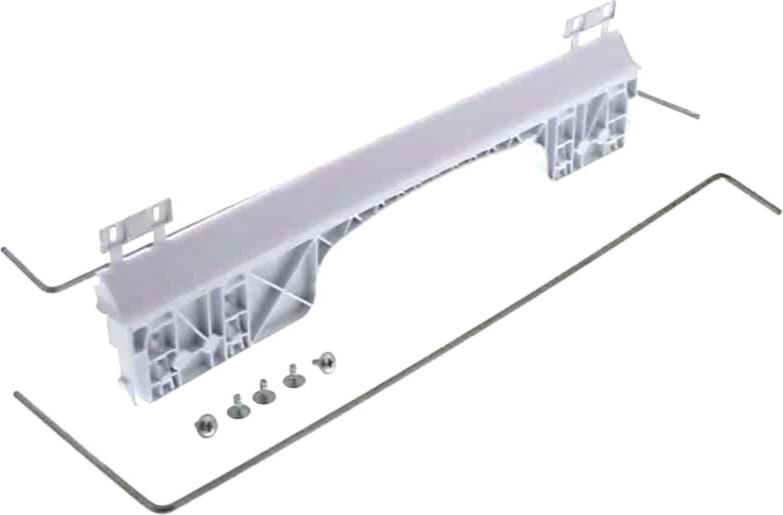

SUPPORT Lave-Linge RESSORT PORTE
Position: 15
Indicative price: 28.2 €

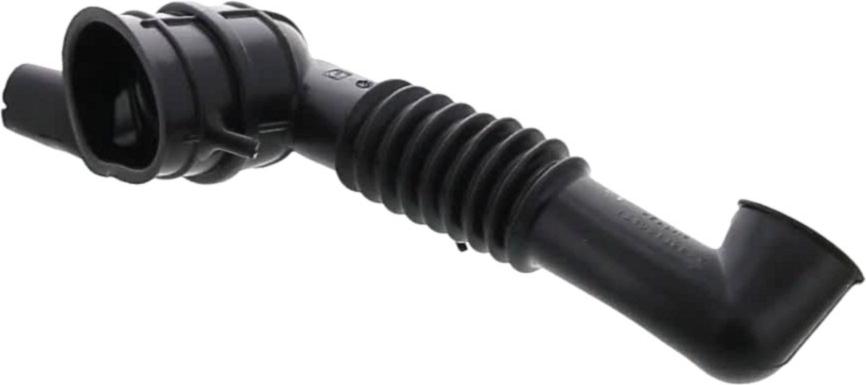

DURITE Lave-Linge CUVE/POMPE
Position: 15
Indicative price: 46.76 €
RESISTANCE Lave-Linge 1700W 230V
Position: 15
Indicative price: 54.38 €

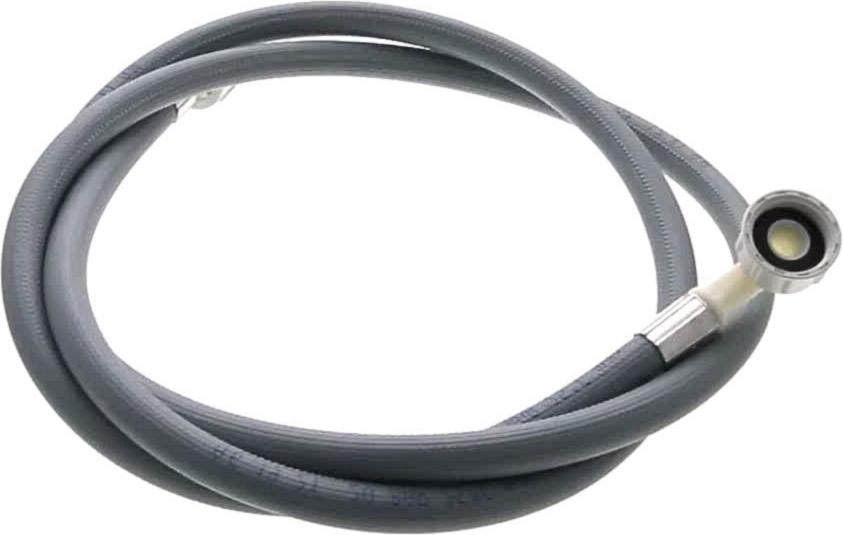

TUYAU Lave-Linge ARRIVEE EAU
Position: 16
Indicative price: 15.53 €

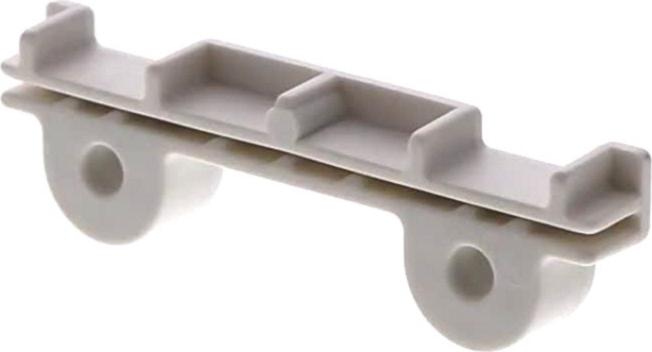

BLOC Lave-Linge FIXATION PANNEAU LATERAL
Position: 16
Indicative price: 5.6 €
JOINT Lave-Linge TUYAU ARRIVEE EAU
Position: 16
Indicative price: 5.71 €
MODULE Lave-Linge
Position: 17
Indicative price: 167.35 €
PLINTHE Lave-Linge
Position: 17
Indicative price: 35.52 €
CUVE Lave-Linge + TAMBOUR
Position: 17
Indicative price: 176.56 €

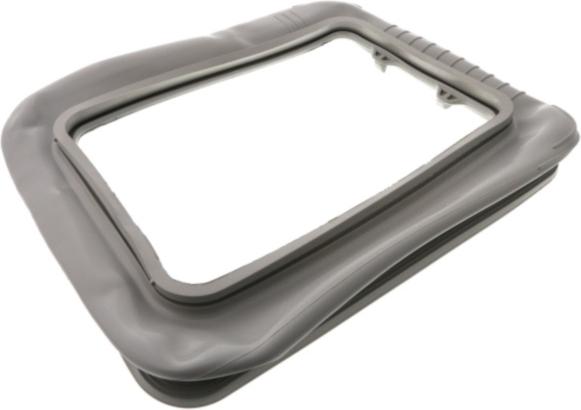

JOINT Lave-Linge CHARGEMENT
Position: 18
Indicative price: 74.62 €
Contre-poids Lave-Linge GAUCHE
Position: 18

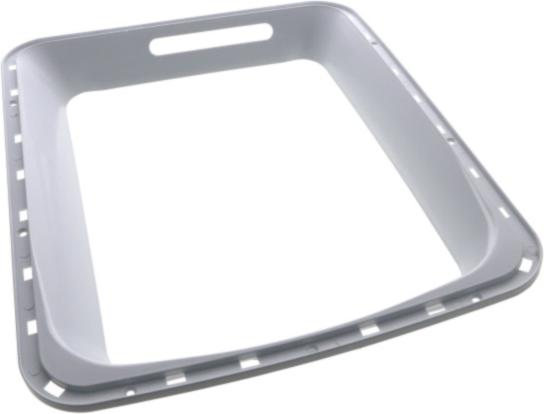

PROTECTION Lave-Linge JOINT CHARGEMENT
Position: 19
Indicative price: 18.29 €

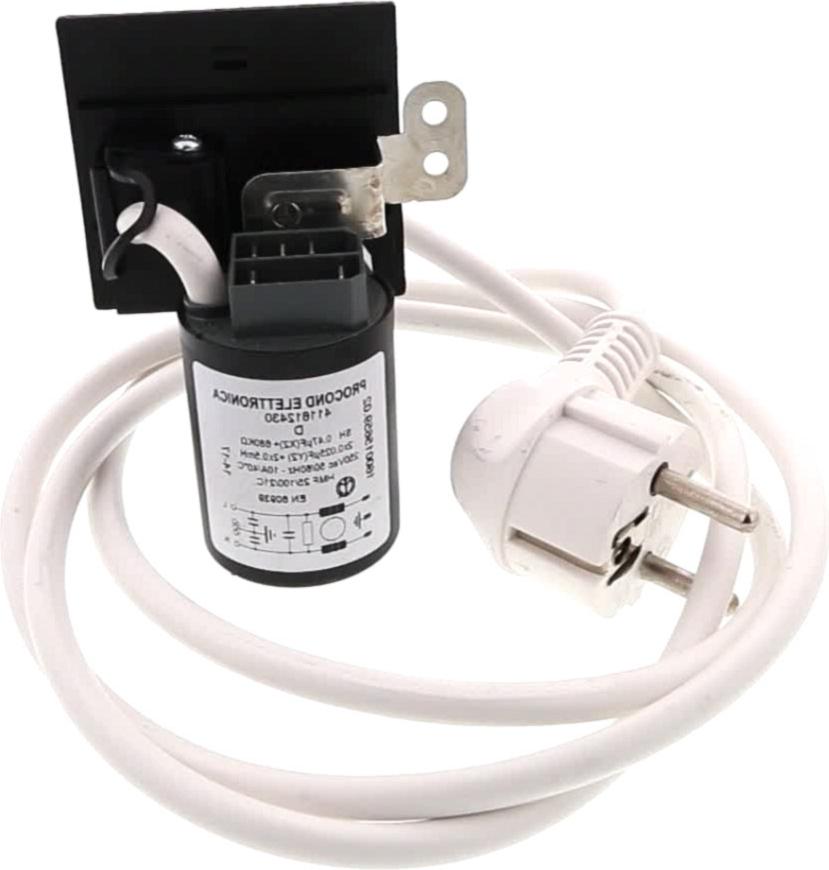

BORNIER Lave-Linge ALIM+FILTRE
Position: 20
Indicative price: 39.62 €
PANNEAU Lave-Linge G+D
Position: 20
Indicative price: 106.92 €

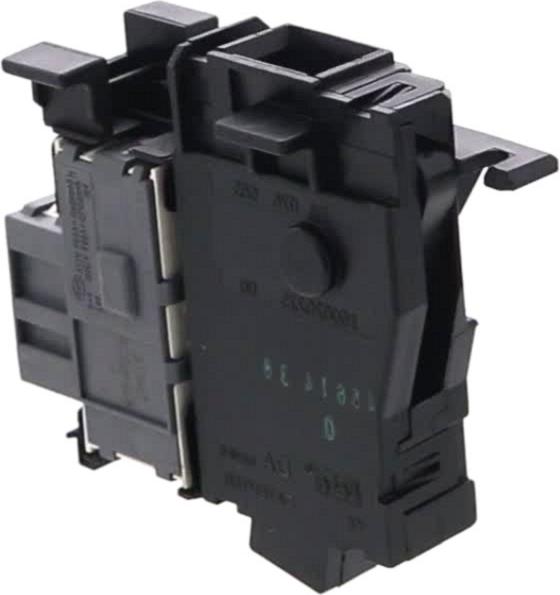

SECURITE Lave-Linge PORTE
Position: 21
Indicative price: 33.99 €
BOITE Lave-Linge PRODUIT E
Position: 22
Electrovanne Lave-Linge
Position: 22
Indicative price: 37.2 €

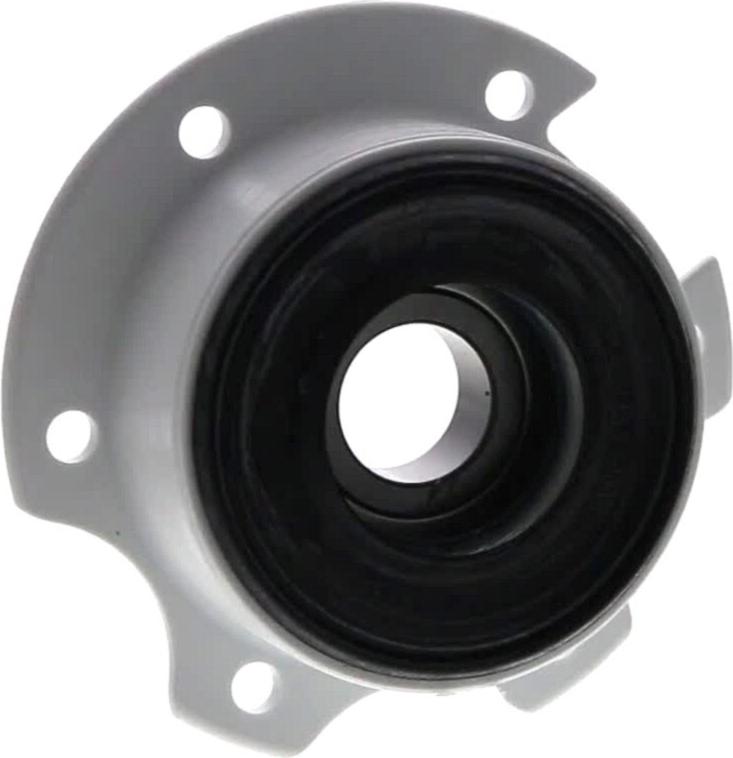

PALIER Lave-Linge Droit ou Gauche
Position: 23
Indicative price: 39.95 €

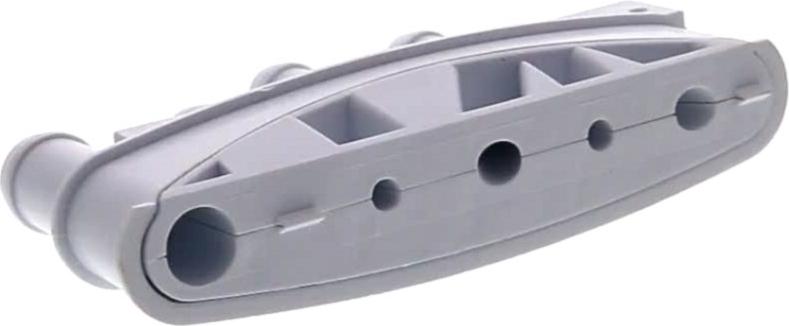

DISTRIBUTEUR Lave-Linge
Position: 24
Indicative price: 18.8 €

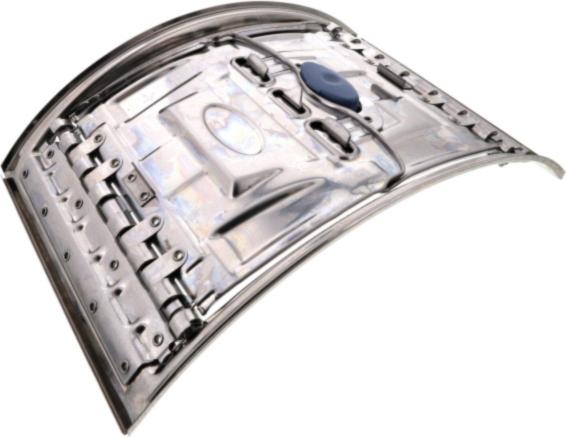

PORTE Lave-Linge TAMBOUR
Position: 24
Indicative price: 129.21 €
BOUTON Lave-Linge OUVERTURE TAMBOUR epuisée remplacer par kit complet
Position: 25
Indicative price: 124.41 €
VARIATEUR Sèche-Linge Thermostat
Position: 27
Indicative price: 24.59 €
EPROM Lave-Linge AVTL120FR
Position: 27
Indicative price: 32.41 €
