Exploded view cuisinière ARISTON C319MWF 2604
Discover the complete exploded view cuisinière ARISTON C319MWF 2604, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière ARISTON C319MWF 2604 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
JEU Cuisinière Injecteur Gaz Butane
Position: 1
Indicative price: 27.98 €

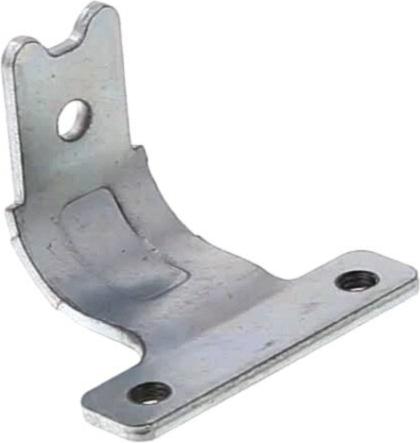

CHARNIERE Cuisinière COUVERCLE
Position: 1
Indicative price: 16 €
SUPPORT Cuisinière Injecteur Semi-rapide
Position: 2
Indicative price: 14.51 €
COUVERCLE Cuisinière
Position: 2
Indicative price: 84.95 €
JEU Cuisinière Injecteur Gaz Butane
Position: 3
Indicative price: 19.08 €
BUTEE Froid ou Cuisinière
Position: 3
Indicative price: 5.59 €
SUPPORT Cuisinière Injecteur Rapide
Position: 4
Indicative price: 18.8 €
CHAPEAU Plaque BRULEUR Rapide
Position: 8
Indicative price: 18.53 €
VIS Cuisinière M4
Position: 8
Indicative price: 5.28 €
TETE Cuisinière BRULEUR Rapide 90mm
Position: 9
Indicative price: 15.32 €
ROBINET Cuisinière GAZ
Position: 10
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 10
VIS Plaque INOX
Position: 12
Indicative price: 5.24 €
VOYANT Four ROUGE
Position: 12
Indicative price: 37.44 €
CHARNIERE Cuisinière COUVERCLE
Position: 13
Indicative price: 17.8 €
COMMUTATEUR Cuisinière PLAQUE 6 POSITIONS 4627266500
Position: 14
Indicative price: 16.94 €
DISQUE Cuisinière MANETTE GRIS
Position: 16
Indicative price: 10.19 €
DISQUE Cuisinière MANETTE GRIS
Position: 16
Indicative price: 10.18 €
RESSORT Cuisinière MANETTE
Position: 17
Indicative price: 5.33 €
DOUILLE Four COMPLETE 25W
Position: 17
Indicative price: 23.99 €
AMPOULE Four 25W E14 240V 25x55
Position: 18
Indicative price: 5.6 €
MANETTE Cuisinière MINUTERIE
Position: 18
Indicative price: 12.83 €
THERMOSTAT Cuisinière 300°C 16A 250V
Position: 19
Indicative price: 41.48 €
Contre porte Four + VITRE Intérieure
Position: 20
Indicative price: 113.49 €
BORNIER Cuisinière
Position: 20
Indicative price: 20.27 €
RESISTANCE Cuisinière 1200+800 VOUTE 4134R050
Position: 21
Indicative price: 28.25 €
POIGNEE Cuisinière PORTE FOUR
Position: 21
Indicative price: 43.42 €
PROFIL Cuisinière Inférieur PORTE FOUR
Position: 26
Indicative price: 29.98 €
PLAT Four LECHE FRITE 403*390
Position: 29
Indicative price: 66.3 €
GRILLE Cuisinière FOUR 404*388
Position: 30
Indicative price: 49.23 €
JOINT Cuisinière PORTE FOUR
Position: 32
Indicative price: 60.98 €
CLIPS Cuisinière BULBE THERMOSTAT
Position: 34
Indicative price: 6.27 €
CACHE Cuisinière VOYANT ORANGE
Position: 34
Indicative price: 7.61 €
THERMOSTAT Four 260° 5517052350
Position: 35
Indicative price: 54.88 €
PIED Cuisinière
Position: 36
Indicative price: 18.13 €
RESISTANCE Cuisinière SOLE 1000w
Position: 39
Indicative price: 59.67 €
COURONNE Cuisinière Auxiliaire
Position: 40
Indicative price: 13.13 €
JEU Cuisinière Injecteur Gaz Butane + Gaz Naturel
Position: 41
Indicative price: 51.46 €
CHAPEAU Plaque BRULEUR Auxiliaire
Position: 42
Indicative price: 9.3 €
CHAPEAU Cuisinière BRULEUR Semi-rapide
Position: 43
Indicative price: 10.63 €
TETE Plaque BRULEUR Semi-rapide 65mm
Position: 43
Indicative price: 13.94 €
PLAQUE Cuisinière Electrique 180mm 1500W
Position: 45
Indicative price: 31.23 €
ALLUMEUR Cuisinière BF50046.150
Position: 47
Indicative price: 51.65 €
EMBOUT Cuisinière GAZ BUTANE
Position: 48
Indicative price: 4.14 €
JOINT Plaque RACCORD GAZ
Position: 48
Indicative price: 3.95 €
SUPPORT Cuisinière Injecteur Auxiliaire
Position: 49
Indicative price: 19.54 €
CLIPS Plaque FIXATION BOUGIE
Position: 51
Indicative price: 6.04 €
BOUGIE Plaque 700mm
Position: 52
Indicative price: 16.96 €
THERMOCOUPLE Cuisinière BRULEUR A COSSES 550mm
Position: 53
Indicative price: 27.7 €
Programmateur Four
Position: 55
Indicative price: 117.61 €
ENTRETOISE Four COMMUTATEUR
Position: 99
Indicative price: 5.08 €
