Exploded view cuisinière ARISTON C340G7

Discover the complete exploded view cuisinière ARISTON C340G7, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière ARISTON C340G7 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

TETE Plaque BRULEUR Semi-rapide
TETE Plaque BRULEUR Semi-rapide
Position: 1
Indicative price: 12.84 €
CHAPEAU Plaque Semi-rapide SOUS 21071
CHAPEAU Plaque Semi-rapide SOUS 21071
Position: 2
Indicative price: 20.25 €

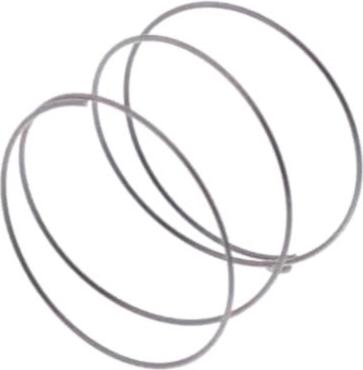

RESSORT Cuisinière MANETTE
RESSORT Cuisinière MANETTE
Position: 3
Indicative price: 4.55 €
CHAPEAU Plaque BRULEUR Semi-rapide
CHAPEAU Plaque BRULEUR Semi-rapide
Position: 3
Indicative price: 19.21 €
TETE Plaque BRULEUR Rapide = épuisée
TETE Plaque BRULEUR Rapide = épuisée
Position: 4
CHAPEAU Plaque Auxiliaire SOUS 21072
CHAPEAU Plaque Auxiliaire SOUS 21072
Position: 5
Indicative price: 35.08 €
CHAPEAU Plaque BRULEUR Rapide
CHAPEAU Plaque BRULEUR Rapide
Position: 6
Indicative price: 19.3 €
VITRE Four Extérieure Blanc 475*400
VITRE Four Extérieure Blanc 475*400
Position: 6
CHAPEAU Plaque BRULEUR Auxiliaire
CHAPEAU Plaque BRULEUR Auxiliaire
Position: 9
Indicative price: 17.16 €
CHAPEAU Plaque Rapide SOUS 22039
CHAPEAU Plaque Rapide SOUS 22039
Position: 10
Indicative price: 33.38 €
TETE Plaque BRULEUR Auxiliaire
TETE Plaque BRULEUR Auxiliaire
Position: 11
Indicative price: 14.85 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 15
GRILLE Cuisinière FOUR
GRILLE Cuisinière FOUR
Position: 15
Indicative price: 22.86 €
HUBLOT Lave-Linge COMPLET
HUBLOT Lave-Linge COMPLET
Position: 16
Indicative price: 125.88 €
PLAQUE Cuisinière FOUR PATISSERIE
PLAQUE Cuisinière FOUR PATISSERIE
Position: 18
Indicative price: 33.88 €
JOINT Cuisinière PORTE FOUR 3 COTES
JOINT Cuisinière PORTE FOUR 3 COTES
Position: 22
Indicative price: 46.93 €

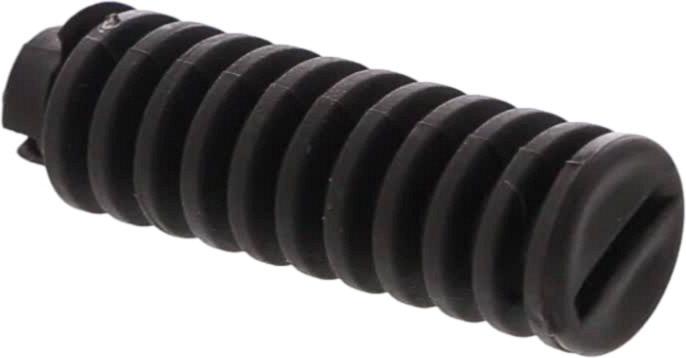

PIED Cuisinière
PIED Cuisinière
Position: 27
Indicative price: 18.02 €
THERMOSTAT Cuisinière SECU 190°
THERMOSTAT Cuisinière SECU 190°
Position: 28
Indicative price: 31.61 €

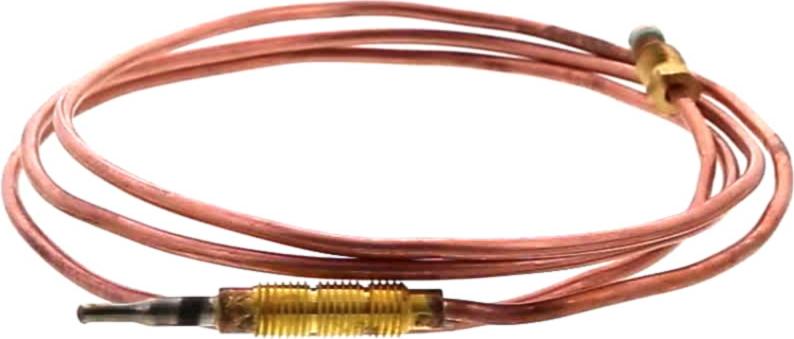

THERMOCOUPLE Four FOUR 1200mm
THERMOCOUPLE Four FOUR 1200mm
Position: 30
Indicative price: 28.81 €
INJECTEUR Cuisinière FOUR/RAP METHANE
INJECTEUR Cuisinière FOUR/RAP METHANE
Position: 32
Indicative price: 5.84 €
TUYAU Cuisinière Alimentation BRULEUR Rapide
TUYAU Cuisinière Alimentation BRULEUR Rapide
Position: 33

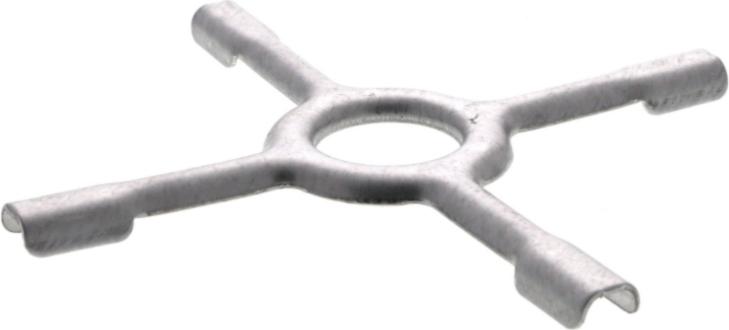

GRILLE Cuisinière REDUCTRICE BRULEUR
GRILLE Cuisinière REDUCTRICE BRULEUR
Position: 37
Indicative price: 10.21 €
JOINT Plaque RACCORD GAZ
JOINT Plaque RACCORD GAZ
Position: 39
Indicative price: 3.63 €

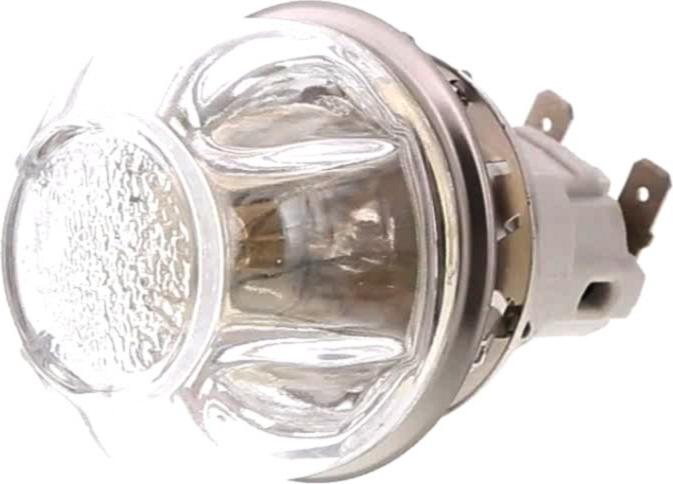

DOUILLE Cuisinière COMPLETE
DOUILLE Cuisinière COMPLETE
Position: 46
Indicative price: 53.46 €
ENTRETOISE Four COMMUTATEUR
ENTRETOISE Four COMMUTATEUR
Position: 99
Indicative price: 4.79 €
