Exploded view lave linge THOMSON WT1408E

Discover the complete exploded view lave linge THOMSON WT1408E, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge THOMSON WT1408E and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

CABLE Lave-Linge ALIMENTATION
CABLE Lave-Linge ALIMENTATION
Position: 1
Indicative price: 49.16 €

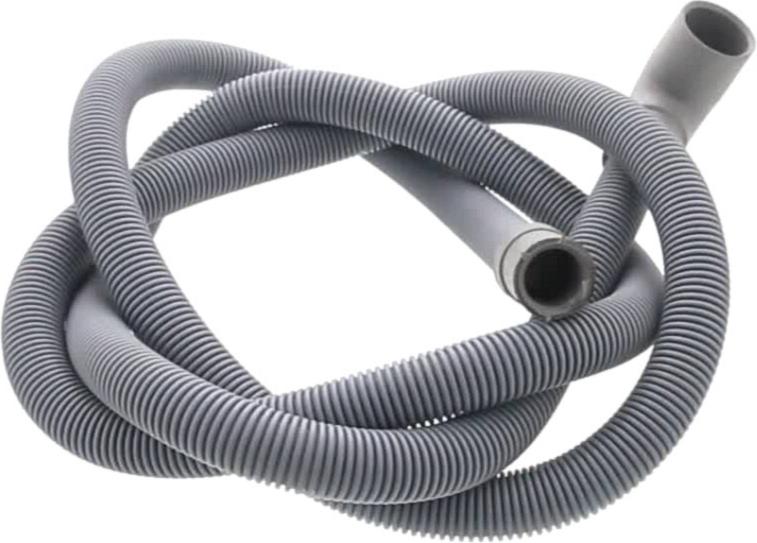

TUYAU Lave-Linge VIDANGE
TUYAU Lave-Linge VIDANGE
Position: 2
Indicative price: 24.01 €
LOGEMENT Lave-Linge RESSORT
LOGEMENT Lave-Linge RESSORT
Position: 5
Indicative price: 6.11 €
RESSORT Lave-Linge CUVE
RESSORT Lave-Linge CUVE
Position: 6
Indicative price: 17.37 €
Electrovanne Lave-Linge 2 VOIES FPS180A
Electrovanne Lave-Linge 2 VOIES FPS180A
Position: 7
Indicative price: 27.79 €

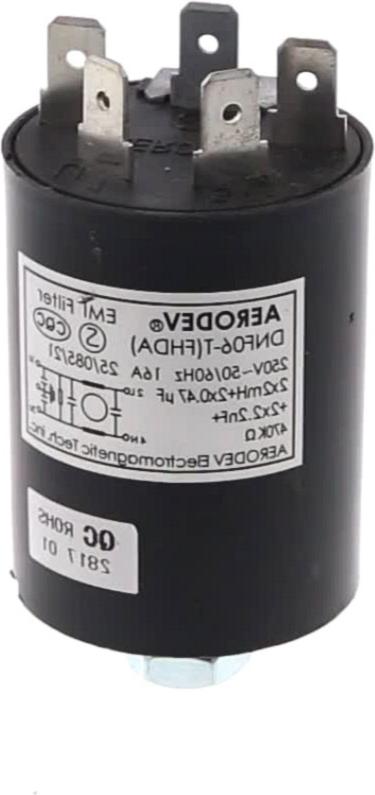

CONDENSATEUR Lave-Linge ANTIPARASITE ZL-16A-X5 16A 0.68M+2XMH+(0.47UF) 5 COSSES
CONDENSATEUR Lave-Linge ANTIPARASITE ZL-16A-X5 16A 0.68M+2XMH+(0.47UF) 5 COSSES
Position: 8
Indicative price: 16.29 €

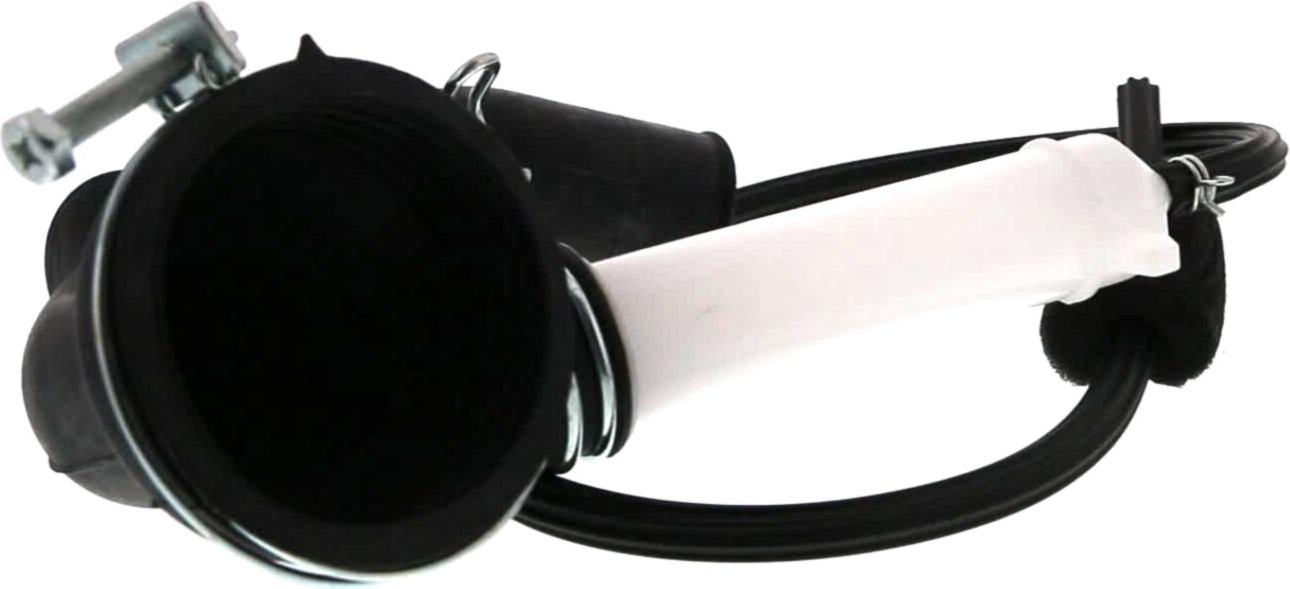

DURITE Lave-Linge CUVE/POMPE
DURITE Lave-Linge CUVE/POMPE
Position: 11
Indicative price: 36.49 €

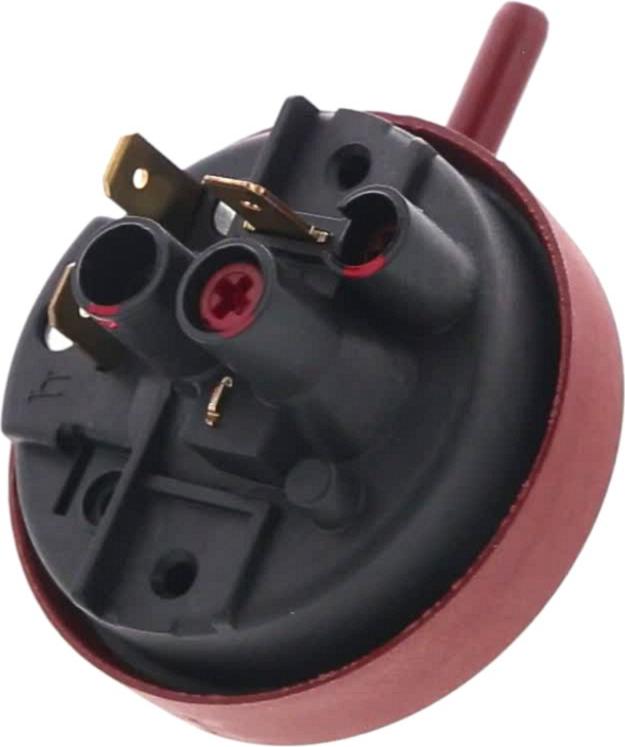

PRESSOSTAT Lave-Linge 1 N PSR0403 17438100000114
PRESSOSTAT Lave-Linge 1 N PSR0403 17438100000114
Position: 12
Indicative price: 32.22 €

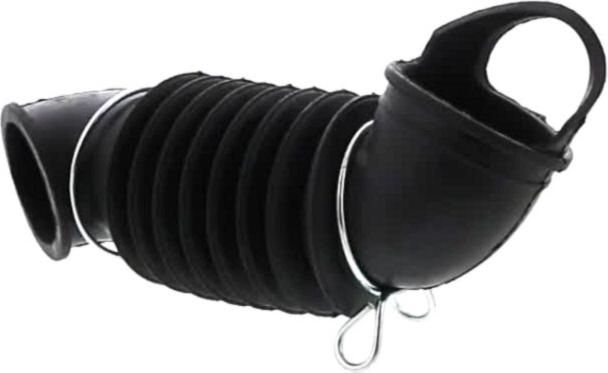

DURITE Lave-Linge BOITE/CUVE
DURITE Lave-Linge BOITE/CUVE
Position: 13
Indicative price: 20.2 €

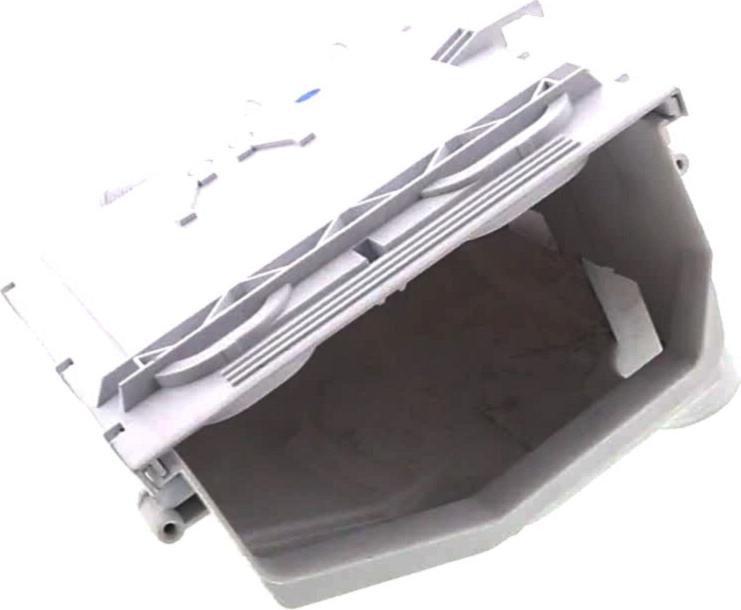

BOITE Lave-Linge PRODUIT MG60-12601-307011
BOITE Lave-Linge PRODUIT MG60-12601-307011
Position: 14
Indicative price: 50.01 €
DESSUS Froid
DESSUS Froid
Position: 16
Indicative price: 80.63 €

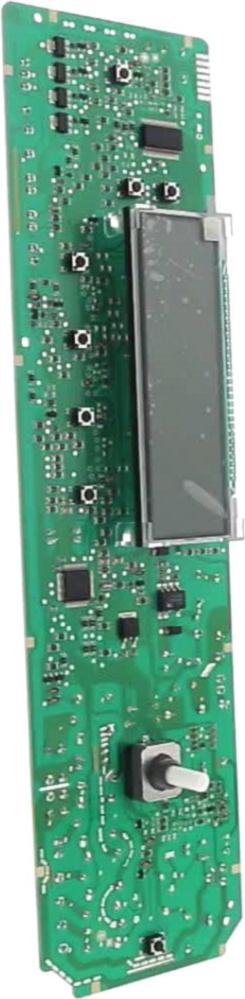

PLATINE Lave-Linge COMMANDE 763503-03
PLATINE Lave-Linge COMMANDE 763503-03
Position: 18
Indicative price: 126.19 €
FACADE Lave-Linge TIROIR
FACADE Lave-Linge TIROIR
Position: 21

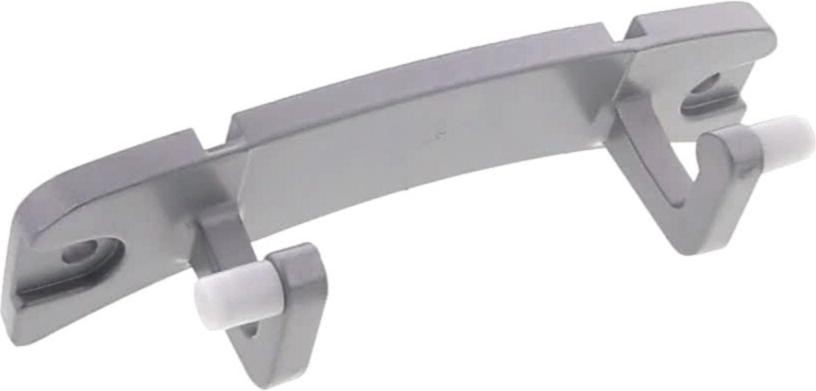

CHARNIERE Lave-Linge HUBLOT CA00-422 MT-2 142MM (entraxe 120mm)
CHARNIERE Lave-Linge HUBLOT CA00-422 MT-2 142MM (entraxe 120mm)
Position: 22
Indicative price: 29.8 €
SUPPORT Lave-Linge CHARNIERE
SUPPORT Lave-Linge CHARNIERE
Position: 22
Indicative price: 7.1 €
HUBLOT Lave-Linge COMPLET
HUBLOT Lave-Linge COMPLET
Position: 23
Indicative price: 87.94 €

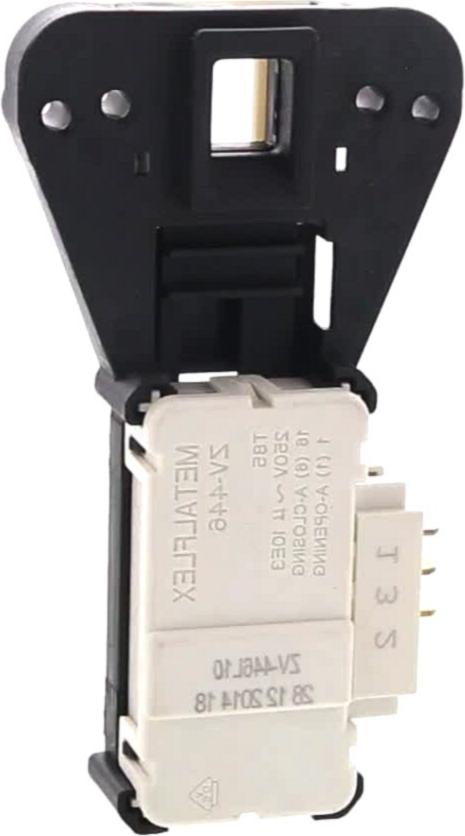

SECURITE Lave-Linge HUBLOT
SECURITE Lave-Linge HUBLOT
Position: 25
Indicative price: 32.15 €
PLINTHE Lave-Linge BLANCHE
PLINTHE Lave-Linge BLANCHE
Position: 26
Indicative price: 19.31 €
PIED Lave-Linge
PIED Lave-Linge
Position: 27
Indicative price: 9.49 €
COURROIE Lave-Linge 1281PJE5
COURROIE Lave-Linge 1281PJE5
Position: 28
Indicative price: 27.73 €

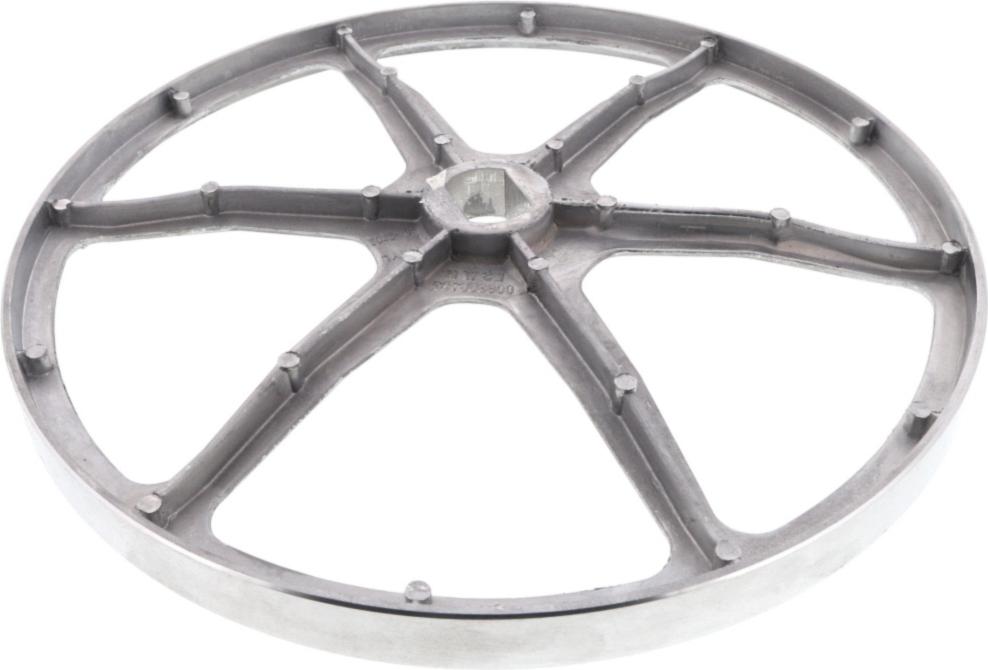

POULIE Lave-Linge
POULIE Lave-Linge
Position: 29
Indicative price: 23.24 €
TAMBOUR Lave-Linge
TAMBOUR Lave-Linge
Position: 34
Indicative price: 115.79 €
JOINT Lave-Linge CUVE
JOINT Lave-Linge CUVE
Position: 35
Indicative price: 18.62 €
CUVE Lave-Linge 1/2 AVANT
CUVE Lave-Linge 1/2 AVANT
Position: 36
Indicative price: 51.99 €
COLLIER Lave-Linge ARRIERE JOINT HUBLOT 348MM
COLLIER Lave-Linge ARRIERE JOINT HUBLOT 348MM
Position: 37
Indicative price: 25.45 €

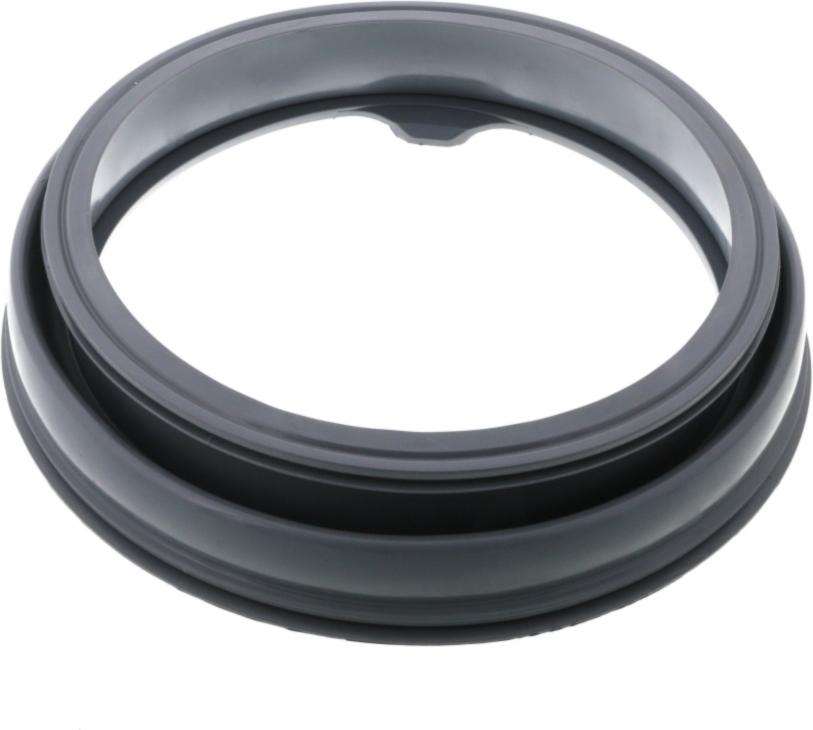

JOINT Lave-Linge HUBLOT
JOINT Lave-Linge HUBLOT
Position: 38
Indicative price: 57.57 €
COLLIER Lave-Linge Avant JOINT HUBLOT
COLLIER Lave-Linge Avant JOINT HUBLOT
Position: 39
Indicative price: 14.51 €
RESISTANCE Lave-Linge 1800w + SONDE
RESISTANCE Lave-Linge 1800w + SONDE
Position: 44
Indicative price: 41.89 €
DURITE Lave-Linge CUVE/POMPE
DURITE Lave-Linge CUVE/POMPE
Position: 45
Indicative price: 35.23 €

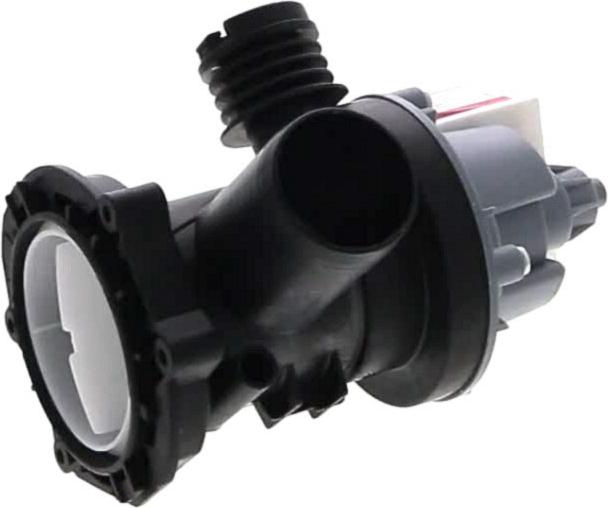

POMPE Lave-Linge VIDANGE PX-2-35
POMPE Lave-Linge VIDANGE PX-2-35
Position: 46
Indicative price: 48.21 €

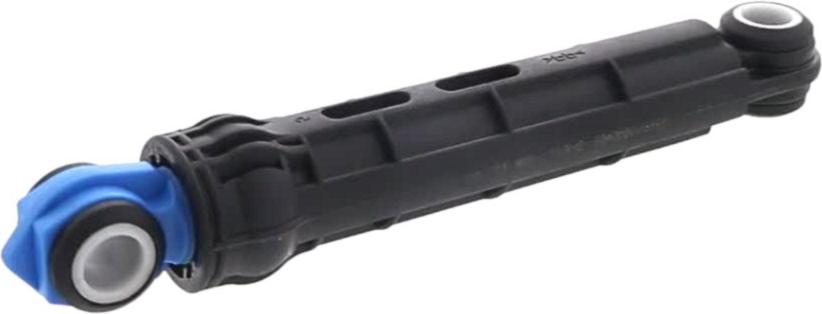

AMORTISSEUR Lave-Linge 120N
AMORTISSEUR Lave-Linge 120N
Position: 48
Indicative price: 33.06 €
AXE Lave-Linge AMORTISSEUR
AXE Lave-Linge AMORTISSEUR
Position: 49
Indicative price: 10.05 €
MOTEUR Lave-Linge UMT5204.02
MOTEUR Lave-Linge UMT5204.02
Position: 50
Indicative price: 130.74 €

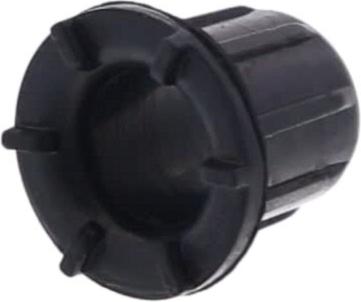

SILENT Lave-Linge BLOC MOTEUR
SILENT Lave-Linge BLOC MOTEUR
Position: 50
Indicative price: 10.32 €

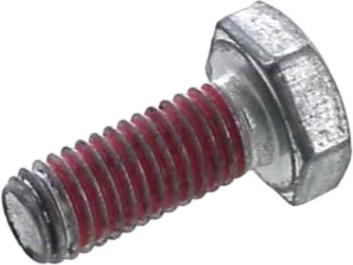

VIS Lave-Linge POULIE TAMBOUR
VIS Lave-Linge POULIE TAMBOUR
Position: 51
Indicative price: 9.91 €
