Exploded view lave linge THOMSON TW1480IX

Discover the complete exploded view lave linge THOMSON TW1480IX, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge THOMSON TW1480IX and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

CABLE Lave-Linge ALIMENTATION 3 FILS
CABLE Lave-Linge ALIMENTATION 3 FILS
Position: 3
Indicative price: 38.72 €
TUYAU Lave-Linge VIDANGE
TUYAU Lave-Linge VIDANGE
Position: 5
Indicative price: 20.18 €
PRESSOSTAT Lave-Linge PS-603-13 GC5V 10MA
PRESSOSTAT Lave-Linge PS-603-13 GC5V 10MA
Position: 8
Indicative price: 28.87 €
SECURITE Lave-Linge PORTE
SECURITE Lave-Linge PORTE
Position: 9
Indicative price: 27.8 €

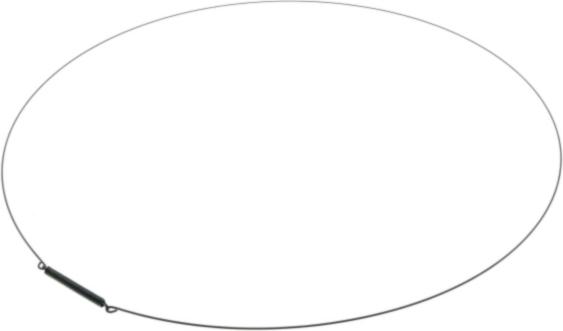

COLLIER Lave-Linge JOINT HUBLOT FACADE
COLLIER Lave-Linge JOINT HUBLOT FACADE
Position: 12
Indicative price: 11.44 €

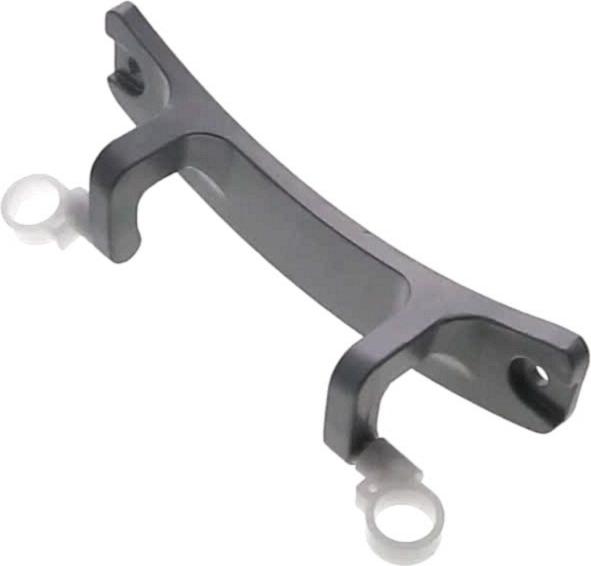

CHARNIERE Lave-Linge HUBLOT 155MM (entraxe 135mm)
CHARNIERE Lave-Linge HUBLOT 155MM (entraxe 135mm)
Position: 20
Indicative price: 29.93 €
CROCHET Lave-Linge PORTE
CROCHET Lave-Linge PORTE
Position: 21
Indicative price: 16.13 €
HUBLOT Lave-Linge VERRE D347MM H108MM 1 ENCOCHE
HUBLOT Lave-Linge VERRE D347MM H108MM 1 ENCOCHE
Position: 23
Indicative price: 63.62 €
LOGEMENT Lave-Linge RESSORT
LOGEMENT Lave-Linge RESSORT
Position: 24
Indicative price: 5.84 €
CONDENSATEUR Lave-Linge ANTI-PARASITE DNF06-T (TBEF)
CONDENSATEUR Lave-Linge ANTI-PARASITE DNF06-T (TBEF)
Position: 25
Indicative price: 24.57 €
BOITE Lave-Linge PRODUITS
BOITE Lave-Linge PRODUITS
Position: 26
Indicative price: 28.64 €
TIROIR Lave-Linge PRODUITS
TIROIR Lave-Linge PRODUITS
Position: 27
Indicative price: 17.48 €
PLATINE Lave-Linge PUISSANCE
PLATINE Lave-Linge PUISSANCE
Position: 33
Indicative price: 61.39 €
Electrovanne Lave-Linge 2 VOIES FPS180A
Electrovanne Lave-Linge 2 VOIES FPS180A
Position: 34
Indicative price: 27.92 €

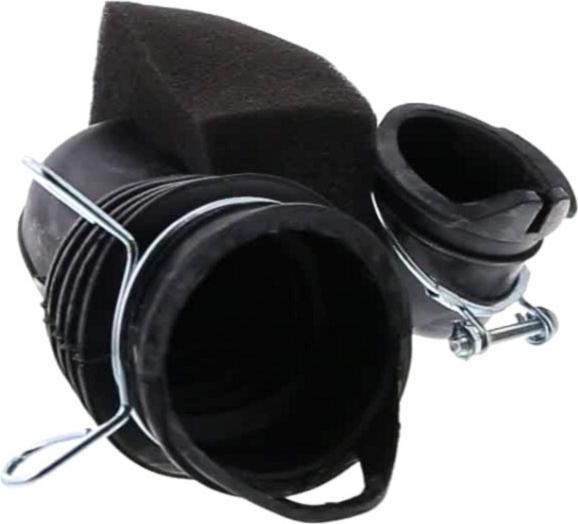

DURITE Lave-Linge CUVE/BOITE PRODUIT
DURITE Lave-Linge CUVE/BOITE PRODUIT
Position: 35
Indicative price: 28.97 €

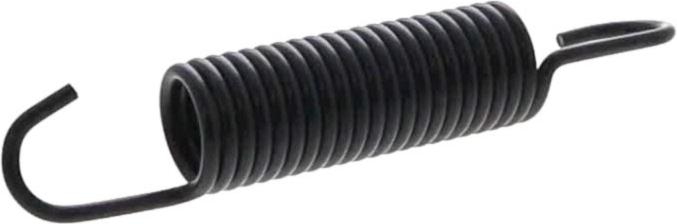

RESSORT Lave-Linge SUSPENSION CUVE 173MM D30 22 STRIES
RESSORT Lave-Linge SUSPENSION CUVE 173MM D30 22 STRIES
Position: 36
Indicative price: 16.41 €

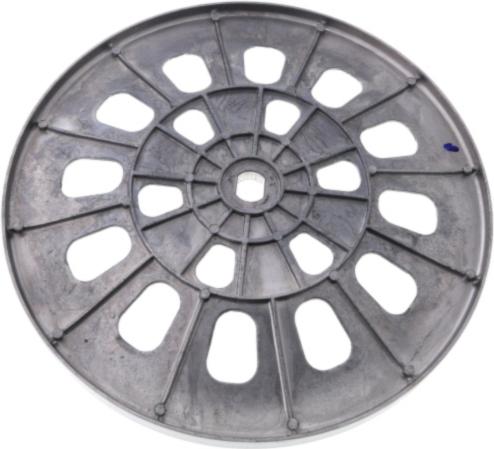

POULIE Lave-Linge
POULIE Lave-Linge
Position: 38
Indicative price: 35.26 €

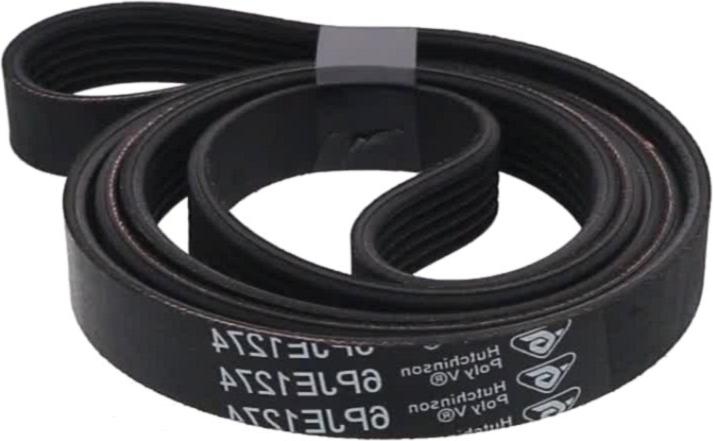

COURROIE Lave-Linge 1274PJE 6 6PJE1274
COURROIE Lave-Linge 1274PJE 6 6PJE1274
Position: 39
Indicative price: 36.26 €
KIT Lave-Linge PALIER
KIT Lave-Linge PALIER
Position: 40
Indicative price: 35.32 €

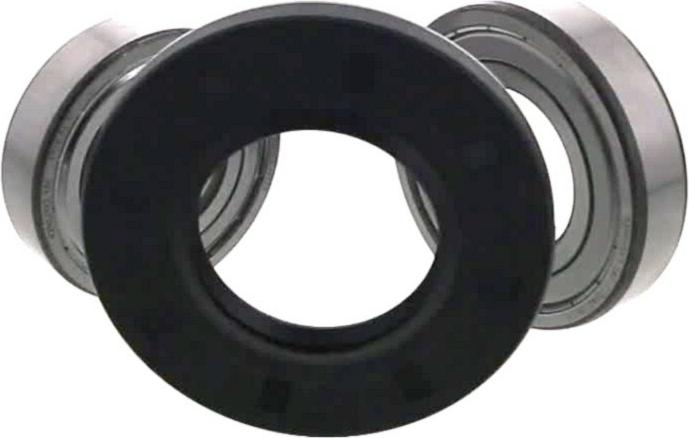

PALIER Lave-Linge
PALIER Lave-Linge
Position: 41
Indicative price: 33.46 €
JOINT Lave-Linge PALIER
JOINT Lave-Linge PALIER
Position: 42
Indicative price: 5.47 €
CUVE Lave-Linge 1/2 ARRIERE
CUVE Lave-Linge 1/2 ARRIERE
Position: 43
Indicative price: 142.28 €
AXE Lave-Linge AMORTISSEUR
AXE Lave-Linge AMORTISSEUR
Position: 44
Indicative price: 9.33 €
AMORTISSEUR Lave-Linge 80N
AMORTISSEUR Lave-Linge 80N
Position: 46
Indicative price: 20.69 €

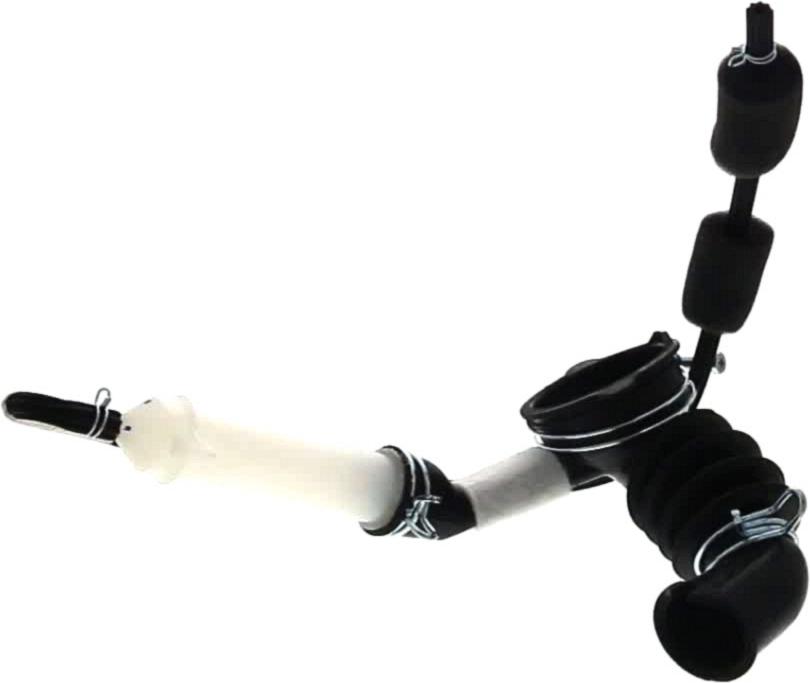

DURITE Lave-Linge CUVE/POMPE
DURITE Lave-Linge CUVE/POMPE
Position: 48
Indicative price: 33.5 €
FILTRE Lave-Linge MOTEUR BOBINE
FILTRE Lave-Linge MOTEUR BOBINE
Position: 50
Indicative price: 33.77 €
POMPE Lave-Linge VIDANGE COMPLETE PX-2-35 PX235 B30-6A
POMPE Lave-Linge VIDANGE COMPLETE PX-2-35 PX235 B30-6A
Position: 52
Indicative price: 40.12 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 53
Indicative price: 5.79 €

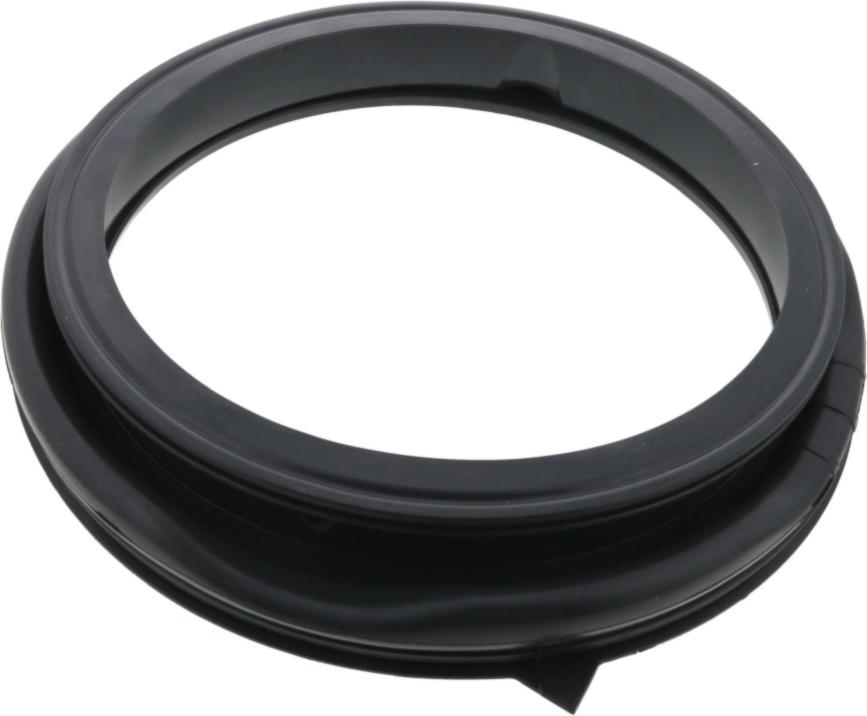

JOINT Lave-Linge HUBLOT MFB100-U1403
JOINT Lave-Linge HUBLOT MFB100-U1403
Position: 54
Indicative price: 61.54 €
RESISTANCE Lave-Linge 1800w + SONDE
RESISTANCE Lave-Linge 1800w + SONDE
Position: 55
Indicative price: 42.47 €
TAMBOUR Lave-Linge + CROISILLON
TAMBOUR Lave-Linge + CROISILLON
Position: 57
Indicative price: 122.29 €
