Exploded view réfrigérateur PROLINE TTR1200WH
Discover the complete exploded view réfrigérateur PROLINE TTR1200WH, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur PROLINE TTR1200WH and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
CLAYETTE Froid VERRE 455*313
Position: 11
Indicative price: 34.23 €
DESSUS Froid BAC LEGUMES 455*195
Position: 12
Indicative price: 33.81 €
BAC Froid LEGUMES
Position: 13
Indicative price: 41.64 €
BALCONNET Froid Supérieur ou CENTRAL TRANSPARENT CLAIR 440*50*97
Position: 14
Indicative price: 26.97 €
BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 430*90*98
Position: 16
Indicative price: 27.65 €
JOINT Froid PORTE 760*515
Position: 17
Indicative price: 51.89 €
BAC Froid COMPRESSEUR
Position: 34
Indicative price: 22.52 €

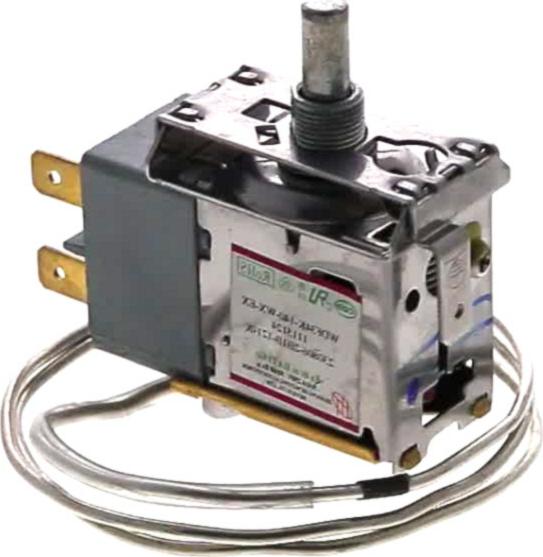

THERMOSTAT Froid WDF34K-140-WX BULBE 600MM
Position: 37
Indicative price: 32.13 €
AMPOULE Froid LED+CABLE MDG-44H
Position: 40
Indicative price: 22.75 €
PORTE Froid FREEZER BLANC 449*150 (AVEC AXES 170MM D8MM)
Position: 44
Indicative price: 38.33 €
Interrupteur Froid LUMIERE Réfrigérateur
Position: 47
Indicative price: 15.29 €
RELAIS Froid DEMARRAGE QPE2-A15MD3 3 COSSES
Position: 52
Indicative price: 12.98 €
RELAIS Froid KLIXON
Position: 53
Indicative price: 21.26 €
CONDENSATEUR Froid 4uf 450V
Position: 54
Indicative price: 22.35 €
