Exploded view seche linge PROLINE VDP910M
Discover the complete exploded view seche linge PROLINE VDP910M, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your seche linge. Quickly find the parts you need to extend the life of your seche linge PROLINE VDP910M and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
SUPPORT Sèche-Linge TUYAU EVACATION
Position: 1
THERMOSTAT Lave-Linge NC90
Position: 6
Indicative price: 25.01 €
REPERE Lave-Linge MANETTE
Position: 13
Indicative price: 2.44 €
SUPPORT Sèche-Linge Thermostat AV280395
Position: 20
Indicative price: 1.78 €
JOINT Sèche-Linge CUVE ARRIERE
Position: 25
Indicative price: 44.82 €
Thermostat Lave-Linge NC170 REARMABLE
Position: 30
TUYAU Sèche-Linge EVACUATION VAPEUR diam 90mm 3 metres
Position: 50
Indicative price: 21.09 €
VIS Sèche-Linge CHARNIERE
Position: 50
Indicative price: 2.64 €
PLAQUE Sèche-Linge PRISE AIR
Position: 51
Indicative price: 14.94 €
RESSORT Lave-Linge BOUTON T40
Position: 67
Indicative price: 2.37 €
COLLIER Sèche-Linge FEUTRE AR
Position: 77
Indicative price: 4.12 €
TURBINE Sèche-Linge + ECROU E
Position: 78
RIVET Lave-Linge Charnière HUBLOT AP9747
Position: 80

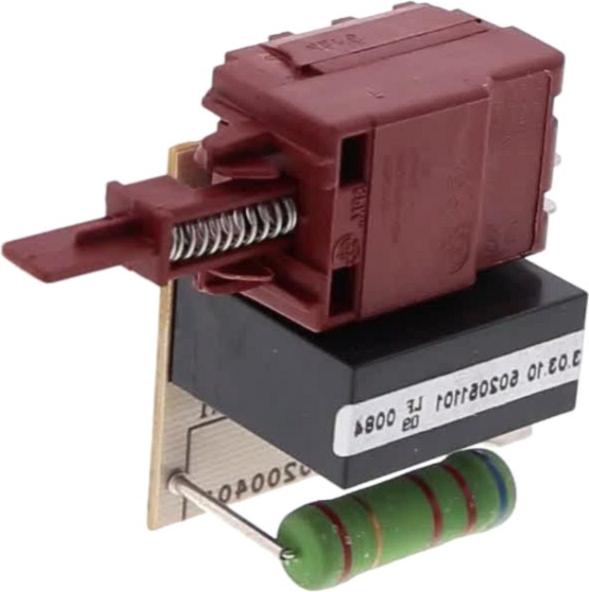

Interrupteur Sèche-Linge M/A + RELAIS
Position: 84
VIS Lave-Linge
Position: 90
Indicative price: 2.29 €
JOINT Sèche-Linge HUBLOT AP9445
Position: 100
Contre porte Sèche-Linge HUBLOT AP9445 E
Position: 110
ECROU Lave-Linge CONTRE-POIDS Supérieur
Position: 110
Indicative price: 2.25 €
RESSORT Sèche-Linge FIXATION TH
Position: 112
Indicative price: 3.55 €
HUBLOT Lave-Linge VERRE D310mm
Position: 120
Indicative price: 68.3 €
MOTEUR Sèche-Linge
Position: 120
Indicative price: 128.57 €
RESSORT Lave-Linge POIGNEE HUBLOT
Position: 130
Indicative price: 4.12 €
ECROU Lave-Vaisselle PIED
Position: 130
Indicative price: 2.46 €
ENJOLIVEUR Lave-Linge HUBLOT 11014300
Position: 140
CROCHET Lave-Linge POIGNEE HUBLOT
Position: 150
Indicative price: 7.02 €
POIGNEE Sèche-Linge HUBLOT AP9445
Position: 160
Indicative price: 39.2 €
AXE Lave-Linge POIGNEE HUBLOT EPUISE
Position: 170
VIS Lave-Linge PLAQUETTE VERRE HUBLO
Position: 190
Indicative price: 3.92 €
BOUTON Lave-Linge COMMUTATEUR
Position: 210
Thermostat Sèche-Linge MINIMUM
Position: 220
Indicative price: 24.5 €
MANETTE Sèche-Linge PROGRAMMATEUR E
Position: 220
RACCORD Sèche-Linge CARTIER
Position: 230
Indicative price: 9.45 €
VIS Lave-Linge Couvercle TOP
Position: 250
Indicative price: 2.32 €
PIED Sèche-Linge REGLABLE
Position: 250
Indicative price: 13.69 €
VIS Sèche-Linge Programmateur
Position: 250
Indicative price: 2.59 €
TOLE Sèche-Linge INFERIEUR
Position: 260
Indicative price: 46.85 €
VOYANT Sèche-Linge TEMOIN
Position: 280

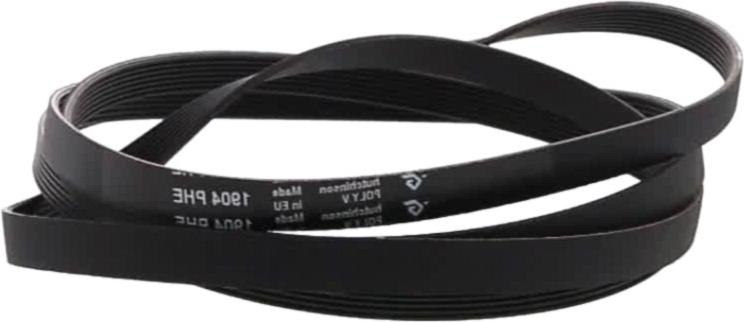

COURROIE Sèche-Linge 1904H7 EL
Position: 290
Indicative price: 23.17 €
Programmateur Sèche-Linge EATON 8313.01C
Position: 290
Batteur Sèche-Linge TAMBOUR S SONDE AP9445
Position: 310
Indicative price: 5.67 €
Interrupteur Sèche-Linge M/A 2 COSSES
Position: 340
Indicative price: 13.28 €
RENFORT Sèche-Linge MEUBLE
Position: 350
Indicative price: 5.04 €
VIS Lave-Linge FIXATION ap200406
Position: 420
Indicative price: 2.59 €
VIS Sèche-Linge TAMBOUR
Position: 420
Indicative price: 2.3 €
CABLE Lave-Linge ALIM+BORNIER+ANTIPARASITE
Position: 430
FILTRE Sèche-Linge PELUCHES AP9445
Position: 450
MASSE Sèche-Linge ELECTRIQUE E
Position: 470
VIS Sèche-Linge SUPPORT PALIER
Position: 470
Indicative price: 2.64 €
PATIN Sèche-Linge FEUTRE Avant
Position: 530
Indicative price: 16.8 €
VIS Sèche-Linge
Position: 530
Indicative price: 3.31 €
VIS Lave-Linge
Position: 540
Indicative price: 2.28 €
COUVERCLE Sèche-Linge SUPPORT Résistance
Position: 550
Indicative price: 14.56 €
RESISTANCE Sèche-Linge 850+850w
Position: 560
Indicative price: 57.24 €
PANNEAU Sèche-Linge ARRIERE EVACUATION
Position: 580
Indicative price: 63.55 €
SECURITE Sèche-Linge PORTE
Position: 590
Indicative price: 39.6 €
GUIDE Lave-Linge LEVIER RENVOI
Position: 600
Indicative price: 7.88 €
CACHE Lave-Linge VOYANT
Position: 620
Indicative price: 1.47 €
PALIER Sèche-Linge 1/2 Nouveau modèle (lot de 2)
Position: 640
PROTECTION Sèche-Linge Couvercle PRISE AIR
Position: 670
Indicative price: 7 €
RESSORT Lave-Linge POIGNEE HUBLOT
Position: 690
Indicative price: 4.43 €
VOIR KIT POIGNEE HUBLOT COMPLET
Position: 700
Indicative price: 38.06 €
POIGNEE Sèche-Linge HUBLOT AP9445
Position: 710
Indicative price: 18.49 €
MANETTE Lave-Linge THERMOSTAT+MINUTERI
Position: 730
Indicative price: 4.73 €
COUVERCLE Lave-Linge MANETTE THERM/MIN
Position: 740
Indicative price: 7.58 €
RESSORT Lave-Linge TOUCHE AV9312
Position: 750
Indicative price: 2.43 €
