Exploded view plaque de cuisson SMEG SR275X2
Discover the complete exploded view plaque de cuisson SMEG SR275X2, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson SMEG SR275X2 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
MANETTE Plaque
Position: 892
Indicative price: 15.92 €
GRILLE Plaque REDUCTEUR
Position: 8788
Indicative price: 9.14 €
JOINT Plaque ETANCHEITE TAQUE
Position: 11649
Indicative price: 22.94 €
JOINT Plaque ETANCHEITE TAQUE
Position: 12961
Indicative price: 14.99 €
TUYAU Plaque VENTURI Ultra-rapide
Position: 18038
Indicative price: 14.07 €

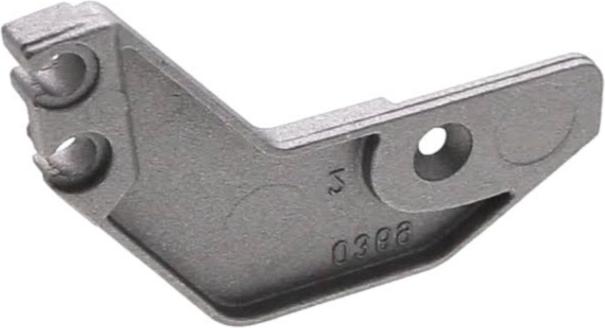

SUPPORT Plaque BOUGIE THERMO
Position: 34468
Indicative price: 8.97 €

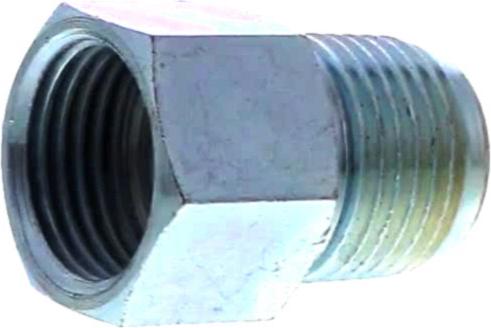

RACCORD Plaque TUYAU BELGIQUE
Position: 35365
Indicative price: 10.42 €
TUYAU Cuisinière BRULEUR Rapide
Position: 35627
Indicative price: 20.59 €
TUYAU Plaque Alimentation BRULEUR Semi-rapide
Position: 35631
Indicative price: 18.29 €
JEU Plaque Injecteur Gaz Naturel
Position: 35638
Indicative price: 27.91 €
SUPPORT Plaque BOUGIE THERMO
Position: 35643
Indicative price: 8.94 €
CONE Plaque VENTURI REGLAGE AIR
Position: 35645
Indicative price: 5.9 €
SUPPORT Plaque TUYAU Rapide 06/04/07>14/10/14
Position: 35647
Indicative price: 13.44 €
PATIN Cuisinière GRILLE UNITAIRE REC0002
Position: 35661
Indicative price: 3.7 €
JEU Plaque Injecteur Gaz Butane
Position: 37073
Indicative price: 28.71 €
VIS Plaque BRULEUR
Position: 38610
Indicative price: 3.96 €
CLIPS Plaque THERMOCOUPLE
Position: 39515
Indicative price: 6.94 €
KIT Cuisinière PATTE DE FIXATION
Position: 39544
Indicative price: 8.86 €
JOINT Plaque BOUGIE
Position: 40474
Indicative price: 2.27 €
BOUGIE Plaque 550mm
Position: 41114
Indicative price: 11.55 €
BOUGIE Cuisinière
Position: 41597
Indicative price: 11.62 €
BOUGIE Plaque 260mm
Position: 41602
Indicative price: 7.88 €
JEU Plaque Injecteur Gaz Naturel
Position: 43690
Indicative price: 26.67 €
THERMOCOUPLE Plaque 600mm
Position: 44689
Indicative price: 31.48 €
THERMOCOUPLE ARG
Position: 44733
Indicative price: 29.43 €

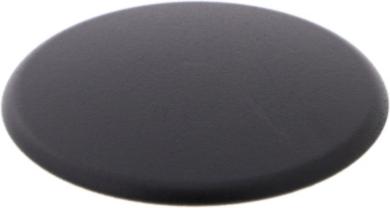

CHAPEAU Plaque Rapide 85mm
Position: 45321
Indicative price: 21.5 €

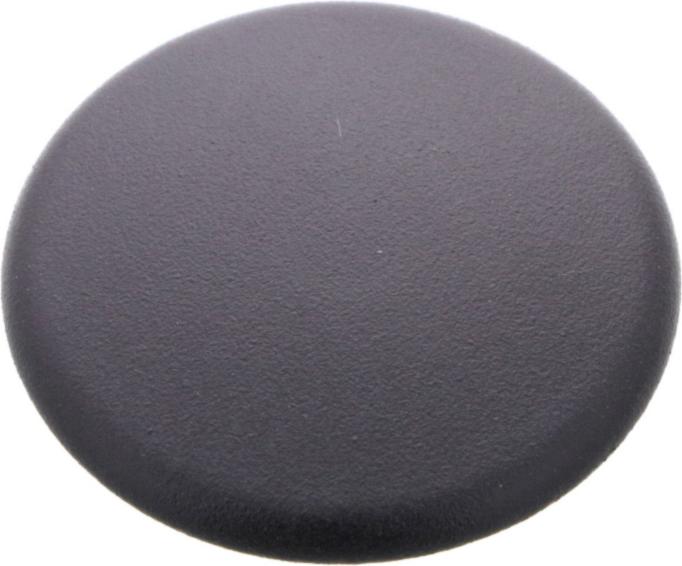

CHAPEAU Plaque Semi-rapide 62mm
Position: 45322
Indicative price: 15.88 €

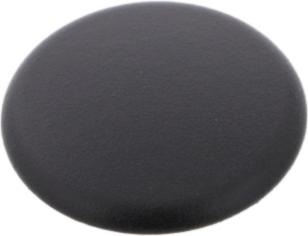

CHAPEAU Plaque Auxiliaire 49mm
Position: 45323
Indicative price: 13.9 €
ECROU Cuisinière THERMOCOUPLE
Position: 48311
Indicative price: 2.36 €
BOUGIE Cuisinière ALLUMAGE 780mm
Position: 48317
Indicative price: 18.9 €
COUDE Plaque RACCORD EMBOUT
Position: 50392
Indicative price: 15.65 €
ROBINET Plaque Auxiliaire Droit 0,30
Position: 71836
Indicative price: 57.73 €

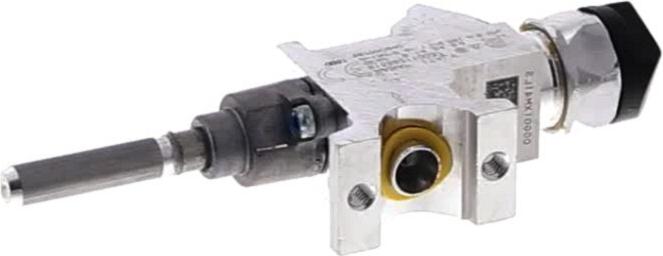

ROBINET Plaque D=0,37
Position: 71838
Indicative price: 74.59 €
ALLUMEUR Cuisinière 5 FEUX 16500112000
Position: 92564
Indicative price: 39.27 €

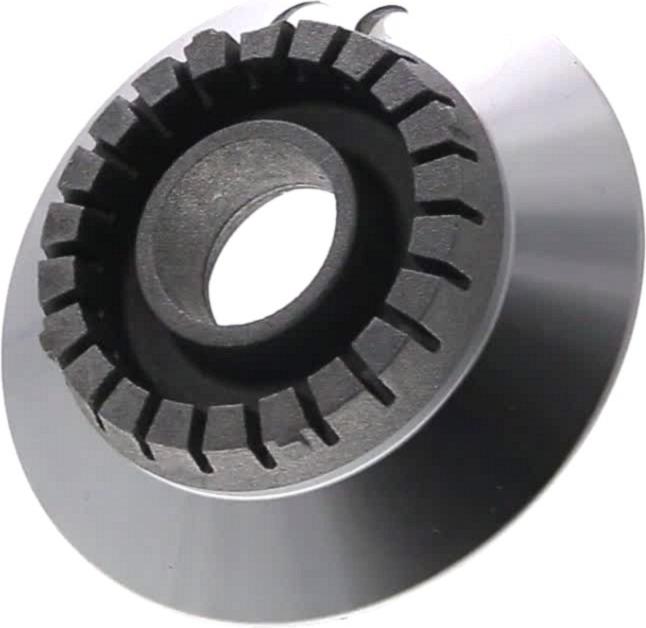

TETE Plaque BRULEUR Semi-rapide
Position: 100528
Indicative price: 20.9 €

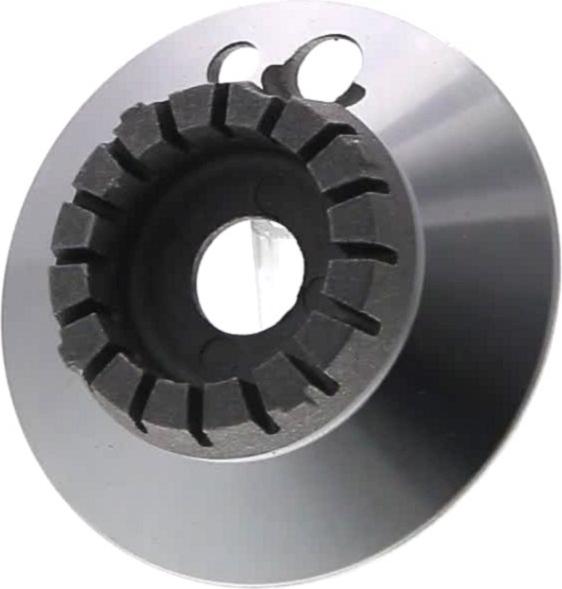

TETE Plaque BRULEUR Auxiliaire AVD
Position: 100530
Indicative price: 13.92 €
TETE Plaque BRULEUR Ultra-rapide
Position: 100596
Indicative price: 39.68 €
TETE Plaque BRULEUR Rapide
Position: 100600
Indicative price: 30.75 €

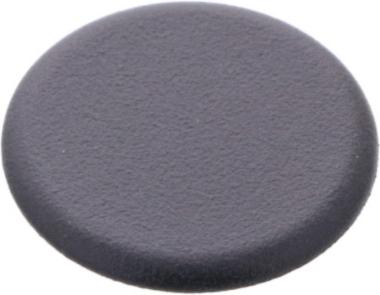

CHAPEAU Plaque CENTRAL INTERIEUR
Position: 102589
Indicative price: 9.9 €
CHAPEAU Plaque CENTRAL EXTERIEUR
Position: 102591
Indicative price: 27.8 €

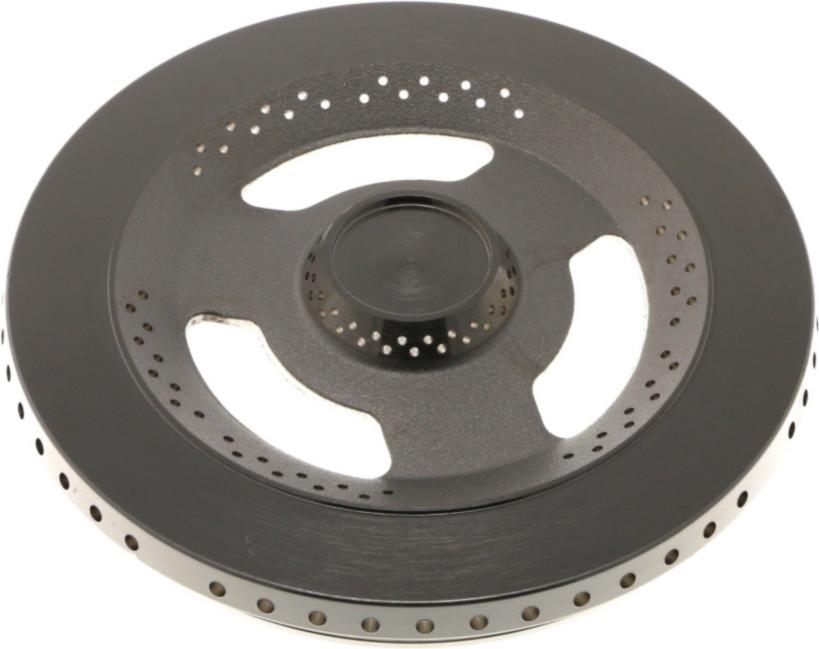

COURONNE Cuisinière CHAPEAU Ultra-rapide CENTRALE
Position: 105757
Indicative price: 68.1 €
