Exploded view plaque de cuisson SMEG S60GHS
Discover the complete exploded view plaque de cuisson SMEG S60GHS, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson SMEG S60GHS and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
MANETTE Plaque
Position: 892
Indicative price: 15.66 €
JOINT Plaque ETANCHEITE TAQUE
Position: 11649
Indicative price: 20.39 €
ECROU Plaque RACCORD COUDE ARRIVGAZ
Position: 11944
Indicative price: 6.56 €
JOINT Plaque BRULEUR AVD ARD
Position: 22726
Indicative price: 7.76 €
JOINT Plaque BRULEUR ARG
Position: 22727
Indicative price: 7.56 €
JOINT Plaque BRULEUR AVG
Position: 23221
Indicative price: 9.77 €
RACCORD Plaque TUYAU BELGIQUE
Position: 35365
Indicative price: 9.45 €
SUPPORT Plaque BOUGIE THERMO
Position: 35643
Indicative price: 9.82 €
CONE Plaque VENTURI REGLAGE AIR
Position: 35645
Indicative price: 5.97 €
SUPPORT Plaque TUYAU Rapide 06/04/07>14/10/14
Position: 35647
Indicative price: 12.81 €
JEU Plaque Injecteur Gaz Butane
Position: 35659
Indicative price: 24.65 €
TUYAU Plaque VENTURI Semi-rapide
Position: 37076
Indicative price: 8.45 €
VIS Plaque BRULEUR
Position: 38610
Indicative price: 3.8 €
CLIPS Plaque THERMOCOUPLE
Position: 39515
Indicative price: 7.92 €
KIT Cuisinière PATTE DE FIXATION
Position: 39544
Indicative price: 7.6 €
JOINT Plaque BOUGIE
Position: 40474
Indicative price: 2.43 €
JOINT Plaque BRULEUR Rapide
Position: 40775
Indicative price: 4.44 €
BOUGIE Plaque 550mm
Position: 41114
Indicative price: 11.21 €
BOUGIE Plaque 260mm
Position: 41602
Indicative price: 7 €
TETE Plaque BRULEUR Auxiliaire AVD
Position: 43183
Indicative price: 12.68 €
TETE Plaque BRULEUR Auxiliaire AVD
Position: 43183
Indicative price: 15.06 €

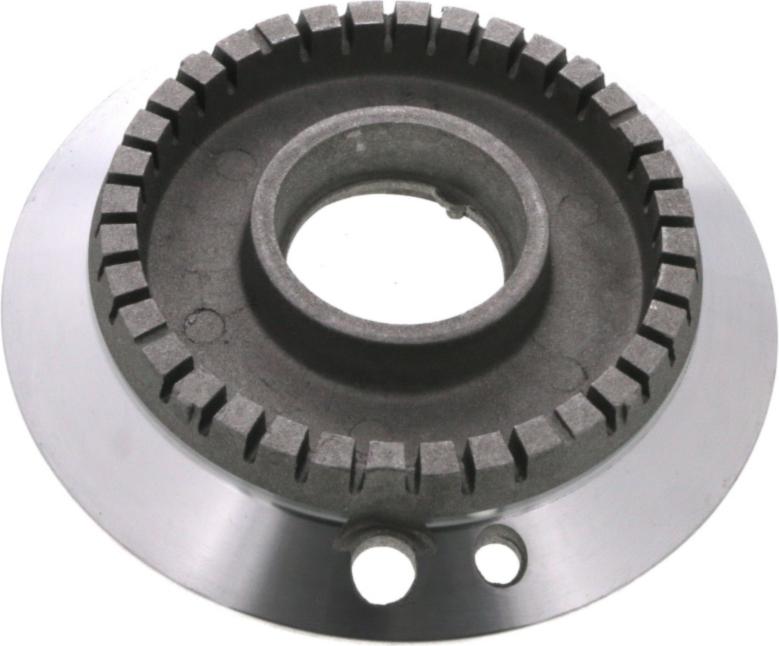

TETE Plaque BRULEUR Rapide
Position: 43184
Indicative price: 19.87 €
TETE Plaque BRULEUR Rapide
Position: 43184
Indicative price: 32.06 €
TETE Plaque BRULEUR Semi-rapide
Position: 43185
Indicative price: 16.19 €
TETE Plaque BRULEUR Semi-rapide
Position: 43185
Indicative price: 17.93 €
TETE Plaque BRULEUR Rapide
Position: 43188
Indicative price: 19.88 €
TETE Plaque BRULEUR Rapide
Position: 43188
Indicative price: 28.97 €
THERMOCOUPLE Plaque 600mm
Position: 44689
Indicative price: 27.82 €
CHAPEAU Plaque Rapide 85mm
Position: 45321
Indicative price: 22.67 €
CHAPEAU Plaque Semi-rapide 62mm
Position: 45322
Indicative price: 15.45 €
CHAPEAU Plaque Auxiliaire 49mm
Position: 45323
Indicative price: 13.56 €
ALLUMEUR Plaque 4 POINTS FZ4 07000117
Position: 48316
Indicative price: 33.78 €

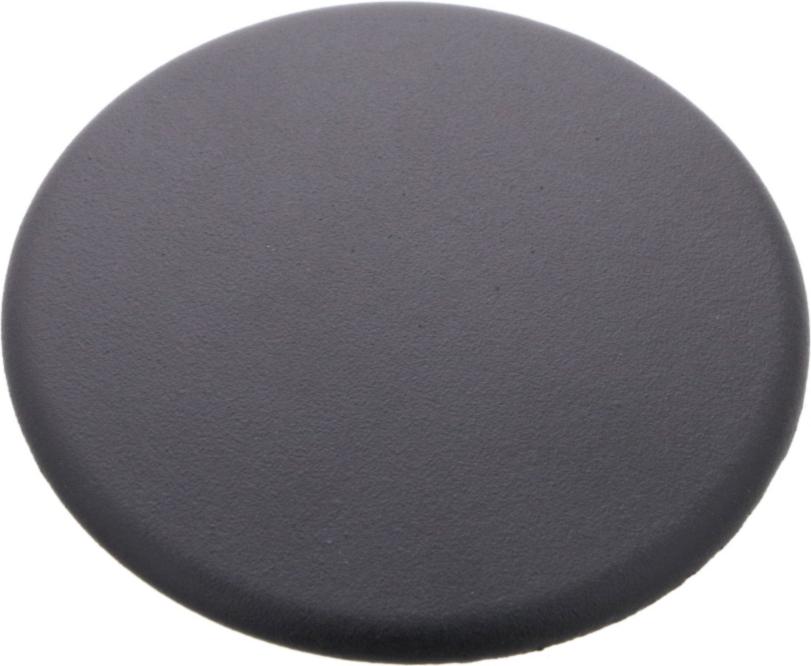

CHAPEAU Plaque BRULEUR Rapide 94MM MAT
Position: 48768
Indicative price: 12.33 €
BUTEE Cuisinière GRILLE REC0003
Position: 50207
Indicative price: 2.68 €
COUDE Plaque RACCORD EMBOUT
Position: 50392
Indicative price: 17.55 €
GRILLE Plaque DROITE
Position: 56174
Indicative price: 120.78 €
Interrupteur Plaque (ensemble 4)
Position: 71835
Indicative price: 31.42 €
ROBINET Plaque Auxiliaire Droit 0,30
Position: 71836
Indicative price: 51.24 €
ROBINET Plaque D=0,37
Position: 71838
Indicative price: 84.39 €
