Exploded view hotte SMEG KSED96X

Discover the complete exploded view hotte SMEG KSED96X, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your hotte. Quickly find the parts you need to extend the life of your hotte SMEG KSED96X and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

FILTRE Hotte CHARBON
FILTRE Hotte CHARBON
Position: 32242
Indicative price: 25.07 €
CONDENSATEUR Hotte 4uF
CONDENSATEUR Hotte 4uF
Position: 32428
Indicative price: 48.67 €
TURBINE Hotte
TURBINE Hotte
Position: 32442
Indicative price: 54.58 €
DISTANCIALE Hotte
DISTANCIALE Hotte
Position: 32574
FILTRE Hotte METAL 300*265
FILTRE Hotte METAL 300*265
Position: 32592
MOTEUR Hotte 188W S80-35ANP3419F
MOTEUR Hotte 188W S80-35ANP3419F
Position: 32637
Couvercle Hotte BOITE CDE
Couvercle Hotte BOITE CDE
Position: 32643
BANDEAU Hotte
BANDEAU Hotte
Position: 32647
SERIGRAPHIE Hotte E
SERIGRAPHIE Hotte E
Position: 32654

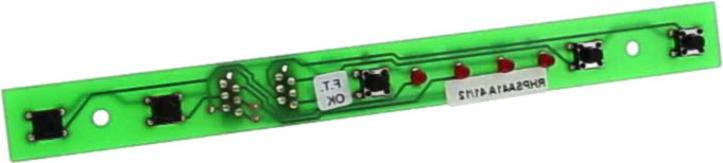

PLATINE Hotte COMMANDE
PLATINE Hotte COMMANDE
Position: 32674
VIS Hotte SILENT BLOC
VIS Hotte SILENT BLOC
Position: 32678
SUPPORT Hotte BANDEAU
SUPPORT Hotte BANDEAU
Position: 32693
Indicative price: 23.88 €
