Exploded view cuisinière SMEG TR4110IP
Discover the complete exploded view cuisinière SMEG TR4110IP, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière SMEG TR4110IP and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List

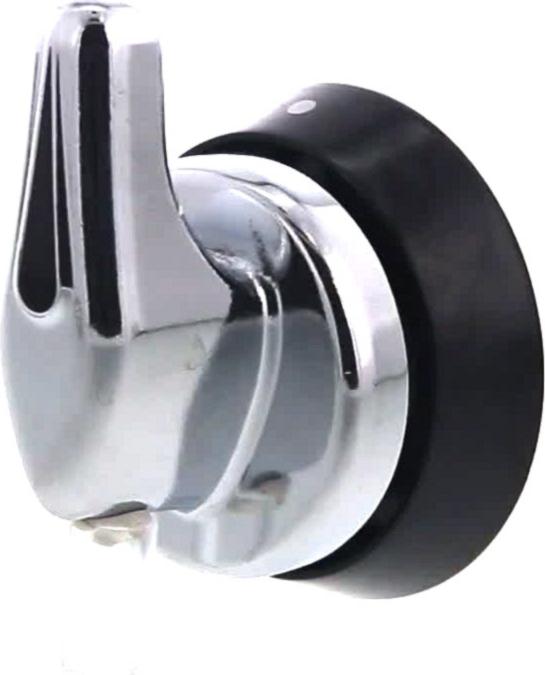

MANETTE Cuisinière COMPLETE CHROMEE
Position: 197
Indicative price: 40.79 €
VITRE Cuisinière Extérieure FOUR Inférieur GAUCHE
Position: 351
Indicative price: 101.34 €
VITRE Cuisinière Extérieure FOUR Supérieur DROIT
Position: 353
Indicative price: 127.17 €
DOSSERET Cuisinière ARRIERE
Position: 992
Indicative price: 152.08 €
MOUFLE Cuisinière avant 30/04/16
Position: 2397
Indicative price: 104.74 €
FACADE Cuisinière PORTE FOUR Inférieur DROIT
Position: 2855
Indicative price: 310.03 €
MOTEUR Cuisinière CHALEUR TOURNANTE 20w
Position: 5008
Indicative price: 35.82 €
ENTRETOISE Cuisinière POIGNEE GAUCHE
Position: 5899
Indicative price: 5.34 €
ENTRETOISE Cuisinière POIGNEE DROITE
Position: 5900
Indicative price: 4.89 €
JOINT Cuisinière PORTE
Position: 7010
Indicative price: 39.51 €
Contre porte Cuisinière
Position: 11283
Indicative price: 50.74 €
VITRE Cuisinière Intérieure Porte FOUR Droit
Position: 11284
Indicative price: 67.25 €
SERRURE Cuisinière PORTE
Position: 11351
Indicative price: 30.45 €
RESSORT Cuisinière MANETTE
Position: 16539
Indicative price: 3.74 €
GRATTOIR Plaque DESSUS VITRO
Position: 21670
Indicative price: 5.06 €
Thermostat Four NA70
Position: 28636
Indicative price: 28.17 €
BOUTON Four Programmateur NOIR
Position: 29618
Indicative price: 7.99 €
VOYANT Plaque
Position: 41728
Indicative price: 9.86 €
THERMOSTAT Four 60-298°C EGO 55 17059 390
Position: 42763
Indicative price: 38.16 €
CACHE Four VOYANT ORANGE
Position: 42810
Indicative price: 7.63 €
JOINT Cuisinière VITRE Intérieure
Position: 52093
Indicative price: 8.66 €

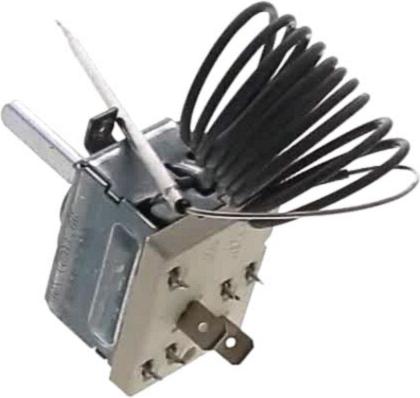

Thermostat Four REGLABLE 300° 5517059250
Position: 58872
Indicative price: 41.49 €
CROCHET Cuisinière BLOCAGE CHARNIERE
Position: 59196
Indicative price: 4.81 €
ECROU Cuisinière HELICE CT
Position: 66133
Indicative price: 4.28 €
CLIPS Four FIXATION
Position: 66161
Indicative price: 4.65 €
VIS Cuisinière M5*25
Position: 68479
Indicative price: 5.62 €
BUTEE Four VITRE
Position: 69654
Indicative price: 6.69 €
RESISTANCE Four CHALEUR TOURNANTE 2700W 230V 6173R446 6168R708
Position: 76970
Indicative price: 52.41 €
AMPOULE Four G9 40w 230v 400°
Position: 79899
Indicative price: 15.7 €
TOLE Four PROTECTION Supérieur E
Position: 80002
DOUILLE Four FIXATION
Position: 80005
Indicative price: 5.92 €
RESISTANCE Four Inférieur 1200W
Position: 80010
Indicative price: 48.67 €
RESISTANCE Cuisinière GRILL 2700w
Position: 80016
Indicative price: 49.31 €
PATIN Cuisinière VITRE
Position: 80021
Indicative price: 8.85 €
CALORIFUGE Cuisinière
Position: 80839
Indicative price: 38.01 €
ISOLATION Cuisinière ARRIERE
Position: 80840
Indicative price: 20.7 €
GRILLE Four LATERALE DROITE
Position: 80850
Indicative price: 22.85 €
GRILLE Four LATERALE GAUCHE
Position: 80851
Indicative price: 23.18 €
GRILLE Four FOUR 460*353*
Position: 80852
Indicative price: 45.14 €
Programmateur Four après 15/03/2010
Position: 85378
Indicative price: 102.87 €
PLAT Four LECHE FRITE 458*355
Position: 87045
Indicative price: 42.54 €
VIS Four
Position: 87065
Indicative price: 3.58 €
GRILLE Four 367*308
Position: 88390
Indicative price: 28.97 €
MOTEUR Cuisinière Ventilation TANGENTIEL 5472 TQ6 Q24 H2028 IA 20W 245MM
Position: 89337
Indicative price: 90.56 €
VITRE Cuisinière INTERMEDIAIRE GD FOUR 440*347
Position: 89465
Indicative price: 73.05 €
VITRE Cuisinière INTERIEURE FOUR SUPERIEUR 540*252 4 crochets
Position: 89468
Indicative price: 48.89 €
CHARNIERE Cuisinière
Position: 89652
Indicative price: 28.73 €
VITRE Cuisinière INTERMEDIAIRE PETITE PORTE
Position: 90211
Indicative price: 41.48 €
POTENTIOMETRE Cuisinière 44.02020.010
Position: 90344
Indicative price: 32.09 €
ISOLANT Cuisinière FOUR
Position: 90585
Indicative price: 51.89 €
ISOLANT Cuisinière ARRIERE FOUR
Position: 90586
Indicative price: 26.21 €
Thermostat Four NC 140°C SECU CUVE
Position: 93278
Indicative price: 11.36 €
INDUCTEUR Cuisinière COMPLET
Position: 94122
Indicative price: 277.72 €
INDUCTEUR Plaque DROIT
Position: 94124
Indicative price: 287.83 €
PLATINE Cuisinière AFFICHAGE
Position: 94125
Indicative price: 115.59 €
PANNEAU Cuisinière GAUCHE
Position: 96400
Indicative price: 81.63 €
GLISSIERE Four PLAT LECHE FRITE Droite + Gauche
Position: 96712
Indicative price: 42.92 €
PLAT Four LECHE FRITE 457*354
Position: 96713
Indicative price: 39.67 €
JOINT Cuisinière FOUR
Position: 97361
Indicative price: 24.23 €
BAGUE Cuisinière CHARNIERE
Position: 97372
Indicative price: 12.86 €

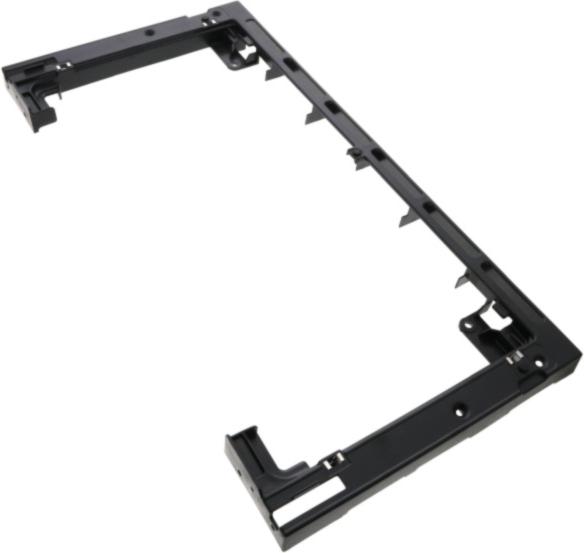

Contre porte Cuisinière PETIT FOUR
Position: 97383
Indicative price: 47.13 €
ENTRETOISE Cuisinière MAIN COURANTE
Position: 97389
Indicative price: 4.47 €

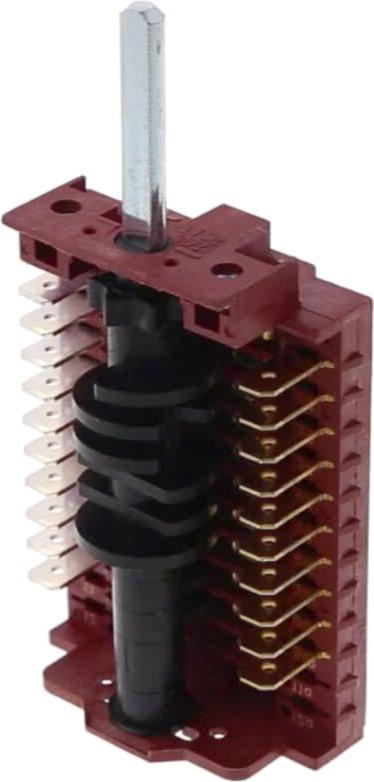

COMMUTATEUR Four 5074/4
Position: 97675
Indicative price: 51.07 €
VIS Cuisinière POIGNEE MAIN COURANTE
Position: 98021
Indicative price: 2.31 €
CHARNIERE Cuisinière Inférieur GAUCHE
Position: 99194
Indicative price: 49.27 €
SUPPORT Cuisinière CHARNIERE GAUCHE
Position: 99196
Indicative price: 48.28 €
PLATINE Plaque
Position: 99213
Indicative price: 154.99 €
Contre porte Cuisinière GRAND FOUR
Position: 100674
Indicative price: 81.88 €

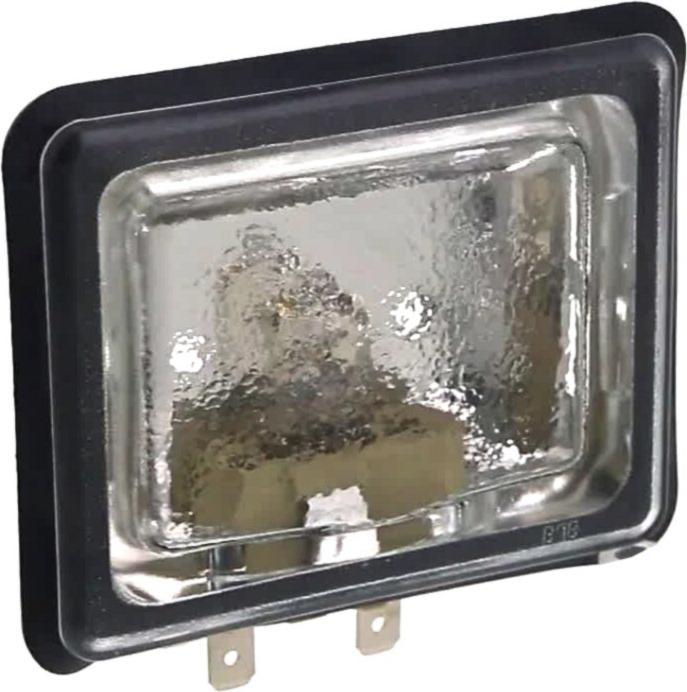

DOUILLE Cuisinière COMPLETE
Position: 101601
Indicative price: 23.29 €
