Exploded view lave linge LAZER MLF605

Discover the complete exploded view lave linge LAZER MLF605, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge LAZER MLF605 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

VIS Lave-Linge 4.2*16
VIS Lave-Linge 4.2*16
Indicative price: 2.42 €
RENFORT Lave-Linge TOLE
RENFORT Lave-Linge TOLE
Indicative price: 17.68 €
COLLIER Lave-Linge DURITE CUVE POMPE coté cuve + vis 72mm
COLLIER Lave-Linge DURITE CUVE POMPE coté cuve + vis 72mm
Indicative price: 4.53 €
NOTICE Lave-Linge UTILISATION
NOTICE Lave-Linge UTILISATION
Indicative price: 9.7 €
MEUBLE Lave-Linge Blanc 420 ALVA
MEUBLE Lave-Linge Blanc 420 ALVA
Position: 1
Indicative price: 101.18 €
DESSUS Lave-Linge COUVERCLE 597*482
DESSUS Lave-Linge COUVERCLE 597*482
Position: 2
Indicative price: 47.36 €
FACADE Lave-Linge AVANT ap 208595
FACADE Lave-Linge AVANT ap 208595
Position: 3
Indicative price: 50.8 €
PLINTHE Lave-Linge AVANT
PLINTHE Lave-Linge AVANT
Position: 4
Indicative price: 24.98 €
PIED Lave-Linge + ECROU
PIED Lave-Linge + ECROU
Position: 5
Indicative price: 8.23 €
ENJOLIVEUR Lave-Linge HUBLOT
ENJOLIVEUR Lave-Linge HUBLOT
Position: 6
Indicative price: 34.13 €
HUBLOT Lave-Linge VERRE D310MM
HUBLOT Lave-Linge VERRE D310MM
Position: 7
Indicative price: 40.17 €
Contre porte Lave-Linge HUBLOT
Contre porte Lave-Linge HUBLOT
Position: 8
Indicative price: 27.66 €
COLLIER Lave-Linge JOINT HUBLOT/MEUBLE *
COLLIER Lave-Linge JOINT HUBLOT/MEUBLE *
Position: 9
Indicative price: 11.09 €

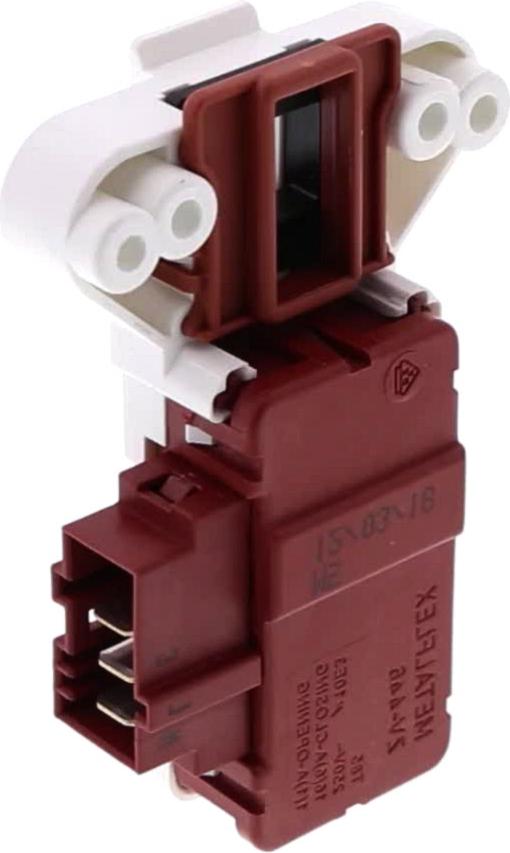

SECURITE Lave-Linge PORTE
SECURITE Lave-Linge PORTE
Position: 10
Indicative price: 17.86 €

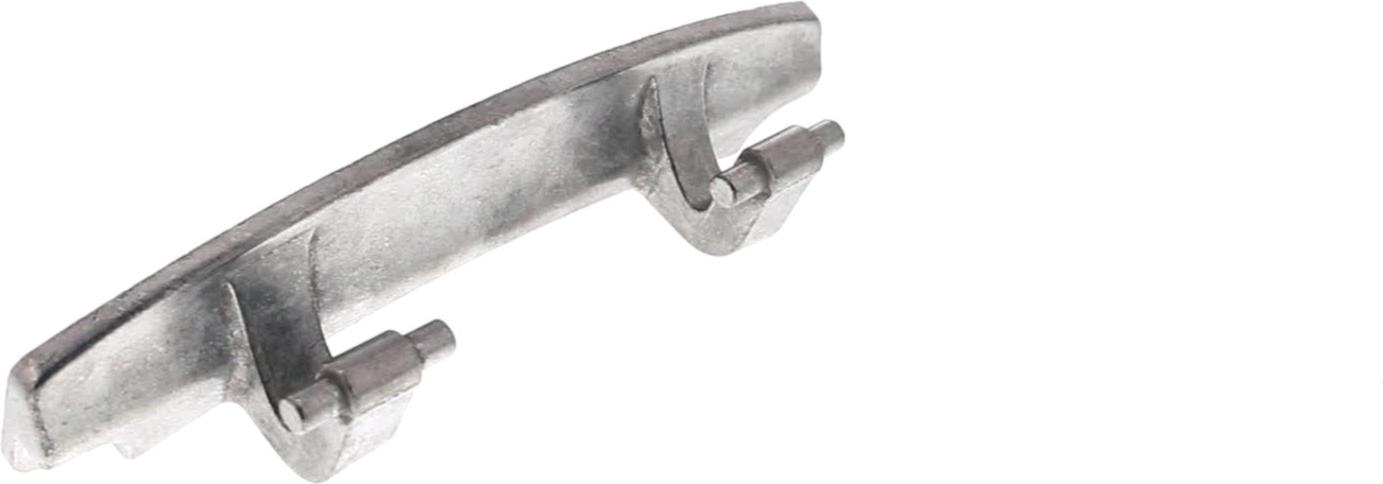

CHARNIERE Lave-Linge HUBLOT
CHARNIERE Lave-Linge HUBLOT
Position: 12
Indicative price: 23.02 €

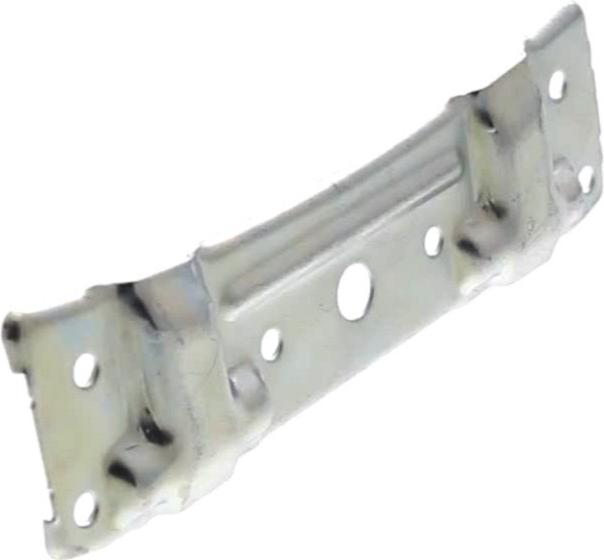

SUPPORT Lave-Linge CHARNIERE
SUPPORT Lave-Linge CHARNIERE
Position: 13
Indicative price: 33.83 €

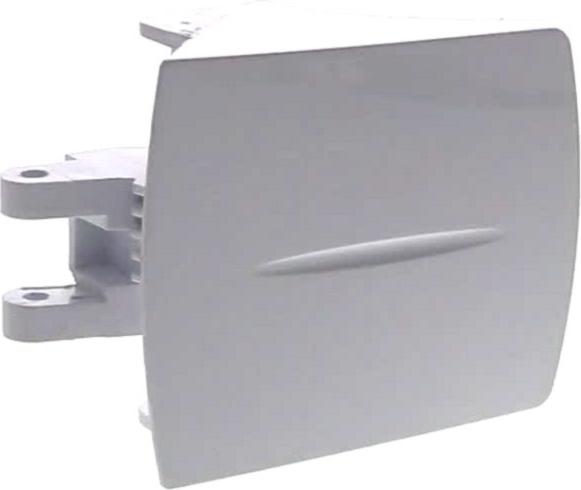

POIGNEE Lave-Linge HUBLOT Blanc K
POIGNEE Lave-Linge HUBLOT Blanc K
Position: 14
Indicative price: 16.07 €
RESSORT Lave-Linge POIGNEE PORTE
RESSORT Lave-Linge POIGNEE PORTE
Position: 15
Indicative price: 3.94 €
CROCHET Lave-Linge POIGNEE HUBLOT
CROCHET Lave-Linge POIGNEE HUBLOT
Position: 17
Indicative price: 7.79 €
CLIPS Lave-Linge
CLIPS Lave-Linge
Position: 18
Indicative price: 2.19 €
TUYAU Lave-Linge ARRIVEE EAU
TUYAU Lave-Linge ARRIVEE EAU
Position: 20
Indicative price: 14.9 €
PLINTHE Lave-Linge AVANT (delais 2 mois)
PLINTHE Lave-Linge AVANT (delais 2 mois)
Position: 22
Indicative price: 23.05 €
TRAPPE Lave-Linge Pompe de vidange 115*100
TRAPPE Lave-Linge Pompe de vidange 115*100
Position: 23
Indicative price: 24.45 €
RESSORT Lave-Linge POIGNEE HUBLOT
RESSORT Lave-Linge POIGNEE HUBLOT
Position: 26
Indicative price: 11.33 €
AXE Lave-Linge CROCHET POIGNEE PORTE LG 50.78MM Droit 3.86MM
AXE Lave-Linge CROCHET POIGNEE PORTE LG 50.78MM Droit 3.86MM
Position: 27
Indicative price: 4.16 €
VIS Lave-Linge 3.5*16
VIS Lave-Linge 3.5*16
Position: 28
Indicative price: 3.97 €
VIS Lave-Linge FIXATION HUBLOT 3.5*9
VIS Lave-Linge FIXATION HUBLOT 3.5*9
Position: 29
Indicative price: 2.22 €
COURROIE Lave-Linge 1227H6EL EH97
COURROIE Lave-Linge 1227H6EL EH97
Position: 100
Indicative price: 23.32 €
POULIE Lave-Linge TAMBOUR
POULIE Lave-Linge TAMBOUR
Position: 101
Indicative price: 39.35 €
CUVE Lave-Linge 1/2 ARR TUF42 20/17 VWM-42A16
CUVE Lave-Linge 1/2 ARR TUF42 20/17 VWM-42A16
Position: 103
Indicative price: 115.12 €
AMORTISSEUR Lave-Linge 80N axe=11mm
AMORTISSEUR Lave-Linge 80N axe=11mm
Position: 104
Indicative price: 20.24 €
AXE Lave-Linge AMORTISSEUR
AXE Lave-Linge AMORTISSEUR
Position: 105
Indicative price: 5.37 €
Contre-poids Lave-Linge Supérieur
Contre-poids Lave-Linge Supérieur
Position: 112
Indicative price: 48.29 €
JOINT Lave-Linge 1/2 CUVE AV/CUVE ARR
JOINT Lave-Linge 1/2 CUVE AV/CUVE ARR
Position: 113
Indicative price: 19.58 €

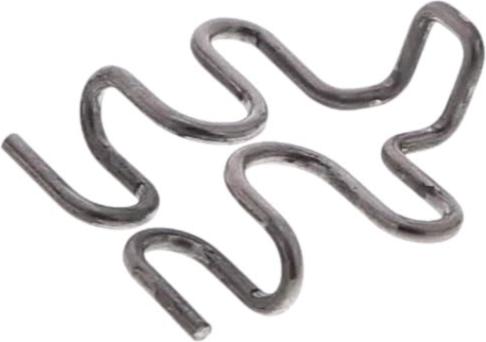

CLIPS Lave-Linge RESISTANCE
CLIPS Lave-Linge RESISTANCE
Position: 115
Indicative price: 8.6 €
CUVE Lave-Linge 1/2 AVANT TUF42
CUVE Lave-Linge 1/2 AVANT TUF42
Position: 117
Indicative price: 57.39 €
JOINT Lave-Linge HUBLOT
JOINT Lave-Linge HUBLOT
Position: 118
Indicative price: 39.22 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 119
Indicative price: 13.24 €
Contre-poids Lave-Linge AVANT
Contre-poids Lave-Linge AVANT
Position: 120
Indicative price: 45.19 €
Résistance Lave-Linge 1850W
Résistance Lave-Linge 1850W
Position: 121
Indicative price: 38.77 €
VIS Lave-Linge POULIE TAMBOUR M8*20
VIS Lave-Linge POULIE TAMBOUR M8*20
Position: 124
Indicative price: 7.01 €
VIS Lave-Linge AXE TAMBOUR 6*22
VIS Lave-Linge AXE TAMBOUR 6*22
Position: 126
Indicative price: 5.52 €
VIS Lave-Linge 1/2 CUVE AV/AR
VIS Lave-Linge 1/2 CUVE AV/AR
Position: 126
Indicative price: 2.34 €
SUPPORT Lave-Linge CABLE
SUPPORT Lave-Linge CABLE
Position: 132
Indicative price: 2.4 €
TAMBOUR Lave-Linge 8-10T CB42 20/17
TAMBOUR Lave-Linge 8-10T CB42 20/17
Position: 160
Indicative price: 104.82 €
BOITE Lave-Linge LESSIVE COMPLET AP120308
BOITE Lave-Linge LESSIVE COMPLET AP120308
Position: 205
Indicative price: 48.63 €
DURITE Lave-Linge BAC LESSIVE/CUVE *
DURITE Lave-Linge BAC LESSIVE/CUVE *
Position: 206
Indicative price: 16.5 €
DURITE Lave-Linge EV/BAC Lessive 200mm
DURITE Lave-Linge EV/BAC Lessive 200mm
Position: 207
Indicative price: 7.81 €
DURITE Lave-Linge EV/BAC Lessive 220mm
DURITE Lave-Linge EV/BAC Lessive 220mm
Position: 208
Indicative price: 7.75 €
ELECTROVANNE Lave-Linge 2 VOIES 180° 33490081
ELECTROVANNE Lave-Linge 2 VOIES 180° 33490081
Position: 209
Indicative price: 25.3 €
BALLE Lave-Linge DURITE VIDANGE
BALLE Lave-Linge DURITE VIDANGE
Position: 210
Indicative price: 11.85 €

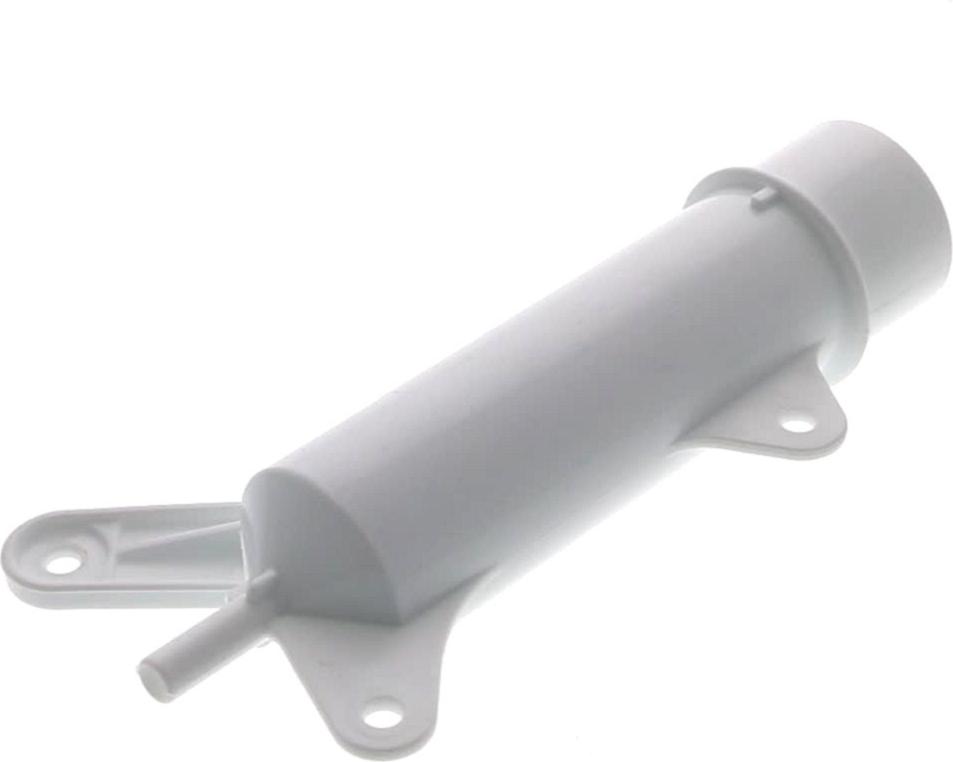

DURITE Lave-Linge CHAMBRE DE COMPRESSION
DURITE Lave-Linge CHAMBRE DE COMPRESSION
Position: 212
Indicative price: 19.73 €
DURITE Lave-Linge CUVE/PV
DURITE Lave-Linge CUVE/PV
Position: 213
Indicative price: 34.51 €
CONDO Lave-Linge ANTIPARASITE DNF06-P(AFBAB) 0.47uF(x2)+2x25nF(Y2)
CONDO Lave-Linge ANTIPARASITE DNF06-P(AFBAB) 0.47uF(x2)+2x25nF(Y2)
Position: 215
Indicative price: 29.7 €
TUYAU Lave-Linge VIDANGE
TUYAU Lave-Linge VIDANGE
Position: 219
Indicative price: 14.11 €
SUPPORT Lave-Linge TUYAU VIDANGE
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 220
Indicative price: 9.5 €
ENTRETOISE Lave-Linge RESSORT/MEUBLE
ENTRETOISE Lave-Linge RESSORT/MEUBLE
Position: 221
Indicative price: 5.97 €
PRESSOSTAT Lave-Linge 100-78 300
PRESSOSTAT Lave-Linge 100-78 300
Position: 225
Indicative price: 25.74 €
COLLIER Lave-Linge TUYAU EV/BOITE
COLLIER Lave-Linge TUYAU EV/BOITE
Position: 228
Indicative price: 4.72 €
TRAVERSE Lave-Linge Supérieur
TRAVERSE Lave-Linge Supérieur
Position: 231
Indicative price: 29.42 €
COLLIER Lave-Linge PV/TUYAU VID 32.7mm
COLLIER Lave-Linge PV/TUYAU VID 32.7mm
Position: 234
Indicative price: 3.96 €
COLLIER Lave-Linge TUYAU VIDANGE
COLLIER Lave-Linge TUYAU VIDANGE
Position: 235
Indicative price: 5.35 €
CABLE Lave-Linge ALIMENTATION COSSES COUDEES 3G1 1m50
CABLE Lave-Linge ALIMENTATION COSSES COUDEES 3G1 1m50
Position: 239
Indicative price: 19.2 €
COLLIER Lave-Linge DURITE PRESSOSTAT
COLLIER Lave-Linge DURITE PRESSOSTAT
Position: 244
Indicative price: 2.21 €

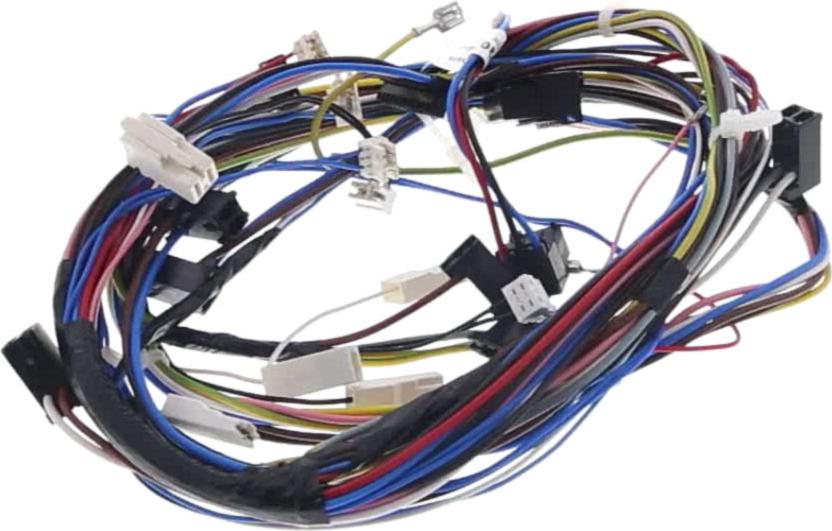

CABLAGE Lave-Linge
CABLAGE Lave-Linge
Position: 249
Indicative price: 78.64 €
Pompe de vidange Lave-Linge
Pompe de vidange Lave-Linge
Position: 285
Indicative price: 44.34 €
KIT Lave-Linge BRIDAGE UNITAIRE
KIT Lave-Linge BRIDAGE UNITAIRE
Position: 290
Indicative price: 12.88 €
DURITE Lave-Linge CUVE/PV + CHAMBRE COMPRESSION + TUYAU PRESSOSTAT
DURITE Lave-Linge CUVE/PV + CHAMBRE COMPRESSION + TUYAU PRESSOSTAT
Position: 295
Indicative price: 28.9 €
FACADE Lave-Linge TIROIR LESSIVE
FACADE Lave-Linge TIROIR LESSIVE
Position: 400
Indicative price: 26.53 €
BANDEAU Lave-Linge MLF605 LAZER
BANDEAU Lave-Linge MLF605 LAZER
Position: 401
Indicative price: 54.93 €
MANETTE Lave-Linge Programmateur BLANCHE-GRISE
MANETTE Lave-Linge Programmateur BLANCHE-GRISE
Position: 402
Indicative price: 20.88 €
ENTRETOISE Lave-Linge MANETTE Programmateur
ENTRETOISE Lave-Linge MANETTE Programmateur
Position: 403
Indicative price: 5.55 €
TRANSFERT Lave-Linge 2 LAMPES
TRANSFERT Lave-Linge 2 LAMPES
Position: 405
Indicative price: 7.11 €
TRANSFERT Lave-Linge 3 LAMPES
TRANSFERT Lave-Linge 3 LAMPES
Position: 406
Indicative price: 11.18 €
SUPPORT Lave-Linge PLATINE ELECTRONIQUE
SUPPORT Lave-Linge PLATINE ELECTRONIQUE
Position: 411
Indicative price: 17.96 €
BOUTON Lave-Linge POUSSOIR Blanc (ensemble de 3 sur support ) BORA
BOUTON Lave-Linge POUSSOIR Blanc (ensemble de 3 sur support ) BORA
Position: 415
Indicative price: 11.2 €

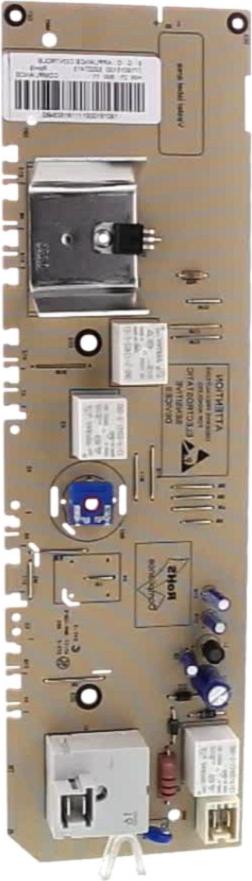

PLATINE Lave-Linge B 22492FF00400 G4AlvB6.cmb 19001300v10c.mot
PLATINE Lave-Linge B 22492FF00400 G4AlvB6.cmb 19001300v10c.mot
Position: 416
Indicative price: 101.97 €
DOUILLE Lave-Linge RESSORT/CUVE
DOUILLE Lave-Linge RESSORT/CUVE
Position: 700
Indicative price: 5.3 €
RESSORT Lave-Linge SUSPENSION
RESSORT Lave-Linge SUSPENSION
Position: 800
Indicative price: 13.15 €
RONDELLE Lave-Linge Contre-poids AVANT 28*8*3
RONDELLE Lave-Linge Contre-poids AVANT 28*8*3
Position: 806
Indicative price: 2.33 €
VIS Lave-Linge Contre-poids AVANT 8*40
VIS Lave-Linge Contre-poids AVANT 8*40
Position: 807
Indicative price: 3.82 €
VIS Lave-Linge Contre-poids Supérieur
VIS Lave-Linge Contre-poids Supérieur
Position: 808
Indicative price: 4.04 €
ECROU Lave-Linge Contre-poids Supérieur M8 GROWER
ECROU Lave-Linge Contre-poids Supérieur M8 GROWER
Position: 812
Indicative price: 2.5 €
Batteur Lave-Linge TAMBOUR 18cm *
Batteur Lave-Linge TAMBOUR 18cm *
Position: 813
Indicative price: 13.94 €
TRAVERSE Lave-Linge Supérieur
TRAVERSE Lave-Linge Supérieur
Position: 895
Indicative price: 28.23 €
CLIPS Lave-Linge PANNEAU AVANT
CLIPS Lave-Linge PANNEAU AVANT
Position: 920
Indicative price: 3.28 €
KIT Lave-Linge LESSIVE LIQUIDE 72*51
KIT Lave-Linge LESSIVE LIQUIDE 72*51
Position: 996
Indicative price: 8.6 €
CROSSE Lave-Linge TUYAU VIDANGE 408*122
CROSSE Lave-Linge TUYAU VIDANGE 408*122
Position: 997
Indicative price: 6.03 €
CACHE Lave-Linge BRIDAGE
CACHE Lave-Linge BRIDAGE
Position: 998
Indicative price: 2.76 €
SONDE Lave-Linge RESISTANCE RAST 2.5
SONDE Lave-Linge RESISTANCE RAST 2.5
Position: 999
Indicative price: 29.99 €
