Exploded view lave vaisselle METRO GDW801
Discover the complete exploded view lave vaisselle METRO GDW801, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave vaisselle. Quickly find the parts you need to extend the life of your lave vaisselle METRO GDW801 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List

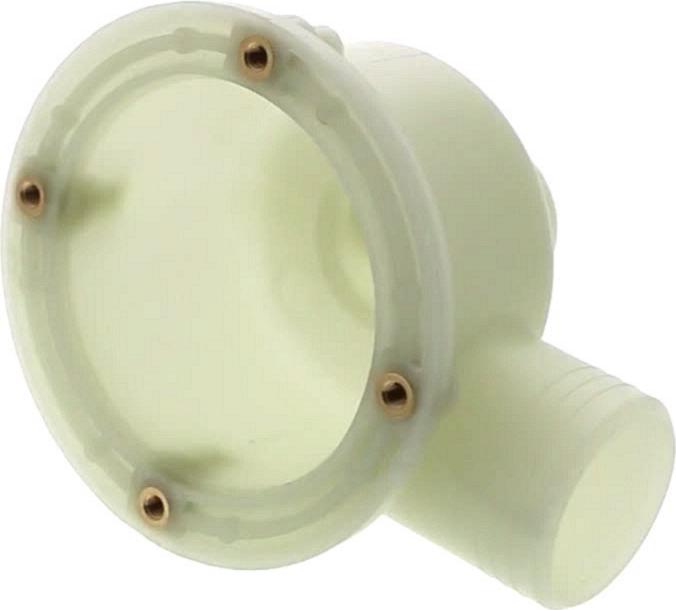

BOL Lave-Vaisselle
Position: 0
Indicative price: 46.97 €
RESISTANCE Lave-Vaisselle 2000w 230v
Position: 0
Indicative price: 76.52 €
JEU Plaque Injecteur Gaz Butane 5 GAZ WOK
Position: 1
Indicative price: 29.21 €

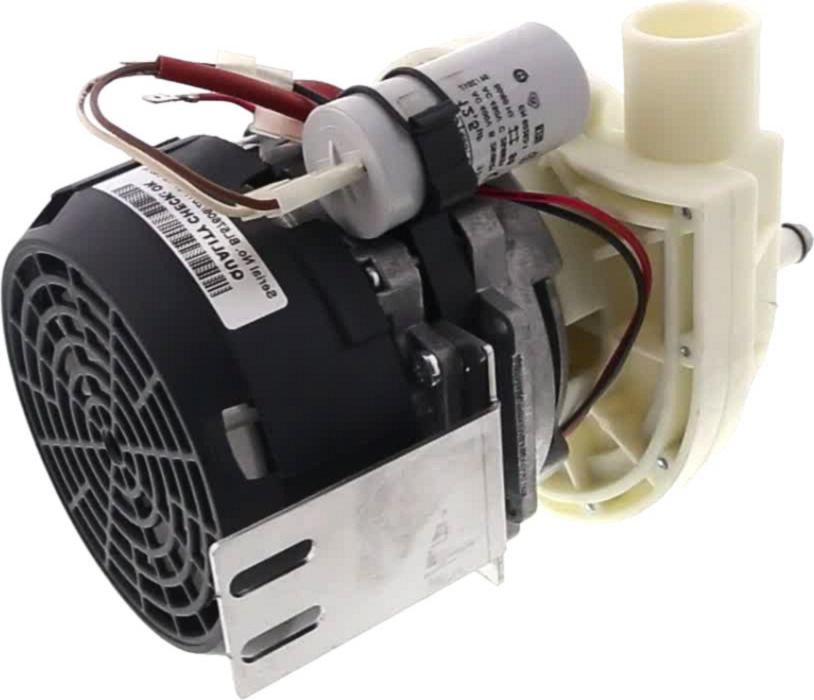

POMPE CYCLAGE Lave-Vaisselle ZF270V DX
Position: 1
Indicative price: 304.19 €

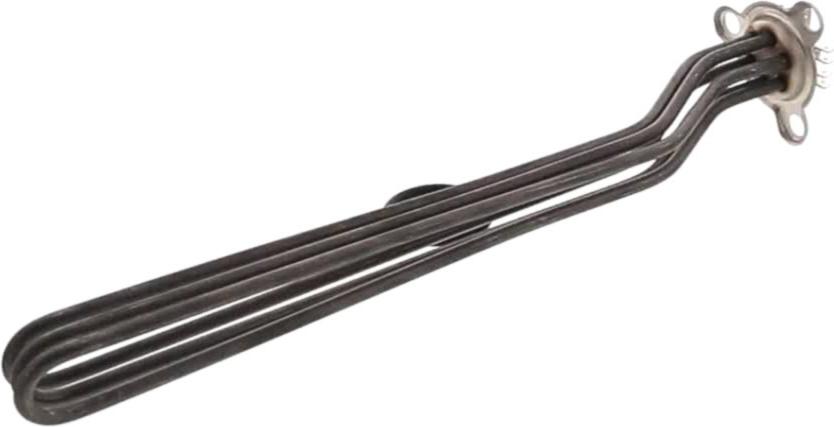

RESISTANCE Lave-Vaisselle 4500W 230V 6 plots
Position: 2
Indicative price: 117.28 €
VIS Lave-Vaisselle BRAS RINCAGE
Position: 2
Indicative price: 62.9 €
THERMOSTAT Lave-Vaisselle REGLABLE 0-90°C 250V AC16A
Position: 3
Indicative price: 47.31 €

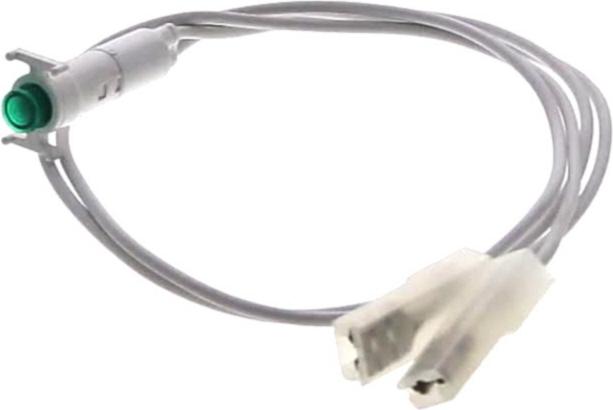

VOYANT Lave-Vaisselle VERT
Position: 3
Indicative price: 16.36 €

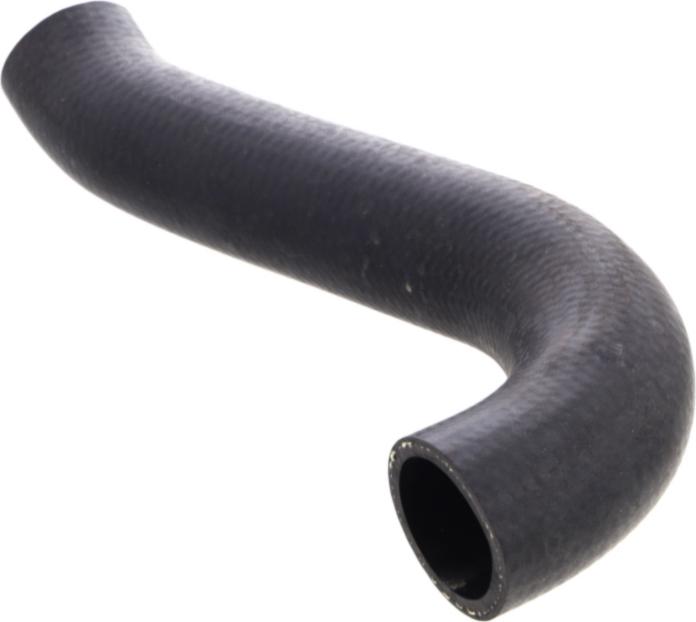

DURITE Lave-Vaisselle
Position: 3
Indicative price: 38.83 €
BRAS Lave-Vaisselle RINCAGE PLASTIQUE Supérieur ou Inférieur
Position: 3
Indicative price: 95.34 €
ECROU Lave-Vaisselle FIXATION BRAS
Position: 4
Indicative price: 17.94 €
VOYANT Lave-Vaisselle ORANGE
Position: 4
Indicative price: 15.56 €
MANETTE Lave-Vaisselle
Position: 4
Indicative price: 10.08 €

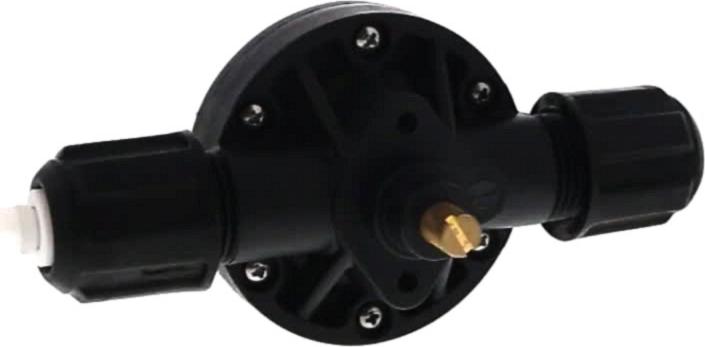

DOSEUR Lave-Vaisselle HYDRAULIQUE N°28976 0888140914
Position: 5
Indicative price: 93.53 €

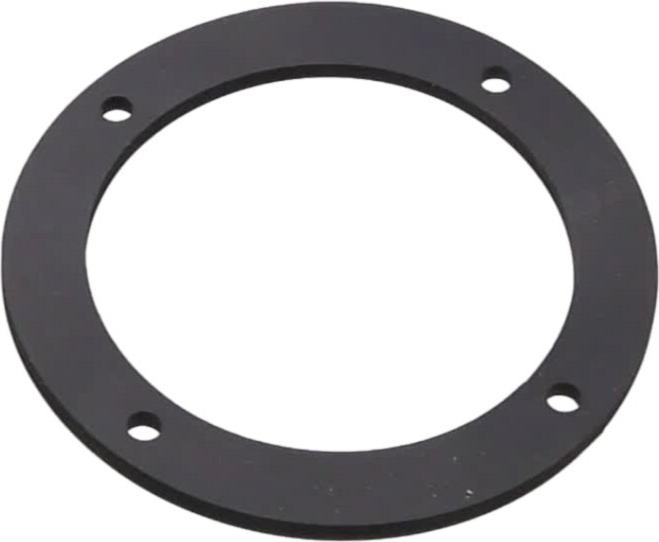

JOINT Lave-Vaisselle BOL
Position: 5
Indicative price: 8.78 €

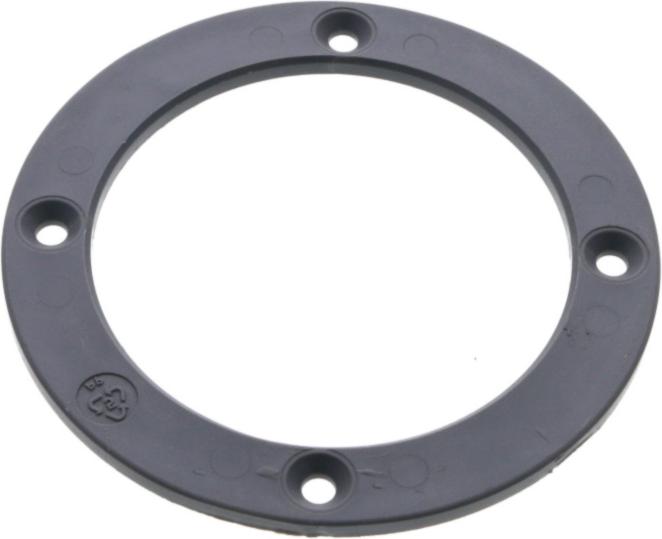

CERCLAGE Lave-Vaisselle FIXATION SYPHON
Position: 6
Indicative price: 13.17 €
BOUTON Lave-Vaisselle
Position: 7
Indicative price: 6 €
TUYAU Lave-Vaisselle D=6 Extérieure D=4 Intérieure (vendu au mètre)
Position: 7
Indicative price: 12.56 €

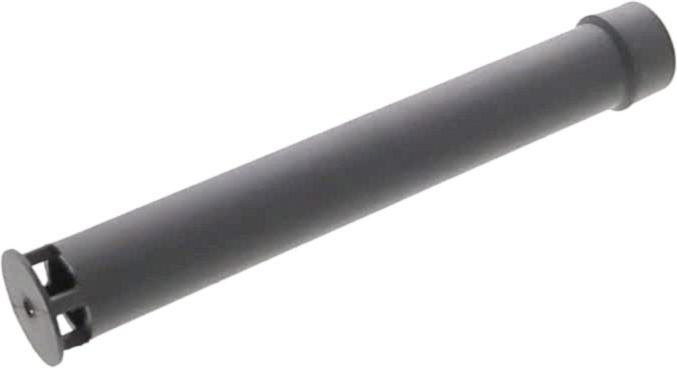

TUBE Lave-Vaisselle TROP PLEIN 230mm Droit 30mm
Position: 7
Indicative price: 85.41 €
JEU Plaque Injecteur Gaz Butane 5G
Position: 8
Indicative price: 25.8 €
Interrupteur Lave-Vaisselle M/A
Position: 8
Indicative price: 19.28 €
SUPPORT Lave-Vaisselle BRAS SUPERIEUR
Position: 8
Indicative price: 50.95 €
Interrupteur Lave-Vaisselle PUSH Q4920 52014113
Position: 9
Indicative price: 17.17 €
PIED Lave-Vaisselle
Position: 9
Indicative price: 8.67 €

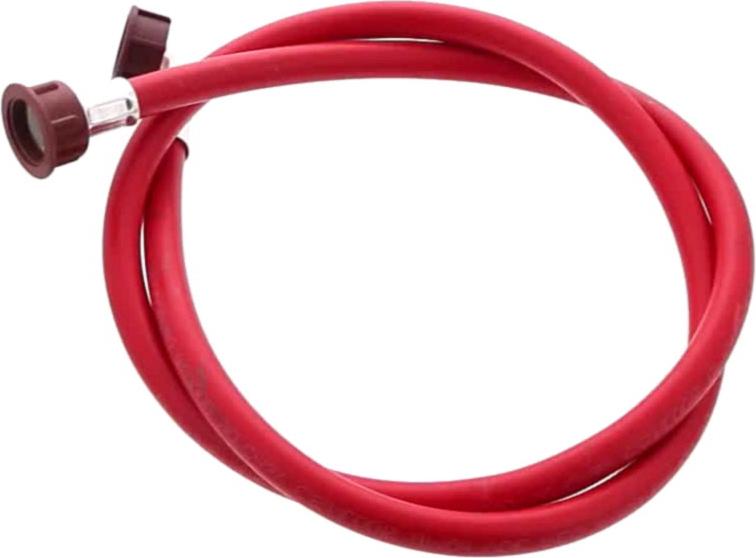

TUYAU Lave-Linge ARRIVEE EAU CHAUDE L-2m
Position: 9
Indicative price: 17.31 €
JOINT Lave-Vaisselle RACCORD INFERIEUR
Position: 9
Indicative price: 9.78 €

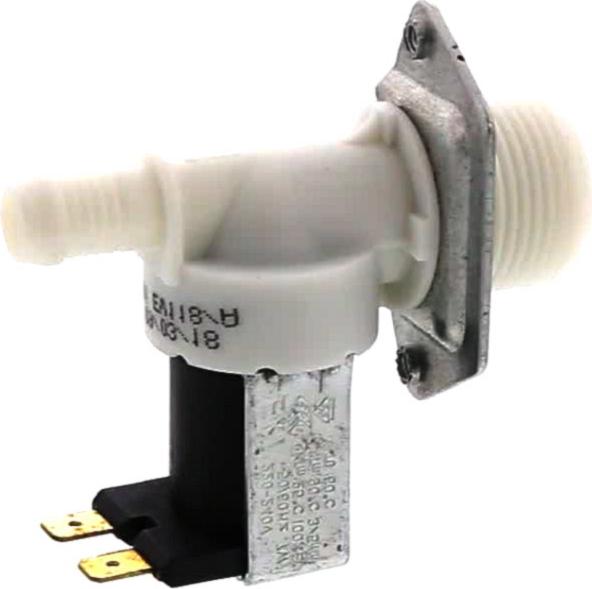

ELECTROVANNE Lave-Vaisselle 1 VOIE 180° 7W
Position: 10
Indicative price: 18.99 €

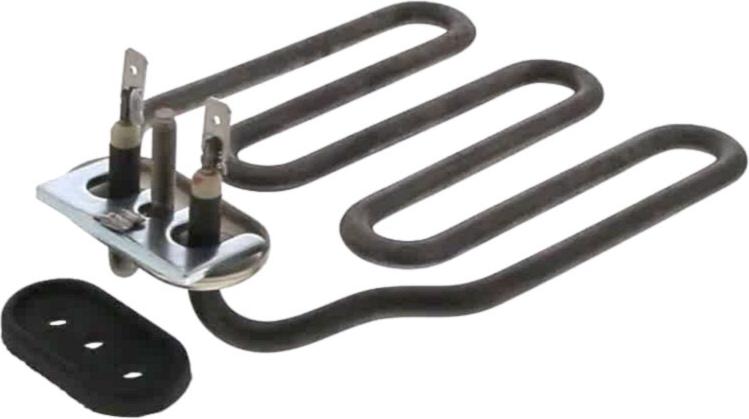

RESISTANCE Lave-Vaisselle 2000w vasca
Position: 10
Indicative price: 104.5 €

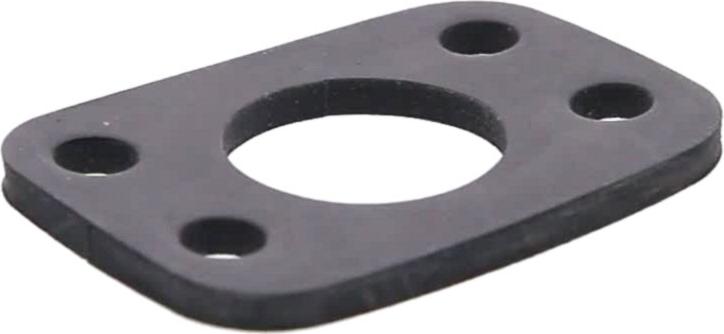

JOINT Lave-Vaisselle CHAMBRE COMPRESSION
Position: 10
Indicative price: 5.96 €

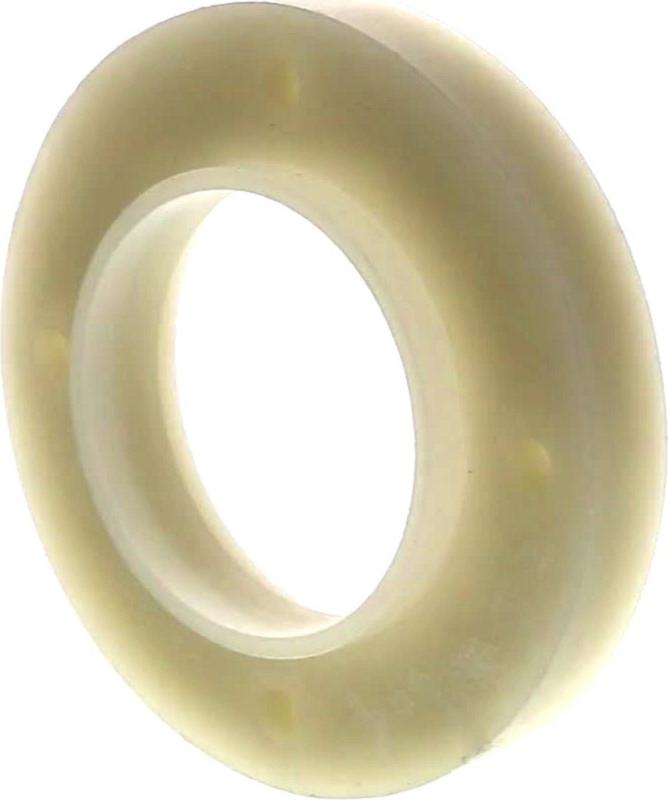

ENTRETOISE Lave-Vaisselle
Position: 10
Indicative price: 9.99 €
RACCORD Lave-Vaisselle
Position: 11
Indicative price: 20.04 €
SUPPORT Lave-Vaisselle CHAMBRE COMPRESSION
Position: 11
Indicative price: 21.13 €
RACCORD Lave-Vaisselle 3 VOIES
Position: 11
Indicative price: 34.28 €
GRILLE Lave-Vaisselle ARRIERE E
Position: 11
RACCORD Lave-Linge EN "T"
Position: 12
Indicative price: 10.33 €
CHAMBRE Lave-Vaisselle COMPRESSION
Position: 12
Indicative price: 45.55 €
GRILLE Lave-Vaisselle FILTRE
Position: 12
Indicative price: 156.05 €
TUYAU Lave-Vaisselle PRESSOSTAT au metre
Position: 13
Indicative price: 6.69 €
RACCORD Lave-Vaisselle 3 VOIES
Position: 13
Indicative price: 14.77 €
AIMANT Lave-Vaisselle
Position: 14
Indicative price: 22.79 €
PRESSOSTAT Lave-Vaisselle 35-17
Position: 14
Indicative price: 38.04 €
AXE Lave-Vaisselle BRAS Supérieur
Position: 14
Indicative price: 44.55 €

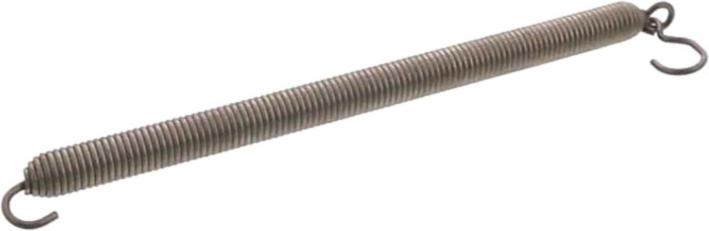

RESSORT Lave-Vaisselle PORTE
Position: 15
Indicative price: 24.27 €

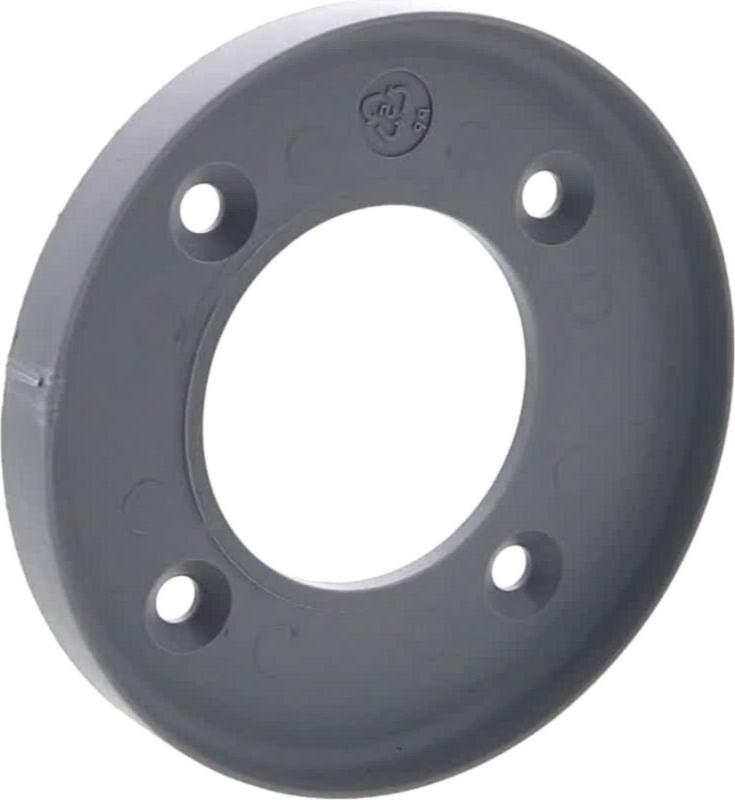

ENTRETOISE Lave-Vaisselle RACCORD
Position: 15
Indicative price: 15.22 €
CABLE Lave-Vaisselle ALIMENTATION
Position: 15
Indicative price: 62.48 €
THERMOSTAT Lave-Vaisselle 110°C
Position: 16
Indicative price: 21.2 €
THERMOSTAT Lave-Vaisselle 60°C
Position: 16
Indicative price: 8.94 €
RACCORD Lave-Vaisselle SUPERIEUR
Position: 16
Indicative price: 52.34 €
SUPPORT Lave-Vaisselle PASSE CABLE Alimentation
Position: 16
Indicative price: 14.17 €

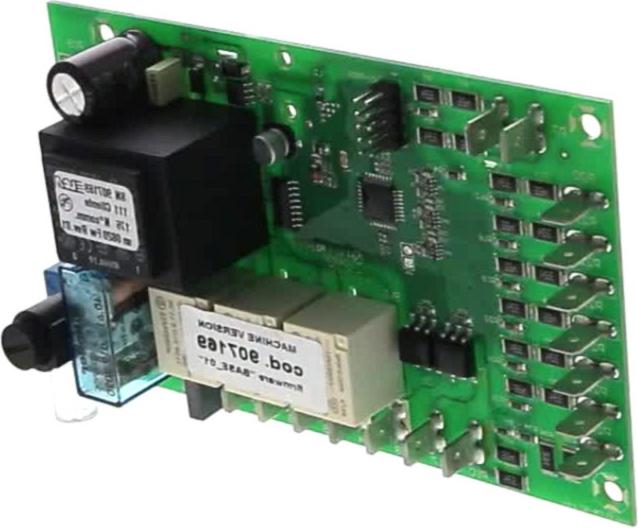

PLATINE Lave-Vaisselle PUISSANCE E248237 907169
Position: 17
Indicative price: 166.14 €
JOINT Lave-Vaisselle CHARNIERE
Position: 18
Indicative price: 5.44 €
BORNIER Cuisinière 6 BORNES
Position: 18
Indicative price: 16.13 €
TUBE Lave-Vaisselle LAVAGE
Position: 18
Indicative price: 80.89 €
TUYAU Lave-Vaisselle VIDANGE 24/30 1500mm
Position: 19
Indicative price: 19.23 €
SONDE Lave-Vaisselle MAGNETIQUE
Position: 19
Indicative price: 29.88 €

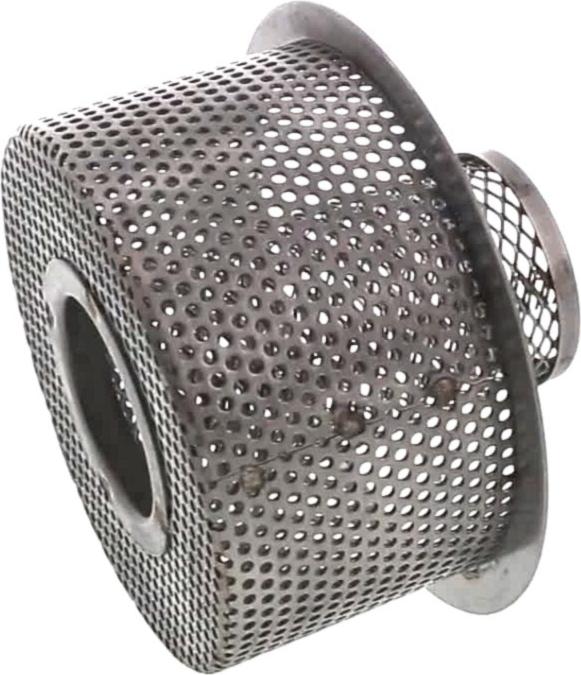

FILTRE Lave-Vaisselle D109MM H80MM
Position: 20
Indicative price: 89.55 €

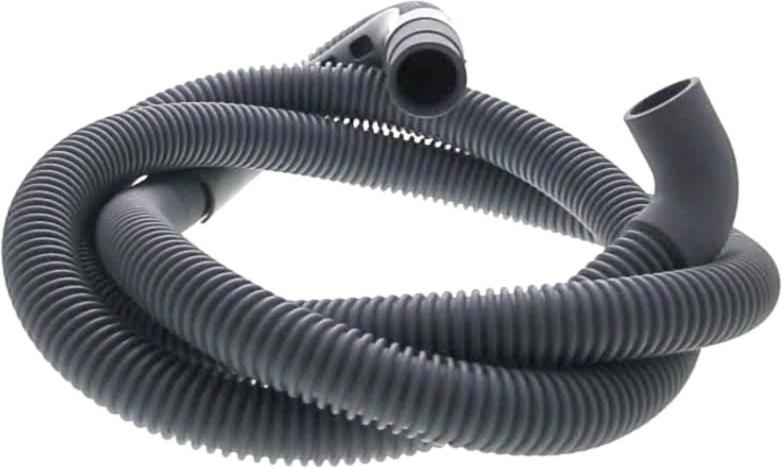

TUYAU Lave-Vaisselle VIDANGE coudé 19/19 2m
Position: 21
Indicative price: 19.52 €

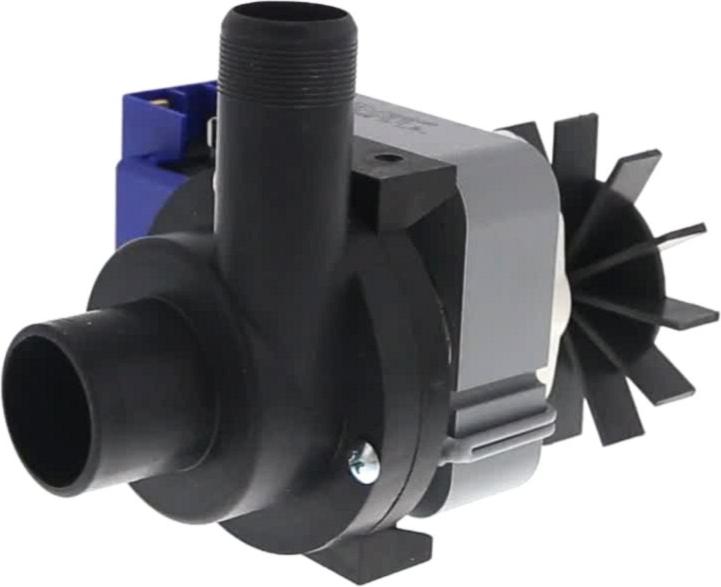

POMPE Lave-Vaisselle VIDANGE
Position: 22
Indicative price: 123.18 €

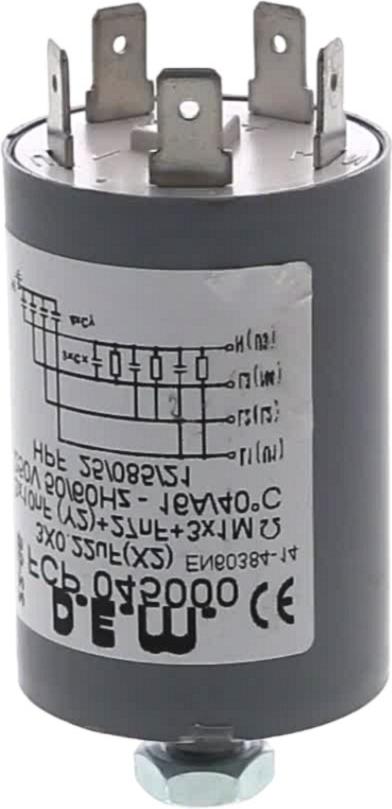

CONDENSATEUR Lave-Vaisselle ANTIPARASITE FCP045000
Position: 22
Indicative price: 45.27 €
SUPPORT Lave-Vaisselle FUSIBLE
Position: 23
Indicative price: 9.78 €
