Exploded view lave linge TECHWOOD TK1008SI13
Discover the complete exploded view lave linge TECHWOOD TK1008SI13, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge TECHWOOD TK1008SI13 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
DESSUS Lave-Linge COUVERCLE
Position: 2
Indicative price: 57.55 €
PIED Lave-Linge + ECROU
Position: 5
Indicative price: 8.3 €
HUBLOT Lave-Linge VERRE 352mm h=108mm
Position: 7
Indicative price: 28.37 €

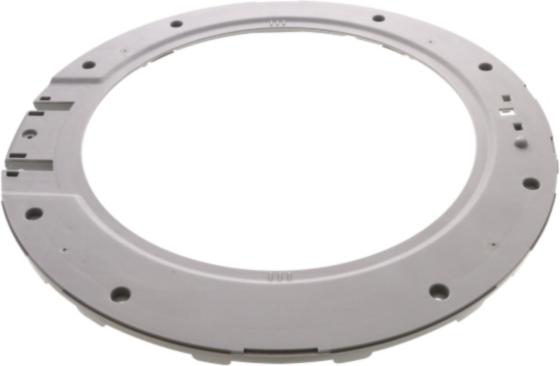

Contre porte Lave-Linge HUBLOT GRIS 3.0
Position: 8
Indicative price: 24.71 €
COLLIER Lave-Linge JOINT HUBLOT/FACADE
Position: 9
Indicative price: 9.17 €

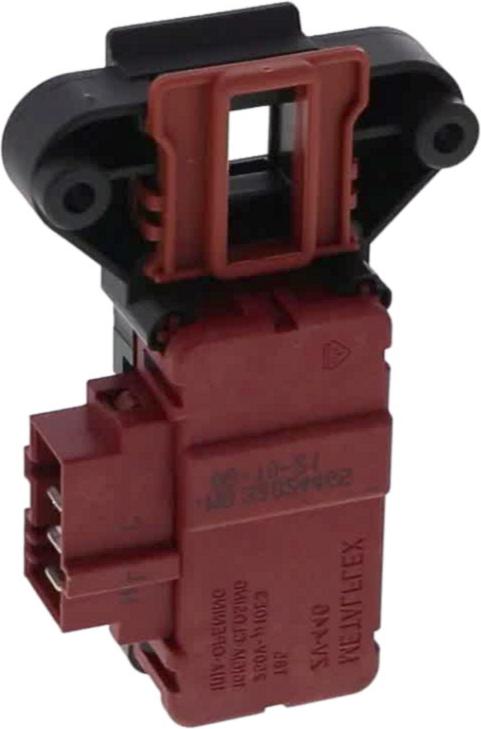

SECURITE Lave-Linge PORTE 3COSSES METALFLEX ZV-446
Position: 10
Indicative price: 18.26 €
CHARNIERE Lave-Linge HUBLOT
Position: 12
Indicative price: 22.7 €
AXE Lave-Linge Charnière HUBLOT UNITAIRE
Position: 13
Indicative price: 4.96 €
RESSORT Lave-Linge POIGNEE PORTE
Position: 15
Indicative price: 4.45 €

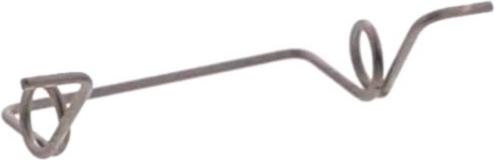

RESSORT Lave-Linge POIGNEE HUBLOT
Position: 16
Indicative price: 5.2 €
CROCHET Lave-Linge POIGNEE HUBLOT
Position: 17
Indicative price: 7.73 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 20
Indicative price: 15.71 €
TRAVERSE Lave-Linge Supérieur
Position: 24
Indicative price: 18.31 €
AXE Lave-Linge CROCHET POIGNEE PORTE LG 50.78MM Droit 3.86MM
Position: 27
Indicative price: 4.04 €
VIS Lave-Linge 3.5*16
Position: 28
Indicative price: 3.7 €

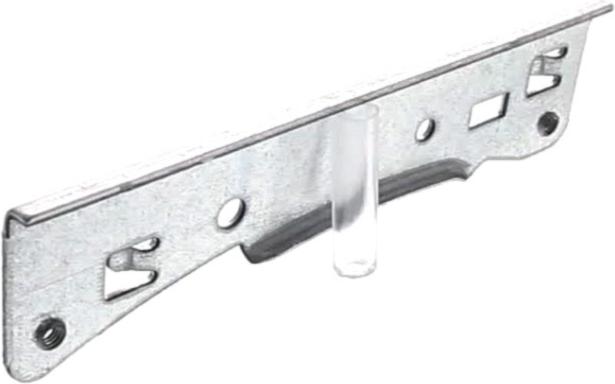

SUPPORT Lave-Linge CHARNIERE
Position: 33
Indicative price: 12.74 €

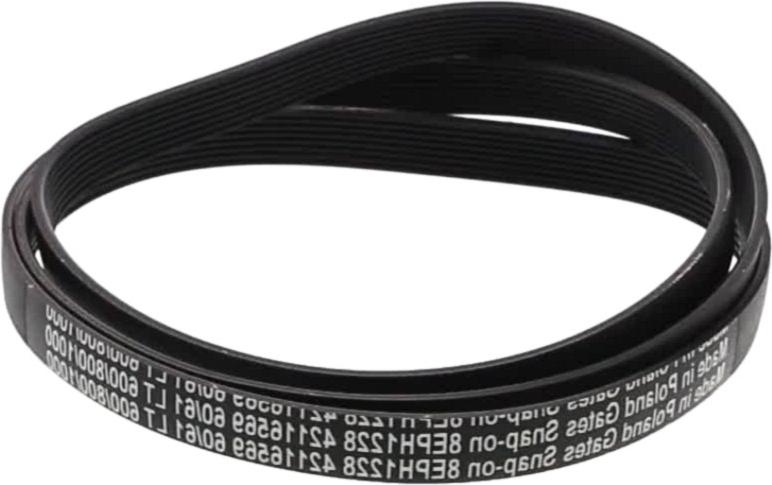

COURROIE Lave-Linge 6EPH1228 7EPH1228
Position: 100
Indicative price: 27.59 €
POULIE Lave-Linge TAMBOUR 290mm
Position: 101
Indicative price: 27.9 €
CUVE Lave-Linge 1/2 PLASTIQUE ARRIERE 52/57B2-24BOSS
Position: 103
Indicative price: 113.67 €
AMORTISSEUR Lave-Linge 120N 9
Position: 104
Indicative price: 21.81 €
AXE Lave-Linge AMORTISSEUR
Position: 105
Indicative price: 5.58 €
Contre-poids Lave-Linge Supérieur
Position: 112
Indicative price: 43.21 €
JOINT Lave-Linge 1/2 CUVE AV/CUVE ARR
Position: 113
Indicative price: 17.7 €
CLIPS Lave-Linge FIXATION RESISTANCE
Position: 115
Indicative price: 8.22 €
CUVE Lave-Linge 1/2 AVANT
Position: 117
Indicative price: 65.1 €
JOINT Lave-Linge HUBLOT
Position: 118
Indicative price: 40.25 €
COLLIER Lave-Linge JOINT/CUVE
Position: 119
Indicative price: 12.26 €
Contre-poids Lave-Linge AVANT
Position: 120
Indicative price: 48.94 €

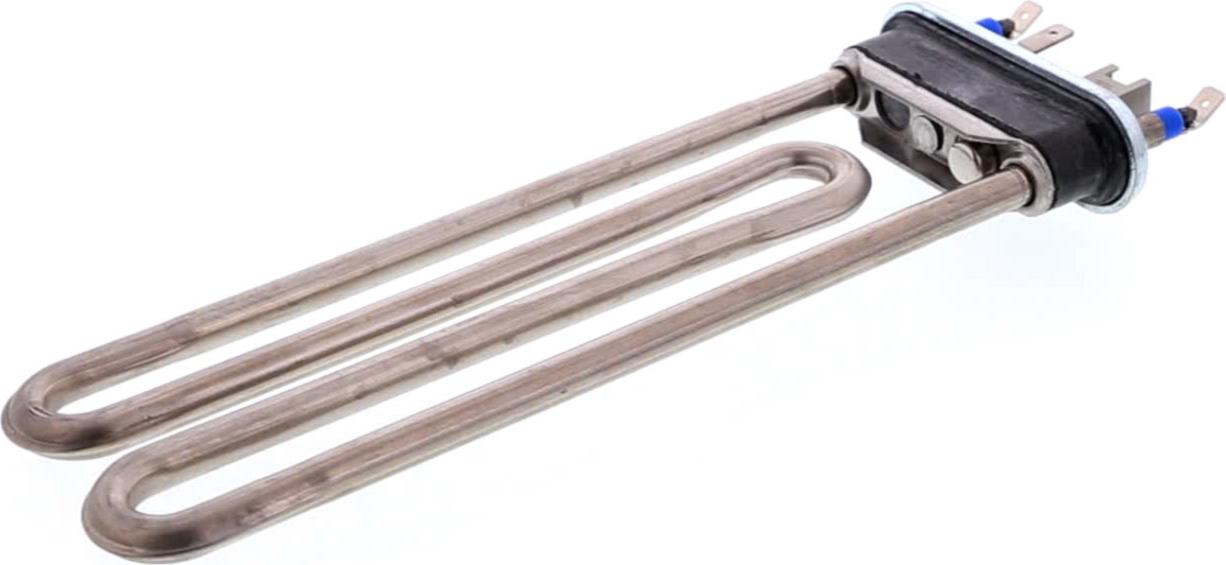

RESISTANCE Lave-Linge 2000W + SONDE
Position: 121
Indicative price: 38.02 €
VIS Lave-Linge POULIE TAMBOUR M8*20
Position: 124
Indicative price: 6.84 €
VIS Lave-Linge 1/2 CUVE AV/AR
Position: 126
Indicative price: 2.6 €
TAMBOUR Lave-Linge 55-ALVA B2
Position: 160
Indicative price: 127.1 €
DURITE Lave-Linge BOITE LESSIVE / CUVE
Position: 206
Indicative price: 15.05 €
DURITE Lave-Linge EV/BAC Lessive 220mm
Position: 207
Indicative price: 8.28 €
TUYAU Lave-Linge EV/BOITE Lessive 240mm
Position: 208
Indicative price: 5.44 €
ELECTROVANNE Lave-Linge 2 VOIES 180° 33490081
Position: 209
Indicative price: 32.44 €
DURITE Lave-Linge PRESSOSTAT 577mm
Position: 211
Indicative price: 29.31 €
CHAMBRE Lave-Linge COMPRESSION
Position: 212
Indicative price: 13.82 €
DURITE Lave-Linge CUVE/PV
Position: 213
Indicative price: 23 €
CONDO Lave-Linge ANTIPARASITE Démarrage FLCB992561ER5 470nF(x2)+2x27nF(Y2)
Position: 215
Indicative price: 25.32 €
TUYAU Lave-Linge VIDANGE
Position: 219
Indicative price: 14.29 €
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 220
Indicative price: 8.42 €
ENTRETOISE Lave-Linge RESSORT/MEUBLE
Position: 221
Indicative price: 6.3 €
PRESSOSTAT Lave-Linge ELECTRONIQUE
Position: 225
Indicative price: 36.57 €
COLLIER Lave-Linge TUYAU EV/BOITE
Position: 228
Indicative price: 4.71 €
TRAVERSE Lave-Linge Supérieur
Position: 231
Indicative price: 19.75 €
COLLIER Lave-Linge PV/TUYAU VID 32.7mm
Position: 234
Indicative price: 3.8 €
COLLIER Lave-Linge TUYAU VIDANGE
Position: 235
Indicative price: 4.73 €

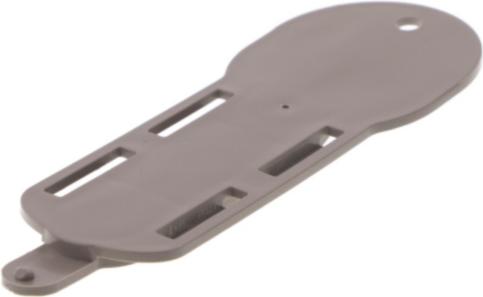

CACHE Lave-Linge ARRIERE VIS POULIE TAMBOUR
Position: 238
Indicative price: 6.43 €
CABLE Lave-Linge ALIMENTATION COSSES COUDEES 3G1 1m50
Position: 239
Indicative price: 18.82 €

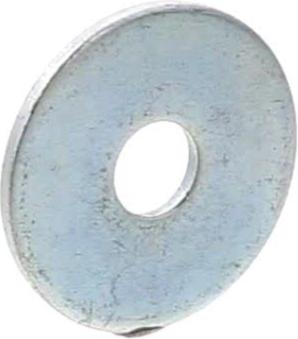

RONDELLE Lave-Linge VIS POULIE TAMBOUR 29*8*2
Position: 241
Indicative price: 4.03 €
COLLIER Lave-Linge DURITE PRESSOSTAT
Position: 244
Indicative price: 2.35 €
SUPPORT Lave-Linge
Position: 251
Indicative price: 10.94 €
BOITE Lave-Linge LESSIVE COMPLETE 5 GRISE
Position: 270
Indicative price: 30.86 €
Pompe de vidange Lave-Linge
Position: 285
Indicative price: 44.02 €
KIT Lave-Linge BRIDAGE UNITAIRE
Position: 290
Indicative price: 14.12 €
DURITE Lave-Linge CUVE/PV + CHAMBRE COMPRESSION + TUYAU PRESSOSTAT
Position: 295
Indicative price: 26.98 €
ENTRETOISE Lave-Linge MANETTE Programmateur
Position: 403
Indicative price: 9.88 €
TRANSFERT Lave-Linge LAMPE
Position: 405
Indicative price: 12.12 €
SUPPORT Lave-Linge TRANSFERT LAMPE
Position: 406
Indicative price: 20.64 €
VIS Lave-Linge 4*12 TORX
Position: 410
Indicative price: 2.26 €
SUPPORT Lave-Linge PLATINE ELECTRONIQUE
Position: 411
Indicative price: 27.83 €
PLATINE Lave-Linge F2B 47276FF02010 FALVA22 19008300v05T 48K AC
Position: 412
Indicative price: 104.41 €
BLOCAGE Lave-Linge CABLAGE 6 BROCHES
Position: 461
Indicative price: 17.34 €
BLOCAGE Lave-Linge CABLAGE 5 BROCHES
Position: 462
Indicative price: 16.86 €
BLOCAGE Lave-Linge CABLAGE 3 BROCHES
Position: 463
Indicative price: 17.57 €

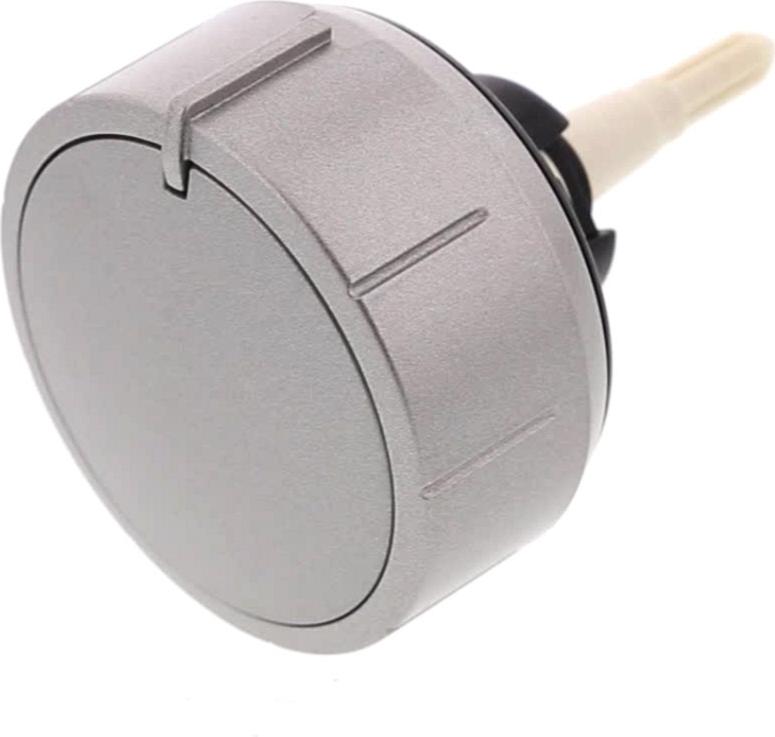

MANETTE Lave-Linge Programmateur
Position: 471
Indicative price: 14.75 €
DOUILLE Lave-Linge RESSORT/CUVE
Position: 700
Indicative price: 4.52 €
SUPPORT Lave-Linge CACHE POMPE
Position: 701
Indicative price: 12.72 €
TRAPPE Lave-Linge POMPE
Position: 702
Indicative price: 17.47 €
RESSORT Lave-Linge SUSPENSION CUVE
Position: 800
Indicative price: 14.62 €
VIS Lave-Linge Contre-poids FACADE + RONDELLE
Position: 805
Indicative price: 8.57 €
RONDELLE Lave-Linge Contre-poids AVANT 28*8*3
Position: 806
Indicative price: 2.55 €
VIS Lave-Linge Contre-poids Supérieur
Position: 808
Indicative price: 3.96 €
RENFORT Lave-Linge TOLE
Position: 811
Indicative price: 17.35 €
ECROU Lave-Linge Contre-poids Supérieur M8 GROWER
Position: 812
Indicative price: 2.3 €
Batteur Lave-Linge TAMBOUR
Position: 813
Indicative price: 8.53 €
SUPPORT Lave-Linge
Position: 898
Indicative price: 3.77 €
RESISTANCE Lave-Linge 2000W (fournie sans le fusible)
Position: 899
Indicative price: 43.08 €
CLIPS Lave-Linge PANNEAU AVANT
Position: 920
Indicative price: 2.96 €
KIT Lave-Linge LESSIVE LIQUIDE 68*44
Position: 996
Indicative price: 8.06 €
CROSSE Lave-Linge TUYAU VIDANGE 408*122
Position: 997
Indicative price: 6.07 €
SONDE Lave-Linge RESISTANCE RAST
Position: 999
Indicative price: 16.96 €
COUVERCLE Lave-Linge SUPPORT PLATINE
Position: 1100
Indicative price: 14.06 €
SUPPORT Lave-Linge CHARNIERE
Position: 1200
Indicative price: 15.78 €
COLLIER Lave-Linge DURITE CUVE POMPE coté cuve + vis 72mm
Position: 1402
Indicative price: 4.95 €
VIS Lave-Linge 4.2*16
Position: 1501
Indicative price: 2.32 €
RONDELLE Lave-Linge 40*10*3
Position: 1507
Indicative price: 3.96 €
VIS Lave-Linge 4*14 TSB INOX
Position: 1509
Indicative price: 2.51 €
ENTRETOISE Lave-Linge PANNEAU AVANT
Position: 1511
Indicative price: 5.9 €
