ELECTROLUX EW7H5858EB 91609903100

Exploded view seche linge ELECTROLUX EW7H5858EB 91609903100

Discover the complete exploded view seche linge ELECTROLUX EW7H5858EB 91609903100, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your seche linge. Quickly find the parts you need to extend the life of your seche linge ELECTROLUX EW7H5858EB 91609903100 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

PIED Sèche-Linge
PIED Sèche-Linge
Position: 130
Indicative price: 9.73 €

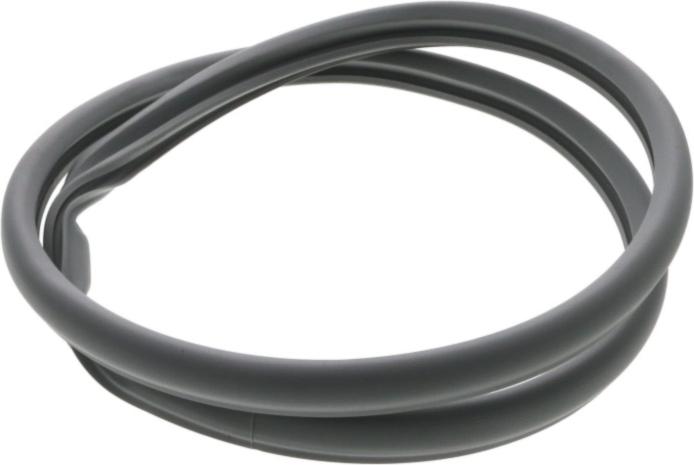

JOINT Sèche-Linge PORTE
JOINT Sèche-Linge PORTE
Position: 160
Indicative price: 36.75 €

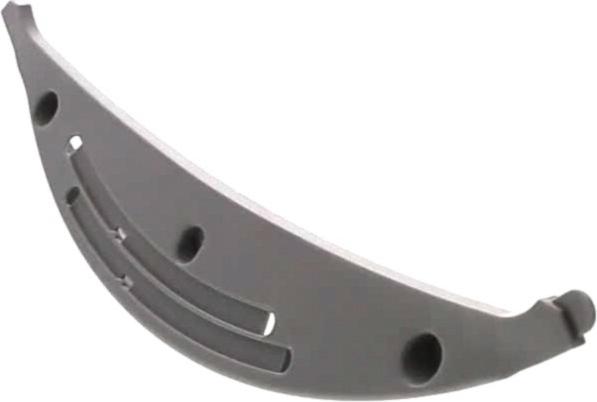

SUPPORT Sèche-Linge SONDE
SUPPORT Sèche-Linge SONDE
Position: 161
Indicative price: 8.33 €
JOINT Sèche-Linge FILTRE PELUCHE
JOINT Sèche-Linge FILTRE PELUCHE
Position: 162
Indicative price: 22.89 €
MANETTE Sèche-Linge PROGRAMMATEUR
MANETTE Sèche-Linge PROGRAMMATEUR
Position: 200
Indicative price: 20 €
HUBLOT Sèche-Linge
HUBLOT Sèche-Linge
Position: 362
Indicative price: 74.88 €
CHARNIERE Sèche-Linge HUBLOT
CHARNIERE Sèche-Linge HUBLOT
Position: 363
Indicative price: 36.4 €

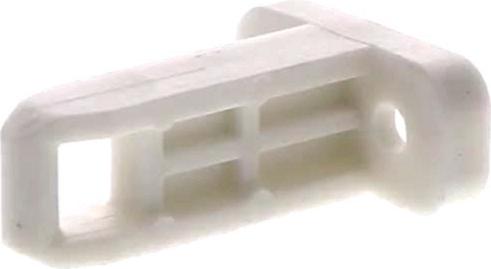

DOIGT Sèche-Linge FERMETURE
DOIGT Sèche-Linge FERMETURE
Position: 370
Indicative price: 17.41 €
RESERVOIR Sèche-Linge EAU
RESERVOIR Sèche-Linge EAU
Position: 441
Indicative price: 50.31 €
DURITE Sèche-Linge L=770mm
DURITE Sèche-Linge L=770mm
Position: 450
Indicative price: 6.31 €
MOTEUR Sèche-Linge Ventilation REFROIDISSEMENT
MOTEUR Sèche-Linge Ventilation REFROIDISSEMENT
Position: 502
Indicative price: 44.7 €

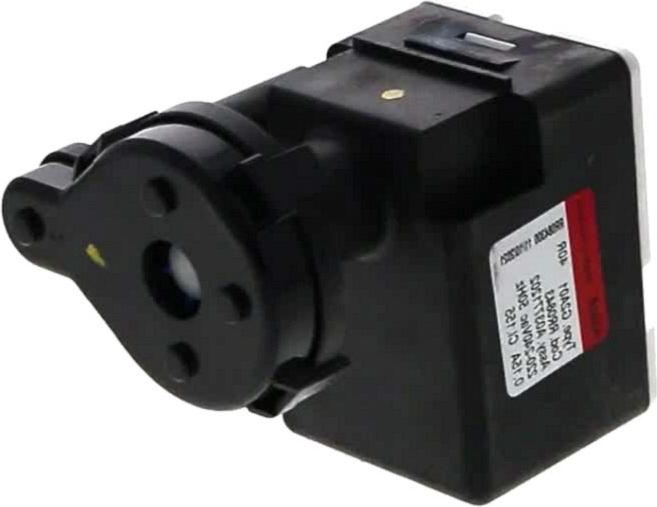

POMPE Sèche-Linge RELEVAGE G2A01 A03771202
POMPE Sèche-Linge RELEVAGE G2A01 A03771202
Position: 506
Indicative price: 60.8 €

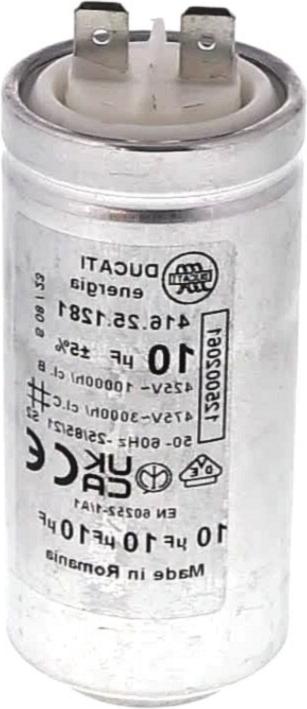

CONDENSATEUR Sèche-Linge MOTEUR 10uf
CONDENSATEUR Sèche-Linge MOTEUR 10uf
Position: 511
Indicative price: 38.24 €

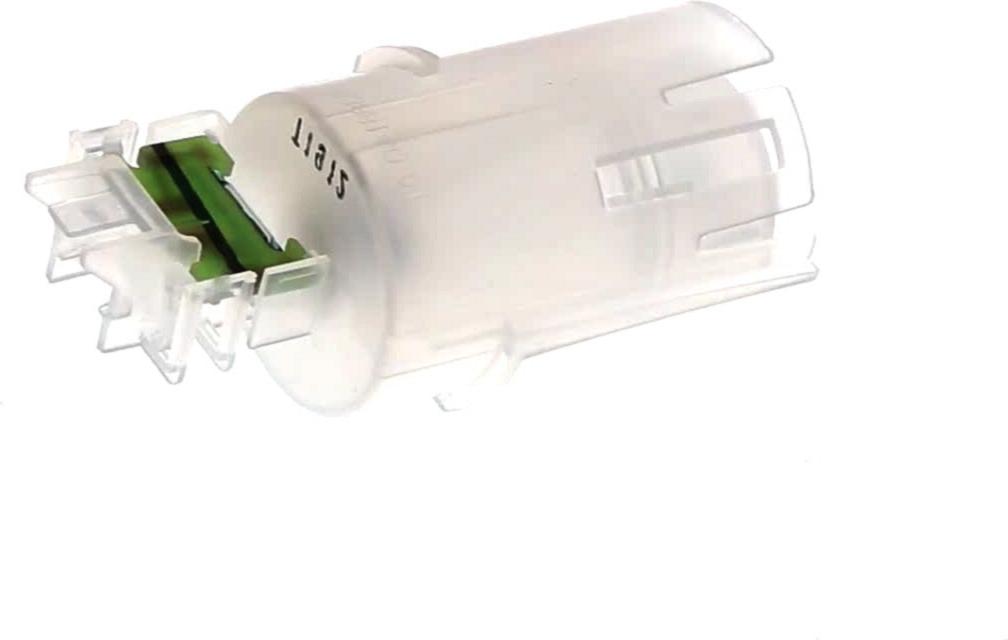

INTERRUPTEUR Lave-Vaisselle FLOTTEUR
INTERRUPTEUR Lave-Vaisselle FLOTTEUR
Position: 512
Indicative price: 31.32 €
BAGUE Sèche-Linge TURBINE diam 49,7
BAGUE Sèche-Linge TURBINE diam 49,7
Position: 514
Indicative price: 24.56 €

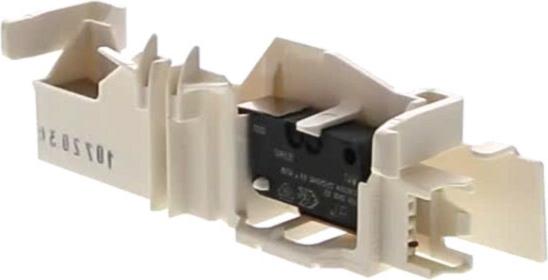

Interrupteur Sèche-Linge PORTE
Interrupteur Sèche-Linge PORTE
Position: 515
Indicative price: 23.65 €

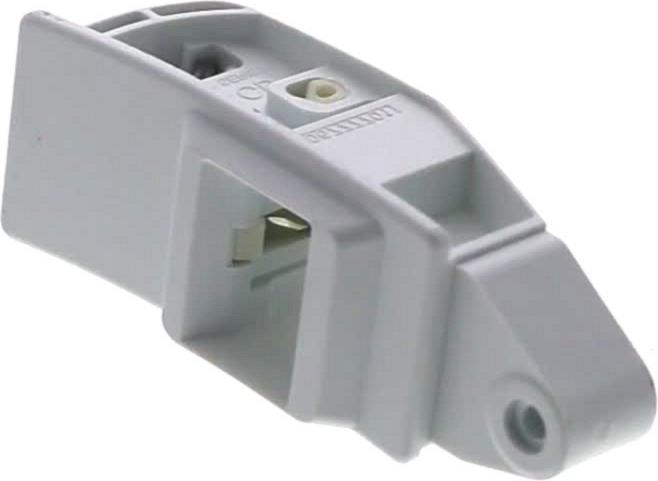

SECURITE Sèche-Linge PORTE
SECURITE Sèche-Linge PORTE
Position: 521
Indicative price: 52.67 €
SENSEUR HUMIDITé
SENSEUR HUMIDITé
Position: 522
Indicative price: 8.49 €

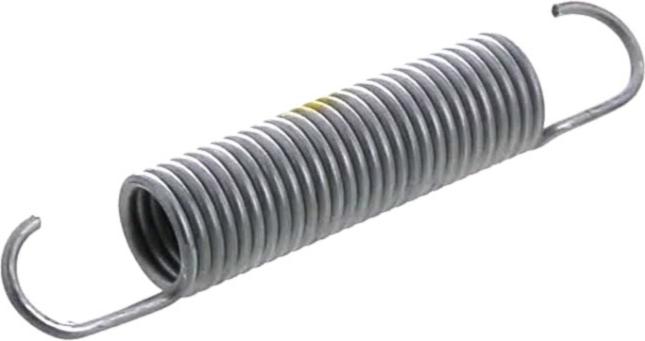

RESSORT Sèche-Linge TENSION MOTEUR
RESSORT Sèche-Linge TENSION MOTEUR
Position: 524
Indicative price: 13.88 €

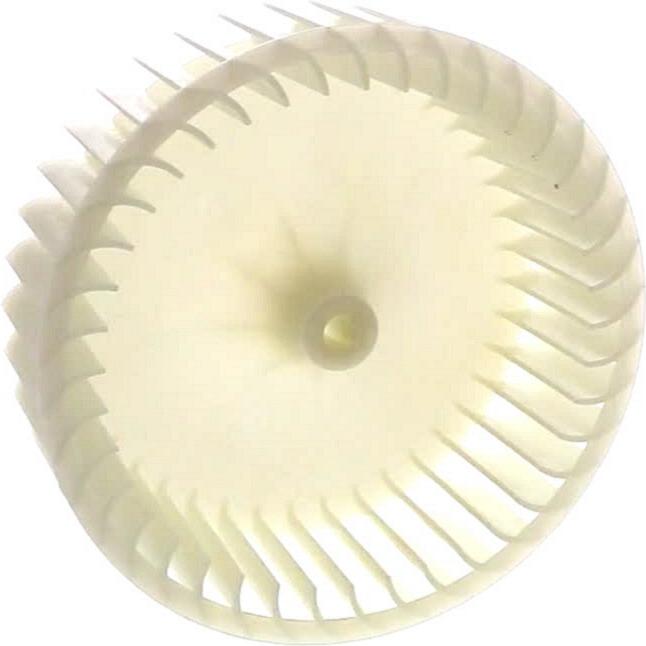

TURBINE Sèche-Linge
TURBINE Sèche-Linge
Position: 530
Indicative price: 40.4 €
PATIN Sèche-Linge AVANT
PATIN Sèche-Linge AVANT
Position: 532
Indicative price: 7.88 €
PATIN Sèche-Linge ARRIERE
PATIN Sèche-Linge ARRIERE
Position: 533
Indicative price: 5.79 €

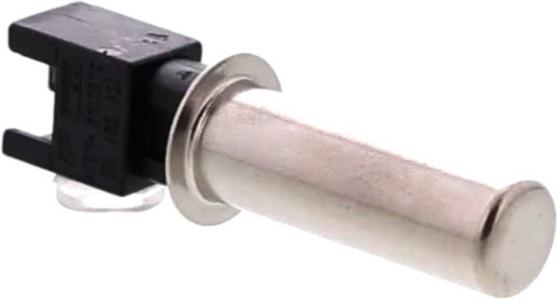

SONDE Sèche-Linge
SONDE Sèche-Linge
Position: 548
Indicative price: 43.11 €
POULIE Sèche-Linge TENDEUR
POULIE Sèche-Linge TENDEUR
Position: 563
Indicative price: 19.45 €

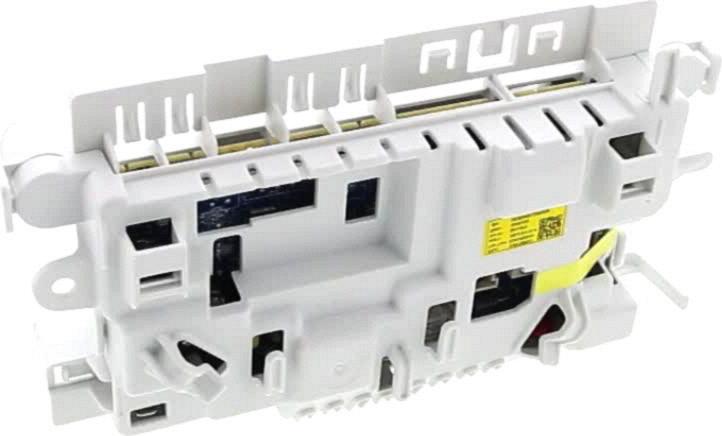

PLATINE Sèche-Linge PUISSANCE programmée
PLATINE Sèche-Linge PUISSANCE programmée
Position: 587
Indicative price: 212.21 €

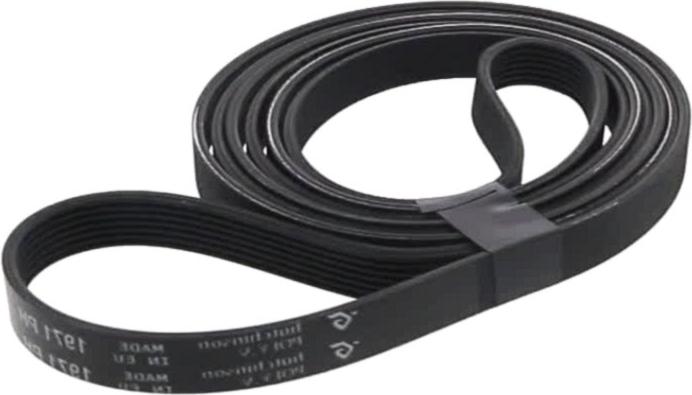

COURROIE Sèche-Linge 1971PH7
COURROIE Sèche-Linge 1971PH7
Position: 602
Indicative price: 32.6 €

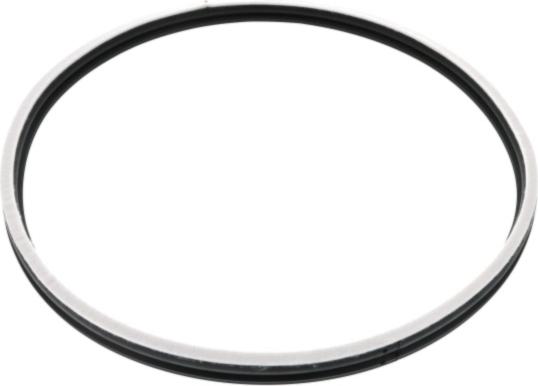

JOINT Sèche-Linge TAMBOUR AVANT
JOINT Sèche-Linge TAMBOUR AVANT
Position: 603
Indicative price: 31.79 €

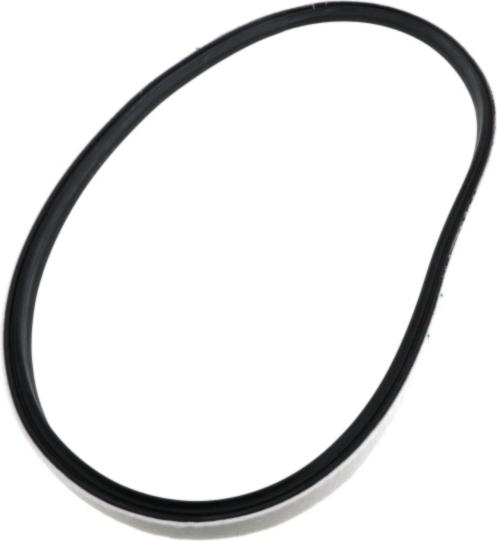

JOINT Sèche-Linge AVANT
JOINT Sèche-Linge AVANT
Position: 604
Indicative price: 39.18 €

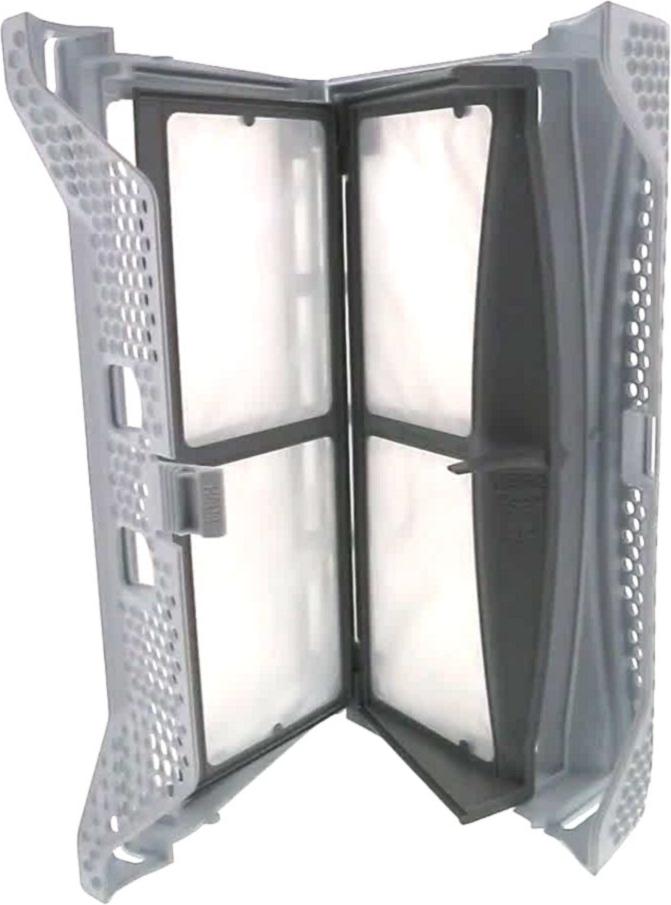

FILTRE Sèche-Linge PELUCHES
FILTRE Sèche-Linge PELUCHES
Position: 607
Indicative price: 43.88 €
AXE Sèche-Linge ROULETTE
AXE Sèche-Linge ROULETTE
Position: 635
Indicative price: 8.79 €
ROUE Sèche-Linge AVANT 70mm axe 10mm
ROUE Sèche-Linge AVANT 70mm axe 10mm
Position: 635
Indicative price: 39.53 €
VIS Sèche-Linge POULIE AVANT
VIS Sèche-Linge POULIE AVANT
Position: 635
Indicative price: 5.28 €
RONDELLE Sèche-Linge GALET TENDEUR
RONDELLE Sèche-Linge GALET TENDEUR
Position: 999
Indicative price: 8.01 €
