Exploded view seche linge ELECTROLUX EDI97170W 91609667300
Discover the complete exploded view seche linge ELECTROLUX EDI97170W 91609667300, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your seche linge. Quickly find the parts you need to extend the life of your seche linge ELECTROLUX EDI97170W 91609667300 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
MOTEUR Sèche-Linge
Position: 4
Indicative price: 188.46 €

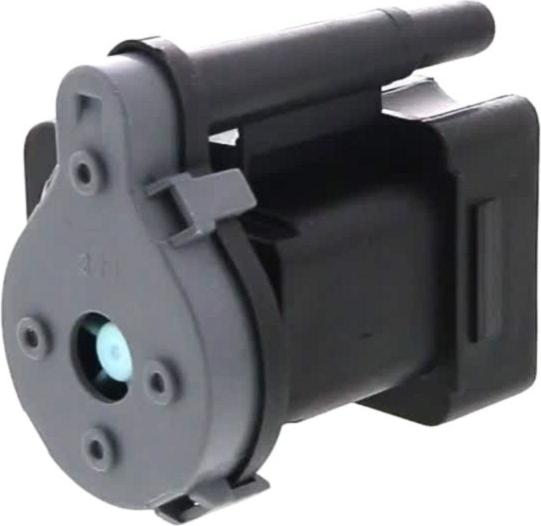

POMPE Sèche-Linge RELEVAGE
Position: 6
Indicative price: 69.43 €
Interrupteur Sèche-Linge MICROSWITCH FLOTTEUR
Position: 7
Indicative price: 13.75 €

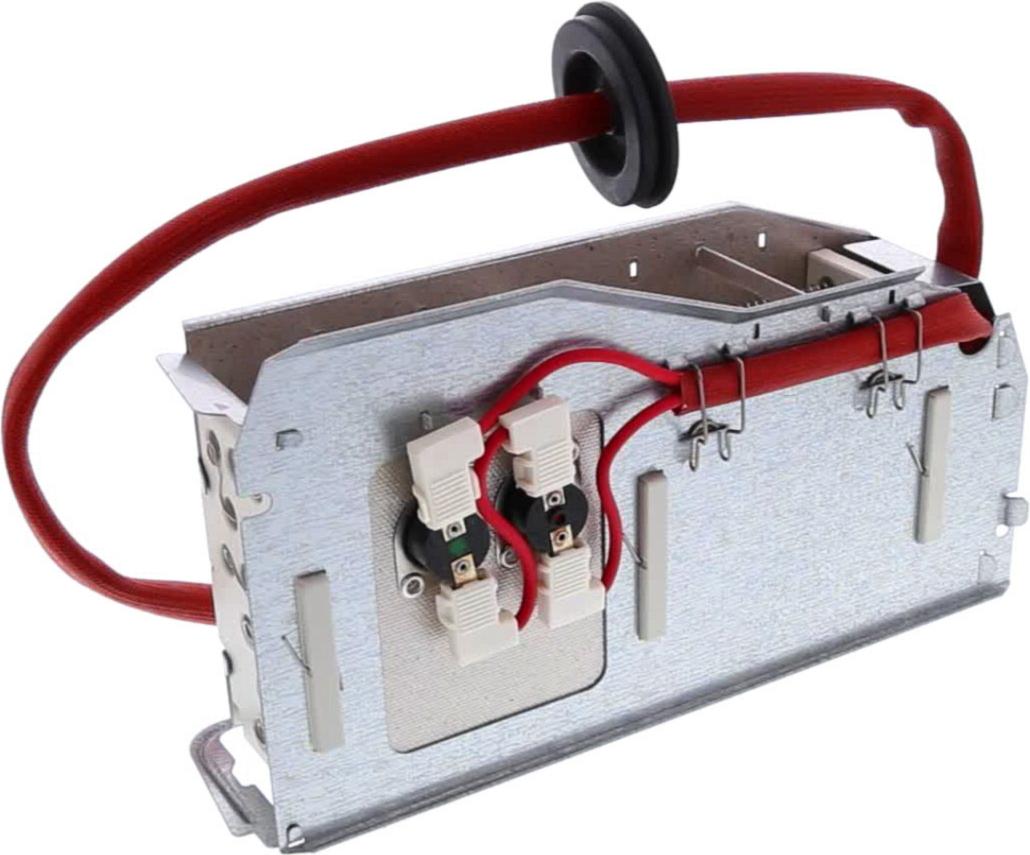

RESISTANCE Sèche-Linge 1400+800w 3COSSES
Position: 10
Indicative price: 122.4 €

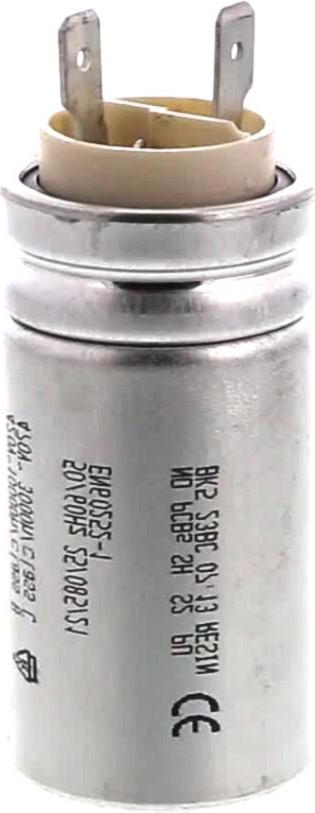

CONDENSATEUR Hotte 5uf
Position: 11
Indicative price: 31.47 €
CONDENSATEUR Sèche-Linge 4uf
Position: 11
Indicative price: 21.69 €

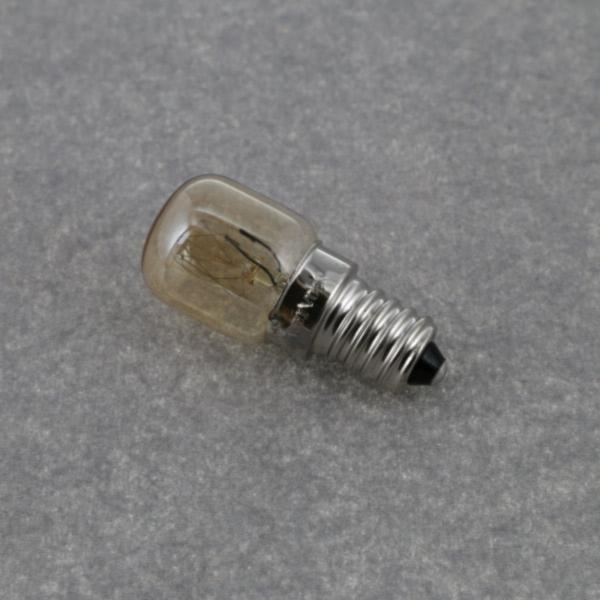

AMPOULE Sèche-Linge 10W E14 48mm
Position: 19
Indicative price: 15.09 €
DOUILLE Sèche-Linge LAMPE
Position: 19
Indicative price: 26.32 €

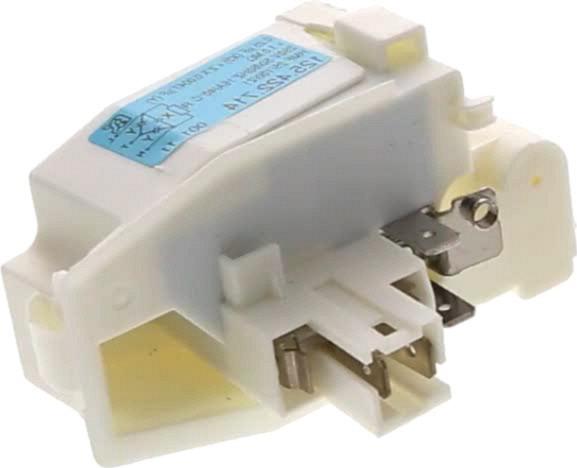

BORNIER Sèche-Linge Alimentation +ANTIPARASITE 0.25MF
Position: 37
Indicative price: 55.72 €

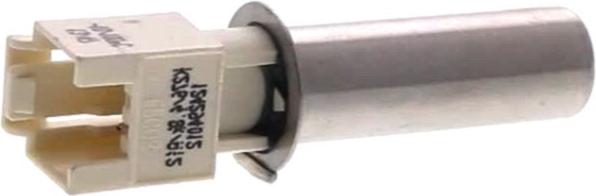

SONDE Lave-Linge TEMPERATURE
Position: 48
Indicative price: 38.51 €
DURITE Sèche-Linge RESERVOIR POMPE L=585mm
Position: 110
Indicative price: 17.71 €
COUVERCLE Sèche-Linge PANNEAU ARRIERE
Position: 116
Indicative price: 49.38 €
JOINT Sèche-Linge HUBLOT
Position: 130
Indicative price: 49.4 €
JOINT Sèche-Linge HUBLOT LAMPE
Position: 130
JOINT Sèche-Linge FEUTRE ARRIERE
Position: 130
JOINT Sèche-Linge FEUTRE AVANT
Position: 130
Indicative price: 55.16 €

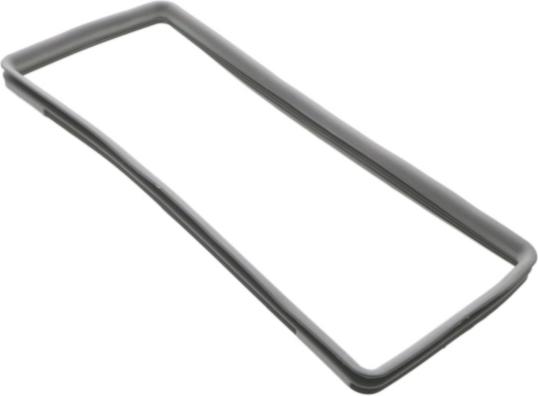

JOINT Sèche-Linge CONDENSEUR AVANT
Position: 130
Indicative price: 23.69 €

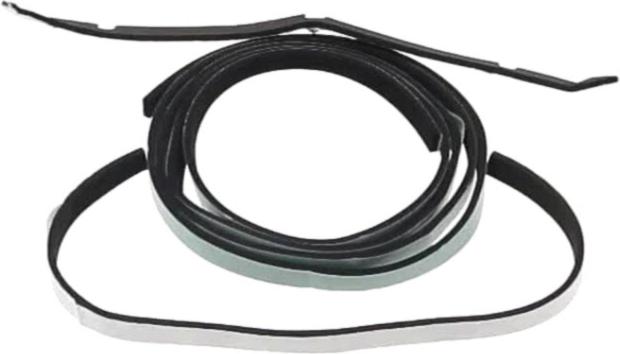

JOINT Sèche-Linge PANNEAU ARRIERE
Position: 130
Indicative price: 50.01 €

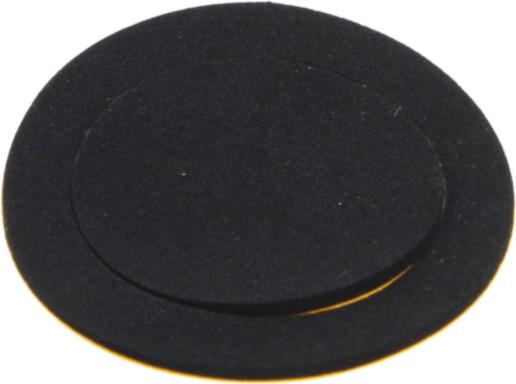

JOINT Sèche-Linge PALIER
Position: 130
Indicative price: 16.24 €
CONDENSEUR Sèche-Linge
Position: 146
Indicative price: 111.39 €
TURBINE Sèche-Linge AVANT
Position: 159
Indicative price: 48.91 €
TURBINE Sèche-Linge ARRIERE
Position: 159
Indicative price: 39.51 €
TAMBOUR Sèche-Linge
Position: 250
Indicative price: 179.81 €

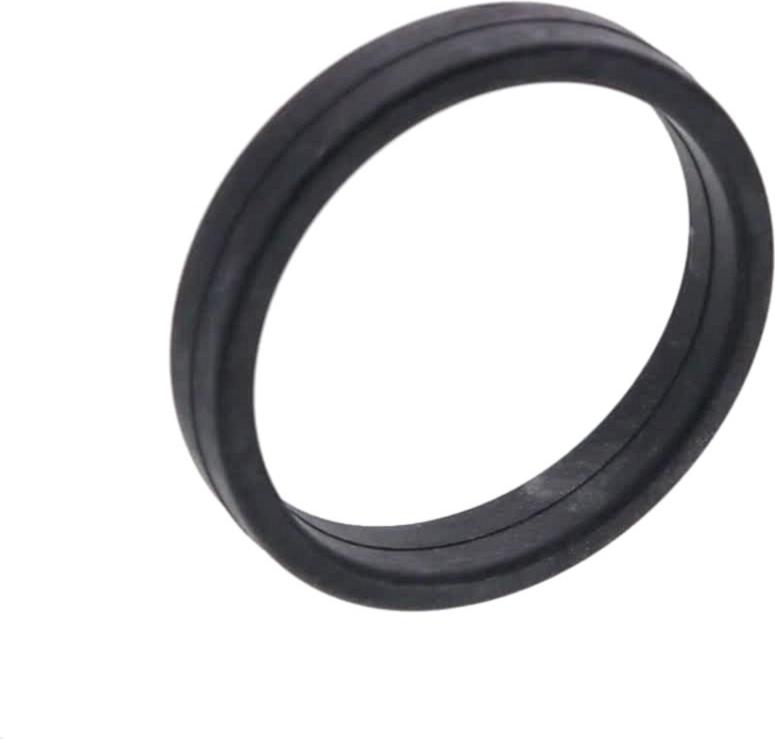

BAGUE Sèche-Linge TURBINE diam 49,7
Position: 251
Indicative price: 26.78 €

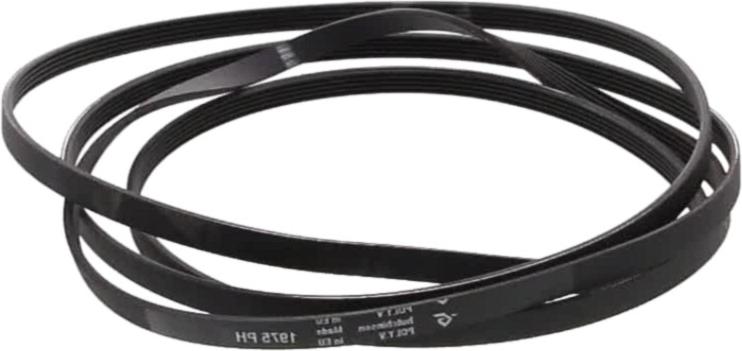

COURROIE Sèche-Linge 1975H5=1975H7
Position: 253
Indicative price: 27.17 €

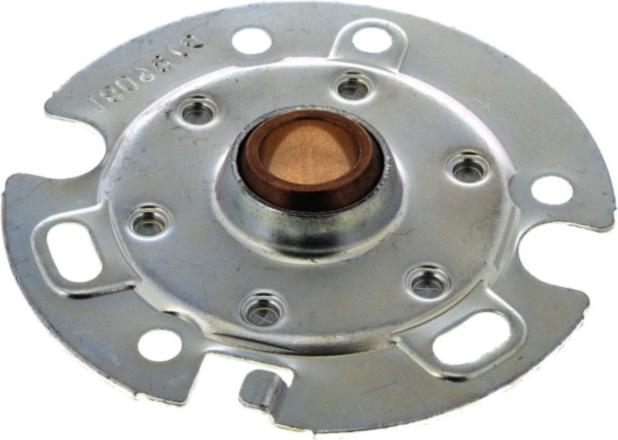

PALIER Sèche-Linge ARRIERE
Position: 255
Indicative price: 32.14 €

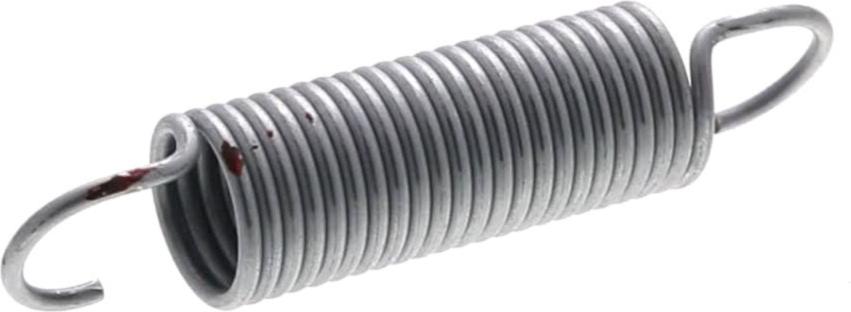

RESSORT Lave-Linge TENSION COURROIE
Position: 260
Indicative price: 15.14 €

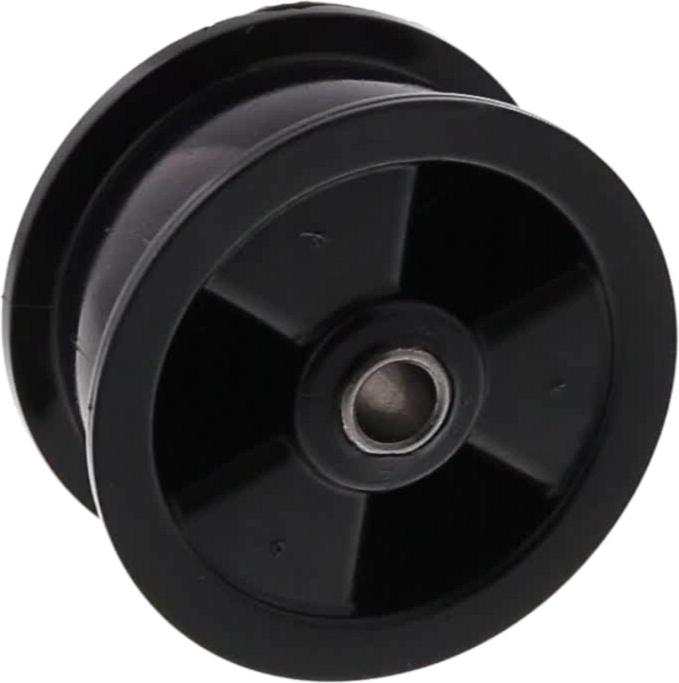

POULIE Sèche-Linge TENDEUR
Position: 263
Indicative price: 19.86 €
PLINTHE Sèche-Linge
Position: 303
Indicative price: 43.78 €
CHARNIERE Sèche-Linge HUBLOT
Position: 308
Indicative price: 20.71 €
CARTER Sèche-Linge POMPE
Position: 309
Indicative price: 31.34 €
TRAPPE Sèche-Linge CONDENSEUR
Position: 310
Indicative price: 33.03 €
Contre porte Sèche-Linge TRAPPE CONDENSEUR
Position: 310
Indicative price: 39.77 €
CONTRE PORTE Sèche-Linge + JOINT
Position: 312
Indicative price: 57.44 €

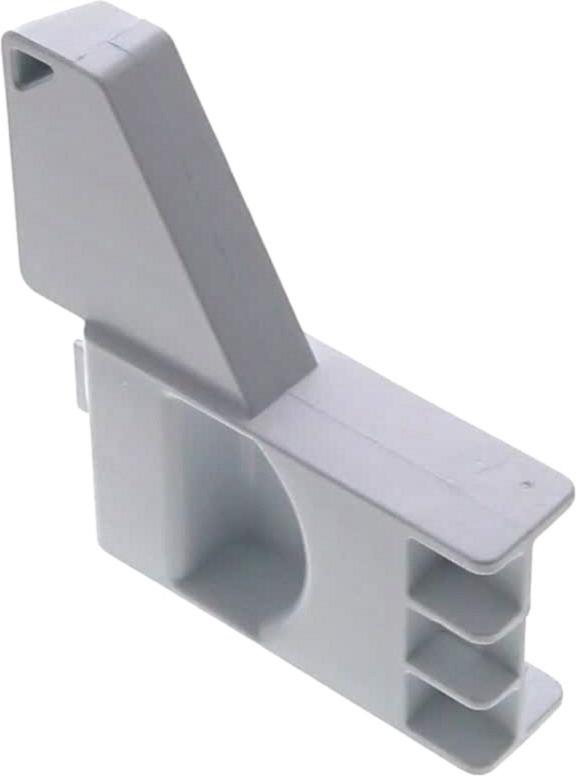

FERMETURE Sèche-Linge TRAPPE
Position: 325
Indicative price: 7.83 €
RESSORT Sèche-Linge SECURITE HUBLOT
Position: 325
Indicative price: 4.33 €

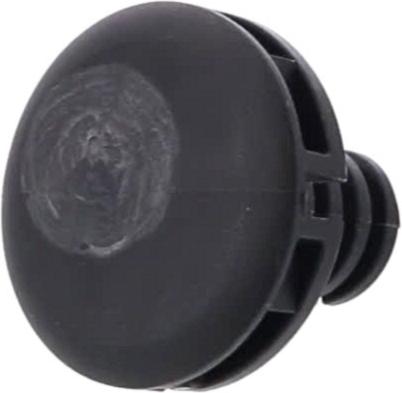

PIED Sèche-Linge
Position: 330
Indicative price: 10.6 €

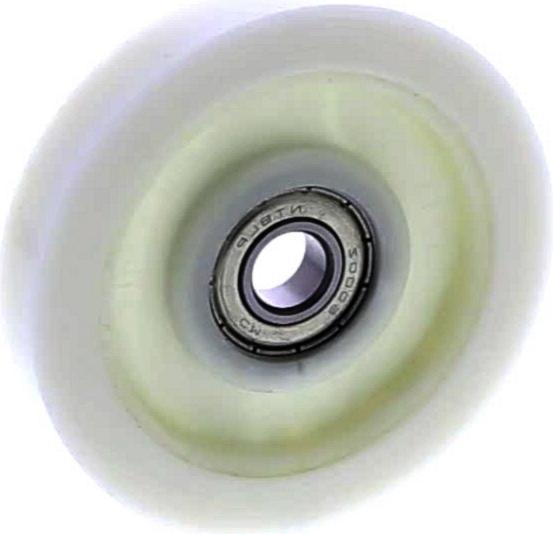

ROUE Sèche-Linge AVANT 70mm axe 10mm
Position: 335
Indicative price: 43.32 €
RESERVOIR Sèche-Linge EAU
Position: 346
Indicative price: 26.2 €
BOUTON Sèche-Linge FILTRE RESERVOIR
Position: 500
AXE Sèche-Linge ROULETTE
Position: 514
Indicative price: 9.83 €

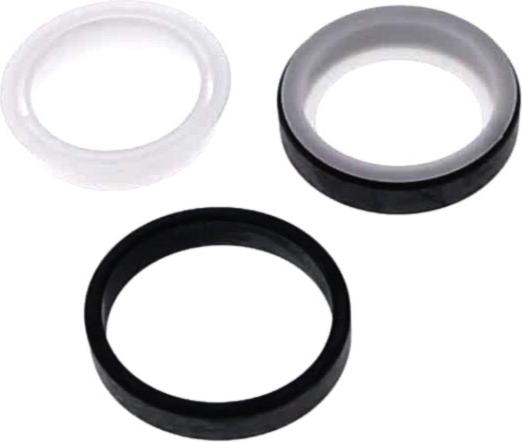

DOUILLE Sèche-Linge MOTEUR ARRIERE
Position: 514
Indicative price: 7.39 €
DOUILLE Sèche-Linge MOTEUR AVANT
Position: 514
Indicative price: 14.38 €
AXE Sèche-Linge TAMBOUR
Position: 520
Indicative price: 71.41 €
CACHE Sèche-Linge HUBLOT LAMPE TAMBOUR
Position: 521
Indicative price: 17.79 €

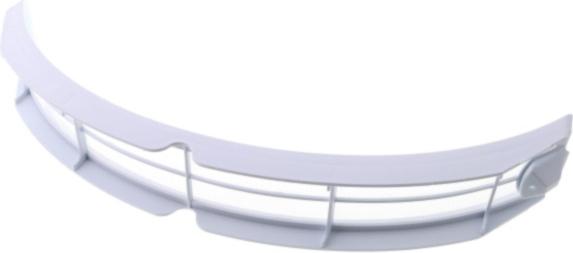

FILTRE Sèche-Linge PELUCHES
Position: 523
Indicative price: 34.43 €
SUPPORT Sèche-Linge FLEXIBLE
Position: 523
Indicative price: 6.67 €

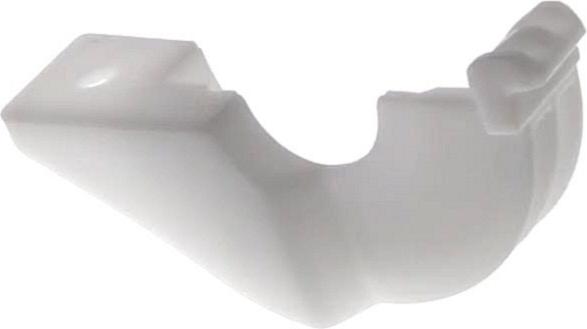

SUPPORT Sèche-Linge MOTEUR ARRIERE
Position: 523
Indicative price: 10.1 €
SUPPORT Sèche-Linge RAMPE
Position: 523
Indicative price: 16.49 €

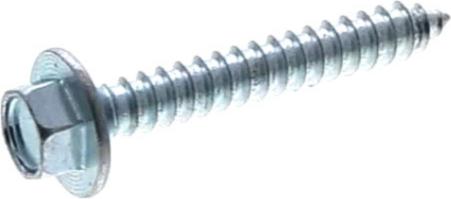

VIS Sèche-Linge POULIE AVANT
Position: 531
Indicative price: 5.5 €

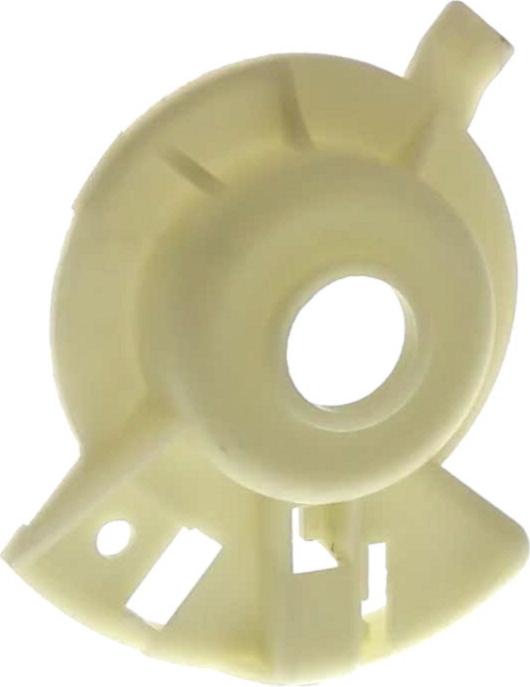

CACHE Sèche-Linge BOULON ARRIERE TAMBOUR
Position: 550
Indicative price: 18.28 €
COUVERCLE Sèche-Linge CONDUIT PANNEAU ARRIERE
Position: 550
Indicative price: 39.65 €
ISOLANT Sèche-Linge CARTER POMPE
Position: 557
Indicative price: 14.33 €

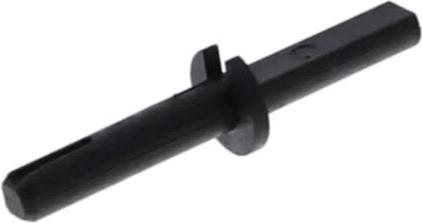

AXE Sèche-Linge MANETTE SELECTEUR
Position: 563
Indicative price: 5.66 €
AXE Sèche-Linge CHARNIERE PORTE
Position: 563
Indicative price: 5.91 €
CHARBON Sèche-Linge TAMBOUR
Position: 584
Indicative price: 43.4 €
BROSSE Sèche-Linge CONTACT ELECTRONIQUE
Position: 584
Indicative price: 36.4 €
PLATINE Sèche-Linge PUISSANCE
Position: 587
Indicative price: 141.2 €
RONDELLE Sèche-Linge GALET TENDEUR
Position: 999
Indicative price: 7.13 €

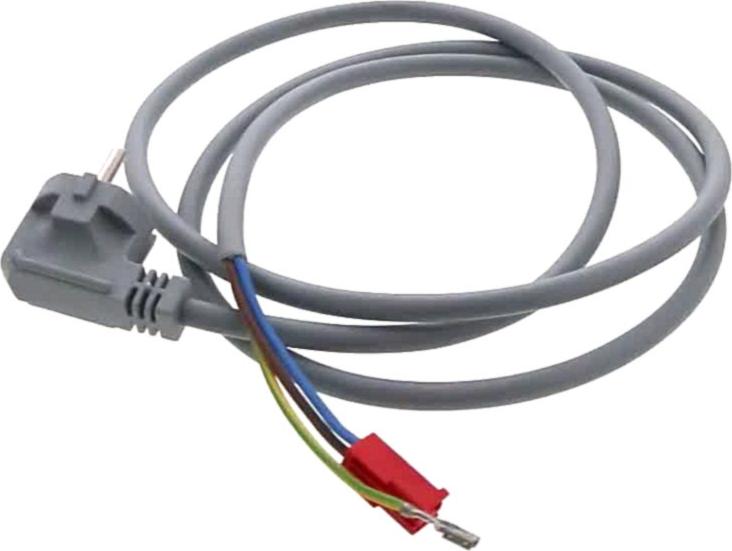

CABLE Lave-Linge ALIMENTATION
Position: 999
Indicative price: 31.3 €
