Exploded view four ELECTROLUX EOC66315X 94971311700

Discover the complete exploded view four ELECTROLUX EOC66315X 94971311700, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your four. Quickly find the parts you need to extend the life of your four ELECTROLUX EOC66315X 94971311700 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

THERMOSTAT Four SECURITE NC 155°
THERMOSTAT Four SECURITE NC 155°
Position: 3
Indicative price: 38.41 €
THERMOSTAT Four SECURITE
THERMOSTAT Four SECURITE
Position: 3
Indicative price: 40.28 €

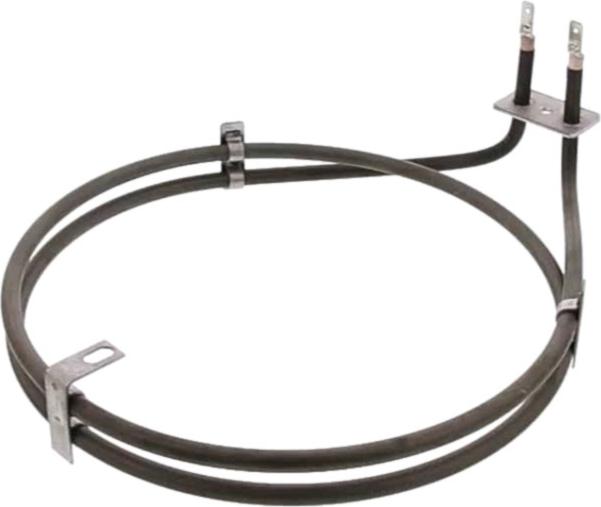

RESISTANCE Four C/T 2000w 397012803 7A29001700203306
RESISTANCE Four C/T 2000w 397012803 7A29001700203306
Position: 10
Indicative price: 35.78 €

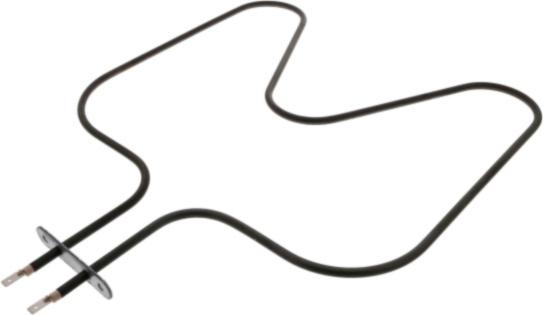

RESISTANCE Cuisinière INFERIEURE 1000w
RESISTANCE Cuisinière INFERIEURE 1000w
Position: 10
Indicative price: 55.05 €

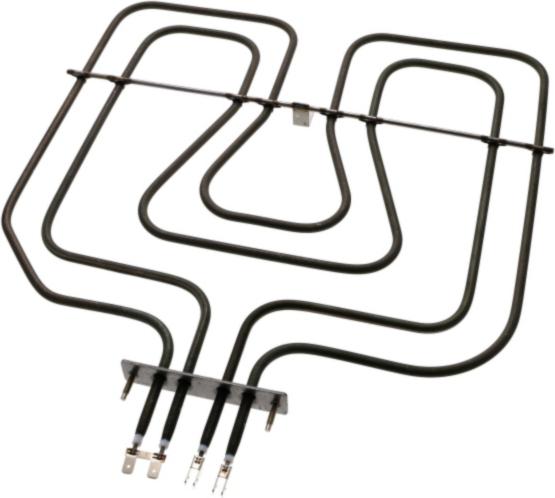

RESISTANCE Four GRILL DOUBLE
RESISTANCE Four GRILL DOUBLE
Position: 10
Indicative price: 96.03 €
RESISTANCE Four 800 ohms
RESISTANCE Four 800 ohms
Position: 10
Indicative price: 8.36 €

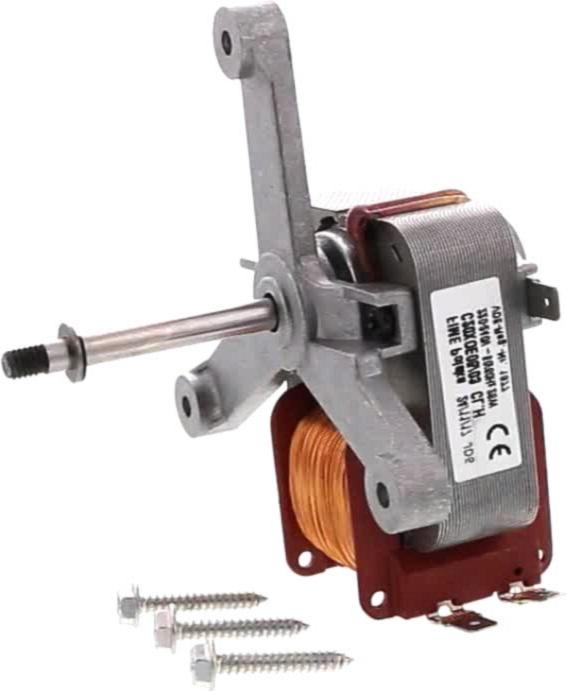

MOTEUR Four CHALEUR TOURNANTE 28W C20XOE05/03
MOTEUR Four CHALEUR TOURNANTE 28W C20XOE05/03
Position: 18
Indicative price: 63.25 €

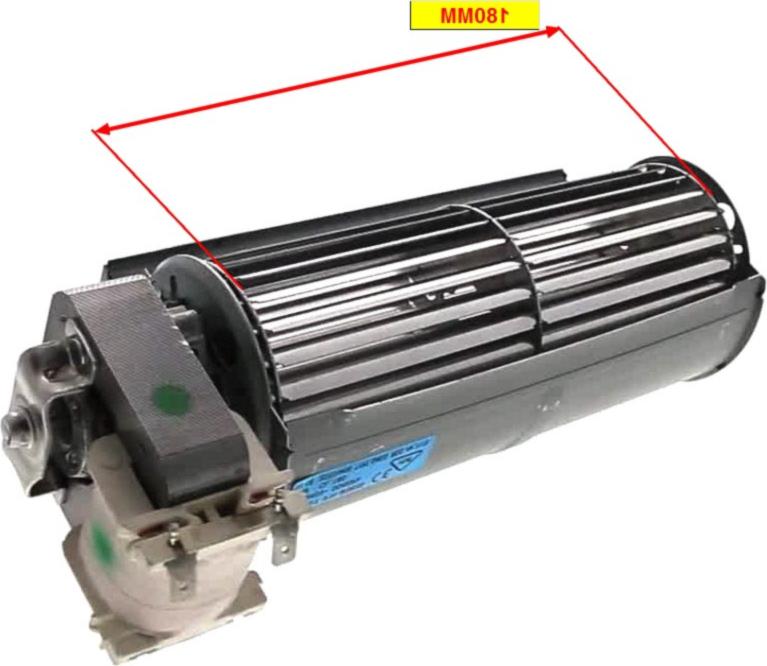

MOTEUR Four TANGENTIEL M3839 24W
MOTEUR Four TANGENTIEL M3839 24W
Position: 18
Indicative price: 114.06 €

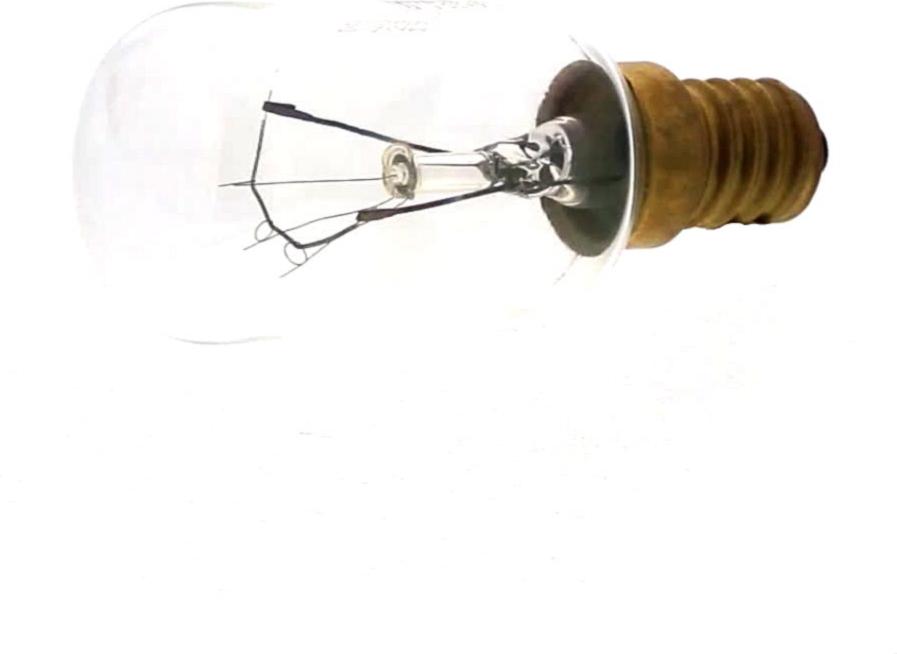

AMPOULE Cuisinière 40W E14 300°
AMPOULE Cuisinière 40W E14 300°
Position: 19
Indicative price: 9.58 €

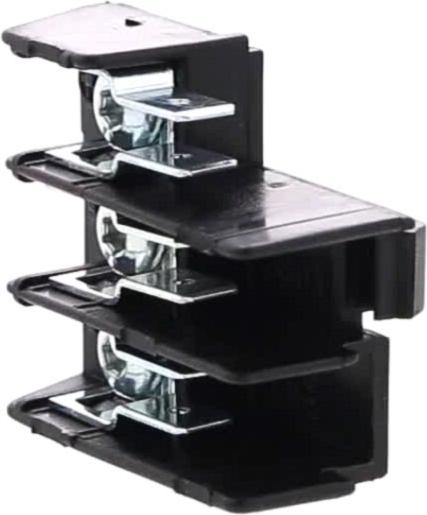

BORNIER Four
BORNIER Four
Position: 37
Indicative price: 17.15 €

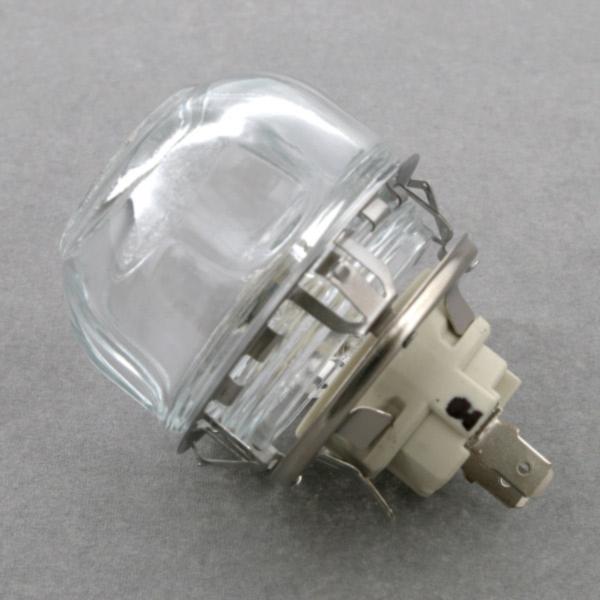

DOUILLE Four COMPLETE
DOUILLE Four COMPLETE
Position: 42
Indicative price: 54.13 €
SONDE Four THERMOSTAT
SONDE Four THERMOSTAT
Position: 48
Indicative price: 60.35 €

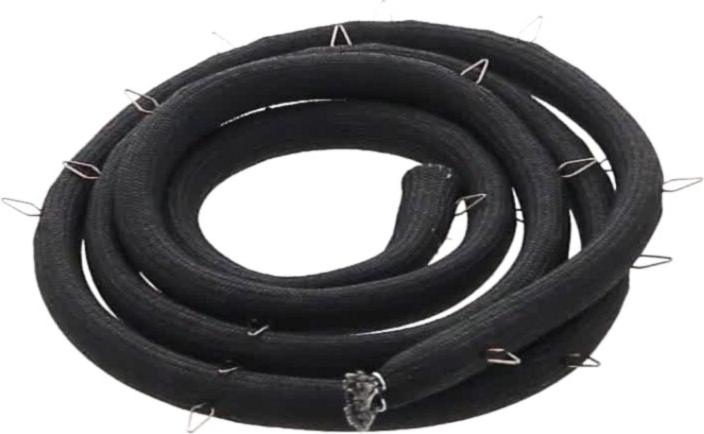

JOINT Cuisinière PORTE
JOINT Cuisinière PORTE
Position: 130
Indicative price: 55.35 €

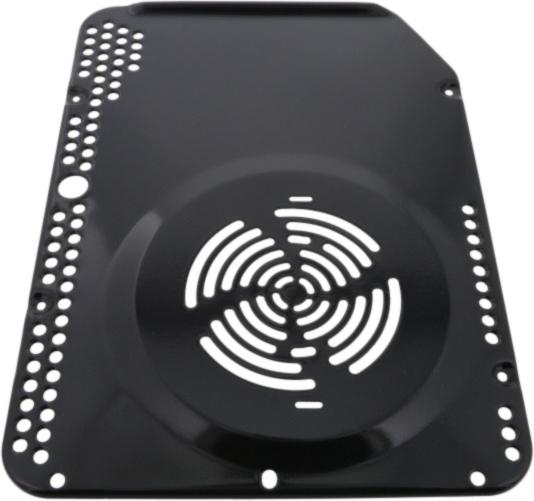

PLAQUE Four FOND DU FOUR
PLAQUE Four FOND DU FOUR
Position: 134
Indicative price: 51.47 €
TURBINE Four VENTILATEUR
TURBINE Four VENTILATEUR
Position: 159
Indicative price: 24.13 €
BUTEE Four BANDEAU VERRE
BUTEE Four BANDEAU VERRE
Position: 251
Indicative price: 7.69 €
CLIPS Four VIS EMBOUT SUPPORT VITRE
CLIPS Four VIS EMBOUT SUPPORT VITRE
Position: 260
Indicative price: 4.89 €
PLAQUE Cuisinière A PATISSERIE 423*370*20
PLAQUE Cuisinière A PATISSERIE 423*370*20
Position: 304
Indicative price: 52.05 €
LECHE FRITE Four 422*471
LECHE FRITE Four 422*471
Position: 304
Indicative price: 65.66 €

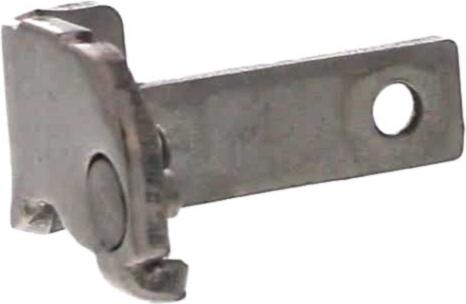

CHARNIERE Four PORTE Inférieur DROITE OU GAUCHE
CHARNIERE Four PORTE Inférieur DROITE OU GAUCHE
Position: 308

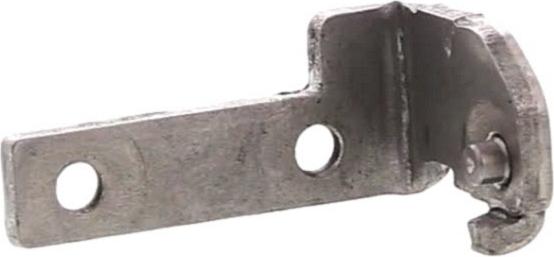

CHARNIERE Four PORTE Supérieur DROITE OU GAUCHE E
CHARNIERE Four PORTE Supérieur DROITE OU GAUCHE E
Position: 308
VITRE Four Intérieure PORTE FOUR E
VITRE Four Intérieure PORTE FOUR E
Position: 312
VITRE Four Extérieure Porte FOUR
VITRE Four Extérieure Porte FOUR
Position: 312
Indicative price: 356.9 €
VITRE Four INTERMEDIAIRE COTE INTERIEUR FOUR
VITRE Four INTERMEDIAIRE COTE INTERIEUR FOUR
Position: 312
Indicative price: 86.43 €
VITRE Four INTERMEDIAIRE COTE VITRE EXTERIEUR
VITRE Four INTERMEDIAIRE COTE VITRE EXTERIEUR
Position: 312
Indicative price: 96.32 €
GRILLE Four FOUR
GRILLE Four FOUR
Position: 320
Indicative price: 32.33 €

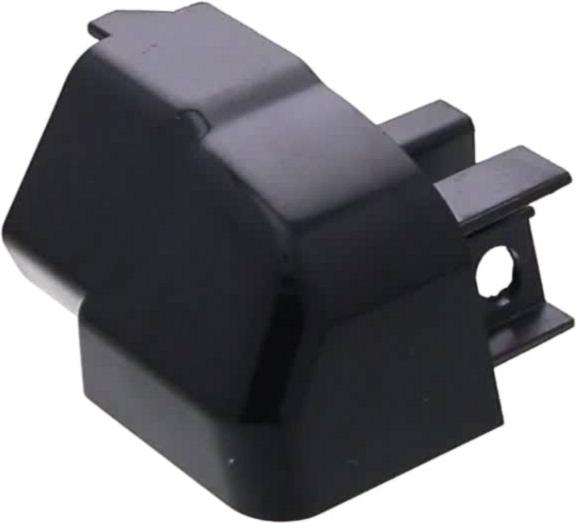

EMBOUT Four Supérieur GAUCHE PORTE
EMBOUT Four Supérieur GAUCHE PORTE
Position: 338

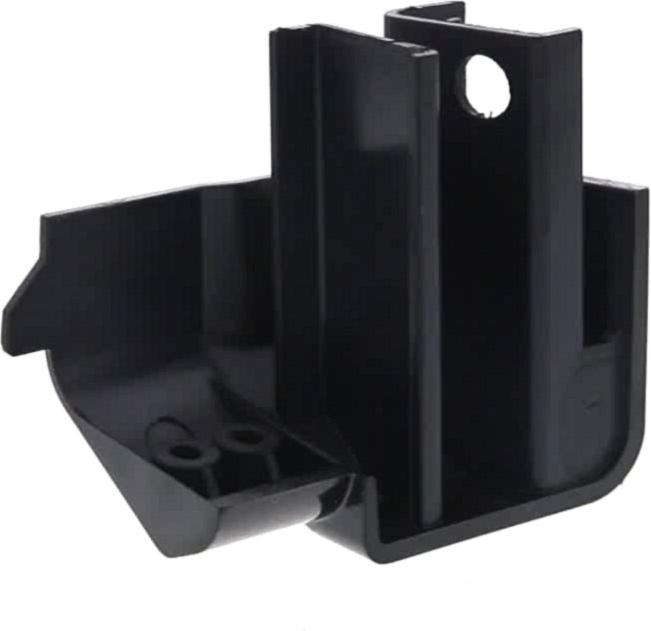

EMBOUT Four Supérieur Droit PORTE FOUR
EMBOUT Four Supérieur Droit PORTE FOUR
Position: 338

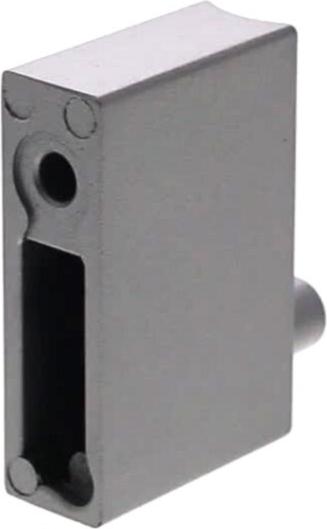

EMBOUT Four POIGNEE INOX
EMBOUT Four POIGNEE INOX
Position: 338
Indicative price: 38.53 €
SUPPORT Four Inférieur Gauche
SUPPORT Four Inférieur Gauche
Position: 338
Indicative price: 24.02 €
SUPPORT Four Inférieur Droit
SUPPORT Four Inférieur Droit
Position: 338
Indicative price: 22.36 €
ENTRETOISE Four VITRE/POIGNEE
ENTRETOISE Four VITRE/POIGNEE
Position: 514
Indicative price: 5.5 €

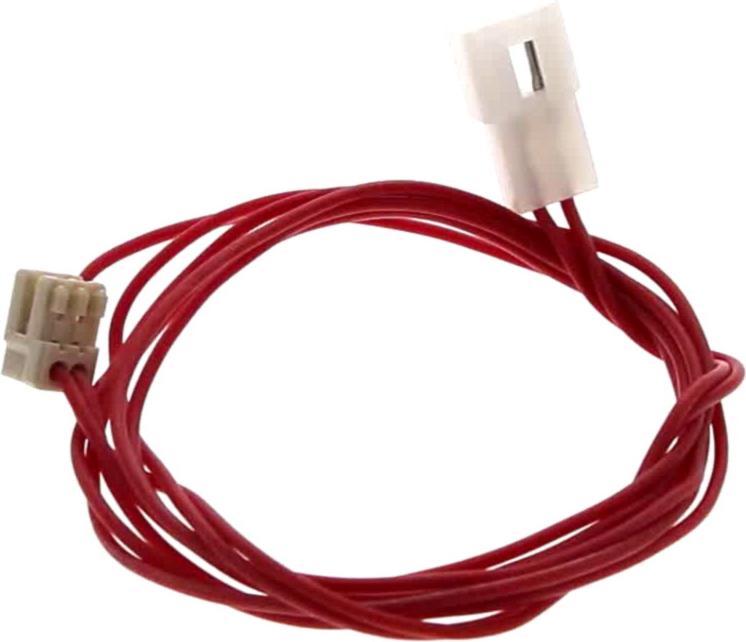

CABLE Four CAPTEUR FOUR PRINCIPAL
CABLE Four CAPTEUR FOUR PRINCIPAL
Position: 518
Indicative price: 31.71 €
CABLAGE Four PLATINE AFFICHAGE
CABLAGE Four PLATINE AFFICHAGE
Position: 518
Indicative price: 32.67 €
SUPPORT Froid CHARNIERE GAUCHE
SUPPORT Froid CHARNIERE GAUCHE
Position: 523
Indicative price: 8.1 €
KIT Four BUTEE SUPPORT PLATINE PUISSANCE
KIT Four BUTEE SUPPORT PLATINE PUISSANCE
Position: 523
Indicative price: 17.61 €
ECROU Four TURBINE
ECROU Four TURBINE
Position: 527
Indicative price: 16.05 €
VIS Four EMBOUT SUPPORT VITRE
VIS Four EMBOUT SUPPORT VITRE
Position: 531
Indicative price: 6.89 €
FERMETURE Four
FERMETURE Four
Position: 563
Indicative price: 34.47 €

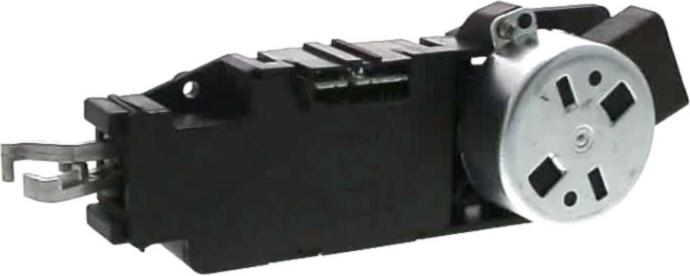

SERRURE Four PORTE FOUR
SERRURE Four PORTE FOUR
Position: 580
Indicative price: 40.1 €
MODULE Four PUISSANCE
MODULE Four PUISSANCE
Position: 587
Indicative price: 163.16 €
