Exploded view lave linge BELLAVITA WF1407A+++WMIC 950771

Discover the complete exploded view lave linge BELLAVITA WF1407A+++WMIC 950771, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BELLAVITA WF1407A+++WMIC 950771 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

DESSUS Lave-Linge TOP
DESSUS Lave-Linge TOP
Position: 1
Indicative price: 78.74 €
CABLE Lave-Linge ALIMENTATION 3 FILS
CABLE Lave-Linge ALIMENTATION 3 FILS
Position: 3
Indicative price: 40.6 €
TUYAU Lave-Linge VIDANGE
TUYAU Lave-Linge VIDANGE
Position: 5
Indicative price: 20.33 €

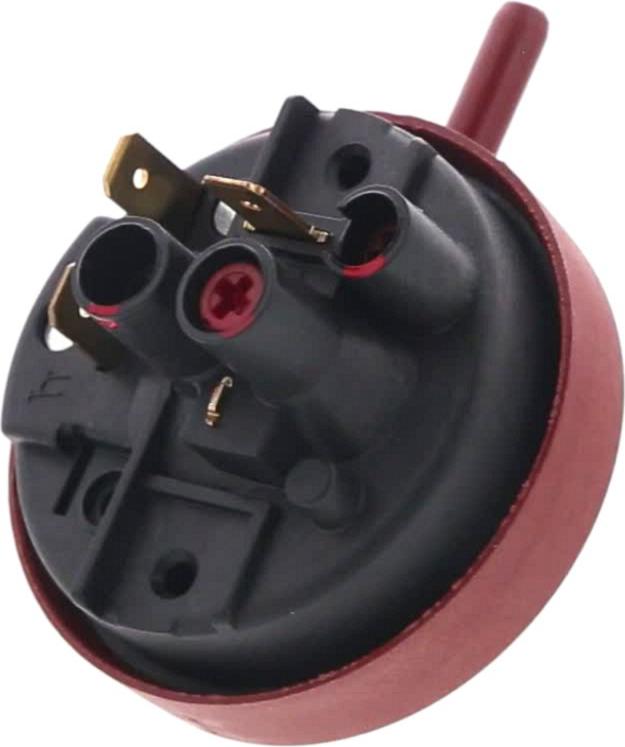

PRESSOSTAT Lave-Linge
PRESSOSTAT Lave-Linge
Position: 8
Indicative price: 28.26 €
SECURITE Lave-Linge PORTE 170507 00647
SECURITE Lave-Linge PORTE 170507 00647
Position: 9
Indicative price: 31.5 €
TRAPPE Lave-Linge VIDANGE
TRAPPE Lave-Linge VIDANGE
Position: 12
Indicative price: 15.35 €
COLLIER Lave-Linge AVANT JOINT HUBLOT
COLLIER Lave-Linge AVANT JOINT HUBLOT
Position: 13
Indicative price: 19.58 €
CHARNIERE Lave-Linge PORTE
CHARNIERE Lave-Linge PORTE
Position: 14
Indicative price: 31.7 €

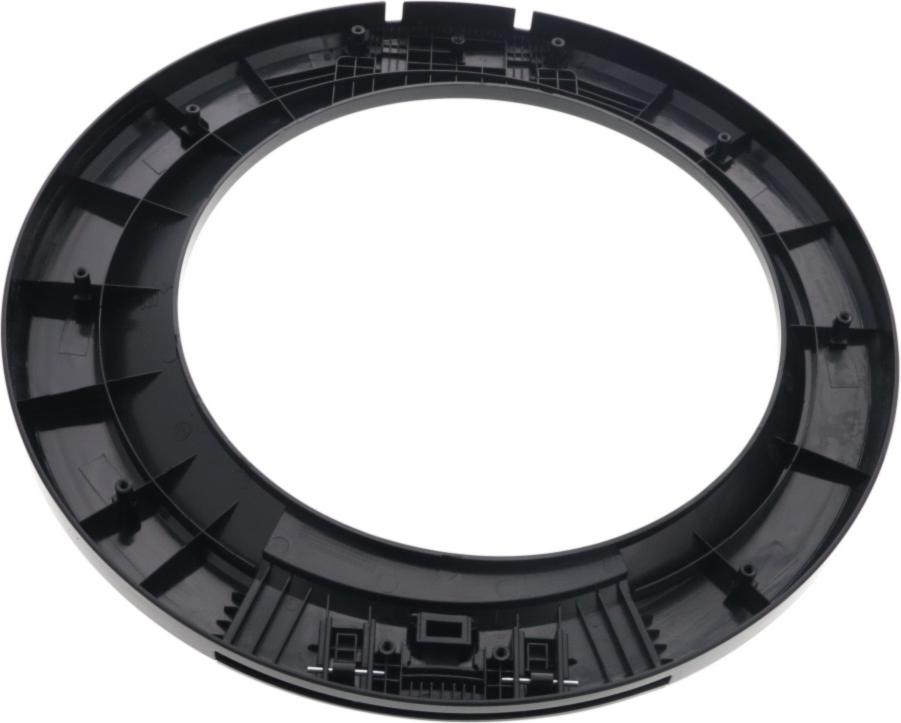

ENJOLIVEUR Lave-Linge HUBLOT + POIGNEE NOIR FG80-S14-C1805E-6011 MS32W325140008
ENJOLIVEUR Lave-Linge HUBLOT + POIGNEE NOIR FG80-S14-C1805E-6011 MS32W325140008
Position: 21
Indicative price: 73.08 €
SUPPORT Lave-Linge CROCHET VERROUILLAGE
SUPPORT Lave-Linge CROCHET VERROUILLAGE
Position: 22
Indicative price: 7.08 €
RESSORT Lave-Linge DOIGT VERROUILLAGE
RESSORT Lave-Linge DOIGT VERROUILLAGE
Position: 23
Indicative price: 6.76 €
AXE Lave-Linge DOIGT VERROUILLAGE 35MM
AXE Lave-Linge DOIGT VERROUILLAGE 35MM
Position: 24
Indicative price: 8.22 €
CROCHET Lave-Linge PORTE
CROCHET Lave-Linge PORTE
Position: 25
Indicative price: 14.19 €
CHARNIERE Lave-Linge HUBLOT 154MM (ENTRAXE 135MM) WM008600082
CHARNIERE Lave-Linge HUBLOT 154MM (ENTRAXE 135MM) WM008600082
Position: 26
Indicative price: 31.49 €
CONTRE PORTE Lave-Linge HUBLOT MS32W325140003 EU(A3)-FG80-S14-C1805E-602
CONTRE PORTE Lave-Linge HUBLOT MS32W325140003 EU(A3)-FG80-S14-C1805E-602
Position: 27
Indicative price: 34.79 €
HUBLOT Lave-Linge VERRE
HUBLOT Lave-Linge VERRE
Position: 28
Indicative price: 55.95 €
LOGEMENT Lave-Linge RESSORT
LOGEMENT Lave-Linge RESSORT
Position: 29
Indicative price: 6.22 €
CONDENSATEUR Lave-Linge ANTIPARASITE DNF06-Q(THHA) 0.47+0.33UF
CONDENSATEUR Lave-Linge ANTIPARASITE DNF06-Q(THHA) 0.47+0.33UF
Position: 30
Indicative price: 33.05 €
BOITE Lave-Linge PRODUIT
BOITE Lave-Linge PRODUIT
Position: 31
Indicative price: 47.03 €
TIROIR Lave-Linge PRODUIT MFG60-ES1001_A0748E-006011
TIROIR Lave-Linge PRODUIT MFG60-ES1001_A0748E-006011
Position: 32
Indicative price: 25.84 €

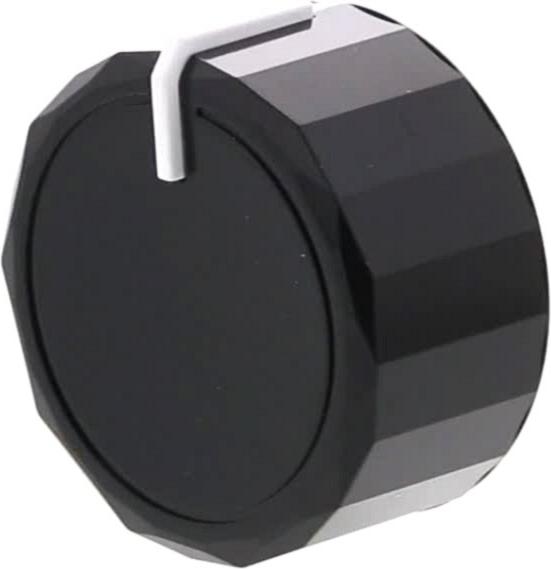

MANETTE Lave-Linge SELECTEUR
MANETTE Lave-Linge SELECTEUR
Position: 34
Indicative price: 14.08 €
PLATINE Lave-Linge DISPLAY
PLATINE Lave-Linge DISPLAY
Position: 37
Indicative price: 46.54 €

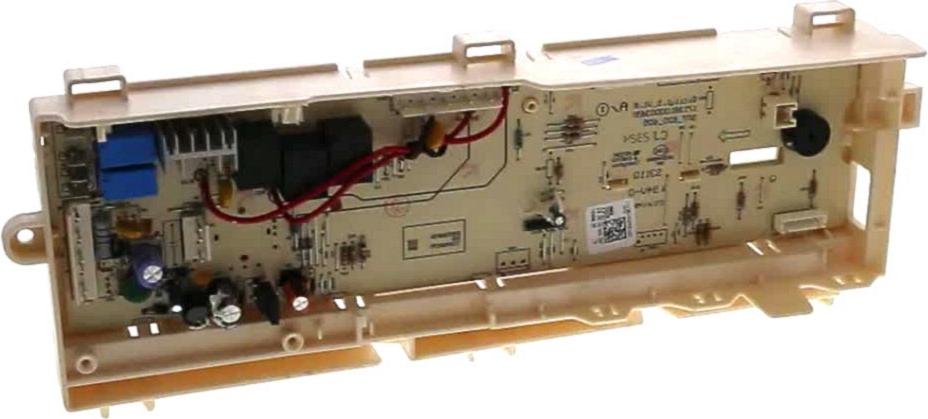

PLATINE Lave-Linge COMMANDE
PLATINE Lave-Linge COMMANDE
Position: 38
Indicative price: 112.62 €
ELECTROVANNE Lave-Linge 2 VOIES
ELECTROVANNE Lave-Linge 2 VOIES
Position: 39
Indicative price: 35.18 €
DURITE Lave-Linge CUVE/BOITE PRODUIT
DURITE Lave-Linge CUVE/BOITE PRODUIT
Position: 40
Indicative price: 31.02 €
RESSORT Lave-Linge CUVE
RESSORT Lave-Linge CUVE
Position: 41
Indicative price: 18.64 €
POULIE Lave-Linge 296MM MFS60-10401-3119
POULIE Lave-Linge 296MM MFS60-10401-3119
Position: 43
Indicative price: 39.11 €
COURROIE Lave-Linge 5EPJ1281 302730660008
COURROIE Lave-Linge 5EPJ1281 302730660008
Position: 44
Indicative price: 33.95 €
PALIER Lave-Linge COMPLET
PALIER Lave-Linge COMPLET
Position: 47
Indicative price: 41.29 €
CUVE Lave-Linge 1/2 ARRIERE
CUVE Lave-Linge 1/2 ARRIERE
Position: 48
Indicative price: 177.68 €
JOINT Lave-Linge CUVE
JOINT Lave-Linge CUVE
Position: 49
Indicative price: 18.39 €
AXE Lave-Linge AMORTISSEUR
AXE Lave-Linge AMORTISSEUR
Position: 51
Indicative price: 10.2 €
MOTEUR Lave-Linge UMT5204.02
MOTEUR Lave-Linge UMT5204.02
Position: 52
Indicative price: 128.45 €
AMORTISSEUR Lave-Linge
AMORTISSEUR Lave-Linge
Position: 53
Indicative price: 19.29 €
DURITE Lave-Linge CUVE/POMPE/PRESSOSTAT
DURITE Lave-Linge CUVE/POMPE/PRESSOSTAT
Position: 55
Indicative price: 33.87 €
TUYAU Lave-Linge ARRIVEE EAU
TUYAU Lave-Linge ARRIVEE EAU
Position: 57
Indicative price: 24.34 €
POMPE VIDANGE Lave-Linge
POMPE VIDANGE Lave-Linge
Position: 59
Indicative price: 40.65 €
COLLIER Lave-Linge ARRIERE JOINT HUBLOT
COLLIER Lave-Linge ARRIERE JOINT HUBLOT
Position: 60
Indicative price: 21.38 €
JOINT Lave-Linge HUBLOT TG90-1416MPDG-3047 SANS DURITE
JOINT Lave-Linge HUBLOT TG90-1416MPDG-3047 SANS DURITE
Position: 61
Indicative price: 61.41 €
RESISTANCE Lave-Linge 1800w + SONDE
RESISTANCE Lave-Linge 1800w + SONDE
Position: 62
Indicative price: 44.67 €
CUVE Lave-Linge 1/2 AVANT
CUVE Lave-Linge 1/2 AVANT
Position: 63
Indicative price: 85.83 €
TAMBOUR Lave-Linge COMPLET
TAMBOUR Lave-Linge COMPLET
Position: 64
Indicative price: 160.41 €
