Exploded view lave linge BELLAVITA WF1214A+++W566C 957356

Discover the complete exploded view lave linge BELLAVITA WF1214A+++W566C 957356, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BELLAVITA WF1214A+++W566C 957356 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

CABLE Lave-Linge ALIMENTATION 3 FILS
CABLE Lave-Linge ALIMENTATION 3 FILS
Position: 3
Indicative price: 37.98 €
TUYAU Lave-Linge VIDANGE
TUYAU Lave-Linge VIDANGE
Position: 5
Indicative price: 19.4 €
PRESSOSTAT Lave-Linge
PRESSOSTAT Lave-Linge
Position: 7
Indicative price: 27.96 €
SECURITE Lave-Linge PORTE
SECURITE Lave-Linge PORTE
Position: 8
Indicative price: 24.27 €
POMPE VIDANGE Lave-Linge
POMPE VIDANGE Lave-Linge
Position: 9
Indicative price: 36.64 €
TRAPPE Lave-Linge VIDANGE
TRAPPE Lave-Linge VIDANGE
Position: 10
Indicative price: 16.75 €
PANNEAU Lave-Linge FACADE
PANNEAU Lave-Linge FACADE
Position: 11
Indicative price: 87.13 €
SUPPORT Lave-Linge CHARNIERE
SUPPORT Lave-Linge CHARNIERE
Position: 11
Indicative price: 10.54 €
COLLIER Lave-Linge JOINT HUBLOT FACADE
COLLIER Lave-Linge JOINT HUBLOT FACADE
Position: 12
Indicative price: 10.1 €
PIED Lave-Linge M10
PIED Lave-Linge M10
Position: 13
Indicative price: 10.21 €
LOGEMENT Lave-Linge RESSORT
LOGEMENT Lave-Linge RESSORT
Position: 16
Indicative price: 6.15 €
CONDENSATEUR Lave-Linge ANTIPARASITE DNF06-Q(THHA) 0.47+0.33UF
CONDENSATEUR Lave-Linge ANTIPARASITE DNF06-Q(THHA) 0.47+0.33UF
Position: 18
Indicative price: 33.1 €
CHARNIERE Lave-Linge HUBLOT 154MM (ENTRAXE 135MM) WM008600082
CHARNIERE Lave-Linge HUBLOT 154MM (ENTRAXE 135MM) WM008600082
Position: 19
Indicative price: 25.99 €
HUBLOT Lave-Linge VERRE D347MM H108MM 1 ENCOCHE
HUBLOT Lave-Linge VERRE D347MM H108MM 1 ENCOCHE
Position: 19
Indicative price: 67.47 €
CROCHET Lave-Linge PORTE
CROCHET Lave-Linge PORTE
Position: 19
Indicative price: 15.09 €
HUBLOT Lave-Linge COMPLET GRIS D488M H137MM
HUBLOT Lave-Linge COMPLET GRIS D488M H137MM
Position: 19
Indicative price: 98.3 €
BOITE Lave-Linge PRODUIT + DURITE
BOITE Lave-Linge PRODUIT + DURITE
Position: 20
Indicative price: 58.98 €
TIROIR Lave-Linge BOITE A LESSIVE MF660-AS100A_A074BE006011
TIROIR Lave-Linge BOITE A LESSIVE MF660-AS100A_A074BE006011
Position: 21
Indicative price: 22.35 €

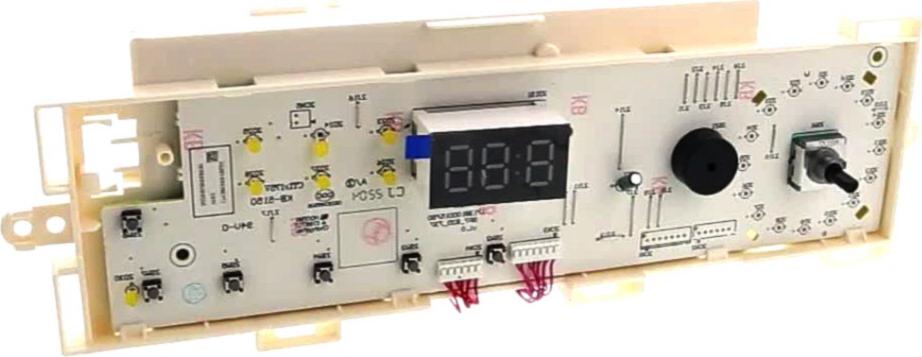

PLATINE Lave-Linge COMMANDE+AFFICHAGE
PLATINE Lave-Linge COMMANDE+AFFICHAGE
Position: 25
Indicative price: 128.59 €
ELECTROVANNE Lave-Linge 2 VOIES
ELECTROVANNE Lave-Linge 2 VOIES
Position: 26
Indicative price: 30.87 €
DURITE Lave-Linge CUVE-PPE
DURITE Lave-Linge CUVE-PPE
Position: 27
Indicative price: 34.81 €
Contre-poids Lave-Linge AVANT ensemble de 2
Contre-poids Lave-Linge AVANT ensemble de 2
Position: 28
Indicative price: 88.53 €
VIS Lave-Linge CONTRE POIDS
VIS Lave-Linge CONTRE POIDS
Position: 29
Indicative price: 5.81 €

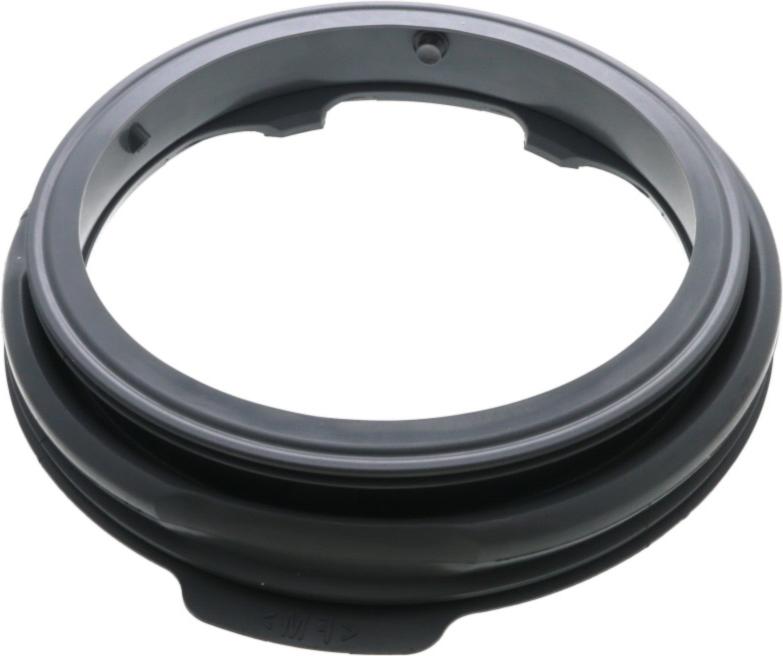

JOINT Lave-Linge HUBLOT
JOINT Lave-Linge HUBLOT
Position: 31
Indicative price: 49.58 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 32
Indicative price: 5.28 €
DURITE Lave-Linge CUVE-BOITE
DURITE Lave-Linge CUVE-BOITE
Position: 34
Indicative price: 28 €
TAMBOUR Lave-Linge COMPLET
TAMBOUR Lave-Linge COMPLET
Position: 35
Indicative price: 198.02 €
JOINT Lave-Linge PALIER 47*88 10/12
JOINT Lave-Linge PALIER 47*88 10/12
Position: 36
Indicative price: 21.6 €
ROULEMENT Lave-Linge 6306ZZ BB1-0736DB/+
ROULEMENT Lave-Linge 6306ZZ BB1-0736DB/+
Position: 37
Indicative price: 18.99 €
ROULEMENT Lave-Linge 6307ZZ
ROULEMENT Lave-Linge 6307ZZ
Position: 37
Indicative price: 22.04 €
Contre-poids Lave-Linge SUPERIEUR
Contre-poids Lave-Linge SUPERIEUR
Position: 38
Indicative price: 51.57 €
RESSORT Lave-Linge CUVE
RESSORT Lave-Linge CUVE
Position: 39
Indicative price: 19.17 €
COURROIE Lave-Linge 1274JE6
COURROIE Lave-Linge 1274JE6
Position: 40
Indicative price: 41.18 €
VIS Lave-Linge POULIE TAMBOUR
VIS Lave-Linge POULIE TAMBOUR
Position: 41
Indicative price: 10.13 €
POULIE Lave-Linge
POULIE Lave-Linge
Position: 42
Indicative price: 36.37 €
CUVE Lave-Linge 1/2 ARRIERE
CUVE Lave-Linge 1/2 ARRIERE
Position: 43
Indicative price: 205.49 €
RESISTANCE Lave-Linge 1800w + SONDE
RESISTANCE Lave-Linge 1800w + SONDE
Position: 44
Indicative price: 44.19 €
AXE Lave-Linge AMORTISSEUR
AXE Lave-Linge AMORTISSEUR
Position: 46
Indicative price: 8.65 €
AMORTISSEUR Lave-Linge
AMORTISSEUR Lave-Linge
Position: 47
Indicative price: 18.48 €
MOTEUR Lave-Linge WELLING ZXGN-420-8-30L
MOTEUR Lave-Linge WELLING ZXGN-420-8-30L
Position: 48
Indicative price: 446.39 €
FILTRE Lave-Linge MOTEUR BOBINE
FILTRE Lave-Linge MOTEUR BOBINE
Position: 49
Indicative price: 35.06 €
